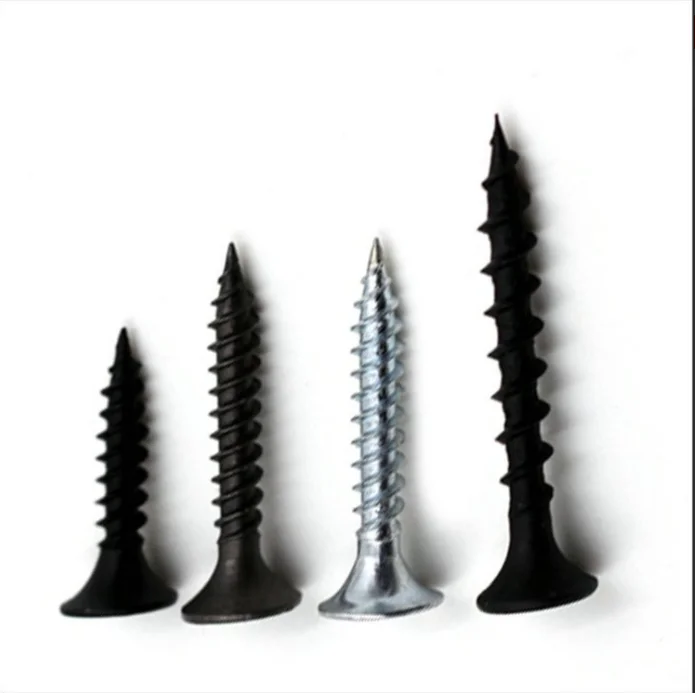

Фосфатирующий крест для ногтей гипсокартона, самонарезающие винты для деревообработки, грубая резьба, черный гипсокартонный винт с тонкой резьбой
2,24-3,35 ₽
Высокопрочный поворотный подъемник с боковым тяговым моментом
- Категория: >>>
- Поставщик: Qingdao Maxim International Import And Export Co. Ltd.Qingdao Ltd.
Сохранить в закладки 60809448082:
Описание и отзывы
Характеристики
Product Description

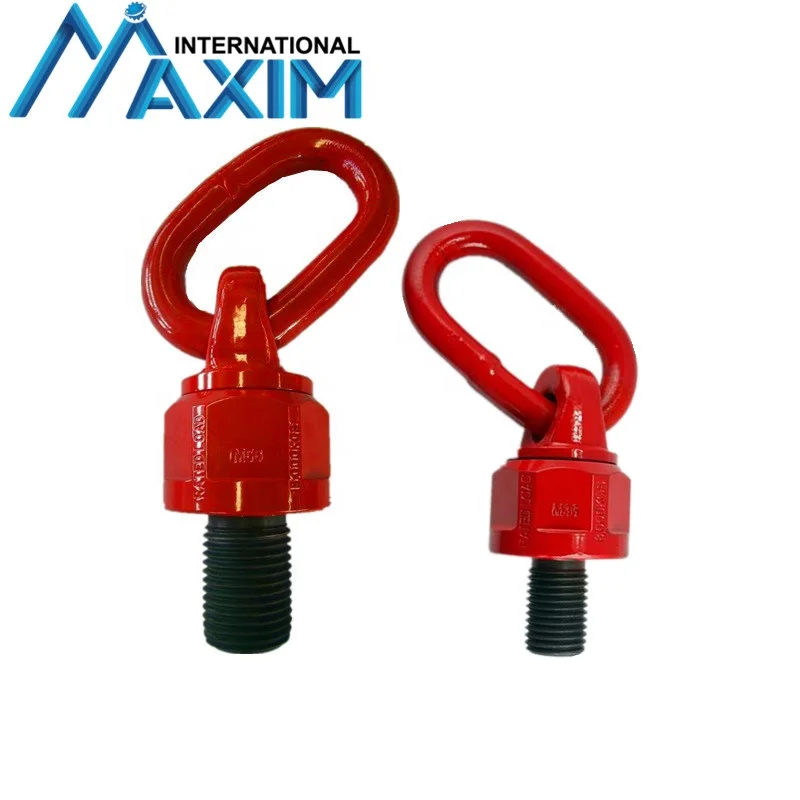

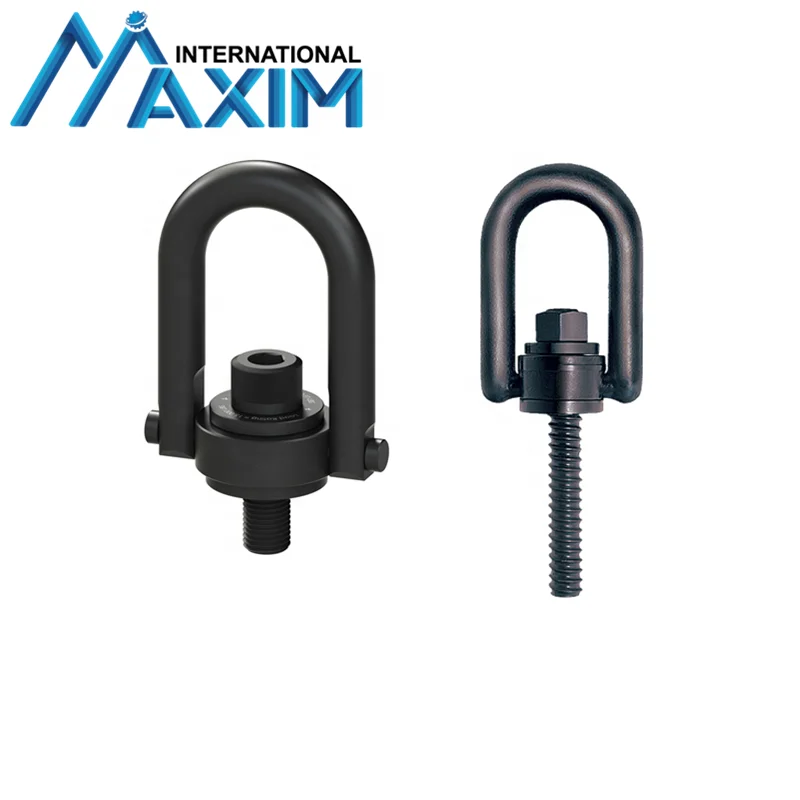

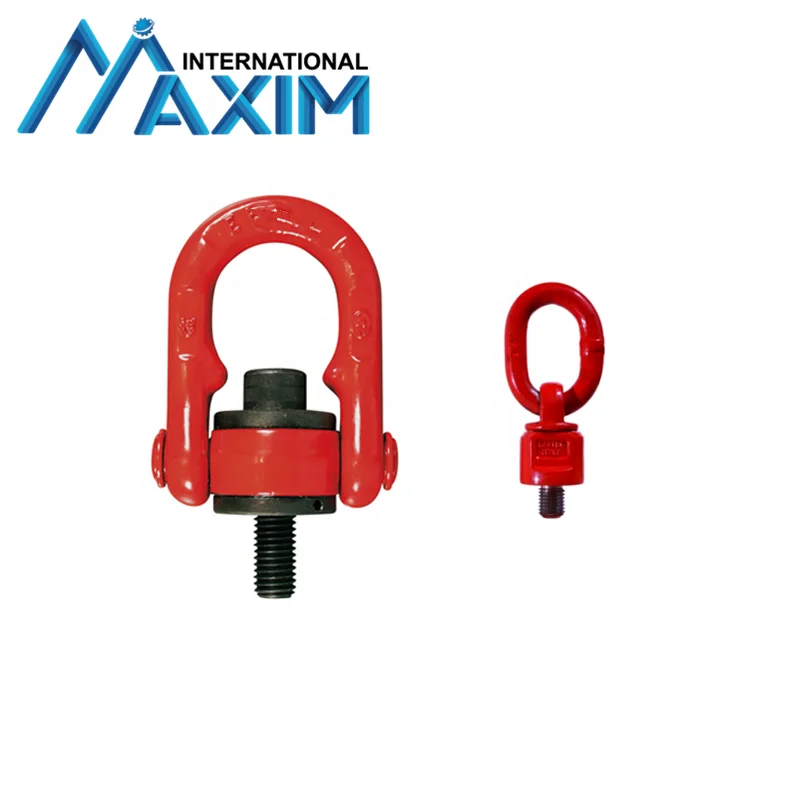

High Tensile Side Pull Swivel Hoist Ring Rotating Lifting Point
Introduction:
G80 swivel eye with hoist ring is most commonly used for lifting and load restraint applications. There are different options with different sizes and capacities from M8-M100 (0.6-50TON). Adjustable in different direction of pull. A plane bolting surface guaranteed. The material to which the lifting point is attached should be adequate strength to withstand forces during lifting without deformation. With captive screw.
Not intended to rotate under loadEquipped with ball bearing,360°rotation.
Can be loaded in all directions with a safety factor of 4 times;
Oblong ring manufactured according to DIN1677-4 grade 80;
Can be loaded in all directions with a safety factor of 4 times;
Oblong ring manufactured according to DIN1677-4 grade 80;
Specifications:
1. grade:G80
2.Material:alloy steel
3.Process:drop forged
4.Surface:powder coated
5.W.l.l:0.6-50t
6.Usage:lifting
7.Size:8mm-100mm
2.Material:alloy steel
3.Process:drop forged
4.Surface:powder coated
5.W.l.l:0.6-50t
6.Usage:lifting
7.Size:8mm-100mm
Features:
Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested - 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Grade 80
Proof Tested - 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
Grade 80
Highly efficient operation
Excellent tensile strength
Good protection against breakage in all directions
Excellent tensile strength
Good protection against breakage in all directions
This product has a rated WLL but is subject to the correct welding procedure being carried out by a suitably qualified welder.
This Lifting Point is ideally suitable for lifting and lashing applications such as excavators, low loaders, lifting beams etc.....
Widely used on farm machinery, trucks, steel hulled marine vessels nd material handling equipment.
SPECIFICATION FOR rotating lifting point | ||||||||
CODE | SIZE | W.L.L.90°(t) | W.L.L.0°(t) | WEIGHT(kg) | ||||
MR010 | M8*13 | 0.3 | 0.6 | 0.43 | ||||
MR011 | M10*19 | 0.45 | 0.9 | 0.45 | ||||
MR012 | M12*19 | 0.5 | 1 | 0.46 | ||||
MR013 | M12*31.8 | 0.5 | 1 | 0.47 | ||||
MR014 | M14*22 | 1.12 | 2 | 0.48 | ||||
........ | ........ | ........ | ........ | ........ | ||||
MR033 | M56*84 | 15 | 20 | 8.1 | ||||
MR034 | M60*90 | 15 | 20 | 8.85 | ||||
MR035 | M64*95 | 15 | 20 | 9 | ||||
MR036 | M72*108 | 25 | / | 22.8 | ||||
MR037 | M80*120 | 30 | / | 23.9 | ||||
MR038 | M90*135 | 35 | / | 25 | ||||
different color can be available for different snatch block pulleys
size and special function of snatch block pulleys can be met.
samples can be provided for test.
Lifting points are made to be welded on and are designed for a fixed anchor lifting point.
Because of its excellent welding quality, the weld-on lifting point is ideally used on trucks, steel, marine vessels and material handling equipment.
They has a dismountable D-ring to enable assembly of roundsling, master link or hook directly onto the lifting point. The disassembly is an easy turn of the D-ring, no tools are needed.
It is a very versatile lifting point and can safely be used for most applications. The ball-bearings allow the load to be rotated during the lift, which is especially good when maintenance is needed on heavy tools and other types of equipment.
Related Products
YOU MAY ALSO LIKE: CLICK NOW!
Detailed Images
high tensile alloy steel , forged, quenched&tempered. Durable working performance.
SWL and Metric size in the body center.
CE certified logo;
rated load in KG
Metric standard rolling thread
FAQ
Typical questions asked about products:
- - Is the item durable?
Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is alloy steel. Each parts were also powder coated in a correct thickness to avoid the rust during working .
- - Is this item easy to use?
Dear customer, Yes, they are. The swrap parts can be moved in 360 degree after welding, and there is a lockable spring inside the wrap, to lifting and lashing more convenient and flexible and safe.
- Can I just buy 1 set? As I only need one set for now.
Sure, its no problem, just pls bear the air transportation cost.
Packing & Delivery
Packaging | ||
Packaging Details | 1rotating lifting point is packaged by plastic bag first, then put them into cartons . 2Cartons were packaged into the pallet,PP strap, film, pallet mark to keep package stonger 3.We have them in store. | |
Shipment | ||
Shipping Details | 2.Shipment to your door address is available. 3.15 days can be shipped in usual. 4.Ocean, air, train all is no problem. | |
Our Company
About US
Lifting Equipment,Trailer Equipment and Industrial Supplies, Qingdao Maxim International Import And Export Co.,ltd, has been servicing all industries including manufacturing industry,oil mining,port&road construction, marine, machinery,ocean projects,logistic,car&truck industry and other engineering requirements since 2003.Independently owned and operated the company has had substantial growth and has become one of the largest suppliers of industry equipment in China.
We are factory for rigging and trailer parts in past years, based on over 15 years' products experience and supplier resources in domestic markets, we found the best and high efficiency service way for customers gradually------one-stop service station,so Maxim International was borned. We are an "Industrial Warehouse", with all your requirements catered for and speedy deliveries to global customers.
Be honest, be sincere ,be your best consultant and supplier. Providing the most suitable Chinese products as you required.
*over 15 years production experience *products exporting in the past 11years *24hours online service *Qualified quality gurantee *Acceptable price * stronger QC and sales team * very good relationship with other old professional lifting factories in lifting&trailer industry.
Our Service
One-stop service station for your whole industry.
Dear customer,
you can find almost all lifting& trailer products you need in we Maxim International, you can buy and ship all of them from us for only one time , we will update the order processing of all to you on time. So, we are pleasure to be your warehouse and purchase office in China .
Providing the most suitable Chinese products as you required quickly.
Dear customers,
there are many Chinese suppliers of each item in website, you don't need to inquiry over 3 or more suppliers of each, just tell us your requirements: quality level, purchase budget, brand, package, details, we will match the most suitable products for you based on our domestic and industry resources.
Qualified Quality is the first condition for business.
Dear customers,
Higher or superior top quality depends on your different truth daily-working requirements, what the basic step we have to do is to make the products qualified first.
-----Be honest, be sincere ,be your best consultant and supplier. We do the best as what we can, we tell you the truth what we can't reach, and providing sincere advice for you.
Похожие товары
HLM бесплатный образец ISO Сертификация меди 22 мм медный кабель наконечника
0,10-0,80 $

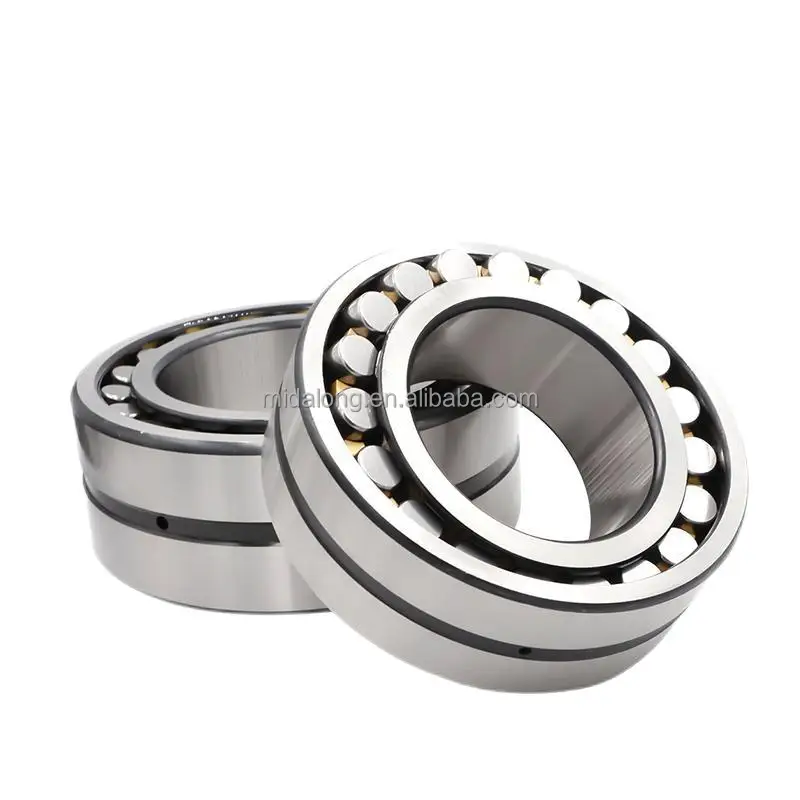

Самоустанавливающийся роликовый вафандийский подшипник 22315 22316 22317 22318 22319 22320CAW33
17,79 $

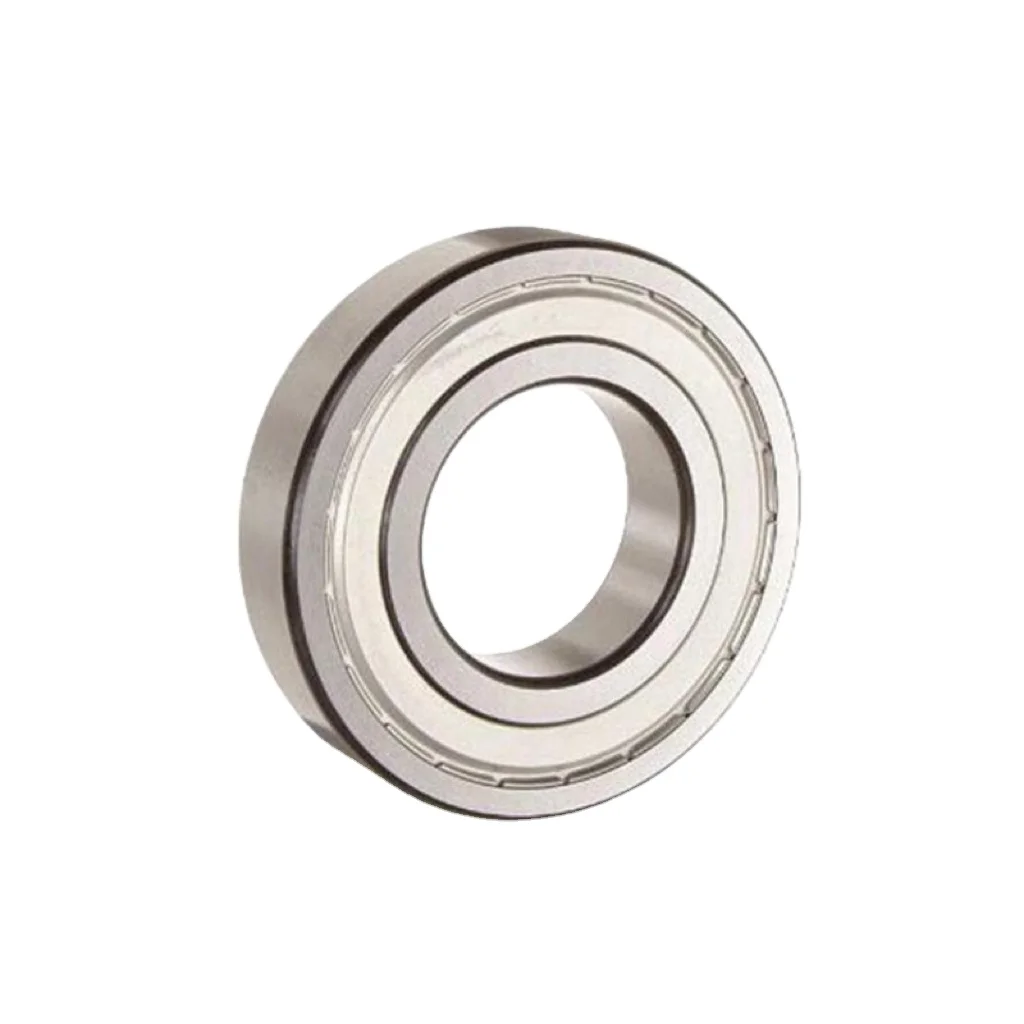

DZD оптовая продажа с завода радиальный шарикоподшипник из нержавеющей стали 6308 6309 6310 2rs zz подшипник для грузового сельскохозяйственного оборудования
0,16-0,18 $

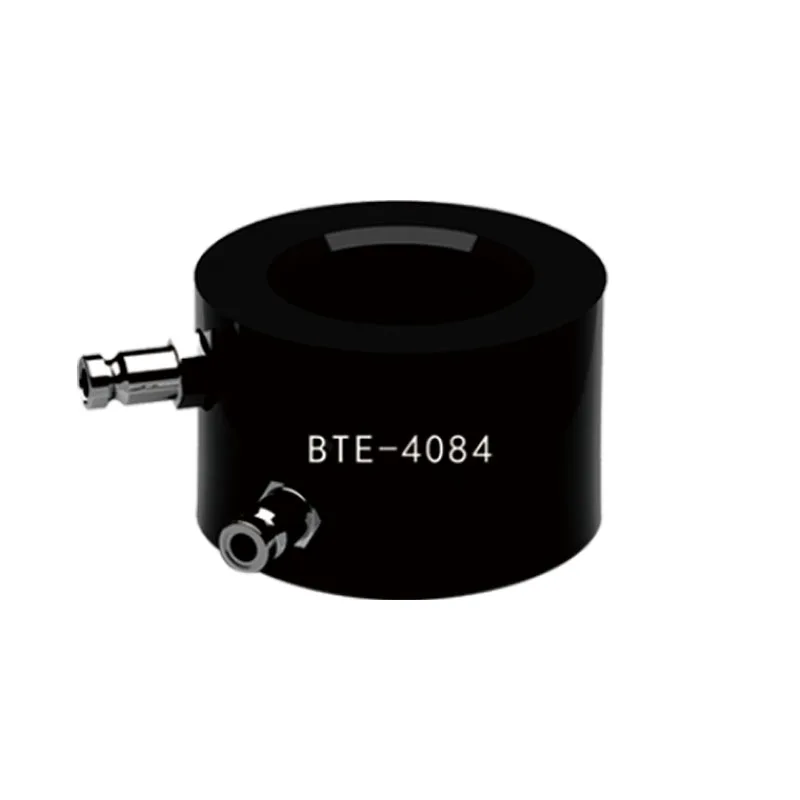

Адаптер BOTEN EUI/EUP для BTE-4084 Benz Acego
