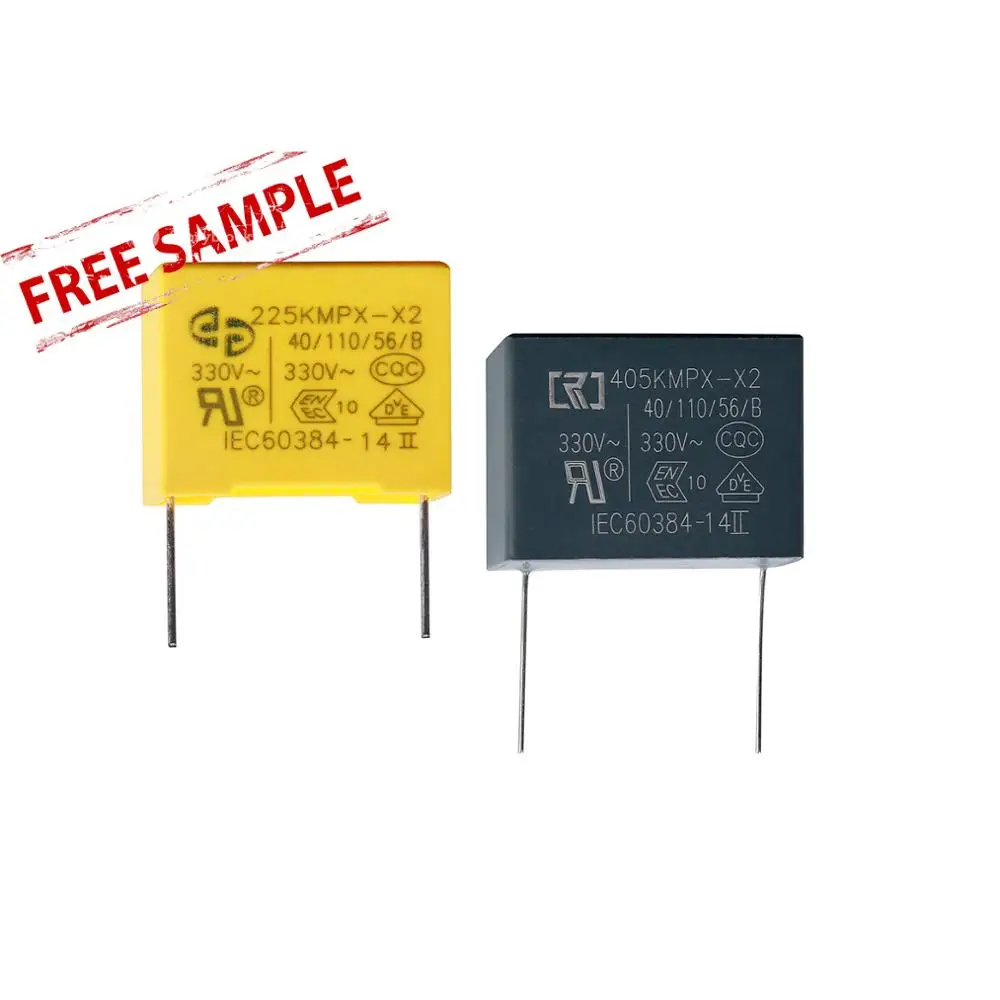

EMI стойкость X2 конденсаторы MPX флимный конденсатор для PCBA VDE UL ENEC CQC
- Категория: >>>
- Поставщик: Shenzhen Chuangrong New Energy Co. Ltd.
Сохранить в закладки 60809585630:
Описание и отзывы
Характеристики
| Specification data |
| Product Name |
EMI Suppression Capacitors X2 Series
|
| Constructions & Materials |
Dielectric: Metallized Polypropylene(PP) Film Terminal: Tinned CP wire Filling: Flame-retardant Epoxy resin Case: plastic case
|
| Rated Voltage range |
275/330VAC
|
| Capacitance range |
0.001uF ~ 10 uF
|
| Capacitance tolerances |
± 5%(J), ± 10% (K) (1KHz)
|
| Withstanding voltage |
4.3Ur(2S)
|
| Dissipation factor |
≤10×10-4 (20℃;1KHz)
|
| Insulation Resistance |
Un>100V, Cn≤ 0.33 uF, R≥15000 mΩ; Cn>0.33 uF, R*Cn≥5000s; 20℃, 100VDC,1min
|
| Operating temperature range |
-40~110℃(+85℃to +110℃:decreasing factor 1.25% per ℃ for VR(DC)
|
| Reference Standard |
GB/T14472 (IEC60384-14)
|
| Application | Used in across-the-line, interference suppression circuit; Used in RC voltage-reducing circuits when in series connection with power supplies
|
| Certification |
ISO9001, ISO14001, IATF16946, RoHS, UL, VDE, CQC; 6+utility model patents
|

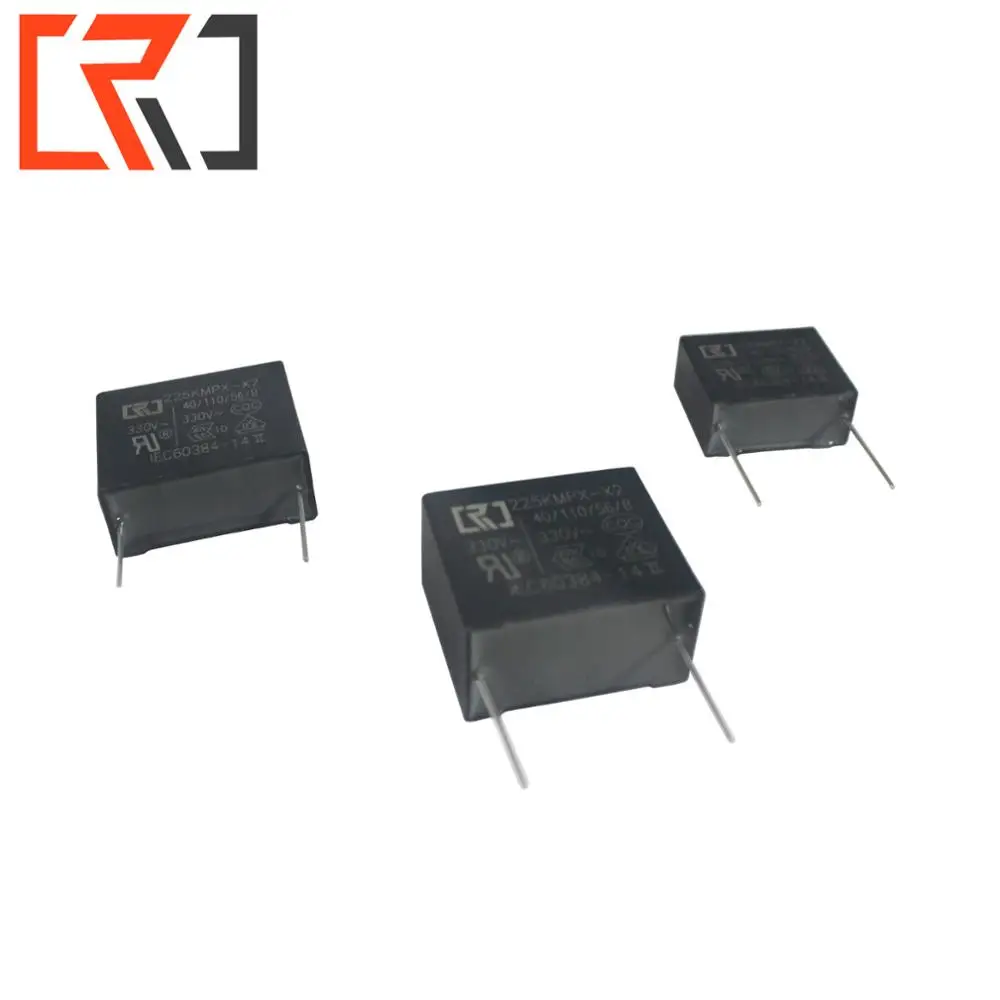

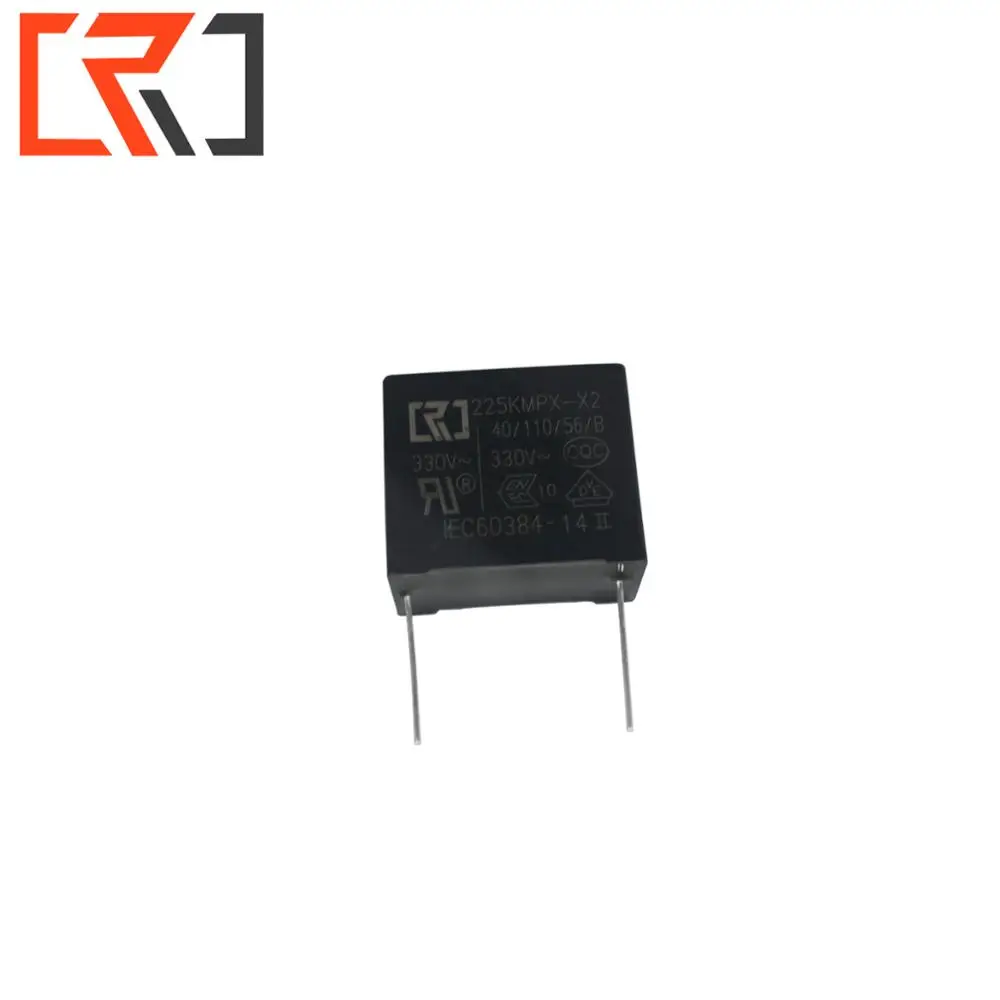

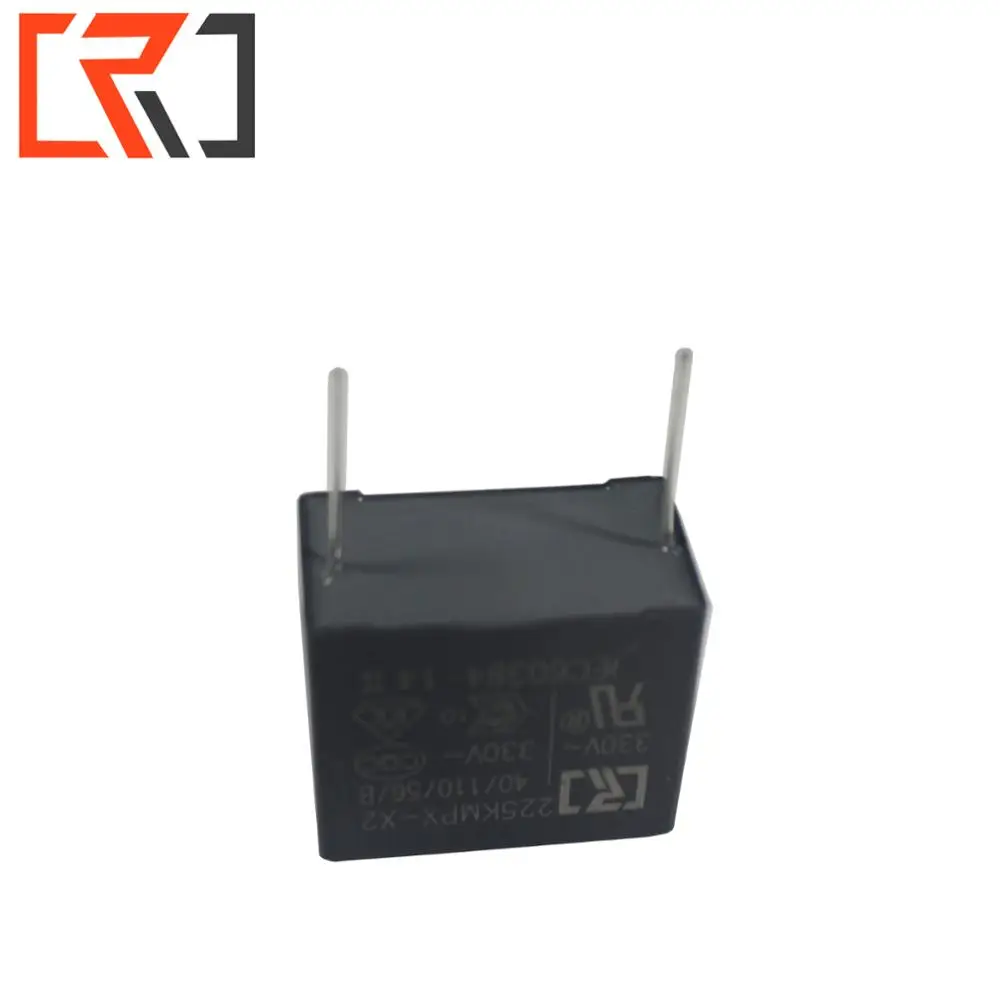

| Detailed Images |
X2 related products
| Compaired With Other Companies |
| Certifications |
For clear certificates, please click here
| QA/QC & Production process |
| Company Informaiton |
Established in 2001, Shenzhen CRC New Energy Co., Ltd is a professional manufacturer of metallized film capacitors with over 18 years of experience. CRC has its manufacturing plant located in Shenzhen, China with convenient transportation access.
As an ISO9001, ISO14001, IATF16949 certified manufacturer, CRC produces a wide range of film capacitors, including:
l X2 capacitor
l CBB21 Metallized polypropylene film capacitor
l CL21 Metallized polyester film capacitor
l DC-Link capacitor
l Snubber capacitor
l Automotive capacitor
l High voltage pulse capacitor
l AC-Filter capacitor
l Resonance circuit capacitor.
We supply to the automotive, alternative energy, industrial and other professional markets, such as new energy car, solar inverter, wind power inverter, LED drivers, power meters, power suppliers, induction heating equipment, welding equipment, home appliances, UPS and SVG, etc.
We serve integrators, distributors and buying offices around the world.
We have exported to Germany, USA, Switzerland, Italy, Spain, Russia, Brazil, Turkey, Japan, South Korea, Thailand and Philippines, etc.
All of us at CRC are looking forward to quoting your needs and doing business with you in the near future.
| Advantages |
17+ years of professional manufacturing experience in metallized film capacitors
- Quality is our No.1 priority, a complete set of QC/QA procedures, quality pass rate 99.5%
Experienced engineers, strong R&D capability, can customize to meet your special requirements
Quick sales response, our professional team will be online 24/5 at your service
- ISO9001, ISO14001, IATF16949, RoHS, UL, VDE, ENEC, CQC; 6+ utility model patents
- MOQ 1pcs~5Kpcs; leadtime 2days~4weeks; competitive prices; free samples; any delivery methods you prefer
| Exhibitoin |
| FAQ |
Q1: Are you a trading company or a manufacturer?
Q2: Do you provide samples? Is it free or do I have to pay?
A: For some models, we could offer free samples but do not cover the freight cost.
Q3: Do you have any MOQ limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4: What about your lead-time?
Q5: How do you ship the goods and how long does it take to arrive?
Q6: What are your payment terms?
Q7: What are your price terms?
A: EXW, FOB, CFR, CIF, DDU, DDP or any other terms you preferred.
Q8. Do you check all your goods before delivery?
A: Yes, we perform 100% inspection to samples and finished goods prior to shipment.
Q9. How can I place an order?
A: 1st , please specify your requirements:
l What's function of the capacitor in your circuit?
l What machine/equipment will the capacitor be used on?
l Capacitance?
l DC/AC voltage?
l Dimensions?
l Order quantity?
l Any other special requirements, e.g. Ipeak, Irms, ESR, ESL, operating temperature, etc.
2nd, if we can produce the capacitor you inquired, we’ll send you a quotation and technical datasheet for approval.
3rd, we can provide samples for your testing or further evaluation.
4th, you should confirm the samples and datasheet, and place deposit for formal order.
5th, after receiving your payment, we’ll arrange mass-production and ship to you.
If you have any more questions, please feel free to contact us.
Похожие товары
2022 Новая солнечная IP Wi-Fi камера с голосовым управлением Alexa smart camera wifi tuya
23,90 $ - 26,00 $
IP-камера для системы видеонаблюдения, 1080P, 360 градусов
18,50 $ - 19,50 $
2021 производство продукции пользовательская печать детские образовательные расслабляющие настольные игры
Беспроводная панорамная лампочка для домашней системы видеонаблюдения Full HD 1080P с Wi-Fi, умная лампочка с двухканальным аудио и автоматическим отслеживанием, E27, PTZ-камера
15,10 $ - 17,80 $
Горячая Распродажа 2021 немецкая версия Бамбуковая деревянная беспроводная клавиатура и
27,50 $ - 32,50 $

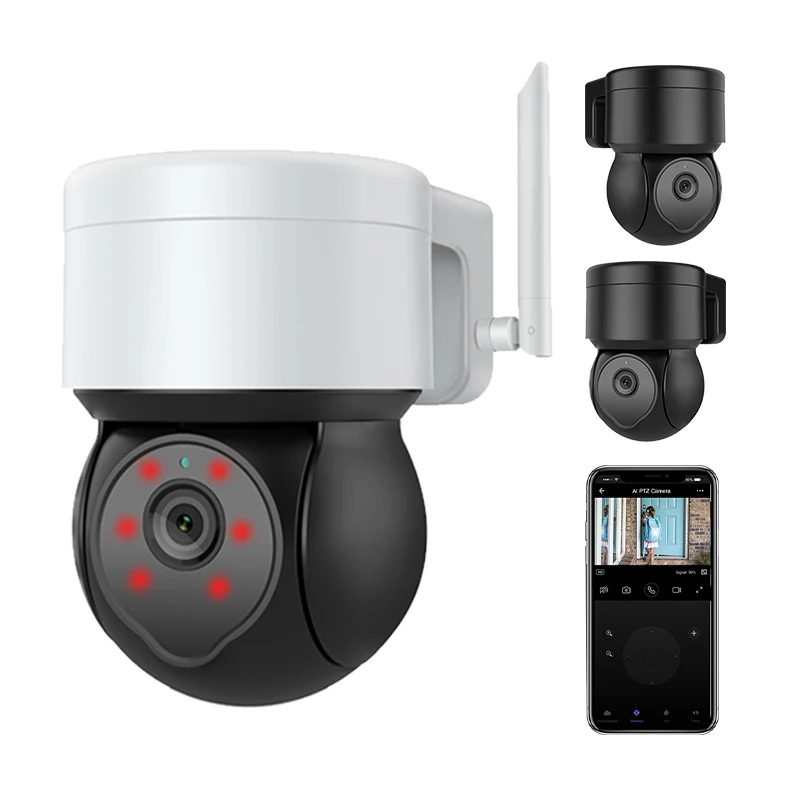

Full HD1080P Security tuya умная Wi-Fi камера с лампой, панорамная IP-камера видеонаблюдения «рыбий глаз», двухстороннее аудио, камера с лампочкой
