Fast Delivery warranty 12 months floor screed 100m3h Trailer Diesel  Concrete Line Pump Manufactur , Concrete pumps

Product Introduction


Brief introduction

On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system taken rid of  PCL, constent pressure pump, accumulator and approach switch  that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover delivery capacity from 30-120m³/h and delivery pressure from 5-20Mpa.



Full hydraulic control features and advantages of the hydraulic system



Extend component life

Overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't need electric signals.After improving,the machinery have a little impact and a low noise during the commutation process, so the service lives of the hydraulic pump and valves are obvious

lengthened.



Improve equipment reliability

Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.



Reduce the failure rate

Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced and the system gets more compact, so the oil leaking possibility is decreased at the same time.



Reduce maintenance costs

Full hydraulic commutation system takes rid of extremely damageable four parts  in the electronic commutation system,so it could reduces equipment maintenance costs.









Technical Parameters












































































Item



Unit



DHBT100S-21-186



Max.theoretical capacity



m³/h



100



Max. delivery pressure



Mpa



21



Hydraulic pressure



Mpa



32



Diesel engine (Optional)




VOLVO/DEUTZ



Main oil pump







HAWE, REXROTH, Handok or Japanese KAWASAKI



Main oil cylinder dia./pole dia. × stroke



mm



Φ180/Φ125×1800



Delivery cylinder



mm



Φ230×1800



Diesel engine power



Kw



186



Theoretical Vertical delivery distance



m



260


 Theoretical horizontal delivery distance 600

Capacity


of hydraulic oil tank



L



500



Hopper capacity





0.6



Overall weight



Kg



7600

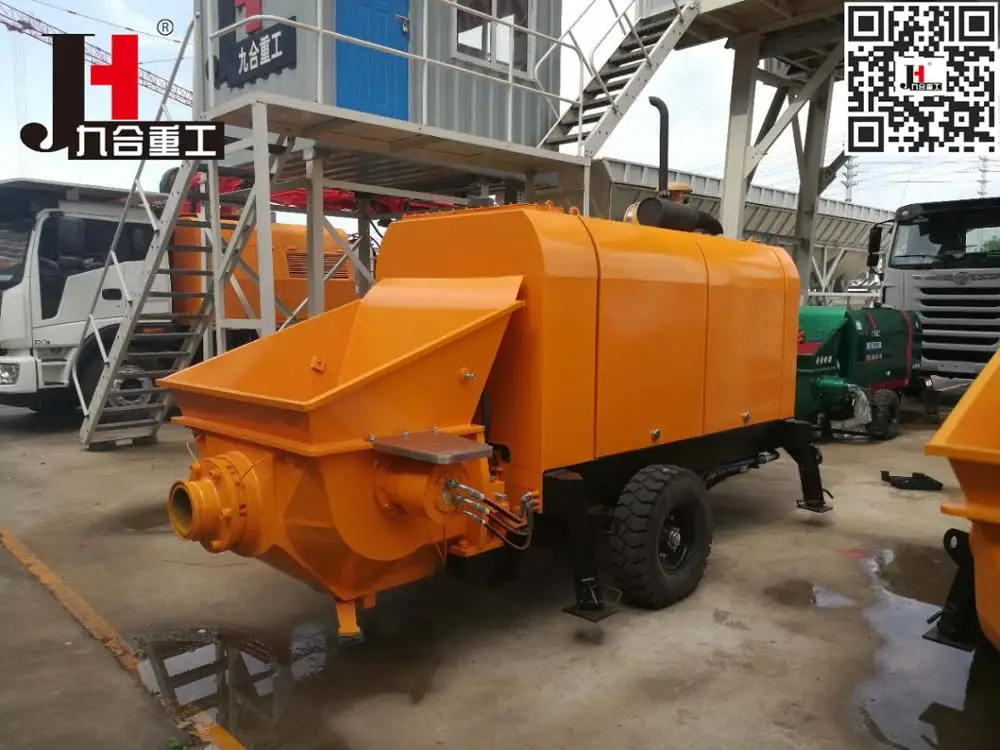

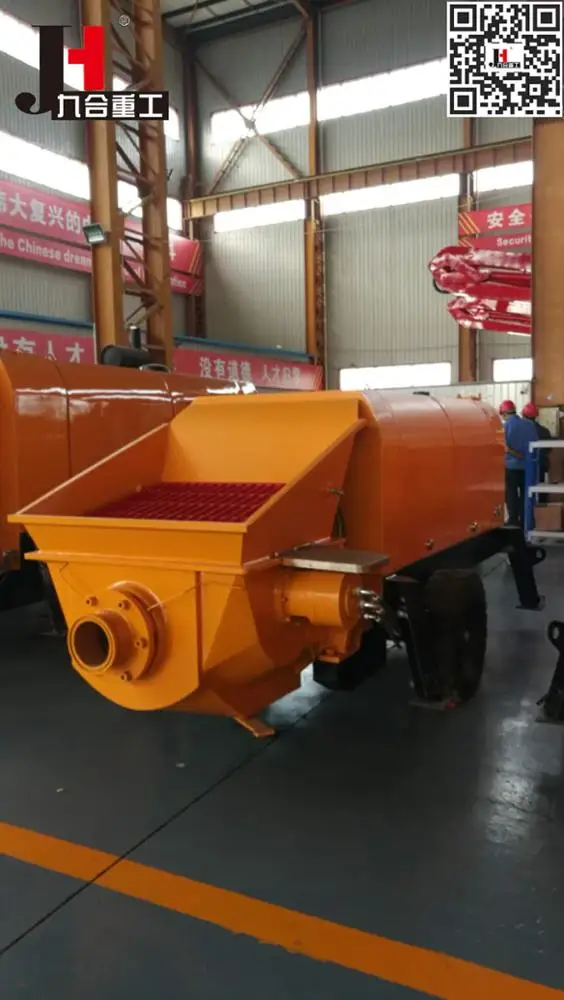

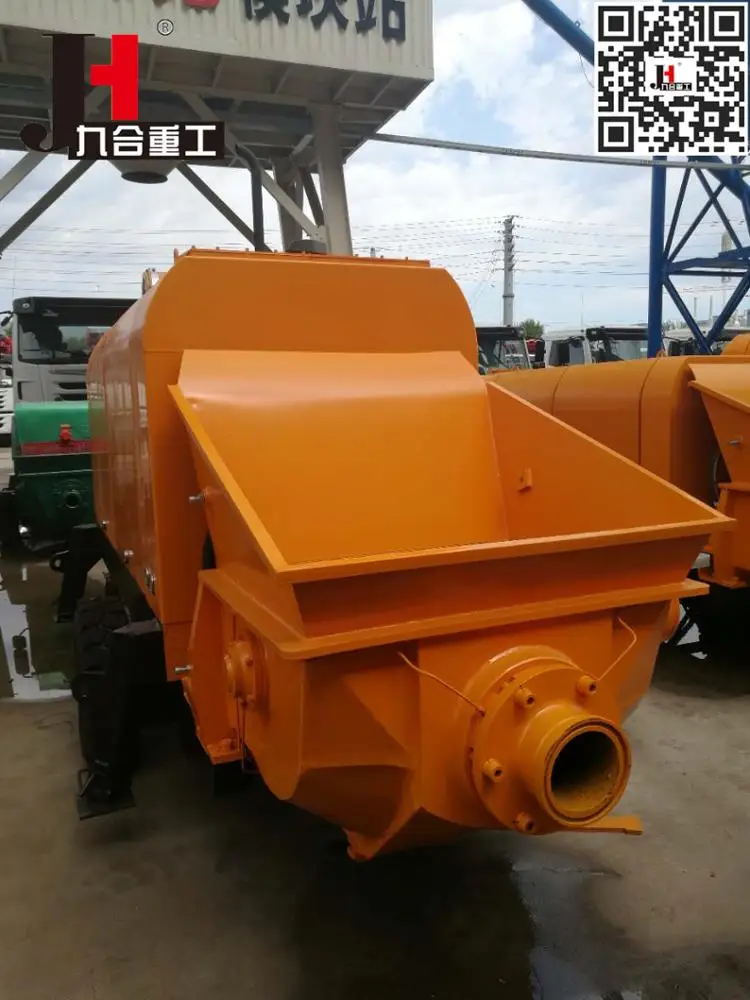

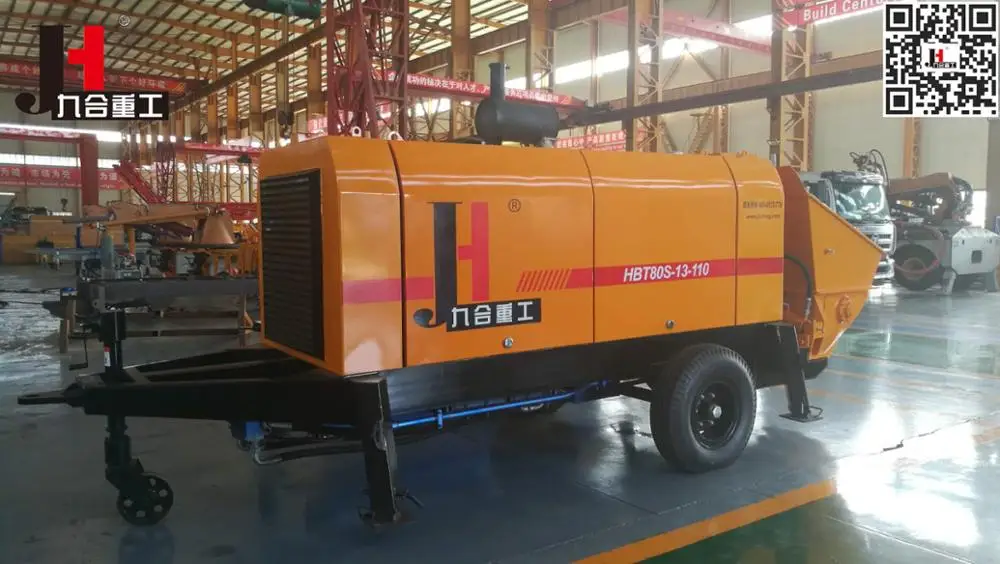

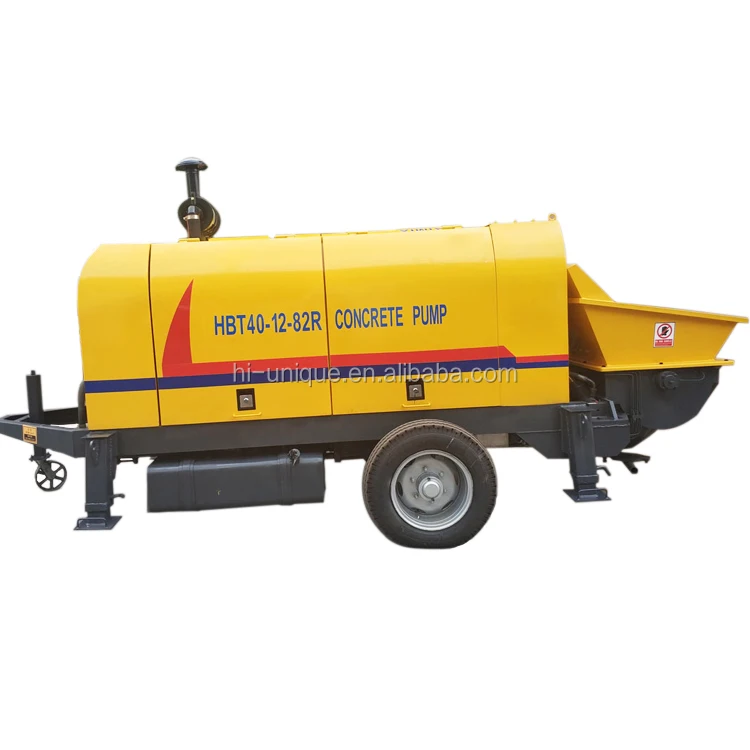

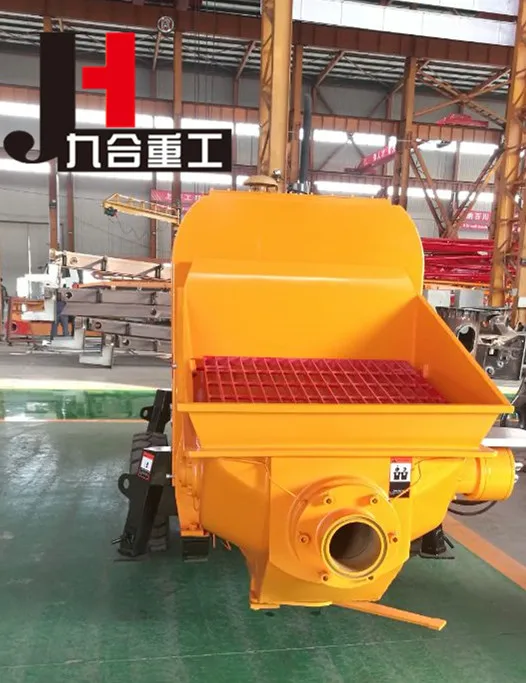

 Product picture





Trailer concrete pump2.jpg





Configuration


concrete pump.jpg
Productive process










Package and shipping








 concrete pump 3.jpg






We also have 25m3/h 30m3/h 40m3/h 50m3/h 60m3/h 80m3/h concrete pump ,if you are interested in above models, please check below link:


https://www.alibaba.com/product-detail/JIUHE-2019-Year-Hot-Sale-Competitive_62082360152.html?spm=a271v.8028081.0.0.3c333e5fFtVZrX


Company Information
Jiuhe Heavey Industry is a professional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been a global famous brand in construction machinery industry.N8OW8GJ28A()GN0JD{F(PA_.png


Our company is a manufacturer and this thing have verified By Alibaba, Please see above picture or see below link. We can give you best price ,best quality and best service compared with other trading company.


https://qdjhmachinery.en.alibaba.com/company_profile.html?spm=a2700.icbuShop.88.33.1f0241ec7RU7Ks








Our certification





















Development strategy


Strives for the survival by the quality, seek development by science and technology


Corporate philosophy


People-oriented, science and technology enterprise, recruiting high level scientific and


technological personnel, actively introduce advanced technology at home and abroad





JiuHe Service
As a professional company,we promise as following:

JIUHE HEAVEY INDUSTRY MACHINERY service system MAX customer experiences.
A. Pre-sales service:
1. Selecting the most suitable equipment,
2. Designing your personal machinery according to special construction demands,
3. Training your technicians to operate our equipment,
4. Providing advice to ensure equipment running well in various construction. environments,
5. Making new construction scheme if necessary.
B. Sales service:
1. Equipment delivery transport agent,
2. Equipment quality control before delivery,
3. Introduce our service system to customers.
C. After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. door to door accessories and parts,
5. Opportunities to get technical communications with our engineers.
D. Value-added service:
1. Overall process and zero distance technology tracking service for key projects,
2. Carry out large maintenance business,
3. Regular equipment checking service,
4. Technology update,
4. Provide professional periodic maintenance standards for customers.

JIUHE HEAVEY INDUSTRY MACHINERY Service Commitments for sold equipment:
1. Dispatch technicians to install and debug equipment in time if necessary,
2. Provide free maintenance service for the products which have product quality problems within a year after the delivery,
3. Provide free operation and maintenance training service for users
4. Provide lifelong paid maintenance service, accessories and parts supply for the sold products.





FAQ


Q:Are you trading company or manufacturer?


A:We are factory, and we are gald if you would like visiting our company.





Q:How long is your delivery time?


A:Generally it is 5-10days if the goods are in stock or it is 15-30days if the goods are not in stock. It is according to your quantity.
