Промышленные нагревательные одеяла 120V 250W силиконовые нагреватели колодки

Промышленные нагревательные одеяла 120V 250W силиконовые нагреватели колодки

Категория: >>>
Поставщик: Yancheng Xinrong Electronic Industries Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

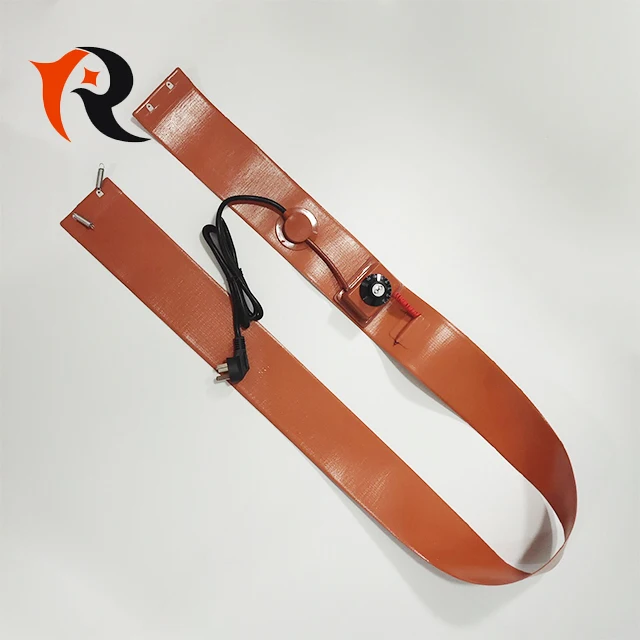

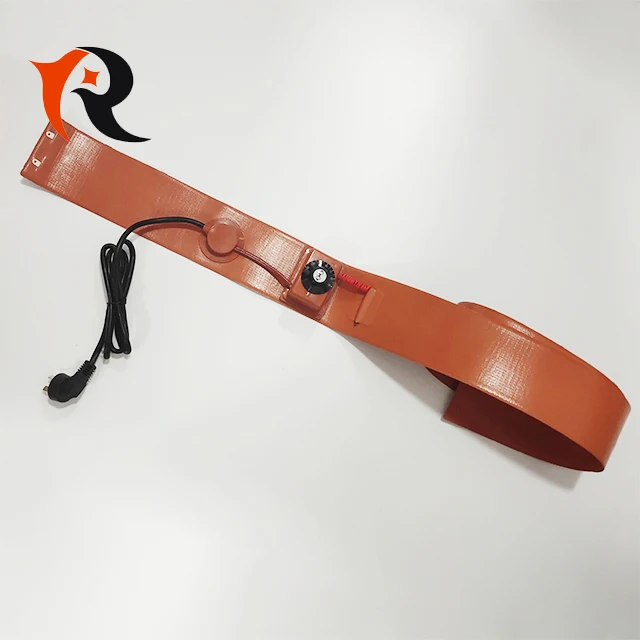

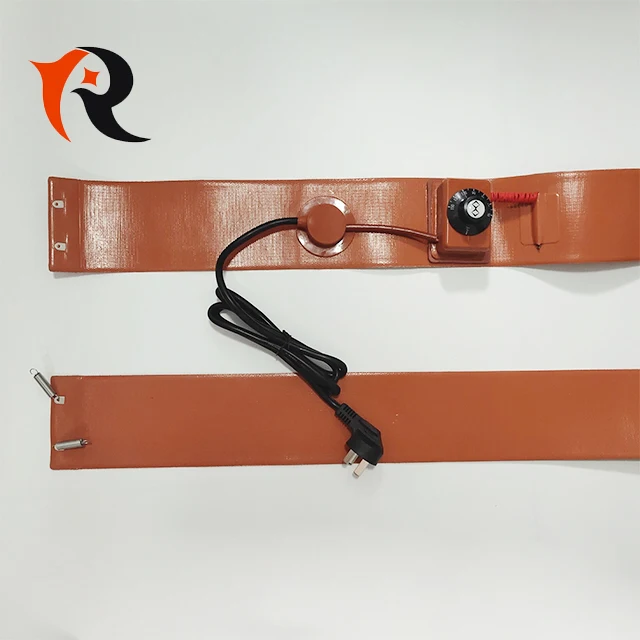

Industrial Heating Blanket 120V 250W Silicone Heater Pads

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.

It consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.

Product Name	Industrial Heating Blanket 120V 250W Silicone Heater Pads
Voltage Range	1.5v~400v
Power density range	0.1w/cm2 - 2.5w/cm2
Heater size	10mm~1000mm
Insulation Material	Silicone Rubber
Heating Material	Etched nickel chrome foil
Thickness of Heaters	1.5mm
Using temperature range	-185℃--180℃
Lead wire	Teflon, kapton or silicone insulated leads

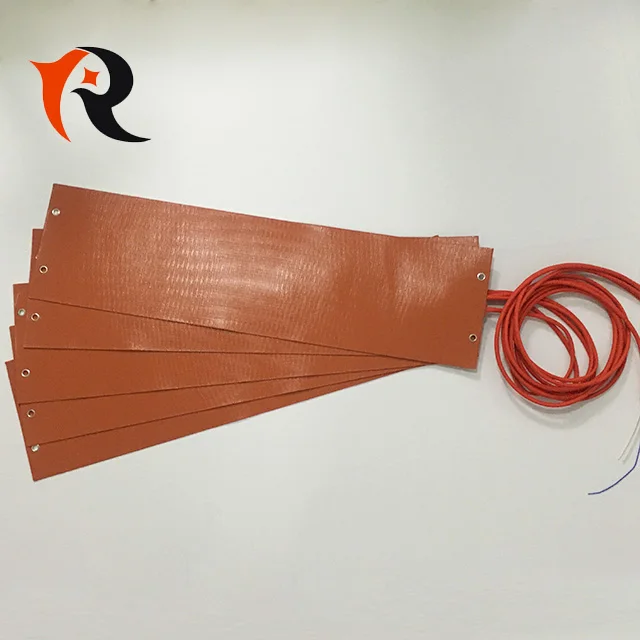

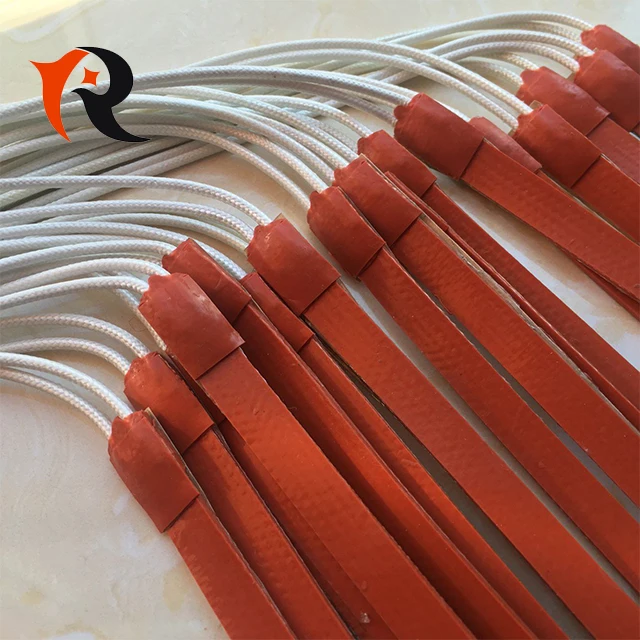

Products Show

Silicone Heater Characteristics:

* The silicone rubber heaters have advantage of thinness, lightness and flexibility;
* It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters;
* The max wattage can be made for 1 w/cm²;

* The heaters can be made for any size and any shapes.

Main Application

* Industrial equipment, pipelines, barrels, tanks, etc;
* Thermal transfer equipment;
* Medical equipment and devices;
* Airplane engine heaters and aerospace industry;
* Laser printers, duplicating machines;

* 3D printer.

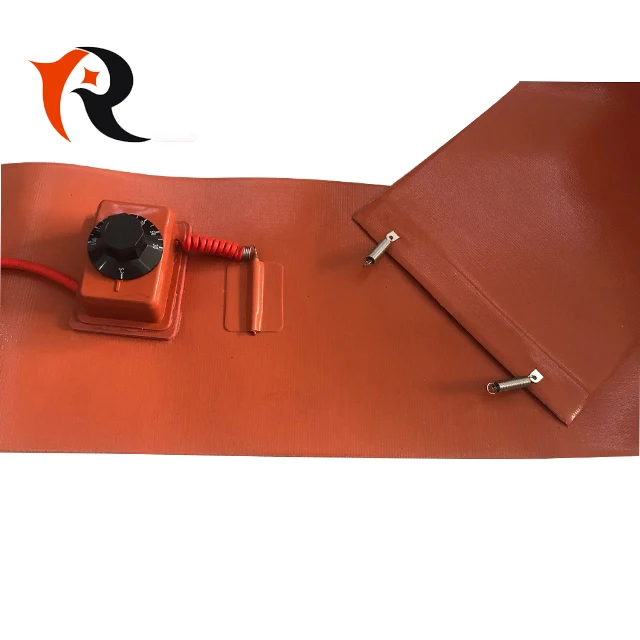

You can choose to add the following configuration according to your request

Double-Side Adhesive

Spring Fastenter

Velcro

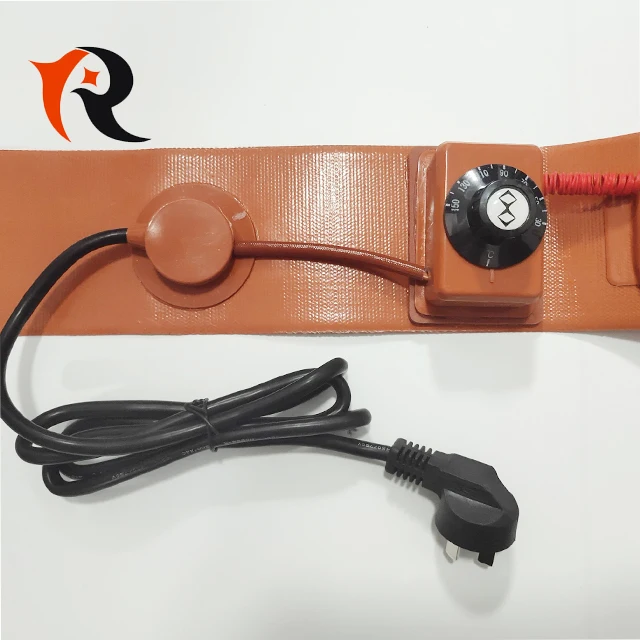

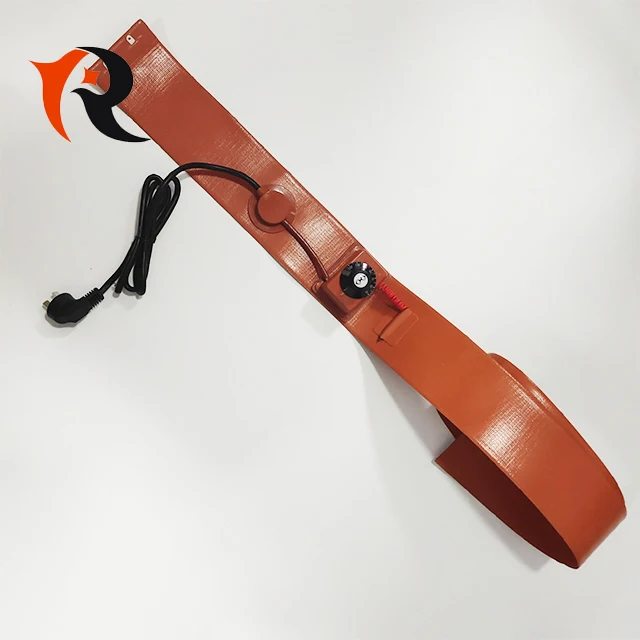

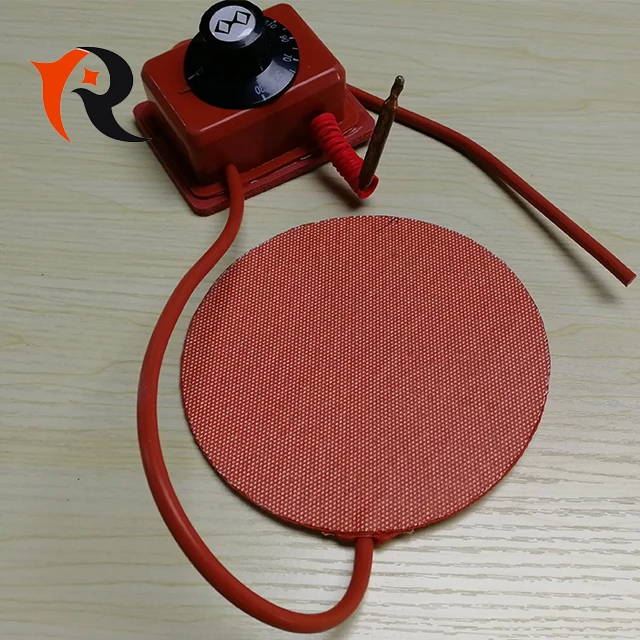

Knob control

Digital display temperature control

Our Guidance

The key questions which need to be answered before selecting a Silicone heater are:

1. What wattage and voltage will be used?
2. What is the size required?
3. What is the lead wire required?
4. Did you need 3M adhesive on backside?
5. Drawing or Sample required for special configuration.

Note:

1. We can custom silicone rubber heaters according to your voltage, power etc;
2. Any size and shape can be customized by your requirement.

Our Company

Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.

Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.

Our Service

Pre-Sales Service

* Technical solutions & support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the products, training how to use the products
* Service will be always online.

Packing & Delivery

Item	Industrial Heating Blanket 120V 250W Silicone Heater Pads
Size	40 (L) * 30 (W) * 30 (D)
Weight	20KGS
Packaging Details	The normal package is carton(Size: LWH). If export to european countries,the wooden box will be fumigated.We will use pe film for packing or pack it according to customers special request.
