FEIHU машина для намотки пряжи нейлон полиэстер химическое волокно веревка намотка текстильная

Сохранить в закладки 60811549532:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики

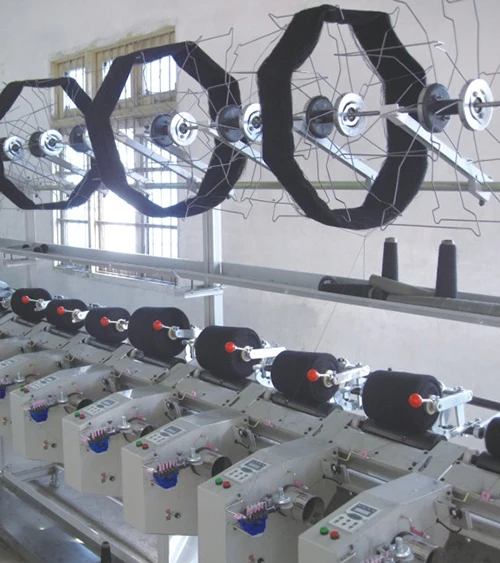

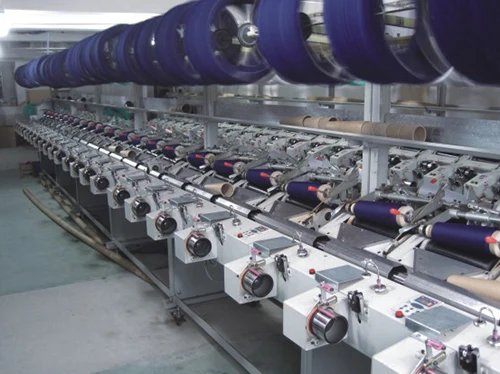

High speed yarn winding machine

FEIHU yarn winding machine nylon polyester chemical fiber rope yarn winder textile machine

it is our innovative design of electromechanical integration equipment. which combined the current trend of molding winding yarn. Especially suitable for elastic nylon yarn winding. It features is :fast in lane; good forming; even tension; stability of elastic stretch yarn., It is the best equipment of yarn winder machine . we took most advanced technology such as:automatic stop of yarn break, dead line control, slow start(startup time is adjustable), adjustable of speed of cross yarn, Over-feed device, Single-spindle oil device, Anti-stacked device, Closing edge device .keep even in External elastic yarn, so as to achieve one time form and double the increase production efficiency . It can reduce the technical requirements of the operator as well as facilitate employment.



FEIHU yarn winding machine nylon polyester DTY POY yarn winder texitle machine

We took most advanced technology such as:

1) Individual motor for each spindle

2) Automatic stop of yarn break, dead line control

3) Slow start(startup time is adjustable), adjustable of speed of cross yarn

4) Electric over-feed device, Single-spindle oil device

5) Anti-stacked device, Closing edge device .keep even in External elastic yarn, so as to achieve one time form and double the increase production efficiency

It can reduce the technical requirements of the operator as well as facilitate employment



Product name

Staple Yarns Hank To Cone Yarn Winding Machine

Number of spindles

24(Foreign trade 6 spindles/group) (Optional)

Layout

Single side or double side

Power Supply

220V 50HZ single phase (Optional)

Spindle power

120w/spindle

Winding speed

500-600m/min(Speed adjustable)

Max. yarn diameter

≤220mm

Friction roller specification

flat bobbin Φ 80mm×220mm
or cone Φ 80mm×220mm taper 3.5°

(Optional)

Driving

Individual

Electronic Anti-Stack

Inverter control

Dimensions

L 1454 x W 690 x H 1700 mm ( 4 spindles)

Weight

205kg/group4 spindles/group



FAQ

Q1: What's your payment term?

A. T/T  B. L/C



Q2: How long for the production?

A: Usually, it's around 15 to 25 days, which depends on the order quantity.



Q3: Packaging and shipping

A:.  Seaworthy export plywood cases packing or according to your request.
