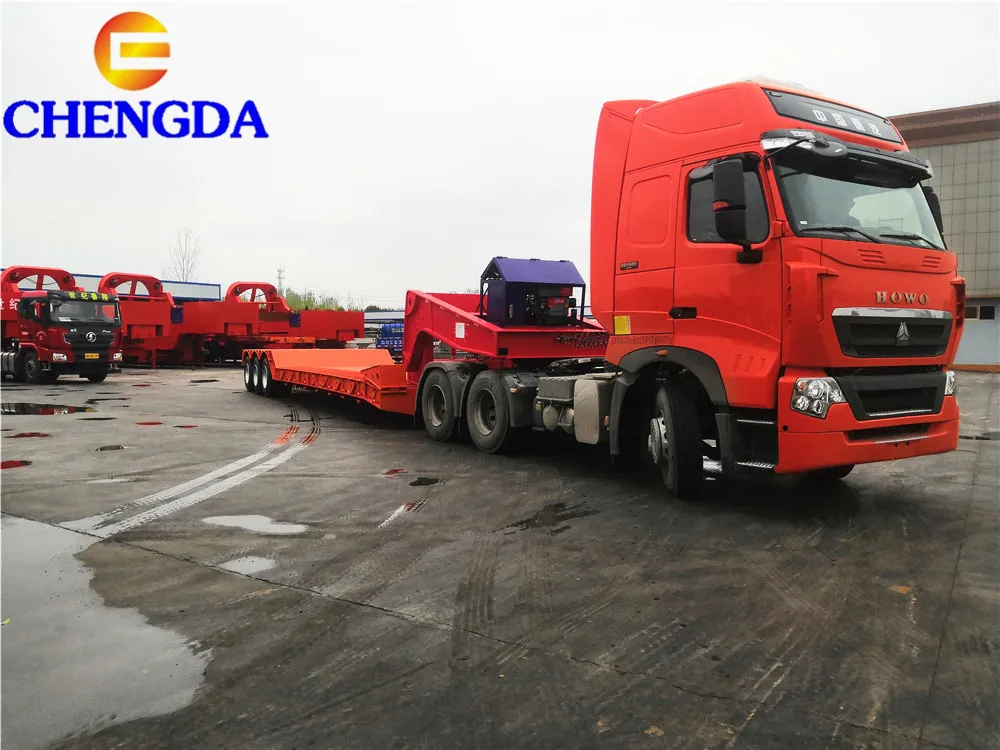

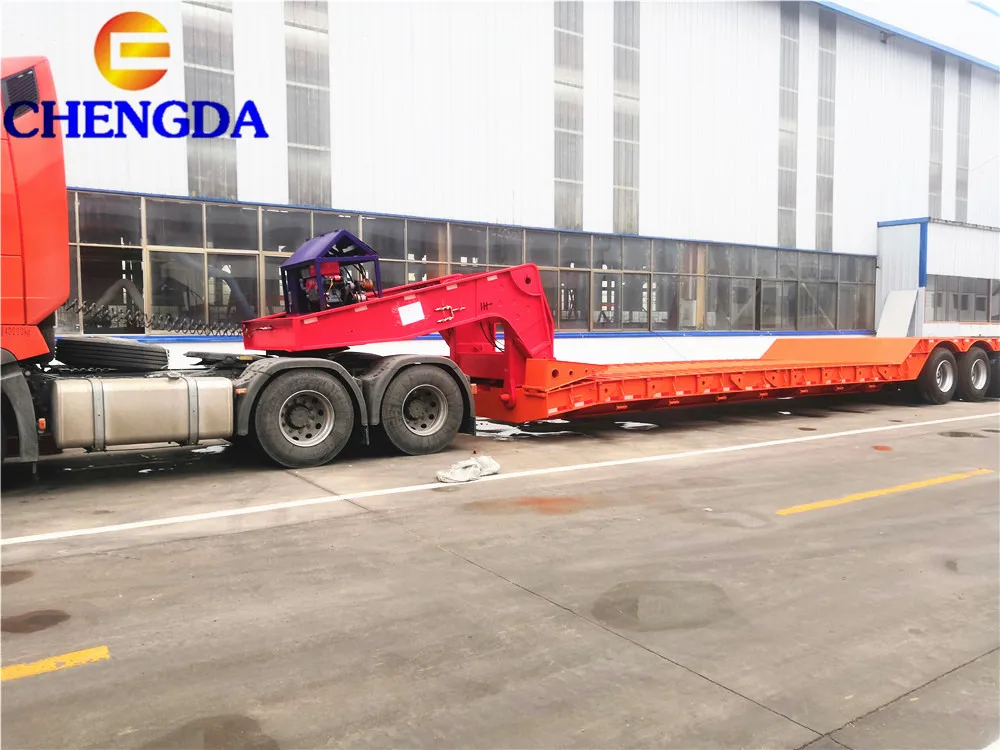

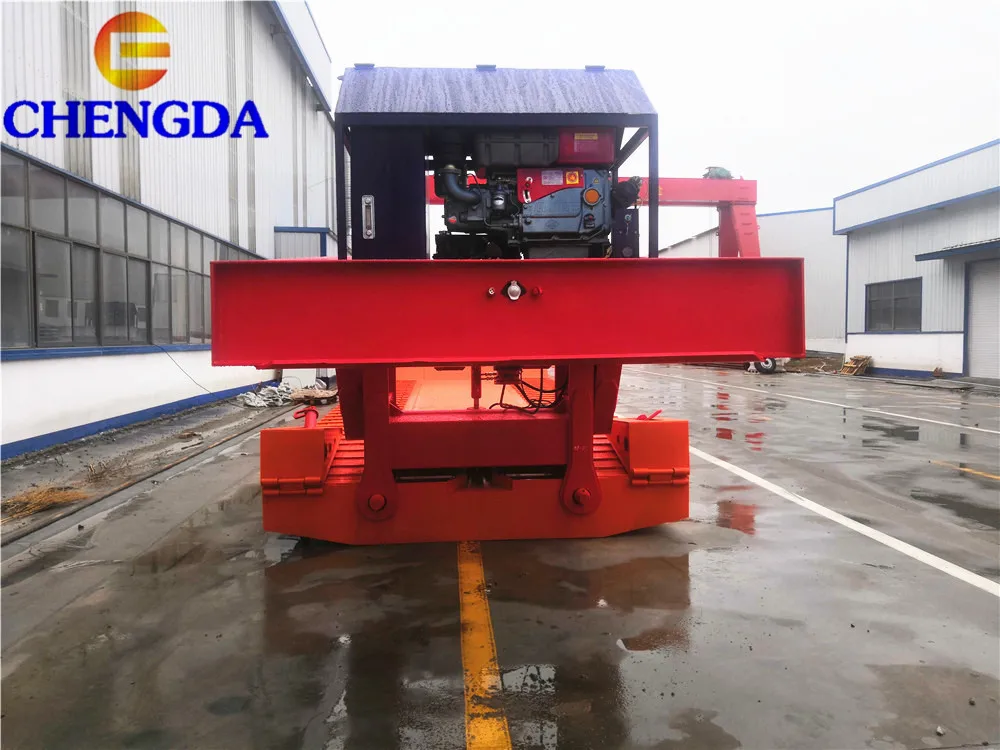

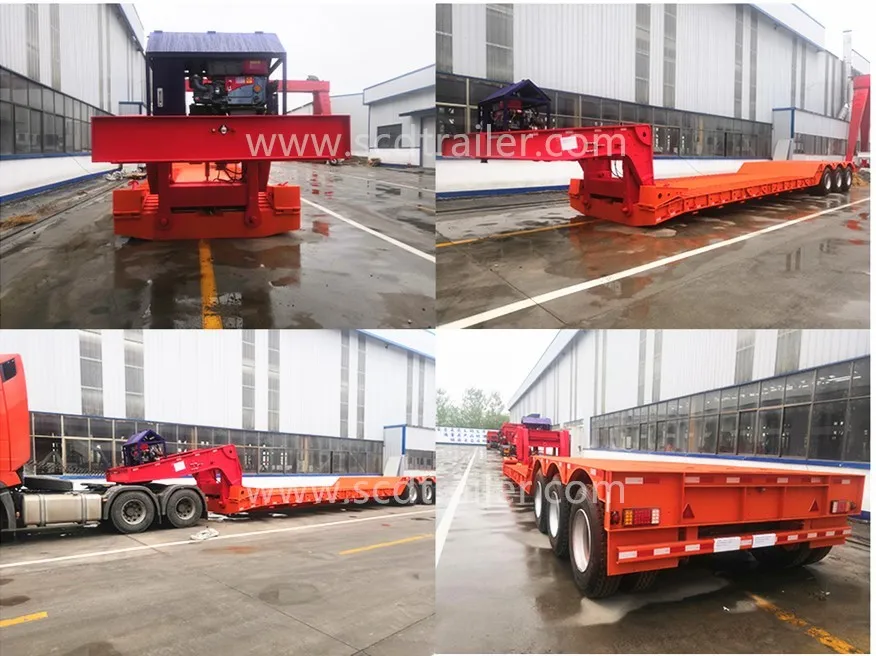

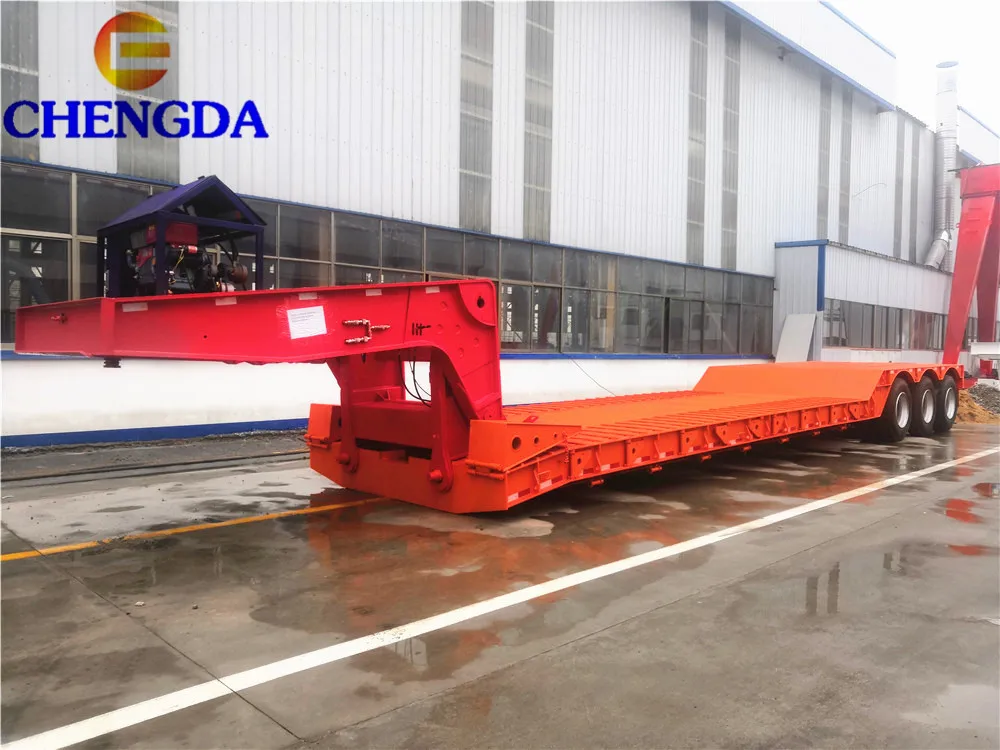

Популярные 3 оси/4 оси гидравлического «гусиная шея» 120ton 100ton с низкой платформой полуприцеп

Описание и отзывы

Характеристики

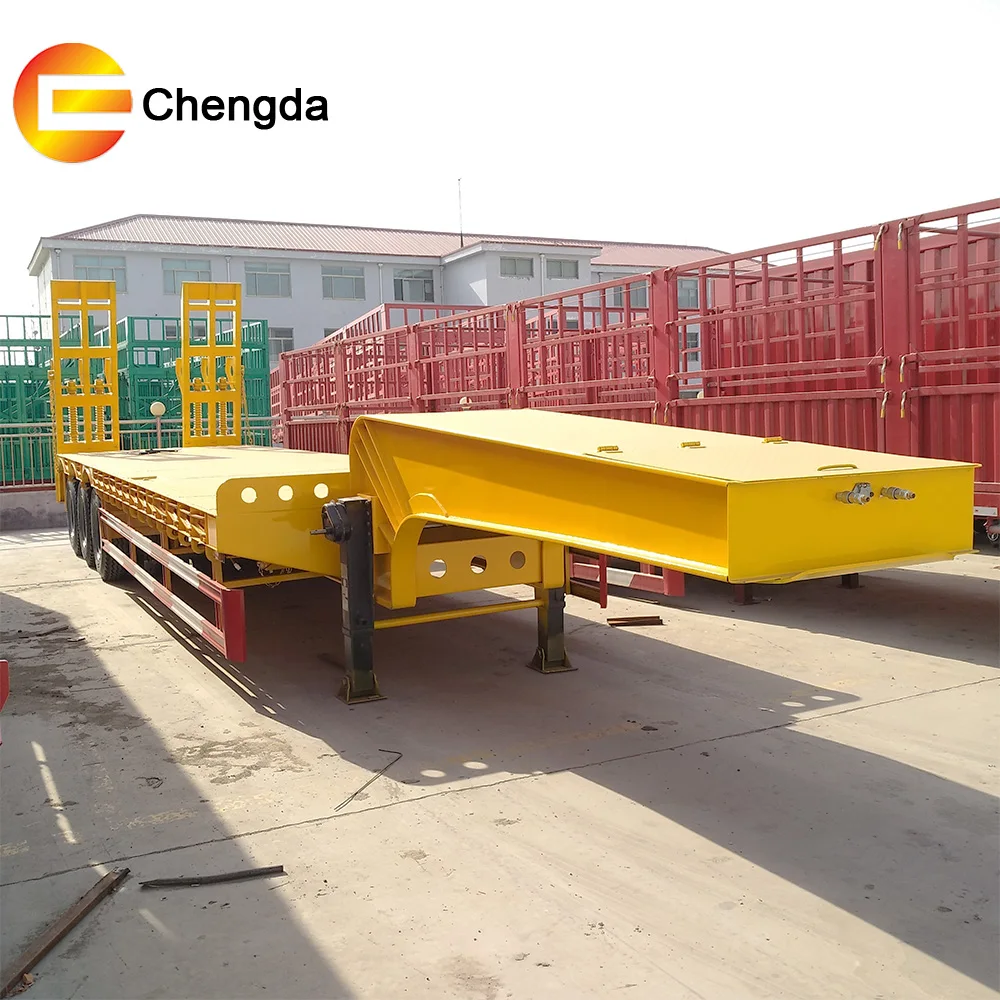

Popular 3axle /4 axle hydraulic gooseneck 120ton 100ton lowbed low bed lowboy semi trailer

production detail: Popular 3axle /4 axle hydraulic gooseneck 120ton 100ton lowbed low bed lowboy semi trailer

Use:Truck Trailer            Type:Semi-Trailer,     Material: steel      Size:13000*3000*1650mm

OEM No.:Optional          Max payload:40-60 ton  Place of Origin: Shandong, China(Mainland)

Brand Name: Chengda   Model Number: Flatbed trailer    Payload:35000kg   Axle base:7500+1310+1310

Suspension: steel suspension    Manufacture: Chengda      Certificate: CCC   ISO   Name: 40ft  20ft  container chassis semi trailer

Total size	13000*2500*1650mm
Working size(LxWxH)	9000*3000*1300mm
Curb Weight(KG)	9,000
Loading Weight(KG)	60000
Axle	3*13 ton axle, FUWA brand
Suspension system	Mechanical Leaf Spring Suspension
Leaf Spring	90(W)mm*13(Thick)mm*10 Layer 10/10/10 leaf spring suspension
The Main Beam	Q345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Side Beam Q235	20# channel steel
Platform plate	4mm Diamond plate
Tire Type and quantity	11.00R20   12units
Ladder	With Ladder
Traction Pin	2” or 3.5”
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	28Ton standard
Brake system	WABCO RE6 relay valve ;T30/30 spring brake chamber; 40L air tanks Dual Line braking system
Brake air chamber	Four double chamber
Electrical system	1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint

our company:

 1.Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc
2.Integrated production, scientific research&development and professional sales teams, all those advantages could provide full service of trailers, semitrailers, tractor head, dump truck, engineering machinery and trailer parts.
3.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
4. In 2014, we enlarged our factory and add more prodution line. The sales valve in this year increase in a boom way.
