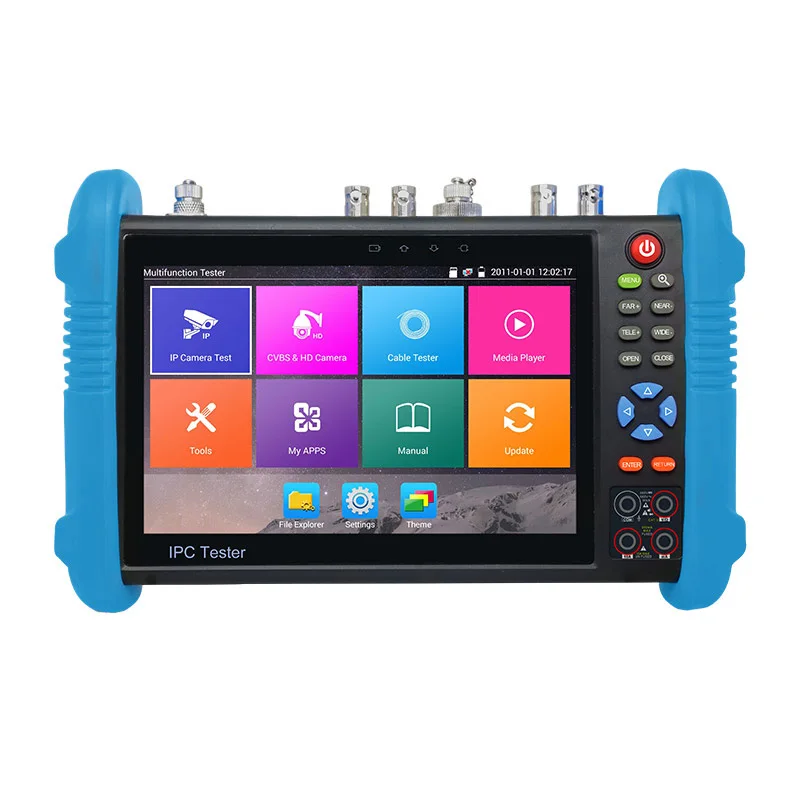

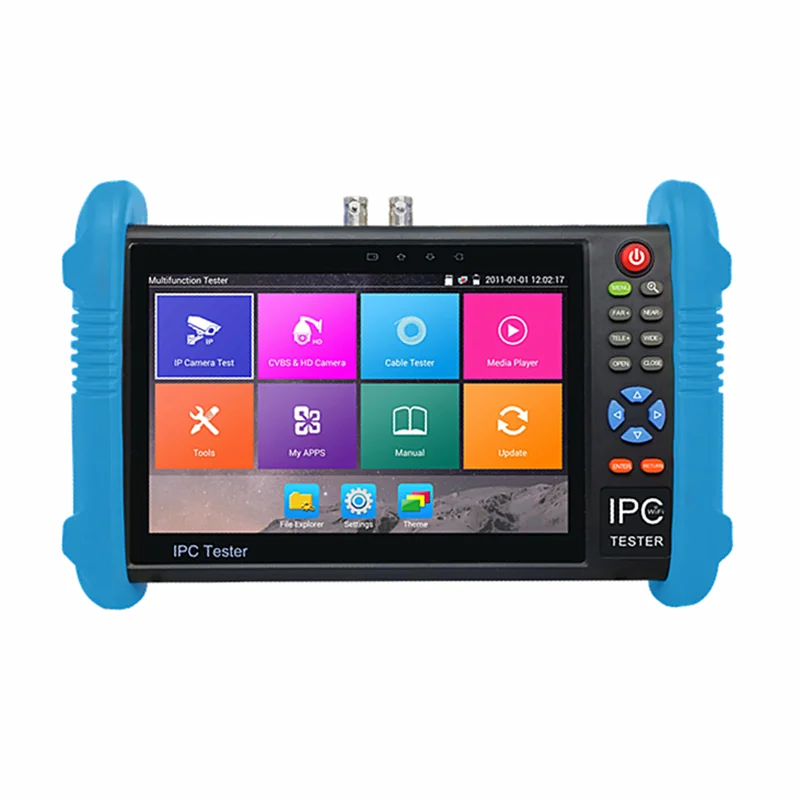

7 inch Cctv Security Hd-cvi/tvi/ahd Ipc Cvbs Camera Test Monitor With HDMI-compatible Input Android System Poe And Cable Search

7 inch IPS touch screen, 1280*800 resolution

8MP TVI, 8MP CVI, 5MP AHD test

H.265/H.264, 4K video display via mainstream

Dual window test, IP &Analog camera test

Built in WIFI, create WIFI hotspot

HDMI-compatible input and output,support1080p

IP discovery , shortcut button, drop-down menu

DC12V 2A, DC48V PoE power output

Rapid ONVIF, auto view video and create testing report

Quick office(excel, word, PPT format ) doc.

RJ45 cable TDR test, cable quality test

UTP cable tester

Tester Play: Tester, android version mobile phone, PC display at the same time

Features:

1.     New -7 inch IPS touch screen,1280*800 resolution

2.     New- H.264 and H .265 ,4K video display via mainstream

3.     New-8MP TVI test, 2560x1944P12.5FPS, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

4.     5MP AHD test, 2560x1440P15F/25F/30F, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

5.     8MP CVI test, 2560x1440P25F/30F, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu

6.     IP & CVBS camera test, PTZ controller

7.     New- Rapid video, just by one key to detect all network cameras and auto display

8.     Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

9.     New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS

10.   New- Screen management, change function's icons order, create new directory

11.   New- Shortcut button, drop-down menu, can select PoE power, IP setting, WLAN switch, HDMI-compatible IN functions etc in any interface

12.   Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

13.   New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

14.   Tester Play(screen projection): tester, android version mobile phone and PC display at the same time

15.   New- Screen lock, password lock and pattern lock are optional

16.   New- HDMI-compatible signal input, 720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image, record and snapshot

17.   HDMI-compatible output, support 1080P

18.   New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable

19.   New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters

20.   New- Customers self update software, you can install apps with android version, such as Skype, wechat etc

21.   ONVIF camera test, support 2592*1520, Network PTZ controller (ONVIF)

22.   Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

23.   New- 4K video files and MKV/MP4 media files play

24.   PoE DC48V power output, Max power 24W, 12V /2A power output/5V 2A power output, as a power bank

25.   New- Quick office, quick office app ( support excel, word, ppt format ) doc. editable

26.   8GB SD card including

27.   IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address

28.   Display its genuine resolution of the IP camera images

29.   Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

30.   Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

31.   POE voltage measurement, PING test, IP address scan, port flashing etc

32.   Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools

33.   7.4 V /5400mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours

Datasheet Download

—Network cabling project installation and maintenance

—Dome camera, IP TVI CVI AHD 4K H.265 camera testing

—Video transmission channel testing

—PTZ controller
