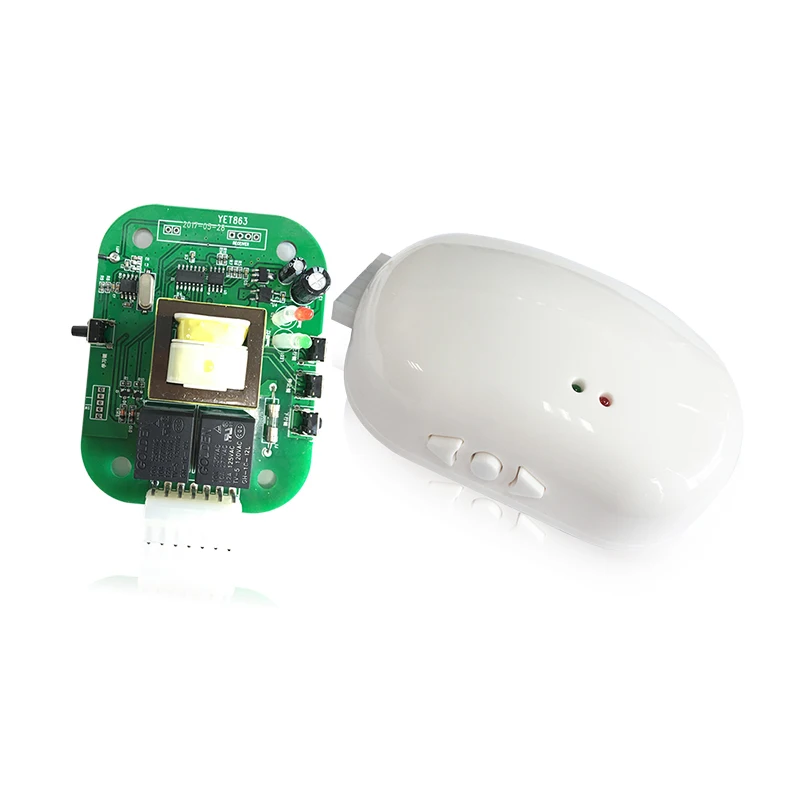

Беспроводной Wi Fi приемник с дистанционным управлением YET863

Описание и отзывы

Характеристики

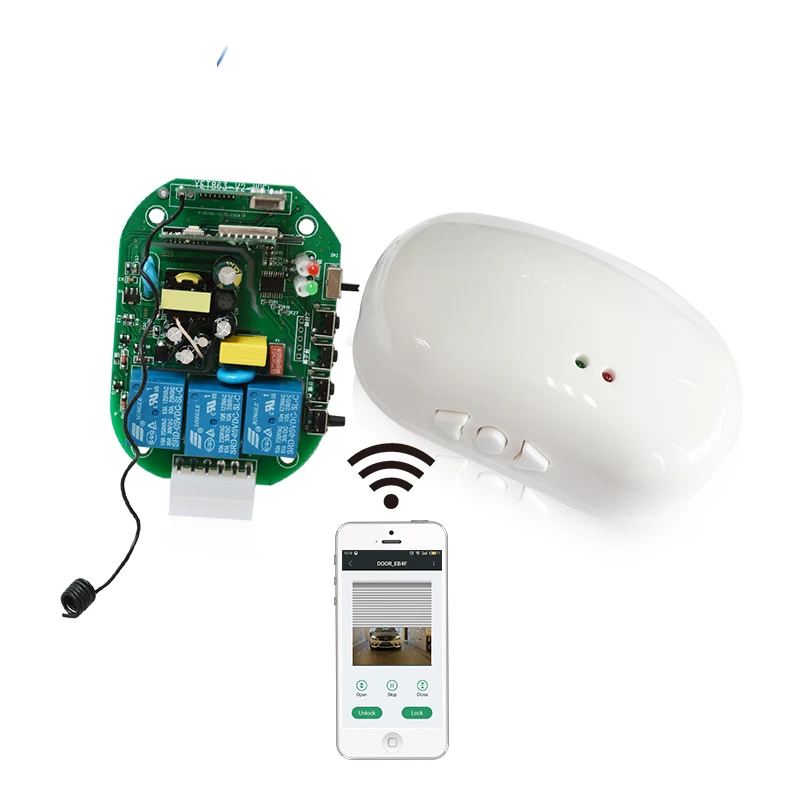

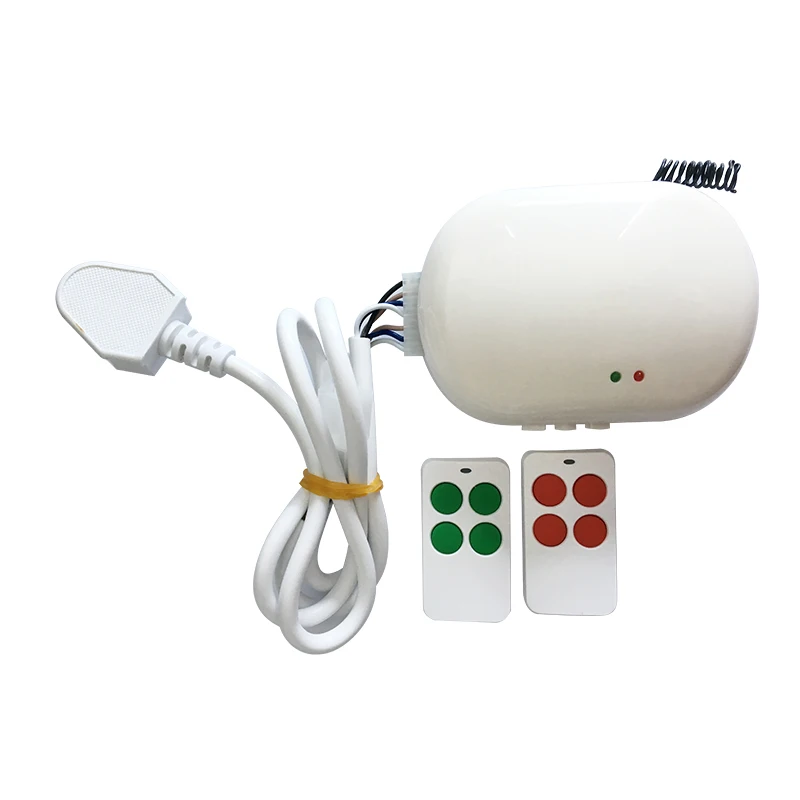

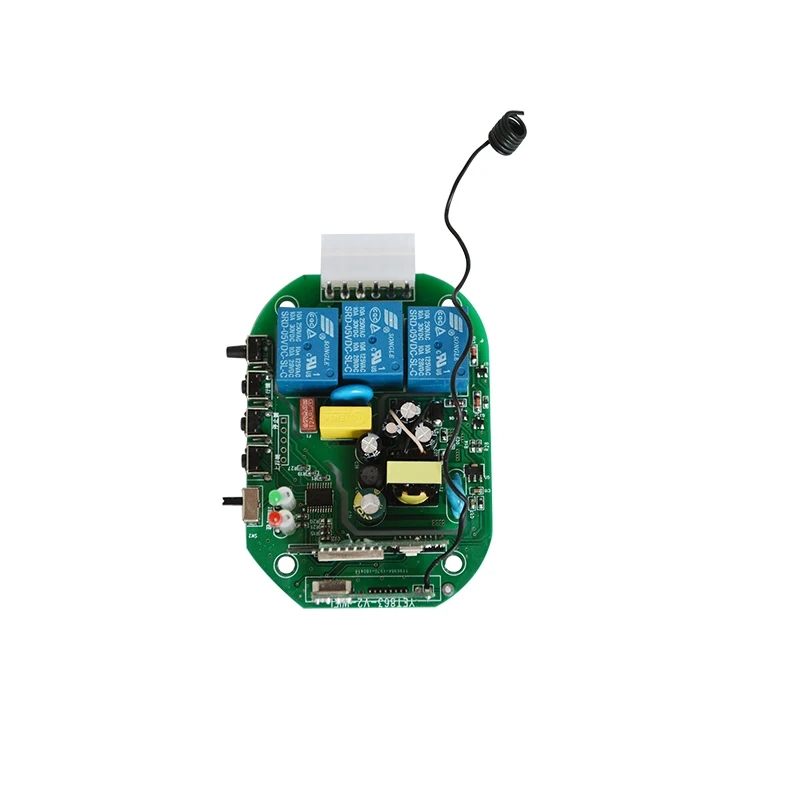

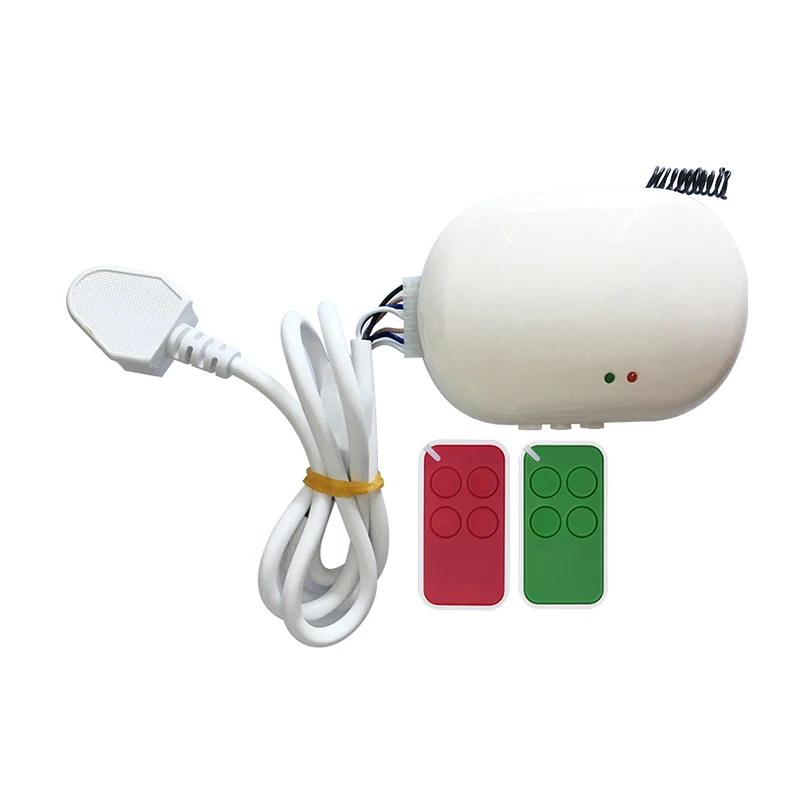

Factory manufacture wireless wifi receiver with remote control YET863

I.Usage

Controller using microprocessor intelligent control ,can be used in Garage door control, Lighting Control,Remote curtain etc .with  Easy installation and simple to use , Safe and reliable  features .

II.Output form

1.   Signal self-locking---1 connect  2 disconnect

2.   Signal interlock——2.connect  1 disconnect

3.  Signal inching ---1,2 disconnect

4.    2 self-locking,2 inching——1,2 connect

III. Technology Parameter

1.  Working Volt :12V / 24V

2.  Static Working Current: ≤7mA

3.  Operating temp: -40°C - +80°C

4.   Working frequency: 315 MHz / 433MHz

5.  Sensitivity: ≥-105dBm

6.    Output current: ≤10A

7.  Control voltage: AC/DC

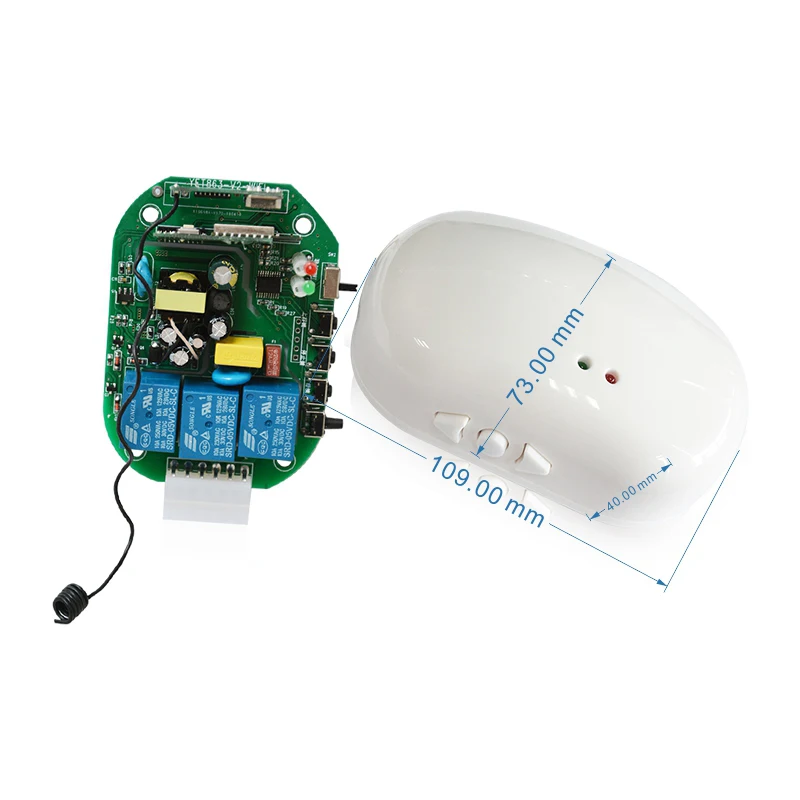

8.    Size: 74.5mm*54.5mm*27mm

For remote control YET863

Characteristics:

1. Various cases and design for your choice
2. Metterial: Metal and PVC
3. Encoding type:learning code/ fixed code/hopping code/copy cpde (optional)
4. Frenquency: 315MHz/433MHz/868 MHz and other for your requirments

Technical Prameters:

1. Working voltage:DC12V
2. Working current:<=12mA
3. working frenquency:315MHz/433MHz/868MHz and other for optional
4. Transmit power: >=10mW
5. Transmission Speed:50-60KHZ
6. Frenquency Windage:±0.2MHz
7. Transmission distance:100 meters(Open space)
8. Oscillation resistance:As customer’s request
9. Chip and Operating mode:Larning code(1527,2240,HT6P20B,HT6P20D etc); Fixed code (2260,2262 etc);Hopping code(HCS301,300,200 etc.);Copy code

Methods of operation:

1, Clear out code:

To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.

2, Duplicating (learning)

 Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A’,B-B’) three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.

3, Recovery code

 If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

4.The other way, you can delete all and relearn them again.

User range:

It is very easy and convenience to be used for home/ store anti-theft alarm, electric cars, electric door, motorcycles, car alarms, all kinds of doors/windows controllers and other industrial control.
