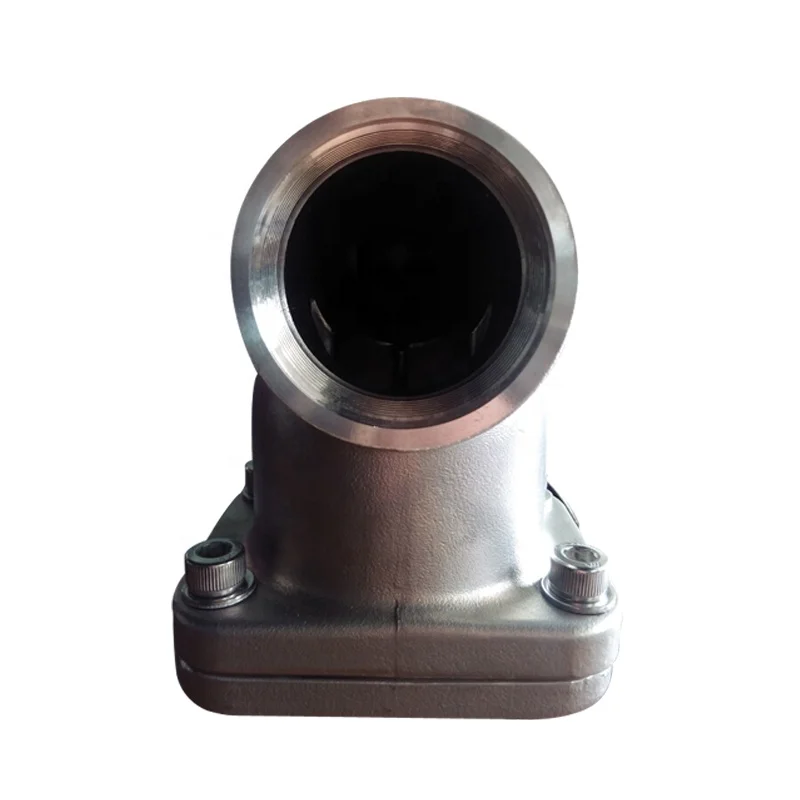

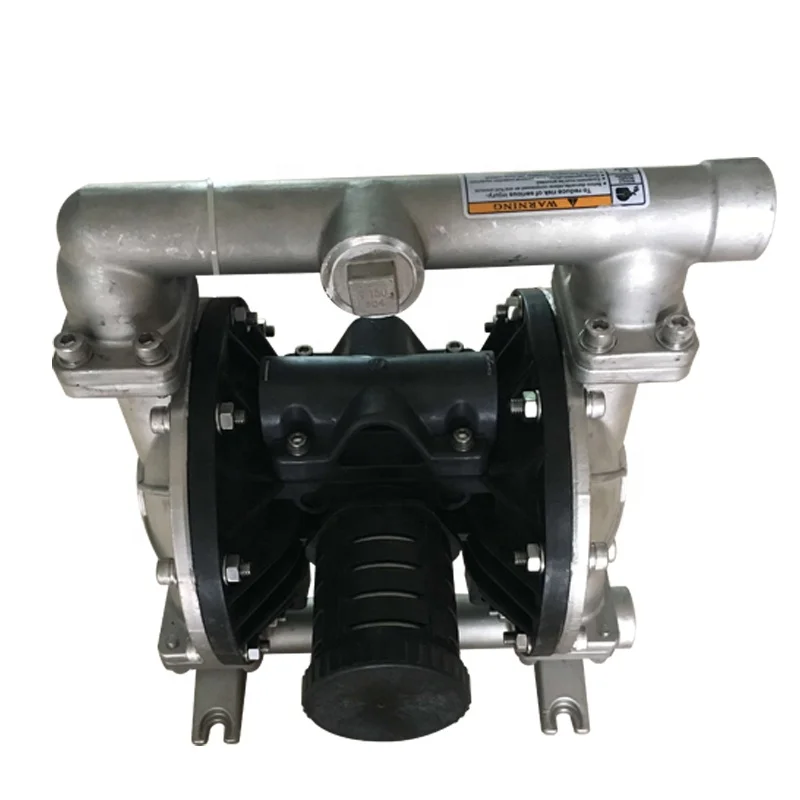

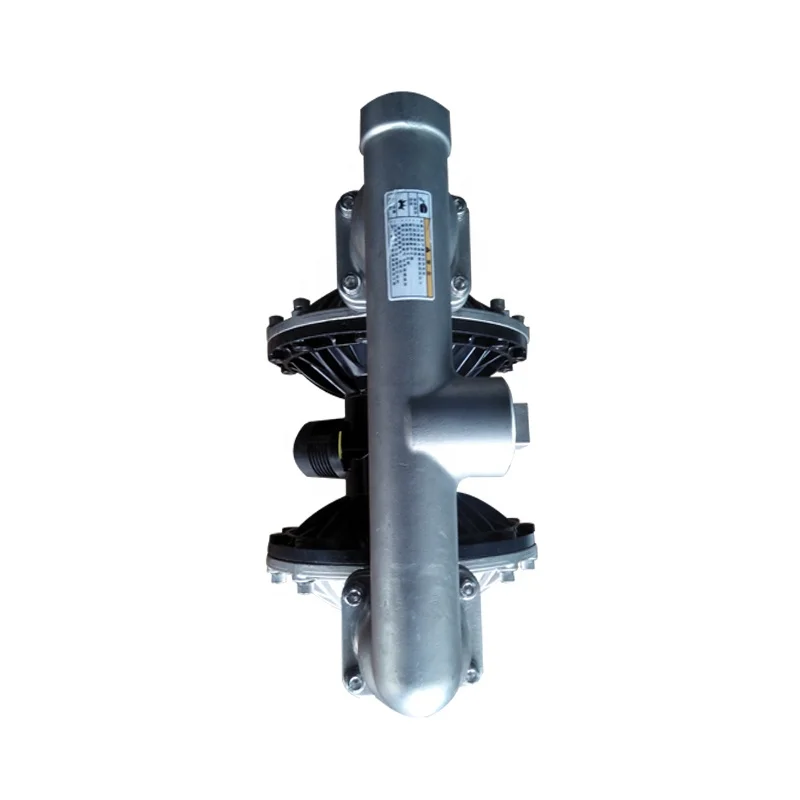

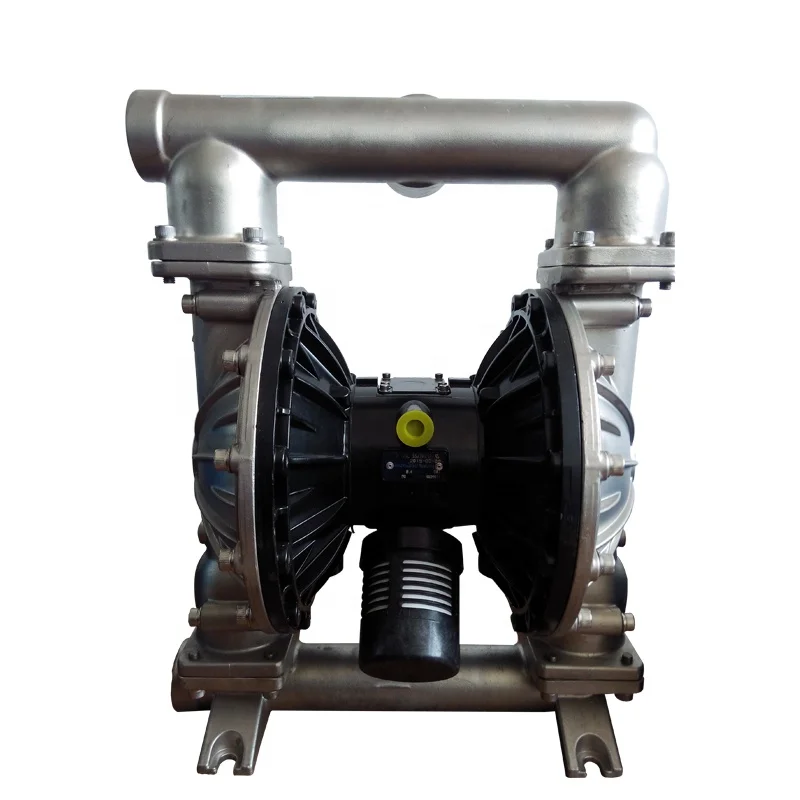

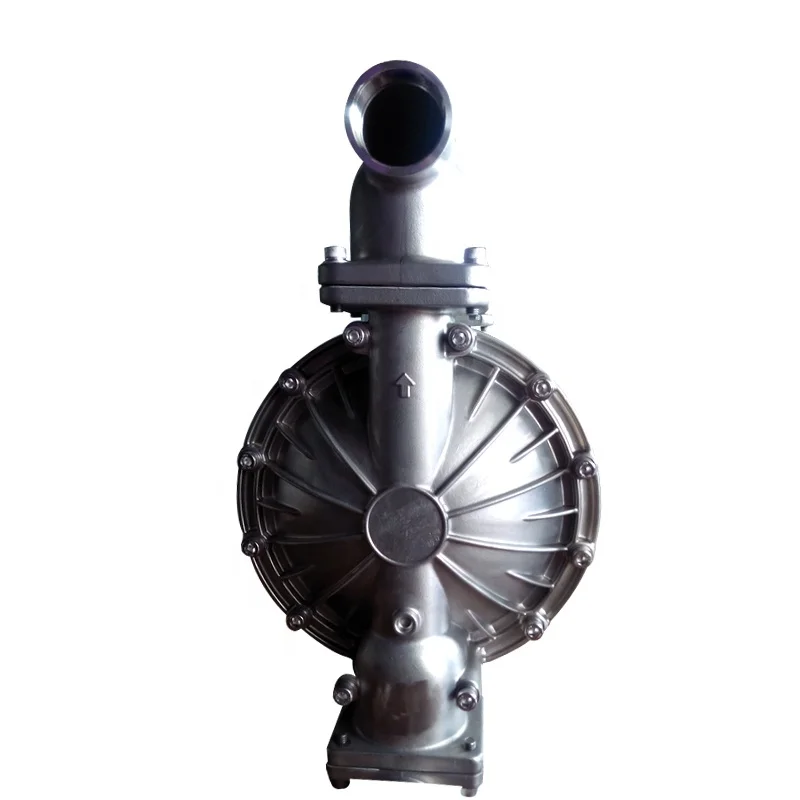

AOK 50 50 мм 2 дюймовый самовсасывающий пневматический двойной мембранный насос
- Категория: >>>
- Поставщик: Wenzhou Defu Machinery Co. Ltd.Wenzhou Ltd.
Сохранить в закладки 60812733530:
Описание и отзывы
Характеристики
Product Parameters
Model | In/outlet (inch) | Max particle diameter (mm) | Air inlet size (inch) | Max flow rate (l/min) | Max head (m) | Max Air press (bar) |
AOK06/10 | 1/4", 3/8" | 1.6 | 1/4" | 27 | 70 | 7 |
AOK15/20 | 1/2", 3/4" | 2.5 | 3/8" | 57 | 84 | 8.4 |
AOK25 | 1" | 4 | 1/2" | 157 | 84 | 8.4 |
AOK40 | 1 1/2" | 5 | 1/2" | 358 | 84 | 8.4 |
AOK50 | 2" | 6 | 1/2" | 587 | 84 | 8.4 |
AOK80 | 3" | 9.4 | 3/4" | 1060 | 84 | 8.4 |
Product Description
AOK series pneumatic diaphragm pump is a positive displacement pump.A total of 6 specifications are available, with a maximum flow of 63.6m3/h, a maximum lift of 84m, and a maximum operating temperature of 150 degrees.With compressed air as the power source,heat and sparks will not be generated during the working process, and the liquid will not stir up during the transportation process, not change the properties of the liquid.Suitable for transporting inflammable, explosive, strong acid, strong alkali,strong corrosive, high viscosity liquid. AOK series diaphragm pump is composed of upper and lower cover, column, intermediate, diaphragm, valve ball, ball seat, O-ring, connecting rod shaft and other parts.Simple structure, easy to use, stable operation.The pump does not need to be irrigated in advance when it is running. The pump body and diaphragm of different materials can be selected to meet customers' various requirements for different kinds of liquids.
Plastic Pump features
1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.
2. The pump with PP center block, befull plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
Stainless Steel Pump features
1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry suction.
3. Origin stainless steel color. Adopt pickling and electrolytic processing.
4. Stainless steel 304 /316 pump size from 1/2" to 3".
4. Stainless steel 304 /316 pump size from 1/2" to 3".
Aluminum Pump features
1. Precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
3. Four bolts connection design, good seal and good dry suction.
4. Aluminum pump size from 1/2" to 3". Pump with black EPOXY coating.
4. Aluminum pump size from 1/2" to 3". Pump with black EPOXY coating.
Diaphragm: longer life time
1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.
2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.
3.Center place with O-ring design, enhance seal performance.
Pump Application
pump in Fertilizer Plant
pump in Chemical plant
pump in Oil refinery
Air operated diaphragm pump is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Company Profile
Packing&Shipping
FAQ
1 .Q: What's the MOQ ?
A: 1 set for regular product ,the special one we need to discuss ,for more details , welcome visit our company website: www.defupump.com
3. Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS. For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.
4. Q: What about the package ?
A : Standard export Plywood case or carton .
5. Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment. For the orders out of stock , the products time is 7 days , deliver time is 3-6days for express , if by sea ,the deliver time isbase on the shipping date.
6. Q : How long is the warranty ?
A: 1 set for regular product ,the special one we need to discuss ,for more details , welcome visit our company website: www.defupump.com
2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T . For order valve >4000USD ,we can accept 30 % T/T inadvance , 70% should be paid before shipping , L/C , Western Union,etc
A: For small order valve < 4000USD, our customer chose 100% T/T . For order valve >4000USD ,we can accept 30 % T/T inadvance , 70% should be paid before shipping , L/C , Western Union,etc
3. Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS. For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.
4. Q: What about the package ?
A : Standard export Plywood case or carton .
5. Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment. For the orders out of stock , the products time is 7 days , deliver time is 3-6days for express , if by sea ,the deliver time isbase on the shipping date.
6. Q : How long is the warranty ?
A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
Contant me
Похожие товары
Оптовая продажа из Китая высококачественный высокомощный 3-дюймовый сельскохозяйственный оросительный передвижной дизельный водяной насос
158,00-237,00 $
HY-2202-1 давления сельскохозяйственный электрический 12V насоса опрыскивателя
Воздуходувка для аквакультуры 3HP
162,00-176,00 $
Вакуумная система с ременным приводом центробежный самовсасывающий насос большой скоростью потока и Высокой Головкой
13 800,00-15 000,00 $

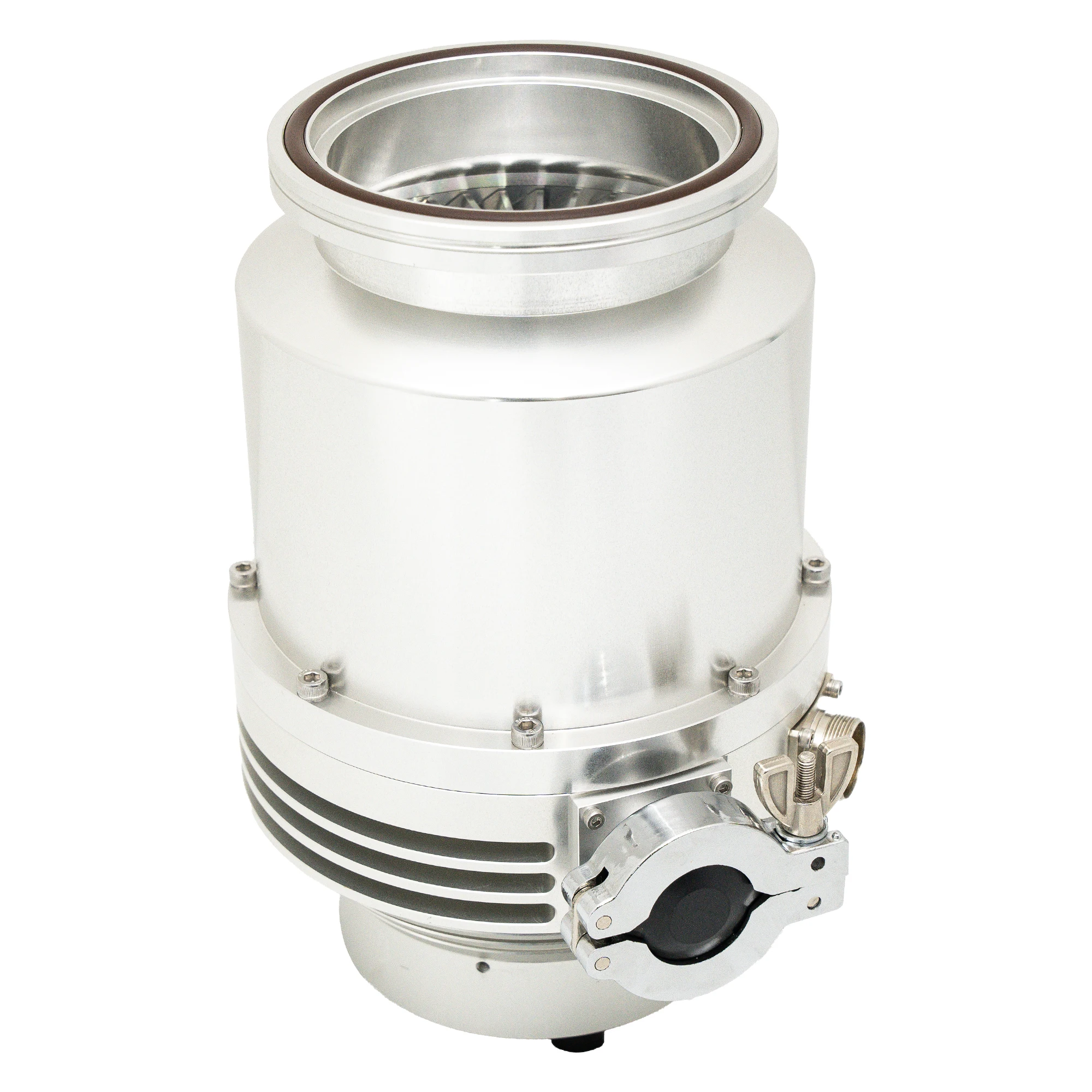

Оптовая цена 300 л/с скорость откачки масла без воздушного охлаждения/водяным охлаждением Ультрафиолетовый полупроводник/лазер/светодиодный турбо молекулярный вакуумный насос
3 200,00-3 400,00 $
QY сельское хозяйство моноблок 8 л.с. электрические водяные насосы для орошения водяной насос
200,00-206,70 $

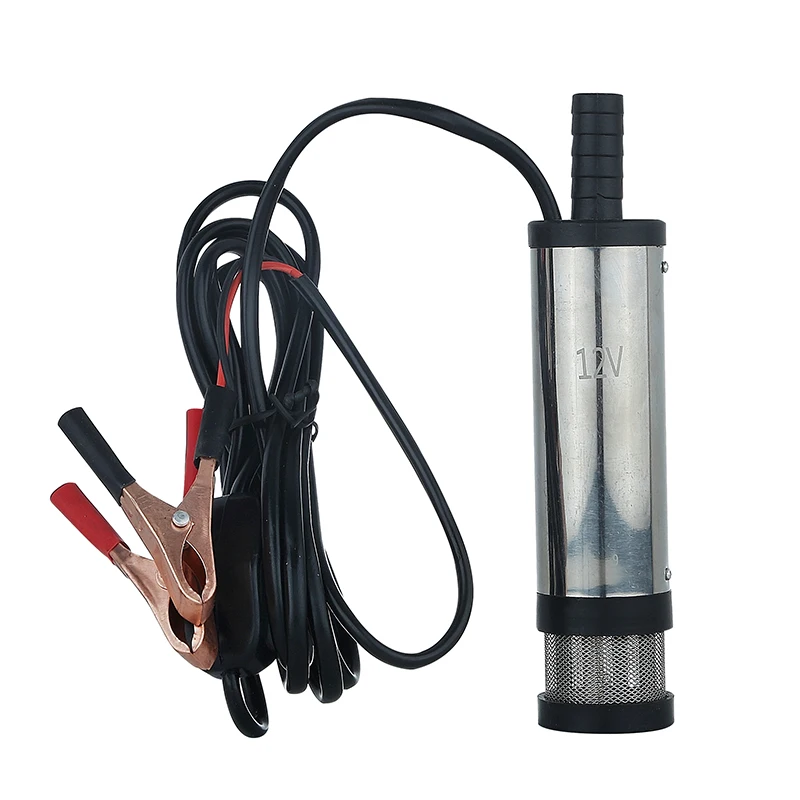

Портативный Электрический Дозирующий погружной мини-насос DC 12 В 24 для дизельного топлива масла керосина
