Цемент и бетонный шнек цена для продажи поставщик в Китае

Цемент и бетонный шнек цена для продажи поставщик в Китае

Категория: Шнековые буры >>>
Поставщик: Yantai Chengtai Construction Machinery Co. Ltd.Yantai Ltd.

Цена:1 300,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

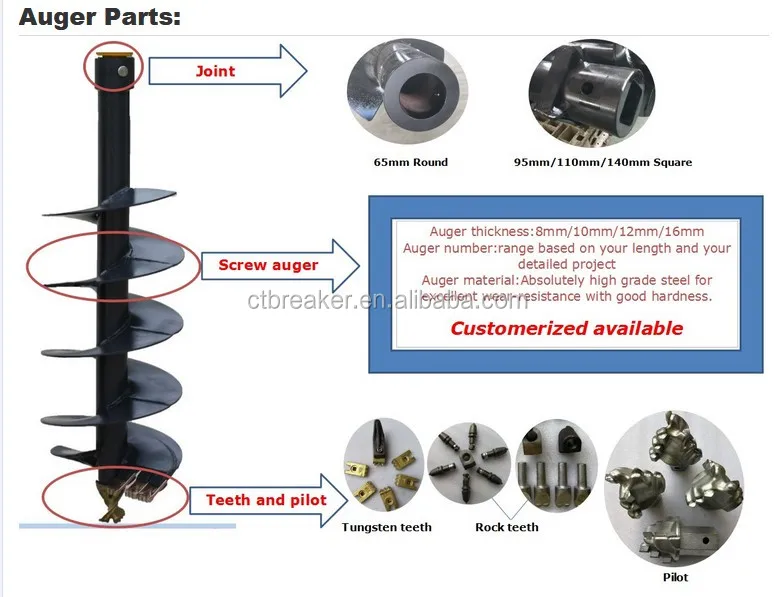

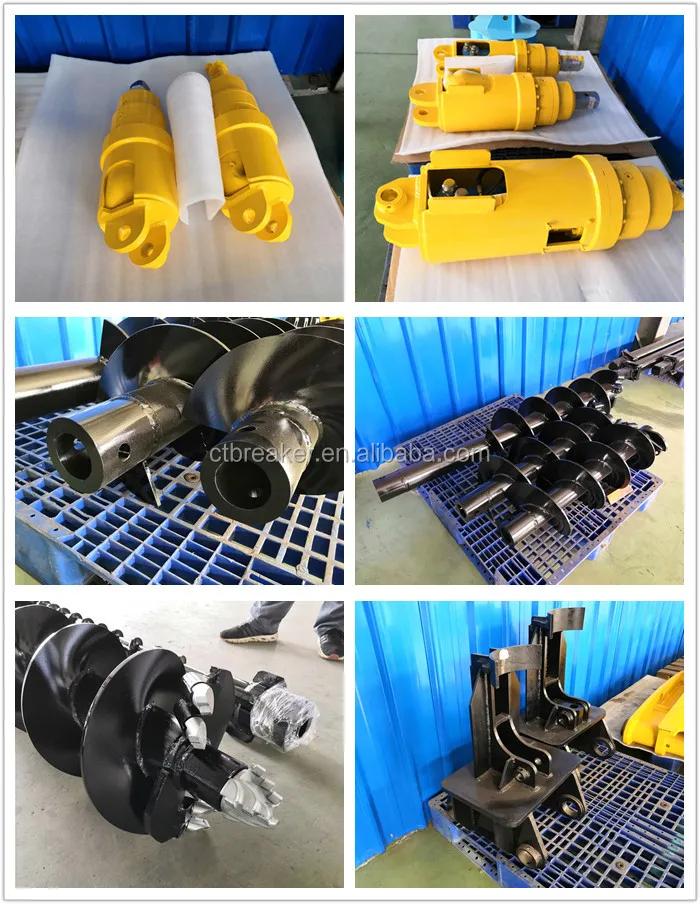

Detailed Images

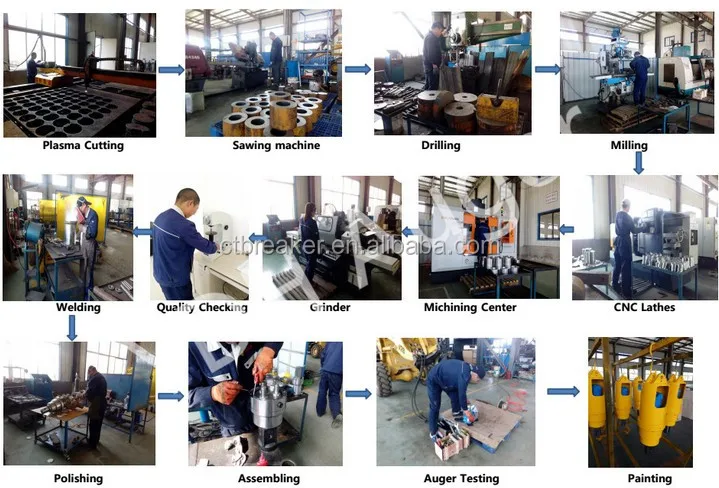

Producing process

Product Description

How too choose the most suitable auger for your excavator

To choose a most proper model auger drill for your excavator/Crane, you also must refer to the following four factors:

1.Model of your excavator/Skidsteer/Backhoe/Tractor/Crane.
2.Diameter of hole to be drilled
3.Depth of hole to be drilled
4.Your working ground condition(land type).

\t Model	\t YDH2000	\t YDH3000	\t YDH4000	\t YDH5500	\t YDH7000	\t YDH8000	\t YDH9000
\t Applicable Carrier(T)	\t 1.5-3	\t 2-4	\t 2.5-4.5	\t 3-6	\t 4.5-6	\t 5-8	\t 3-7
\t Max Torque(Nm)	\t 2510	\t 3100	\t 3760	\t 5600	\t 7300	\t 8250	\t 8760
\t Working Pressure(bar)	\t 80-170	\t 80-170	\t 80-170	\t 80-190	\t 100-200	\t 100-200	\t 80-170
\t Working oil flow(Lpm)	\t 40-75	\t 40-75	\t 40-75	\t 60-95	\t 60-95	\t 80-150	\t 40-75
\t Rotation Speed(r/min)	\t 30-65	\t 30-65	\t 25-40	\t 40-60	\t 34-52	\t 20-60	\t 13-28
\t Output shaft(mm)	\t 65Rd	\t 65Rd	\t 65Rd	\t 75Sq	\t 75Sq	\t 75Sq	\t 75Sq
\t Size(mm)	\t Φ200X585	\t Φ200X585	\t Φ200X585	\t Φ270X900	\t Φ270X900	\t Φ270X900	\t Φ270X870
\t Weight(kg)	\t 55	\t 58	\t 60	\t 127	\t 130	\t 135	\t 122
\t	\t	\t	\t	\t	\t	\t	\t
\t Model	\t YDH10000	\t YDH12000	\t YDH15000	\t YDH20000	\t YDH25000	\t YDH30000	\t YDH40000
\t Applicable Carrier(T)	\t 3-10	\t 13-17	\t 15-17	\t 15-20	\t 17-30	\t 17-25	\t 17-25
\t Max Torque(Nm)	\t 10250	\t 12300	\t 15160	\t 19200	\t 24920	\t 31500	\t 39500
\t Working Pressure(bar)	\t 80-170	\t 100-210	\t 100-210	\t 110-230	\t 110-230	\t 100-170	\t 100-170
\t Working oil flow(Lpm)	\t 40-75	\t 80-150	\t 80-150	\t 80-150	\t 80-150	\t 100-150	\t 100-150
\t Rotation Speed(r/min)	\t 12-23	\t 17-40	\t 15-33	\t 12-25	\t 10-20	\t 13-17	\t 11-15
\t Output shaft(mm)	\t 75Sq	\t 75Sq	\t 75Sq	\t 95Sq	\t 95Sq	\t 110Sq	\t 110Sq
\t Size(mm)	\t Φ270X870	\t Φ290X945	\t Φ300X945	\t Φ345X1155	\t Φ345X1155	\t Φ460X1600	\t Φ460X1600
\t Weight(kg)	\t 125	\t 177	\t 180	\t 266	\t 272	\t 485	\t 490

3.give us your excavator data as picture showed

if you not sure for this ,we could help you .

Give us the data A,B,C,D,E

We will produce the auger for you according these data ,so it can install on your carrier

Extension specification :

Diameter :89mm,108mm(Standard),127mm,146mm
Length:1M,1.5M,2M,2.5M,3M

Customized available

Our Company

Yantai chengtai construction machinery CO.,LTD

Yantai Chengtai Construction Machinery Co., Ltd was established in 2005. We are one of the leading manufacturer in China. We mainly manufacture hydraulic breaker,Quick hitch ,earth auger ,Ripper ,Hydraulic plate compactor, Hydraulic grapple, etc. We have more than 20sets of high precision production line ,include Taiwan CN lathe ,Doosan CNC and so on which lay a solid foundation for products Precision machining.

Our advantage

1.Korean engineer who have 20 years working experience in Korean Soosan

2.Biggest manufacturer for hydraulic breaker cylinder ,more than 30% cylinder in north China are supplieed by us ,expecially in Yantai city .

3.Quality check according soosan standard strictly .

4.12 mounths Guarantee period .

5.Alibaba cooperation company ,any problem after shipping,the alibaba will refund you firstly .

6.24hours online service.After-sales service
