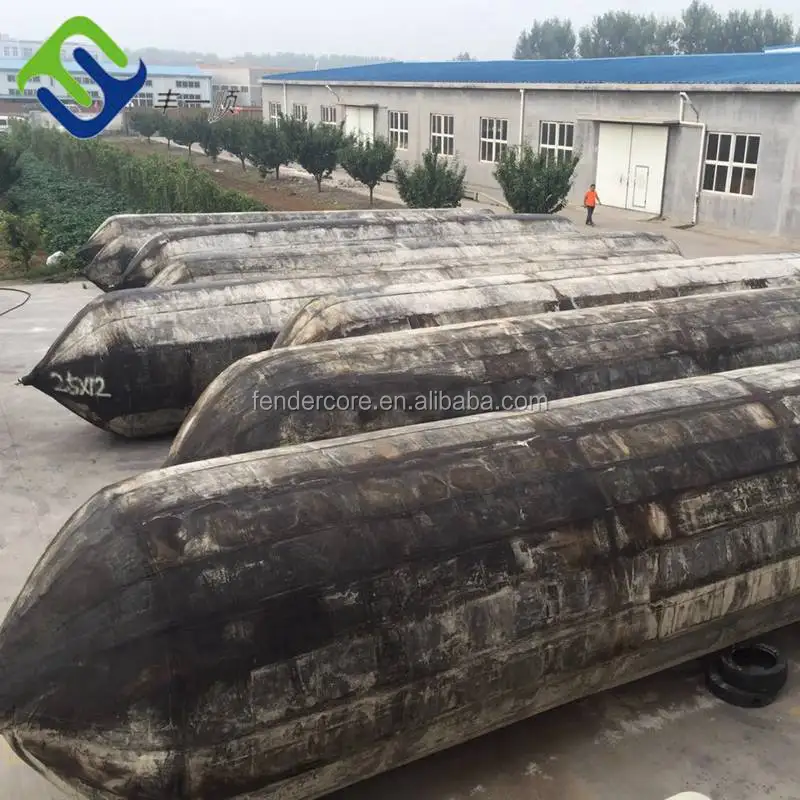

Marine airbag is also known as rubber airbag, ship launching airbag, ship salvage airbag, ship lifting bag, boat airbag, inflatable airbag, ship roller, rubber balloon, air tube, made of natural rubber &multi layers of rubber dipped nylon fabric(like tyre).
FLORESCENCE Brand is very famous in Asia, especially in Indonesia and Singapore, so we have marine airbags&fender store in Batam of Indonesia, and agent in Singapore. And we can come to your site to assist your project.
Here are some comments from our clients for your reference, our aim is clients' satisfaction!
How to choose airbag size:
We can manufacture ship rubber airbag diameter from 0.8m up to 2.8m, length from 5.0m up to 24.0m, and layers from 4 to 12 layers.
If you are not sure about the airbag size needed, pls tell me below info, then we will
recommend you a most suitable airbag size.

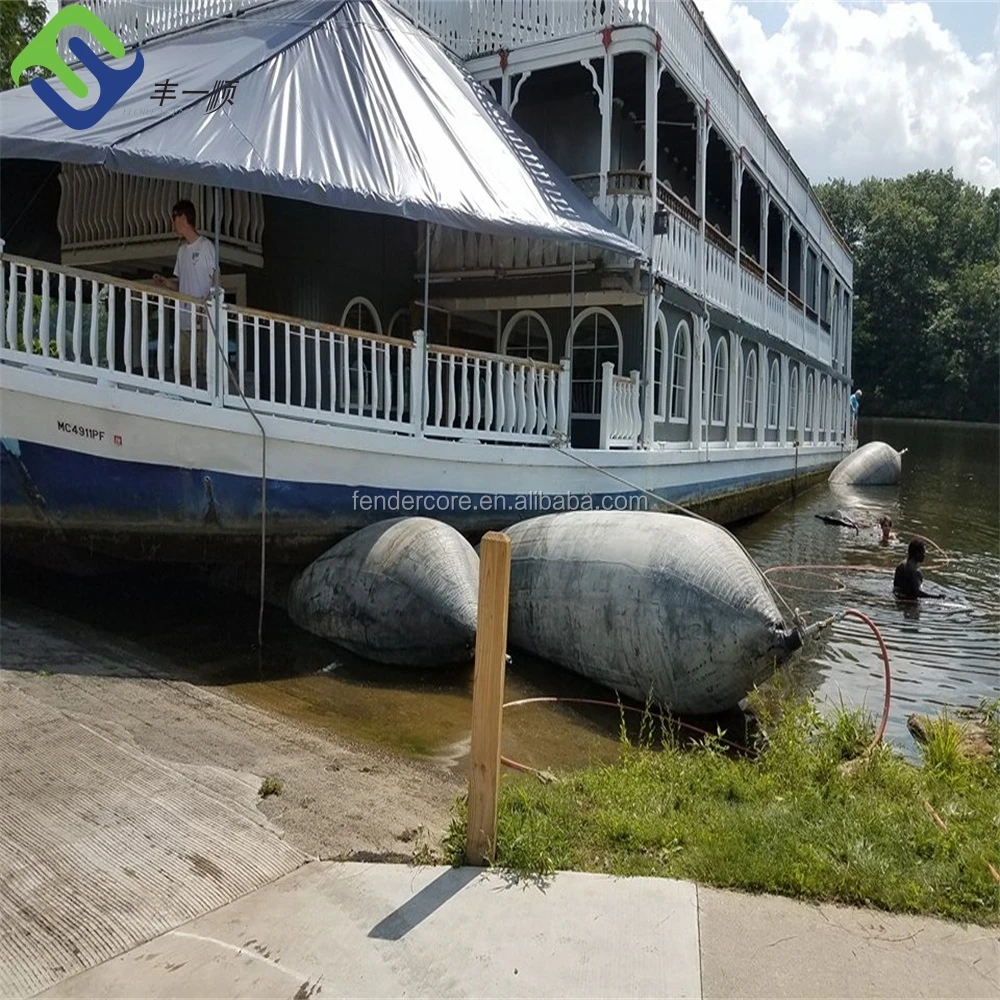

1.Where do you use airbags? for ship launching, landing, marine salvage floating?
2.Your target ships information( ships length,width, weight, or range).
3. Your ship block height.
4.Your slipway situation and angle.
Rubber airbag sizes range:
Diameter (D): | From 0.8m to 2.8m |
Effective Length (EL): | From 6.0m to 24.0m |
Total Length (TL): | From 7.0m to 26.5m |
Standard Number of Layers: | Usually 4-10 layers |
Loading Capacity: | About 10-40 T/M |
Marine airbag guaranteed working pressure:
Type | D=0.8m | D=1.0m | D=1.2m | D=1.5m | D=1.8m | D=2.0m |
3 layers | 0.13MPA | 0.10MPA | 0.09MPA | 0.07MPA | 0.06MPA | 0.05MPA |
4 layers | 0.17MPA | 0.13MPA | 0.11MPA | 0.09MPA | 0.08MPA | 0.07MPA |
5 layers | 0.21MPA | 0.17MPA | 0.14MPA | 0.11MPA | 0.09MPA | 0.08MPA |
6 layers | 0.25MPA | 0.20MPA | 0.17MPA | 0.13MPA | 0.11MPA | 0.10MPA |
7 layers | 0.29MPA | 0.23MPA | 0.20MPA | 0.15MPA | 0.13MPA | 0.12MPA |
8 layers | 0.33MPA | 0.26MPA | 0.23MPA | 0.17MPA | 0.15MPA | 0.14MPA |
About ship airbags Inflation:

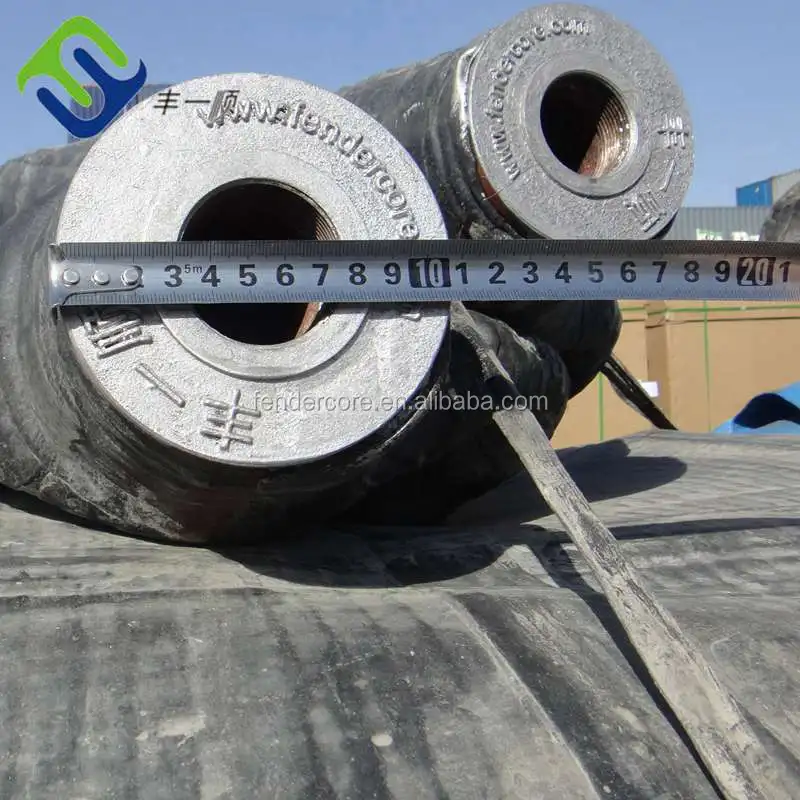

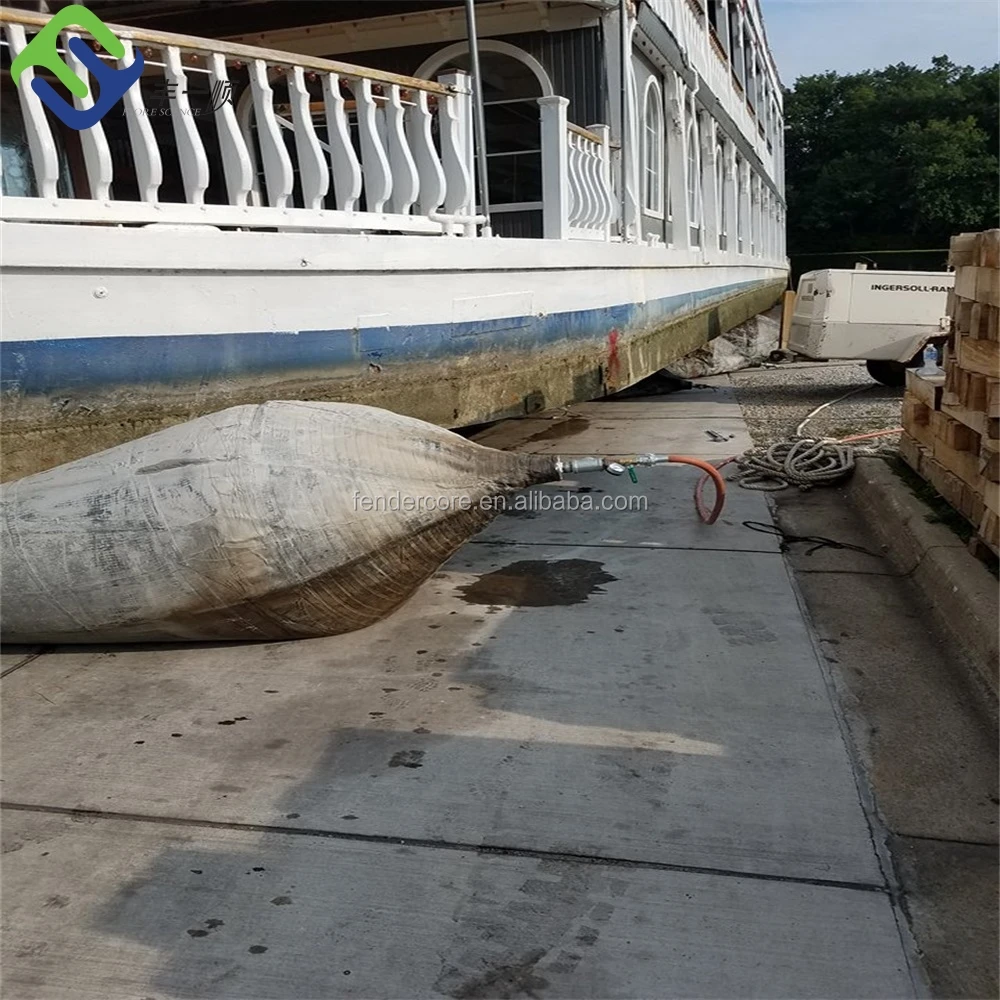

The size of the blowing inlet is about diameter 2.5cm, total about 30cm. We will supply the inflation tube to join rubber hose for you, see below photos.
About ship airbags Repair:
1) What is the pressure required when pressing the repair rubber to airbag? We will have to use our own jack for this.
Jack need about 0.6MPa
2) What are the dimension of the heating plates? Can I say that the size of repair is limited to the heating plates?
Heating plate size is 20*30 cm, the fixed size is not limited by our heating plate, you can repair 20*30 cm area at one time, then you repair another 20*30 cm...
3) What is the maximum damage area which can be repaired using this heating plates?
For broken of 1 to 6 ply, even puncture and hole size about 20cm(bigger size can be fixed too, but harder), all can fixed by our machine, just if all 6 layers are all punctured, it is much harder to fix. And after repaired, you need to put the fixed airbags in some place that bear less weight.
4) Please confirm that all cables are provided and also what sort of power supply and connection is required?
Yes, you can use the repair machine directly, 220V, this can be used in Singapore, Indonesia, Malaysia,ect. (we sold to these countries)
5) Can I check; what is the usual practise when it comes to repair? If damage is on 1st or 2nd ply, do we have to repair immediately? Which ply and what size of damage onwards then we have to commence repair?
This is depend on you, size and layers. For very small size scratch (about 5cm) of one ply, you can wait till future. If bigger injure(about 10-20 cm), you need to repair once you found it.
For multi layers and big size injure, I suggest you repair immediately, for small one, you can wait.
For ship launching/lifting rubber balloon , marine airbags, marine rubber air bag, ship launching airbag, inflatable rubber airbag balon, pls contact us.
Florescence Certificates: ISO, CCS, BV, etc
Qingdao Florescence Rubber Products Co.,Ltd. delivers marine fendering and ship launching/salvage airbags to a global market for 20 years. With a large rubber airbags and fender stock and quality guarantee, we
ensure our customers the right products on time.
If you have any questions or need any help, pls contact me freely, we will reply you within 24 hours----Michelle
