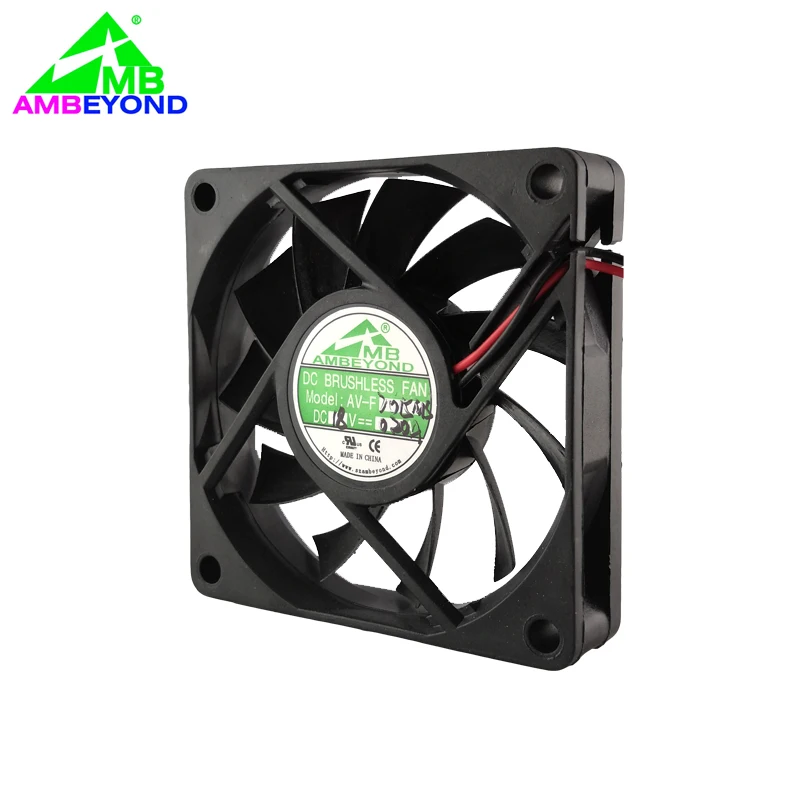

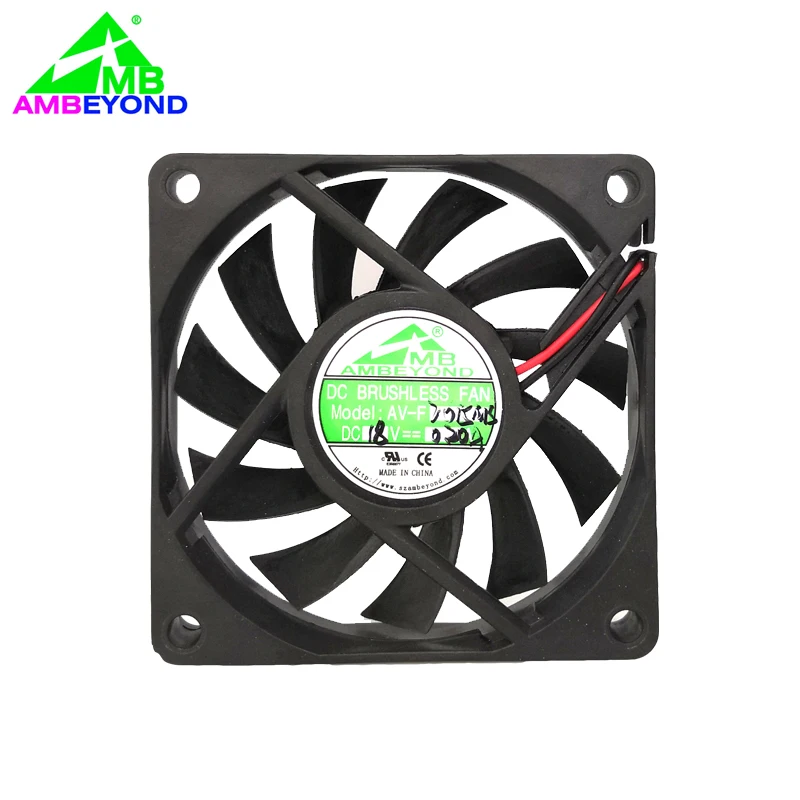

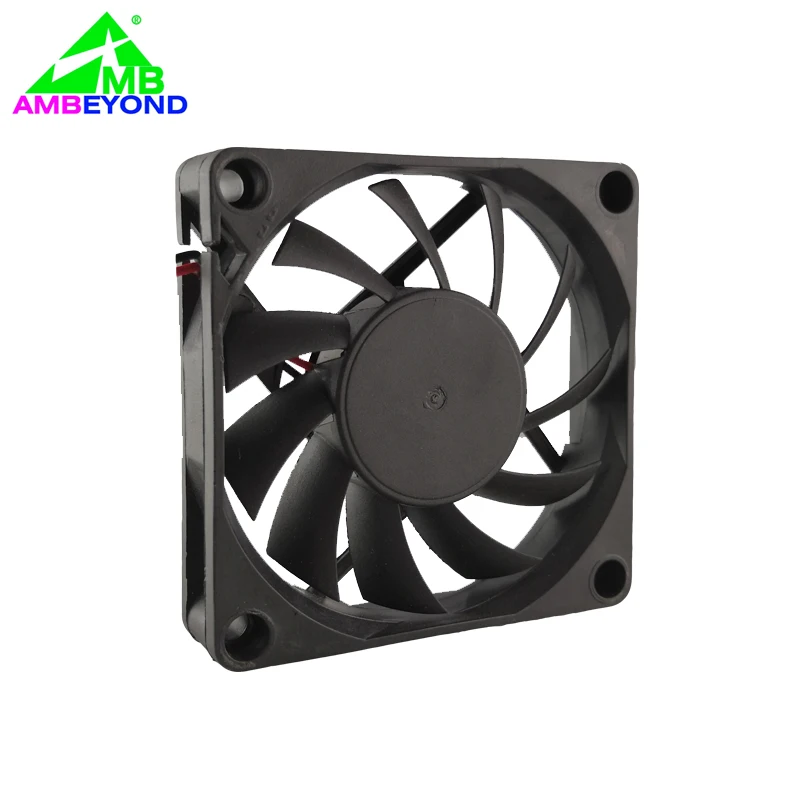

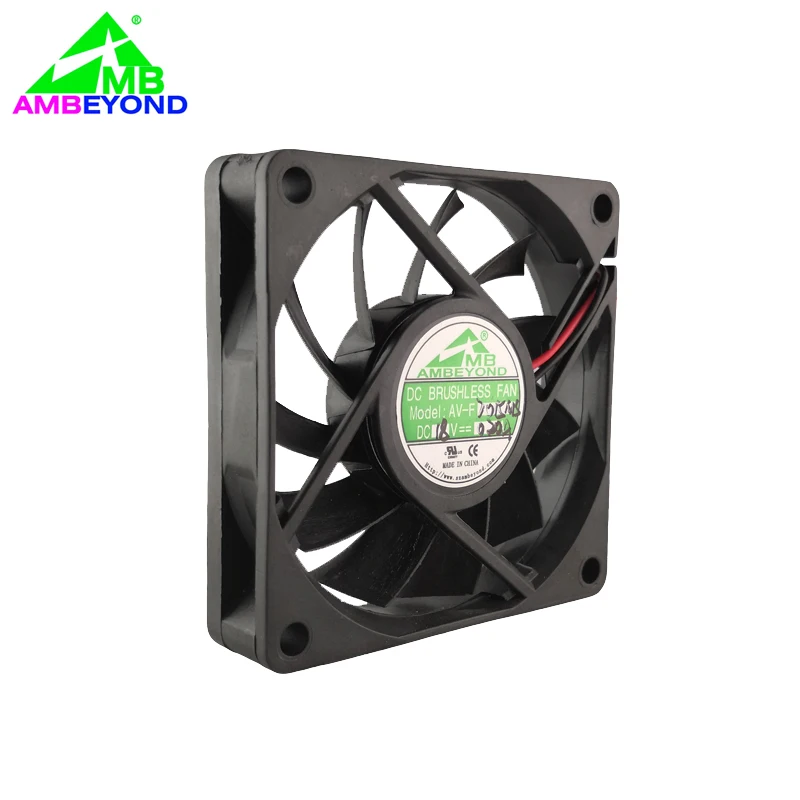

12 вольт DC вентилятор 70x70x15 вентилятора компьютера 3 дюймов охлаждающий бесшумный 70 мм 35CFM

12 вольт DC вентилятор 70x70x15 вентилятора компьютера 3 дюймов охлаждающий бесшумный 70 мм 35CFM

Категория: >>>
Поставщик: Shenzhen AMBEYOND Technology Co. Ltd.

Цена:0,80 $ - 2,80 $*

Количество:

В избранное

Описание и отзывы

Характеристики

specification

12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_01

12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM

normal performance specification

size	70x70x15mm
construction	glass fiber reinforced plastic; impeller and housing PBT are UL 94V-0 rating
operating temperature	sleeve bearing -10℃ to +70 ℃ ball bearing -10℃ to +90 ℃
insulation resistance	10meg Ohm min, at 500 VDC (between frame and terminal)
dielectric strength	5mA max, at 500 VAC 60Hz one minute (between frame and terminal)
life time	sleeve bearing: 30000 hours ball bearing: 50000 hours

7015-drawing 7015-catalog

showcase

High performance specification

If you want high perforamance products( >4000rpm, waterproof, PWM function, customized fans...) welcome to contact us for more details, thanks

click here

Application

1. Digital Photoelectric

2. LED Light Fixture

3. Graphics Card

4. Chassis

5. CPU Cooling

6. Humidifier

......

12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_04 7015-2 7015-17 7015-8

information

12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_08 12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_09 12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_10 --(1)_11 12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM --(1)_12

questions

12 Volt DC Fan 70x70x15 Computer Fan 3 Inch Cooling Fan Silent 70mm 35CFM

Q1: Are you a factory or trading company ?
A1: Yes, we are the professional cooling fan factory.

Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage, always is 5V, 12V, 24V, 48V, 60V and 72V.
AC fan is power by AC voltage, always is 110V, 220V and 380V.

Q3: How to choose a DC fan?
A3: Sample

size	12025 120x120x25mm
voltage	12V
current	0.60A
speed	3000RPM
air flow	79.75CFM
noise	32.48dBA
bearing type	double ball bearing
connector	4 pin molex 2564
wire	4 wires with 300mm length
function	FG/ RD/ PWM/ Soft Start ......

Q4: What is the delivery time?
A4: Sample lead time: 3-5 days
Mass production delivery lead time: 12~15 days(depend on the quantity)

Q5: What can I do if I can not find the suitable fan model in the fan list?
Q7: Please contact us for customized fans.
*** If you want other high performance or other reqirements, please contact me for more details, thanks.
*** For Special Cooling Fan, Such as: moistureproof, waterprrof, turbocharger, soft start, reversible, temperature control, PWM speed control, the RD alarm and the FG signal etc, please contact me freely, thanks.
