Product Description

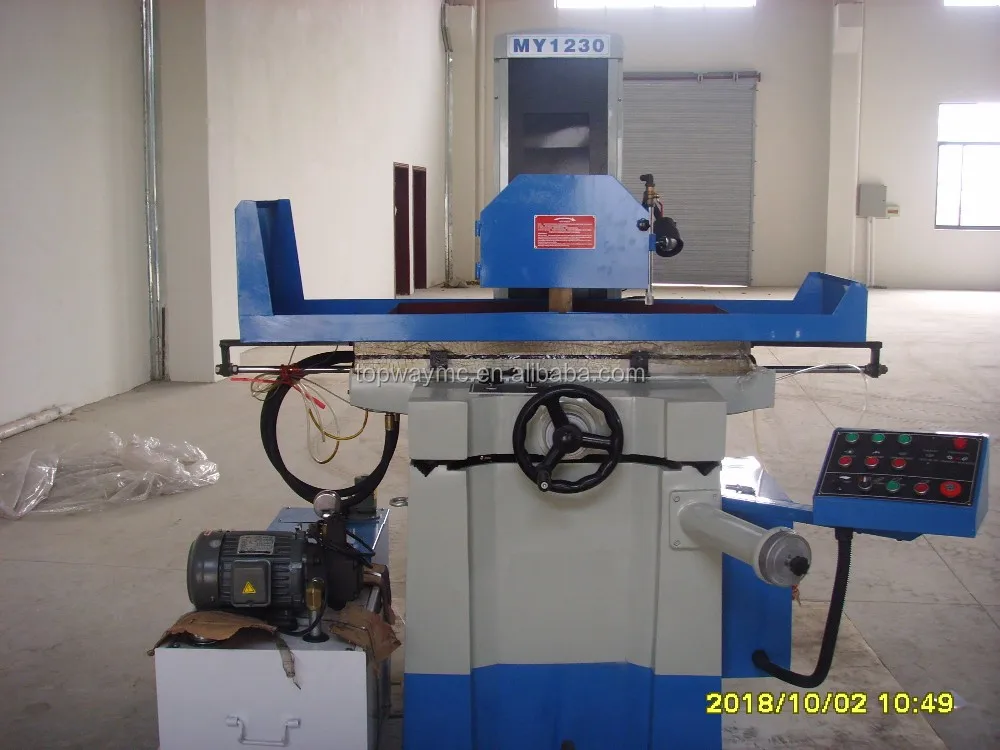

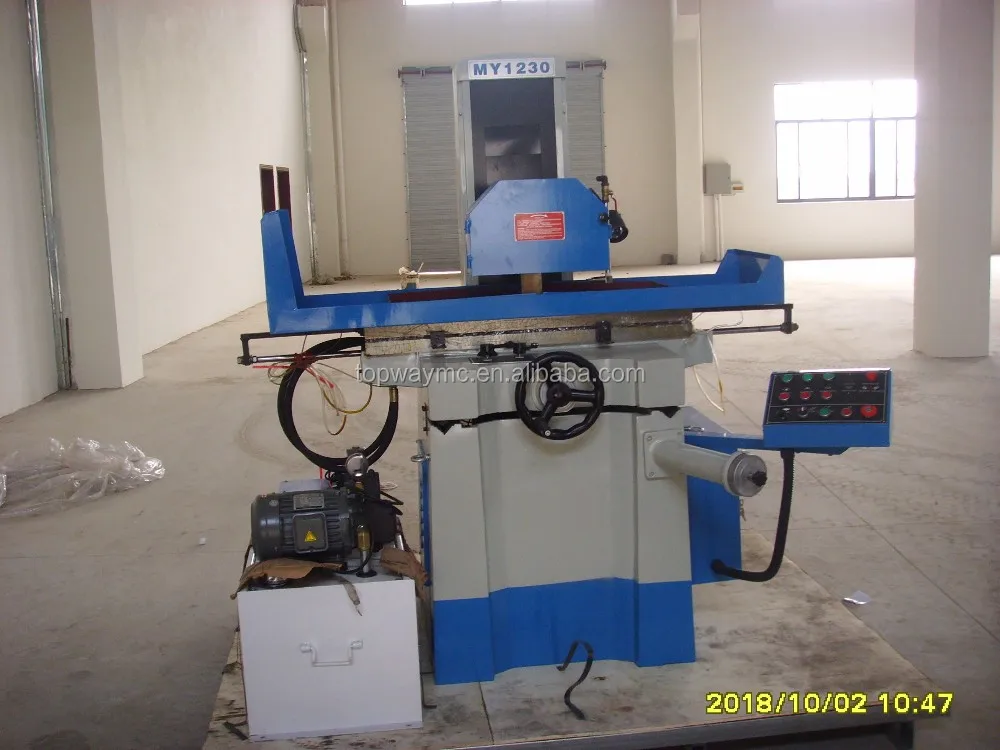

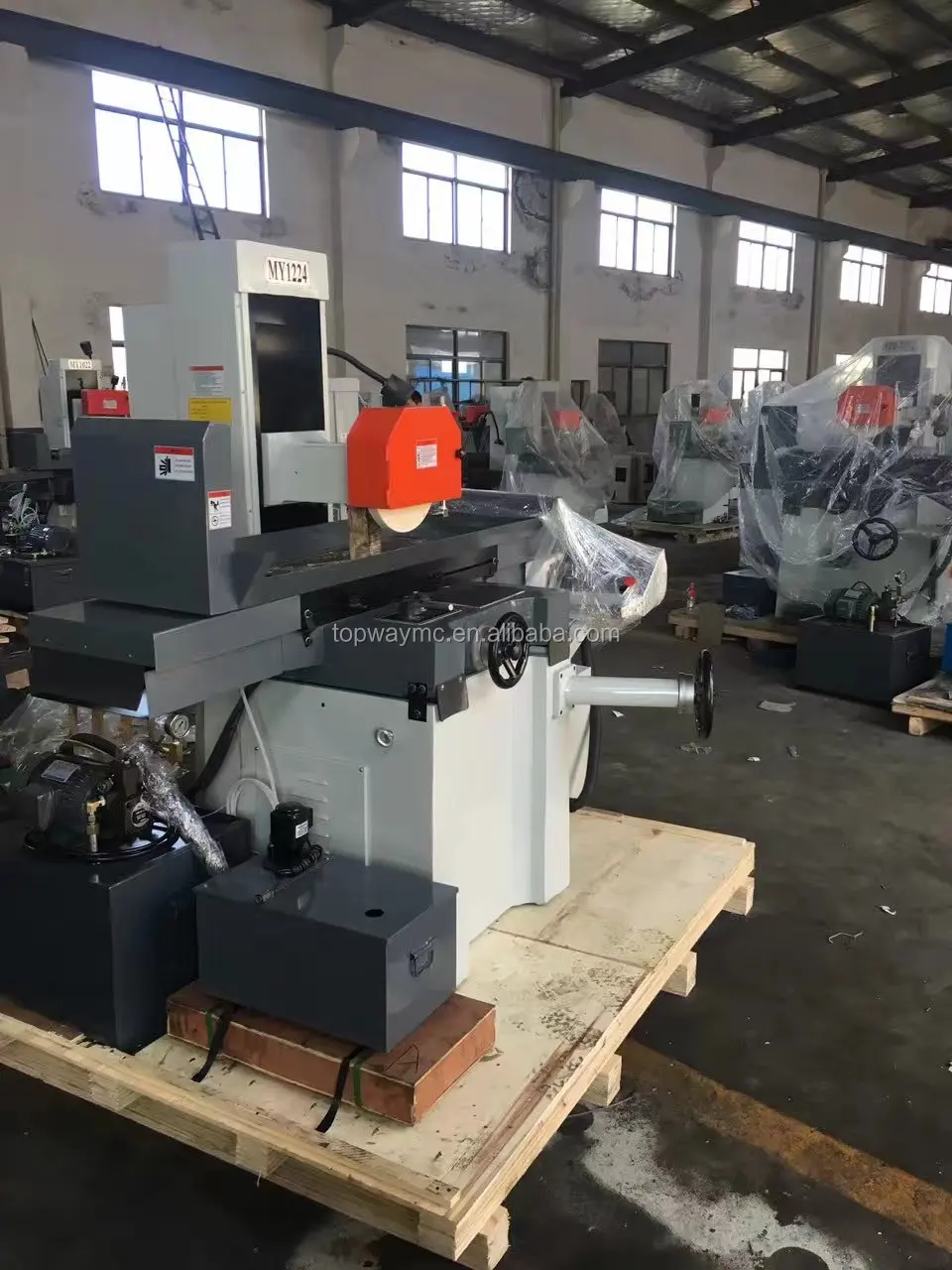

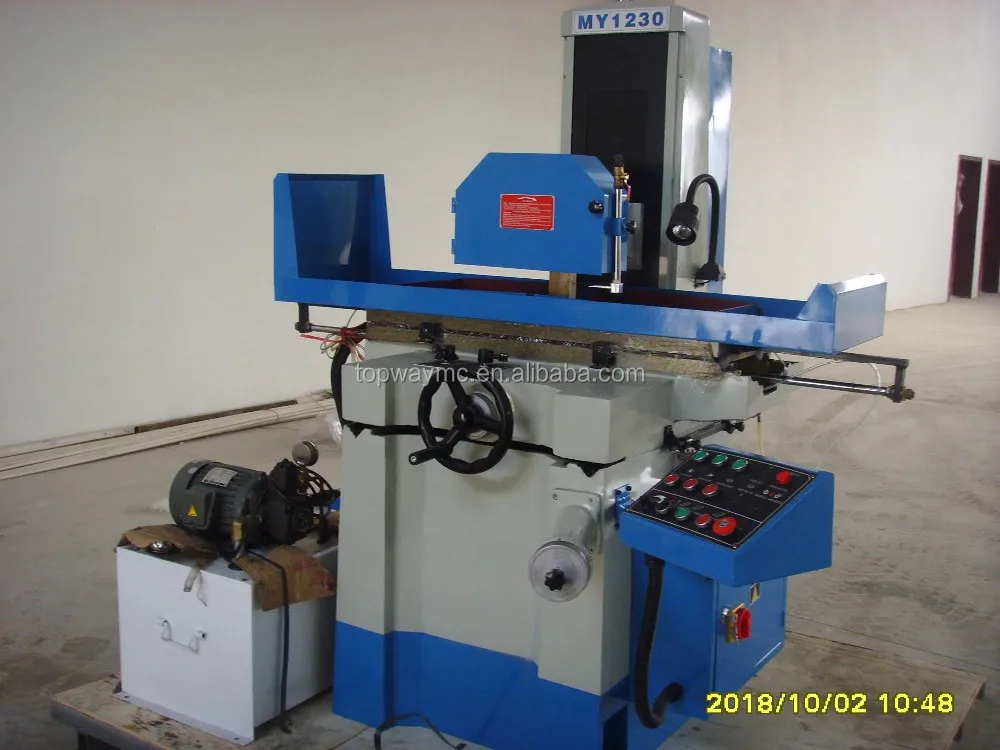

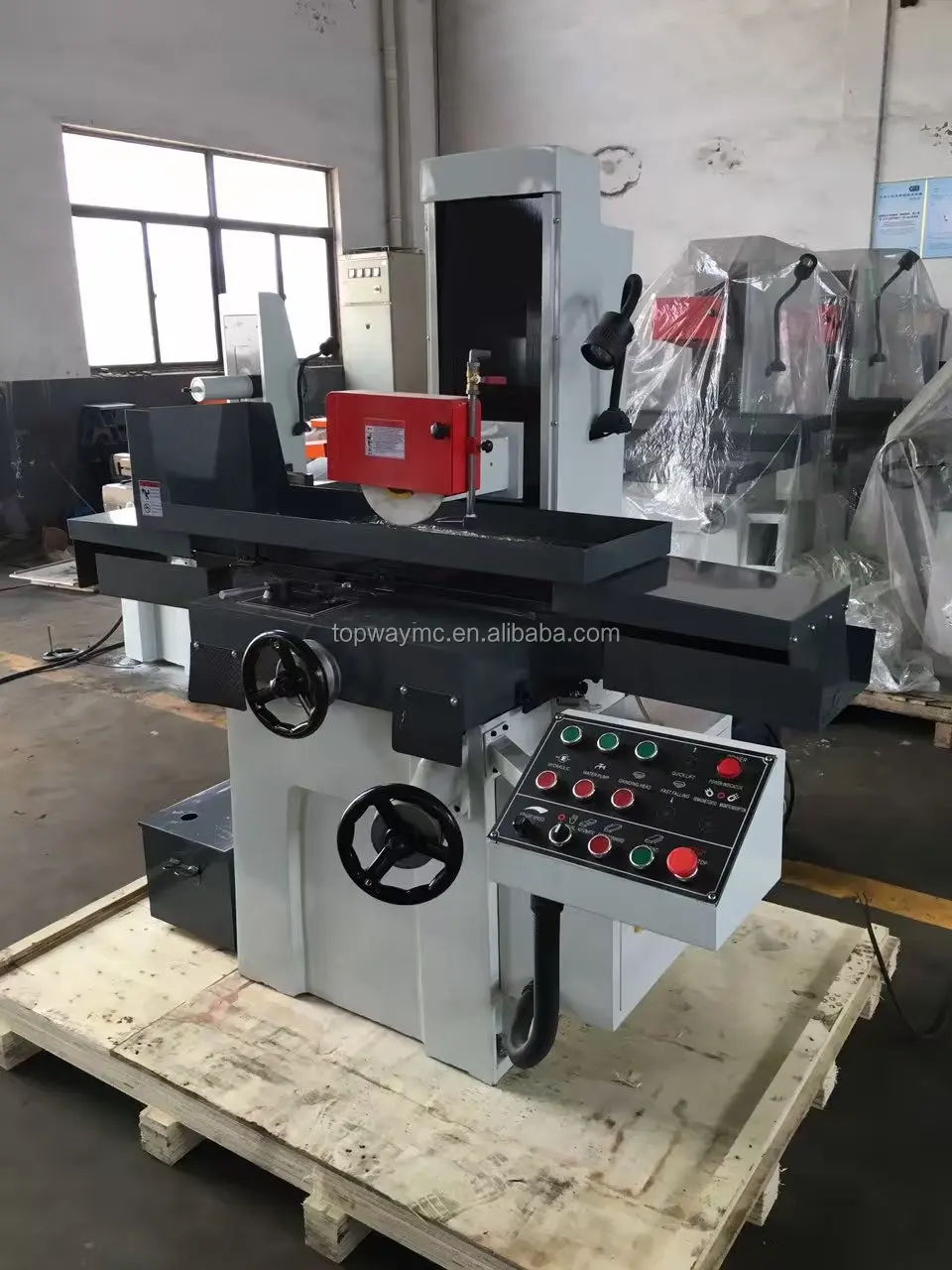

MY1230 Surface Grinding Machine

1. The machine is reasonable in structure, good rigidity, beautiful apperance, convenient operation.

2. Using precision plastic guide surface an precision scraping, grinding imported hydraulic transmission, drive by synchronous;

3. The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation vontrol, throttle control. Throttle control part and unloading function, can realize the station start and stop.

4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.

\t SPECIFICATIONS OF MANUAL SURFACE GRINDING MACHINE MY1224/MY1230/MY1232
\t Specifications		\t Unit	\t MY1224	\t MY1230	\t MY1232
\t Worktable size		\t mm	\t 600x300	\t 700x300	\t 800x320
\t Wortable traverse		\t mm	\t 640x320	\t 760x370	\t 860x380
\t Worktable working range		\t mm	\t 640x320	\t 760x370	\t 860x380
\t T-slot		\t mm	\t 1x14	\t 1x14	\t 1x14
\t Distance from worktable to spindle center		\t mm	\t 490	\t 540	\t 540
\t Wheel size		\t mm	\t 300x30x75	\t 300x30x75	\t 335x30x127
\t Spindle speed		\t r/min	\t 1440	\t 1440	\t 1440
\t Worktable longitudinal speed		\t m/min	\t 3-20	\t 5-25	\t 5-25
\t Worktable horizontal speed	\t Continuous	\t mm/min	\t 150	\t 150	\t 150
	\t Intermittent	\t mm/t	\t 0-5	\t 0-5	\t 0-5
	\t rotates	\t mm	\t 4	\t 4	\t 4
	\t Each grid	\t mm	\t 0.02	\t 0.02	\t 0.02
\t Vertical feed speed	\t rotates	\t mm	\t 2	\t 2	\t 2
\t Vertical feed speed	\t Each grid	\t mm	\t 0.01	\t 0.01	\t 0.01
\t Spindle motor		\t kw	\t 4	\t 4	\t 4
\t Cooling motor		\t w	\t 40	\t 40	\t 40
\t Hydraulic motor		\t kw	\t 1.5	\t 1.5	\t 1.5
\t Working pressure		\t Mpa	\t 3	\t 3	\t 3
\t Oil tank capacity		\t L	\t 80	\t 80	\t 80
\t Oil max. flue catacity		\t L/min	\t 18	\t 18	\t 18
\t Surface parallelism		\t mm	\t 300/0.004	\t 300/0.004	\t 300/0.004
\t Surface Roughness		\t um	\t Ra0.32	\t Ra0.32	\t Ra0.32
\t G.W. / N.W.		\t kg	\t 1650/1500	\t 2350/2100	\t 2750/2500
\t Packing size		\t cm	\t 195x170x203	\t 195x170x203	\t 200x180x203
