Automatic Paper Plate Packaging Disposable Plastic Cutlery Packing Machine


Skype&Email: Una @machinehall.com   Whats app:008618503852196   QQ:3463803071



Product Description


 (5)


Application of Plastic Cutlery Packing Machine


Disposable plate cutlery packaging machine is suitable for the packaging of all kinds of regular objects, such as biscuits, mitong, snow cakes, egg yolk pie, chocolate, bread, instant noodles, mooncakes, daily necessities, industrial parts, cartons or pallets.


22


Features of Plastic Paper Plate Packaging Machine


1. PLC control performance is stable, bag length is ready to cut, one-step, time-saving membrane.
2. Touch screen operation interface, easy to understand, more intuitive operation.
3. High sensitivity photoelectric tracking, digital input sealing position, so that the sealing position is more accurate.
4. Temperature independent control, better suitable for a variety of packaging materials.
5. Simple transmission system, reliable work, easy maintenance and maintenance.


Main Part of Disposable Plastic Plate Packaging Machine


disposable plastic plate cutlery packing machine


How to choose this disposable plastic cutlery packing machine?


Q : Which one packing machine is suitable for us ?
A : Dear, before quoting, please kindly consult us and providing:
1.your product name,product picture.
2.your bag size,such as bag width and bag height.
3.ideal bag shape.
In order to recommend you the best,we need know that information.
If you just start this business,no bag size,we can help u to find similar weight bag for your reference.


Need more machines details or videos? Please contact us directly ! ♥♥♥





Machine Parameter


Parameter of Disposable Plastic Cutlery Packing Machine





















































ModleCKZS250CKZS320CKZS350
Film width(mm)Max. 250Max. 320Max. 350
Bag width(mm)30-11050-16050-160
Product height(mm)Max. 40Max. 45Max. 45
Film diameter(mm)320320320
Packing speed(bags/min)40-23040-23040-230
Dimension(mm)3370*670*14503370*720*14504020*745*1450
Weight(Kg)800900900




Detailed Images

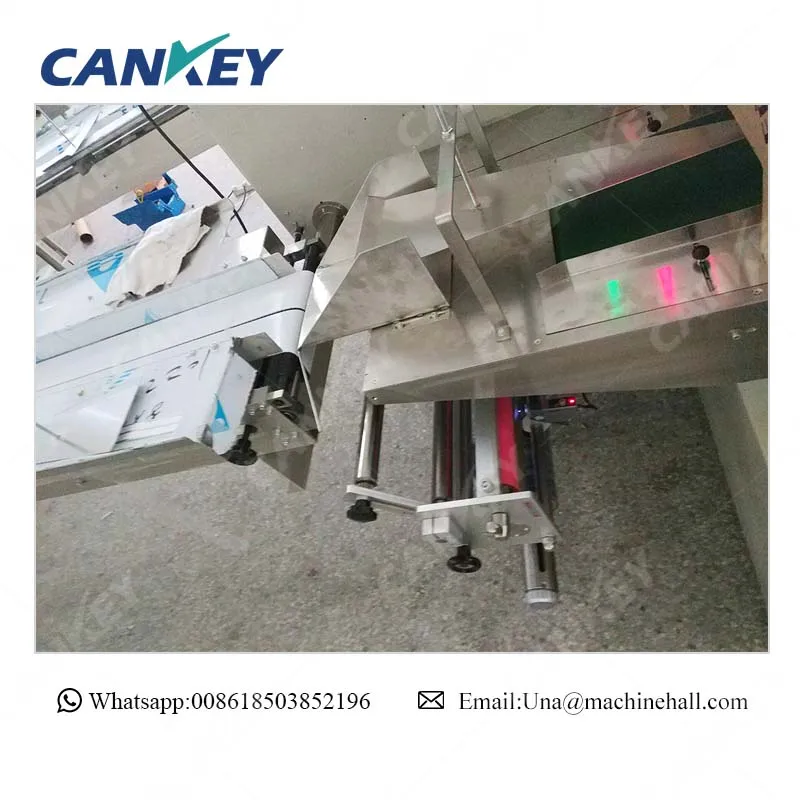

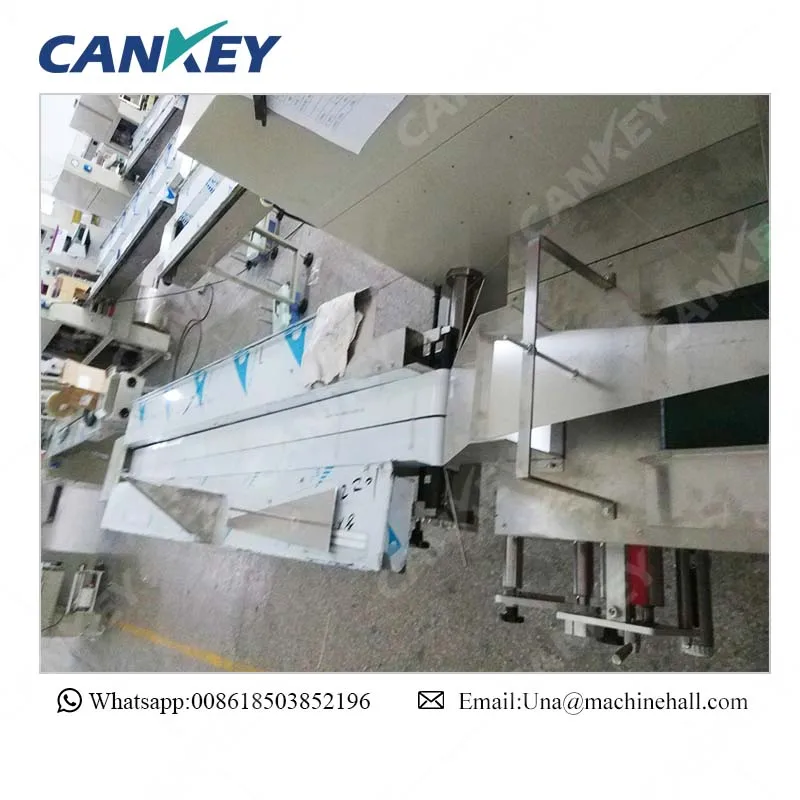

Details of Disposable Plastic Cutlery Packing Machine


17


Pillow Type Cutlery Packing Machine Working Principle
The pillow type plastic cutlery packaging machine uses the variable frequency stepless speed regulating motor to drive the gear chain type continuously variable transmission through the V-belt to rotate the gearbox through the speed regulation chain. The different running speeds are obtained and then transmitted to the planetary difference by the synchronous belt. The moving mechanism adjusts the conveying length of the paper film, and the output shaft of the gearbox rotates the paper film through the chain drive to drive the paper film pressing roller. The output length of the paper film can be manually operated on the toothed chain governor. It is monitored by the photoelectric tracking color code during the packaging process. At the same time, the gearbox is also driven by multiple sets of chains to realize the packaged items.


More Pictures of Disposable Plastic Plate Cutlery Packing Machine


disposable paper plate plastic cutlery packing machine


disposable plastic cutlery packing machine


The Cleaning Steps of The Pillow Disposable Plastic Plate Cutlery Packing Machine
1. Clean the cutter and tailstock parts in time after shutdown, and ensure that each shift cleans the feed conveyor chain and drive chain to prevent corrosion.
2. For the heat seal body, it should be cleaned frequently to ensure the clear texture of the seal.
3. Photoelectric tracking light head, that is, electric eye, should also be cleaned regularly to ensure small error of cursor tracking.
4. The materials scattered on the tray should be cleaned in time to keep the parts clean.
5. Regularly clean the dust inside the electric control box to prevent malfunctions such as poor contact.





Related Products


Our Main Products


pillow packing equipment.jpg















If you want to know more details,you can click the picture.♥♥♥





Contact me


name card of una from Cankey.jpg


Whatsapp:008618503852196
E-mail&Skype:Una@ machinehall.com
If you are interested in Disposable Plastic Cutlery Packing Machine, Welcome to contact me.





Company Information


Henan CANKEY Technology Co., Ltd


We has accumulated many years of experience in the packaging machine industry. It is a limited liability enterprise integrating R and D, development, production, sales and service. Based on excellence, continuous improvement, continuous innovation, customer service and support for employees, the company has developed packaging machinery in the fields of food, medicine and chemical industry. All products of the company undergo strict screening and precise monitoring during developement, production, assembly, inspection and transportation to ensure the quality and performance of the machine.
