Тайвань гидравлический насос с переменной насосы VP SF 30
- Категория: >>>
- Поставщик: Guangdong Juntai Hydraulic Technology Co. Ltd.
Сохранить в закладки 60818936175:
Описание и отзывы
Характеристики

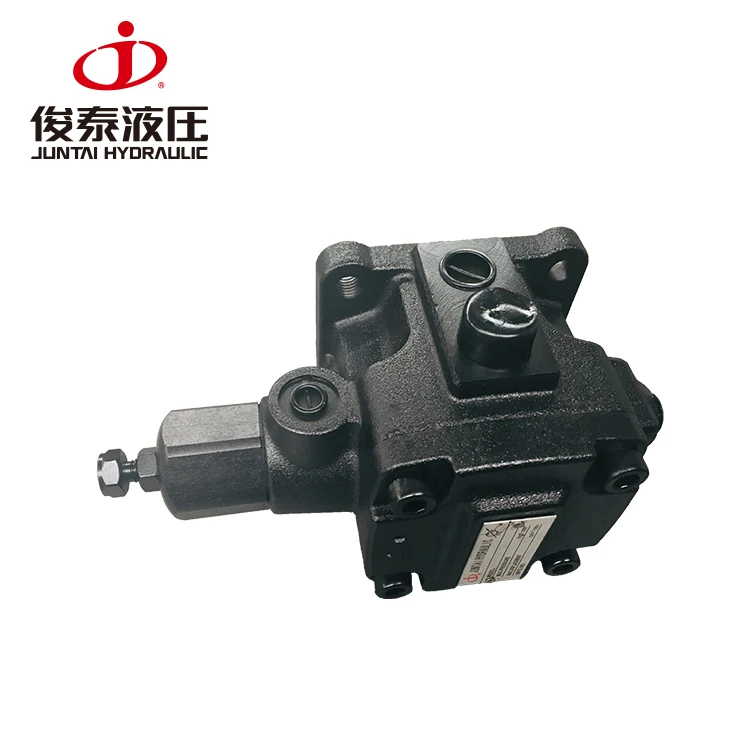

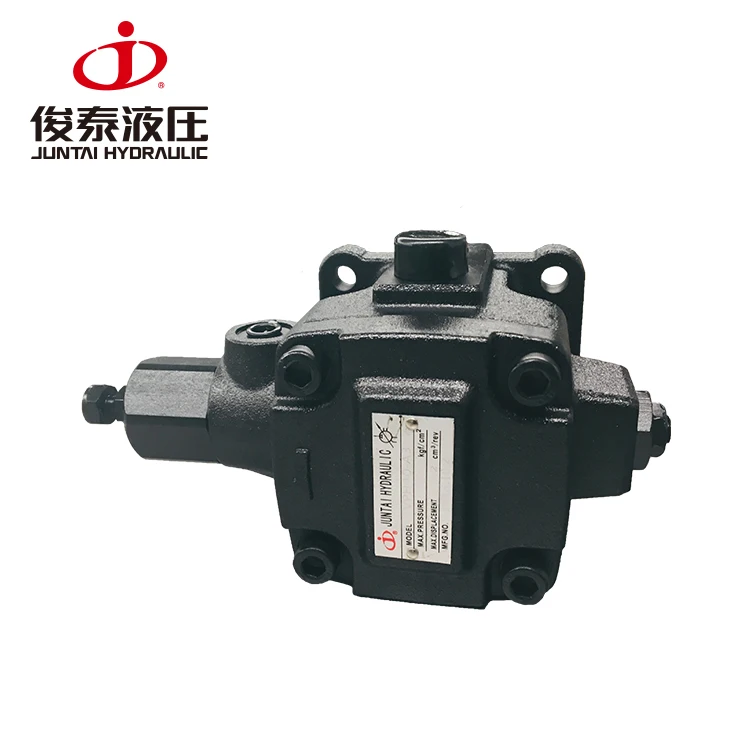

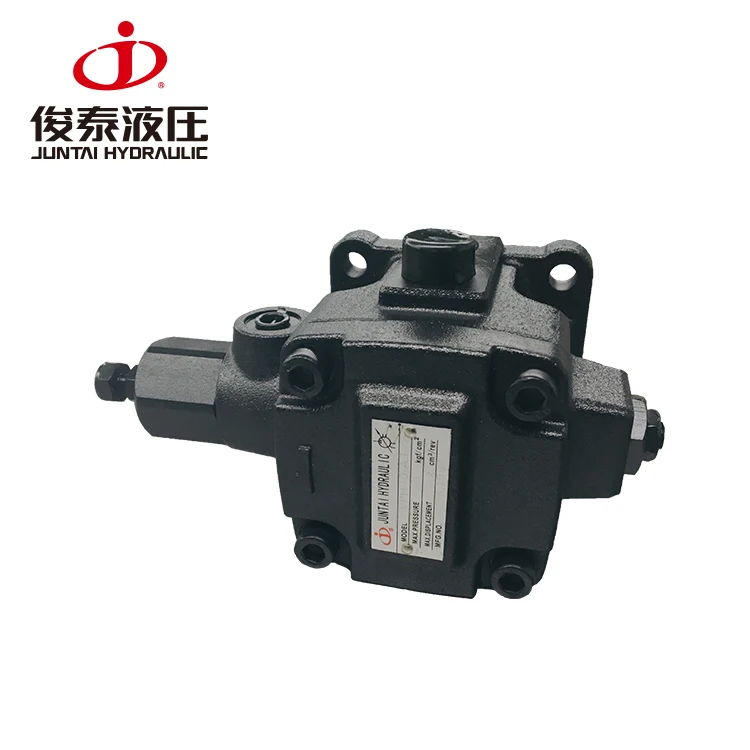

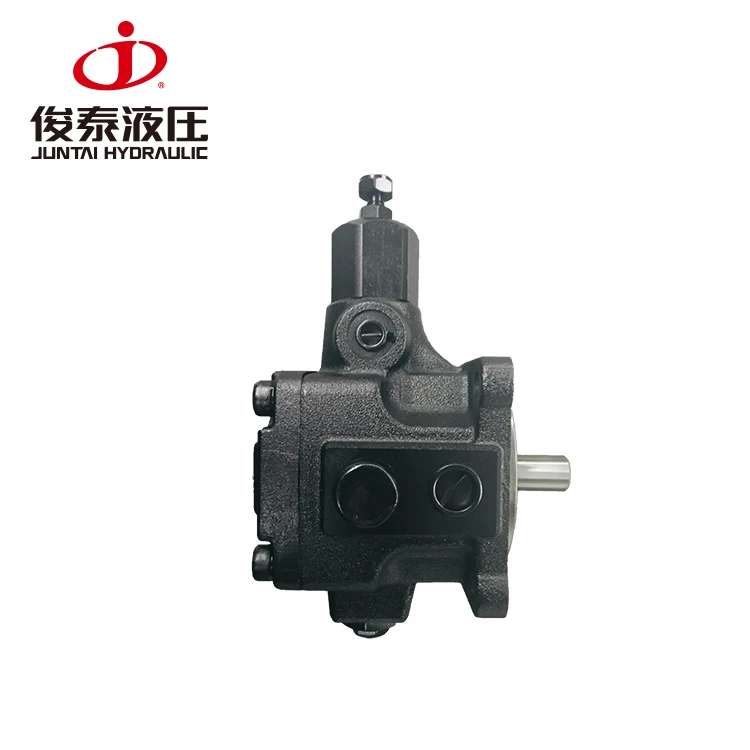

Taiwan Hydraulic Variable Displacement Pumps VP-SF-30
Characteristic:
1, special pressure control structure and compulsory balanced structure, oil ring were supported by three points. It can operate high efficiency and steady under 14MPa.
2, use shockproof and soundproof structure, have control piston, bias piston special three points supporting way, eliminate the vibration in high pressure, quiet operation.
3, special oil ring control structure promote the sensitivity of operation. It will not change the precision when starting,stopping and loading.
4, pressure balanced control structure, assure the smooth displacement in high pressure.
5, new structure , use high precision processing technology, reduce the loss of loading power. High efficiency, low temperature, energy saving.
6, pressure adjustment and complement structure setted in same side, easy to maintain.
Characteristic:
1, use precision machining technology, can automaticly adjust displacement and complement under setting pressure. decrease the loss of load power ,high efficiency , low temperature , energy saving.
2, low noise, response promptly, high efficiency and steady operation.
3, simple structure, simple operation, easy to maintain.
4, include adjusting screw, can adjust the displacement and pressure randomly, widely apply for lathe machine and show making machine,etc.
5, long working life, steady structure, small volume, can connect with motor directly, save space, durability and so on.
HVP medium pressure variable displacement vane pump model description:
Allowed rotating speed: minimum:800 r/min, maxmum: 1800r/min
Oil : pressure lower than 70bar, use oil with viscosity 30-50cSt(ISO VG-32) hydraulic oil.
Pressure more than 70bar, use oil with viscosity 50-70cSt(ISO VG-68)hydraulic oil.
Drain oil pipe: Pressure of inner pipe should be setted as <0.05MPa; Pipe length should be shorter than 1M, don’t mix with other oil return pipe.
Packaging & Shipping
Packaging: pack one pump in one plastic bag,then put it in one thick paper carton,then heap up them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane then bind the cartons with plastic packing belt.
1.Delivery date:about 10-20 days after receipt your 30%T/T for deposit
2.Trade term: FOB SHENZHEN,or FCA or CIF
3.Shipping for sample: sending sample by international Express(Fedex or UPS or TNT or DHL),sample freight paid by collect.
4.Shipping for bulk productions: shipped as per customer's instruction,shipping process all follow Incoterm
Product packing details:
| style# | carton dimension of each item | net weight | gross weight | quantity |
| HVP30 | refer to spec. sheet | 10kg | 11kg | 1 pc/ carton |
Our Services
Warranty period: 18 months
1,Within one week after receipt of the goods, if customer use the products in correct method,and find any problem of performance or construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.
2,But if customer using method are not correct, or customer disassemble our products privately,we will not responsible for any problem or defective points of products.
3, If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.
4, Any damage from transportion, we will slove the problem according to the responsibility standard of INCOTERMS.
We are Dongguan Juntai Hydraulic Equipments Co.,Ltd., which located in Dongguan City, Guangdong Province, China.
We have R&D department with about 5-10 engineers and designers. Our factory have over 200 skilled employees, our production facility have many advanced manufacturing equipments and testing equipments, such as numerical control lathe, the processing center, CNC milling machine, special CNC grinding machine, double grinding machine, automatic 3D measuring instrument, etc.
Our company received ISO9001:2008 quality management system certification, CCC certification and Europe CE certification.
Our main products are hydraulic variable displacement vane pump, double pump, HVP high pressure variable displacement vane pump, Japanese type PV2R1 & PV2R2 series of fixed displacement vane pump and electrical motors for hydraulic application.
Our products are widely used for industrial machinery, NC lathe machine, shoe machinery, wood working machines, plastic machines, construction machines and various hydraulic system machinery.
We can also supply the customized products and services as per your spec. ,we are looking forward to cooperating with your company sincerely.
Summary:
1, OEM and ODM manufacturer
2, R&D department with about 5-10 engineers and designers
3,more than 200 skilled workers
4,have many advanced processing machines and advanced testing equipments
5,passed ISO9001:2008 , CCC and CE certification
6,production with good quality but competitive prices
7,products series:hydraulic variable displacement vane pump, double pump, HVP high pressure pump, YUKE style PV2R1 & PV2R2 series fixed displacement vane pump and electrical motors for hydraulic equipment.
Our partners and our hydraulic parts application area:
Our certifications:
FAQ
Frequently Asked Questions (FAQ) :
1, What's the standard hydraulic oil and its working temperature ?
Under 70 bar pressure, use hydraulic oil viscosity 30-50CST(ISO VG-46) in temperature 40℃. Working temperature 15-16℃ .
2, How to adjust the pressure through the pressure adjustment screw ?
clockwise rotation, increase pressure; counter-clockwise rotation, decrease pressure.
3,How to adjust the displacement through the displacement adjustment screw ?
clockwise rotation, decrease the displacement ; counter-clockwise rotation, increase displacement.
4, What's the possible reason if there is no oil output from delivery port ?
1),the shaft rotating direction is wrong.
2), sauction oil pipe was jamed.
3), vane was locked in the rotor,can't slip out from rotor.
5)what's our contact information:
Guangdong Juntai Hydraulic Technology Co.,Ltd.
Add.:No.2,Jiannan 2nd Road,Xiaoxiang Industrial Zone,Wanjiang District,Dongguan city,Guangdong Province,China 523048
Candy Chen
Tel.:+86-769-22773551(ext.8036)
Fax: +86-769-22773561
Mobile :+86-13662813492
Wechat&Skype#:13662813492 QQ:2853528124
Похожие товары
KY-008 650nm лазерный модуль датчика 6 мм 5V 5 МВт красная лазерная указка лазерная точка лазерного диода Медная головка
0,19 $ - 0,22 $
Лазерный датчик мониторинга частиц пыли PM2.5, модуль датчика газа
7,00 $ - 7,80 $
Глаза греческий мати турецкий рука Фатимы духовного пресноводные жемчужные бусы элегантные браслеты с брелоками для Cz ювелирные изделия
2,79 $ - 2,99 $

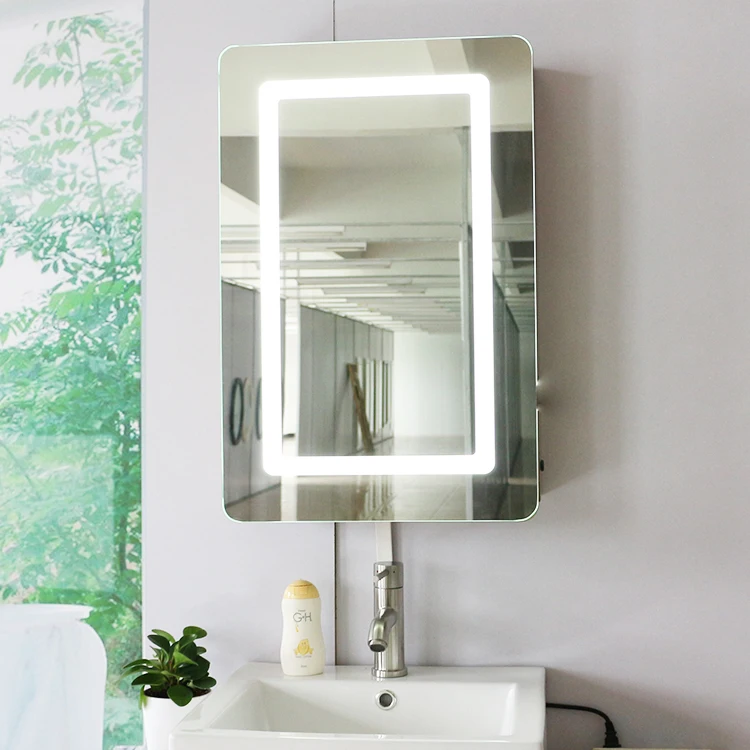

Новые Инновационные товары 2021 Высокое качество длительность 3000-6500K сенсорный переключатель современное зеркало для ванной комнаты
15,00 $

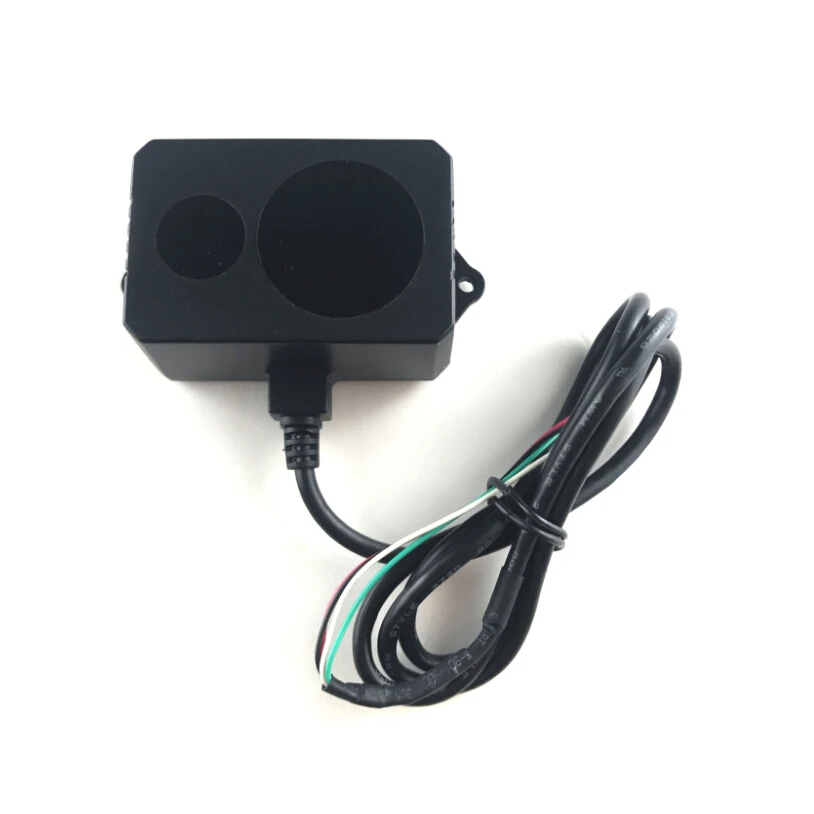

TF02 лидар LED дальномер IP65 (22 m) на стоянке парк датчик лазерный дальномер
146,00 $ - 150,00 $
Портативный защитный Комбинированный Замок, пистолет, сейф, замок
8,30 $ - 9,10 $

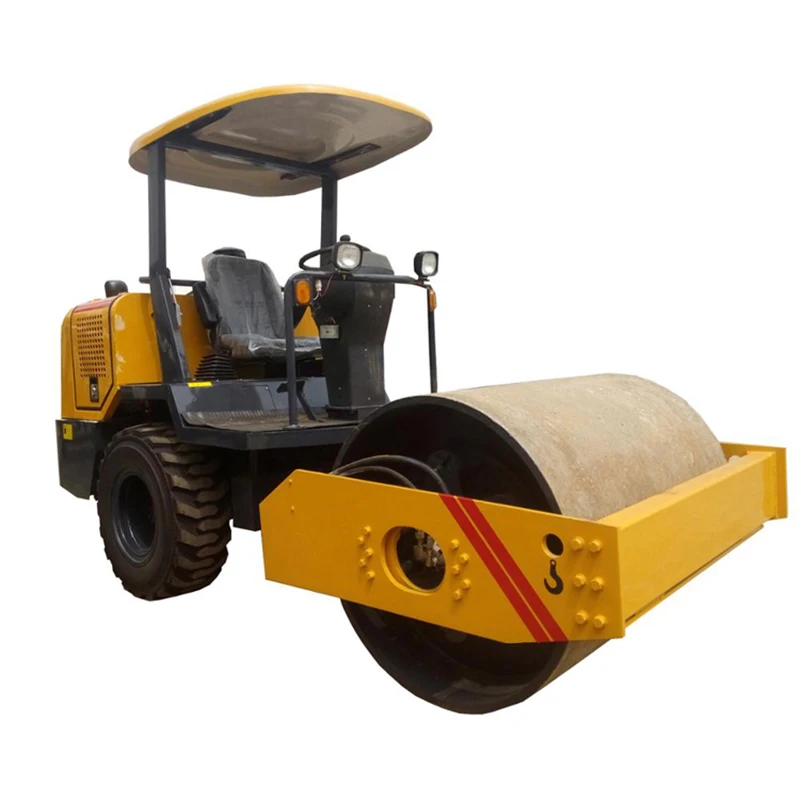

Однобарабанный Вибрационный дорожный каток для погружения шин 4 тонны LTS204H, уплотнитель во Флориде
