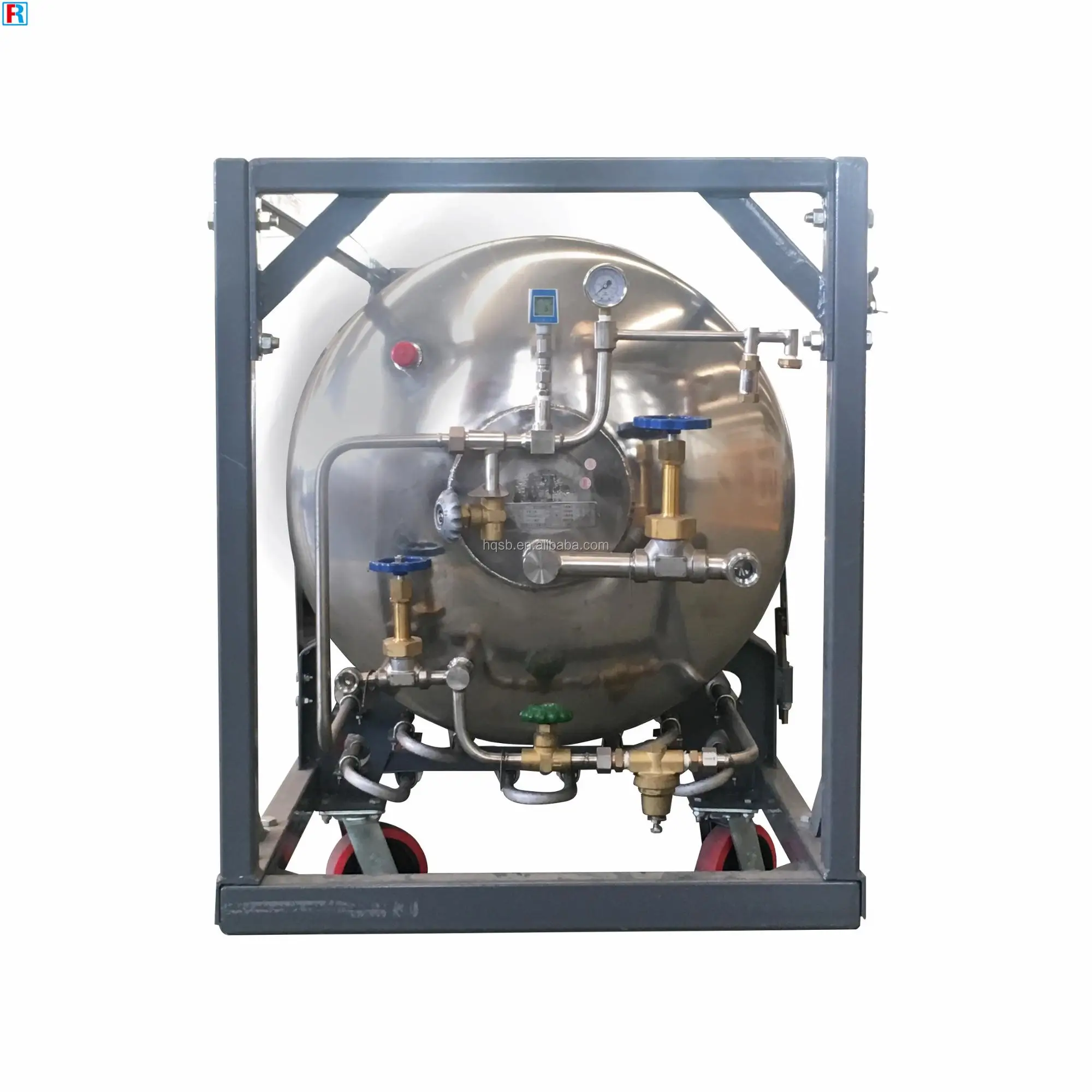

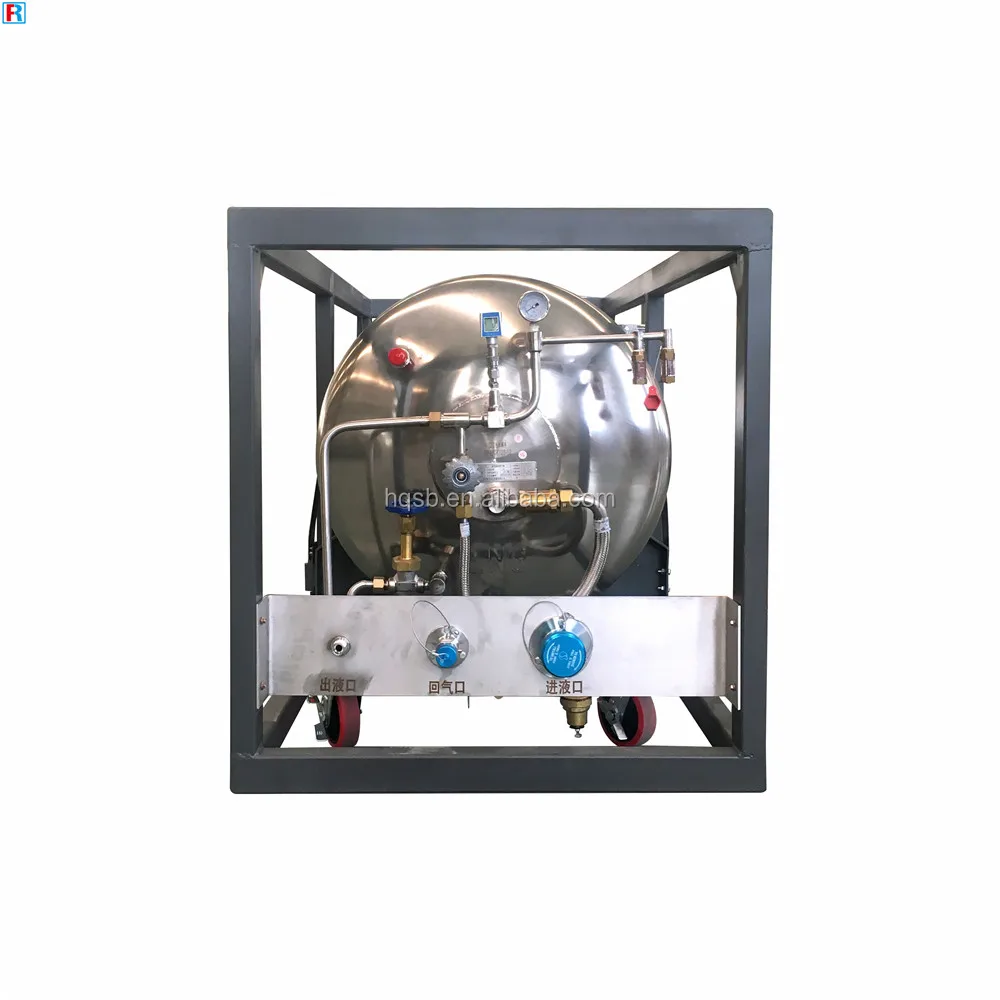

Бутылка n2 высокого давления промышленный газовый баллон DPW499 3.45

Name: Бутылка n2 высокого давления промышленный газовый баллон DPW499 3.45
SKU: 60819035535
Availability: InStock

Цена:*

Количество:

bottle n2 high pressure industrial n2 gas cylinder DPW499-3.45

contact crystal

Product Description

WS1_02

Welded Insulated Cylinder (Horizontal)
ITEM	MP Series
Model	DPW-410-1.59	DPW-499-1.59
Dimension(O.D. × Height ) mm	2120×762×1070
Nominal Volume L	410	499
Effective Volume L	377	459
Empty Vessel Weight (Kg)	346	365
Service Pressure Mpa	1.59
Setting Pressure of Safety Device Mpa	Filling LNG, 1 class safety valve setting pressure :1.9, 2 class valve pressure:2.41 Filling LO2/LN2/LAr,,safety valve setting pressure :1.9, Burst pressure of bursting disc:2.4
Filling Medium	LNG		LNG	LO2	LN2	Lar
Max. Filling Weight kg	160		196	478	334	585
Standard Volume Nm3	225		276	335	266	323
Normal Evaporation Rate %/d	LN2≤1.82	LN2≤1.7
Liquid Level Gauge	Capacitive
Surface Treatment	Polish
Application	Used for the glass industry, oxygen enriched combustion, metal cutting and welding, hospital medical, fishing truck using,gas replacement for vessels and pipelines, medical refrigerants, gas protection for stainless steel thin sheet metal cutting, gas protection for metal welding and processing, also used for city public facilities and civilian domestic gas and coal to gas boiler combustion.

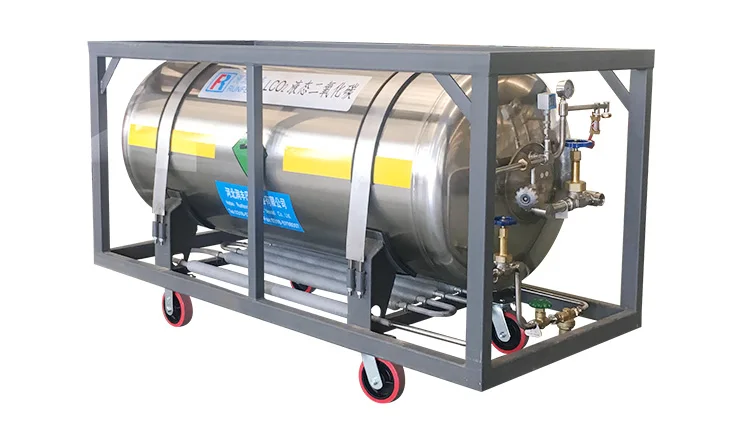

WS1_004

Welded Insulated Cylinder (Horizontal)
ITEM	MP Series
Model	DPW-499-2.5
Dimension(O.D. × Height ) mm	2120×762×1070
Nominal Volume L	499
Effective Volume L	459
Empty Vessel Weight (Kg)	430
Service Pressure Mpa	2.5
Setting Pressure of Safety Device Mpa	Filling LNG, 1 class safety valve setting pressure :2.86, 2 class valve pressure:4.15 Filling LO2/LN2/LAr,,safety valve setting pressure :2.86, Burst pressure of bursting disc:3.6
Filling Medium	LNG,LO2 , LN2 ,LAr, LCO2
Max. Filling Weight kg	196 478 334 585 460
Standard Volume Nm3	276 335 266 323 250
Normal Evaporation Rate %/d	LN2≤1.7
Liquid Level Gauge	Capacitive
Surface Treatment	Polish
Application	Used for metal welding and cutting,gas replacement for vessels and pipelines,medical refrigerants,gas protection for midium-thickness stainless steel sheet metal cutting,gas protection for metal welding and processing,also used for city public facilities and civilian domestic gas ,coal to gas boiler combustion,refrigerant business and mine cracking equipment.

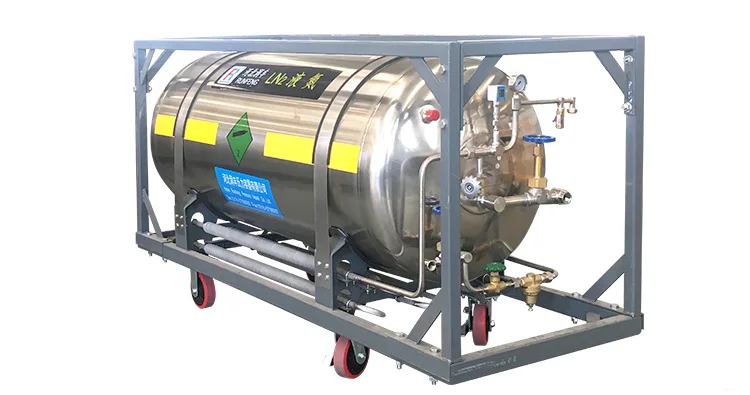

WS1_002

Welded Insulated Cylinder (Horizontal)
ITEM	MP series
Model	DPW-410-3.45	DPW-499-3.45
Dimension(O.D. × Height ) mm	2120×762×1070
Nominal Volume L	410	499
Effective Volume L	377	459
Empty Vessel Weight (Kg)		485
Service Pressure Mpa	3.45
Setting Pressure of Safety Device Mpa	Filling LNG, 1 class safety valve setting pressure :4.15, 2 class valve pressure:4.5 Filling LO2/LN2/Lar/LCO2,,safety valve setting pressure :4.15, Burst pressure of bursting disc:5.17
Filling Medium	LNG		LNG	LO2	LN2	Lar
Max. Filling Weight kg	160		196	478	334	585
Standard Volume Nm3	225		276	335	266	323
Normal Evaporation Rate %/d	LN2≤1.82	LN2≤1.7
Liquid Level Gauge	Capacitive	Capacitive
Surface Treatment	Polish	Polish
Application	Used for metal welding and cutting,gas replacement for vessels and pipelines,medical refrigerants,gas protection for midium-thickness stainless steel sheet metal cutting,gas protection for metal welding and processing,also used for city public facilities and civilian domestic gas ,coal to gas boiler combustion,refrigerant business and mine cracking equipment.

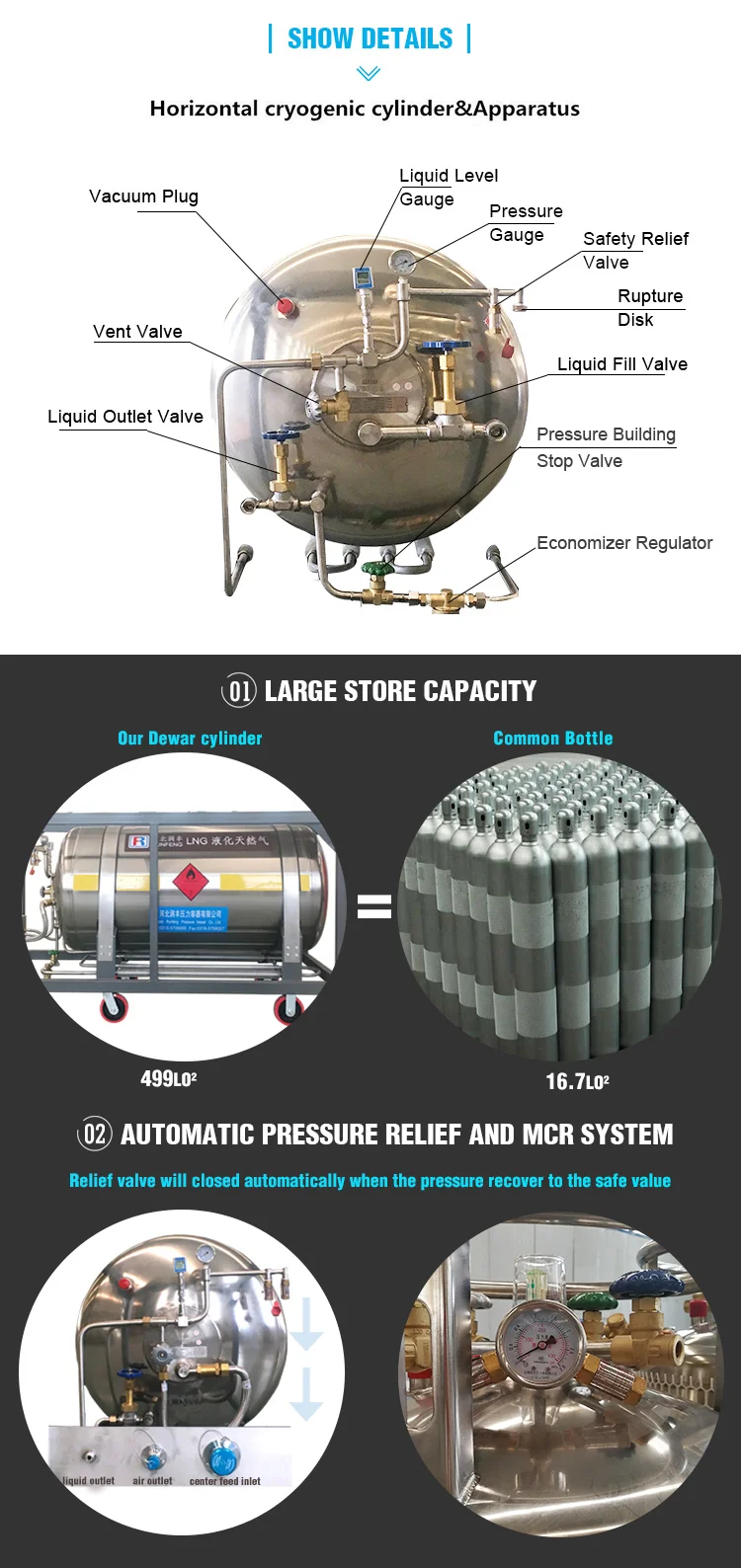

SHOW DETAILS

details horizontal valves

PRODUCTION PROCESS

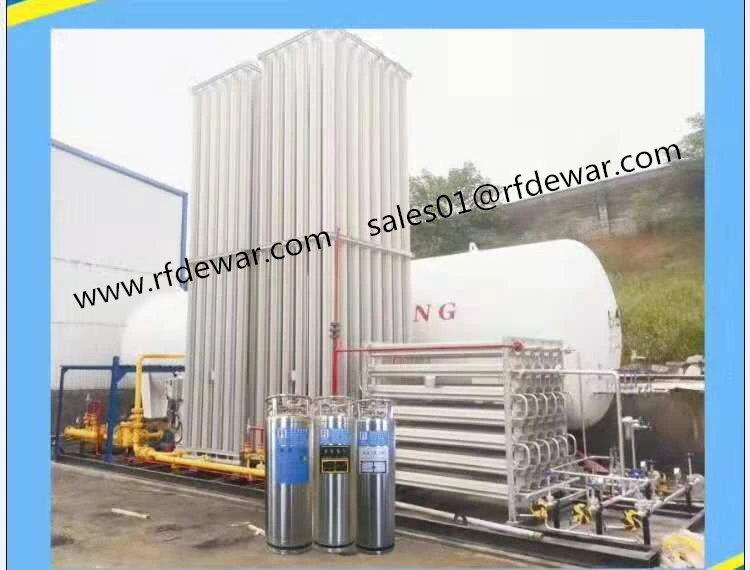

PRODUCT APPLICATION
