Product Description

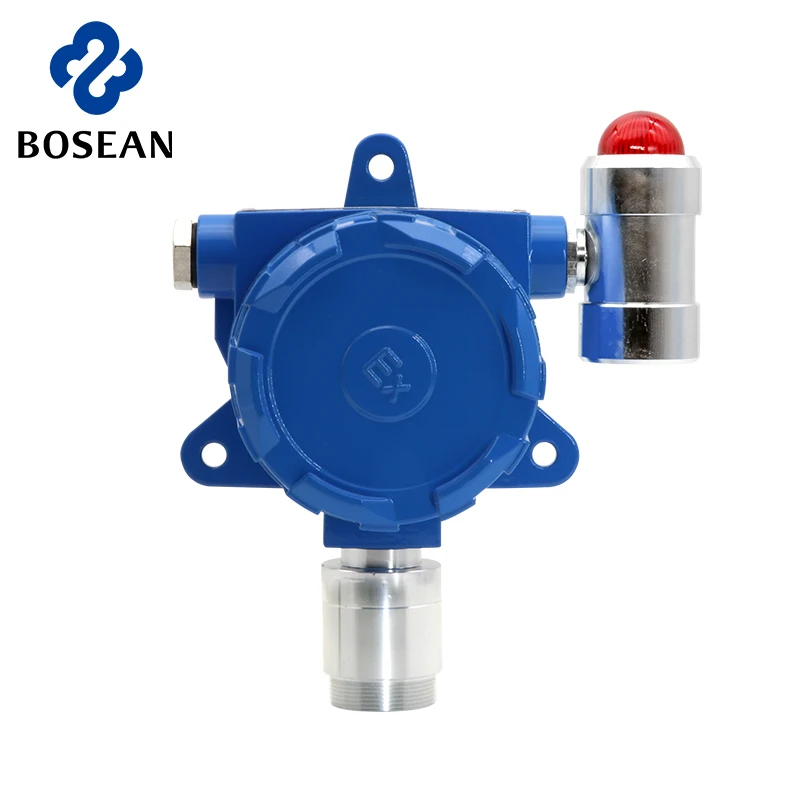

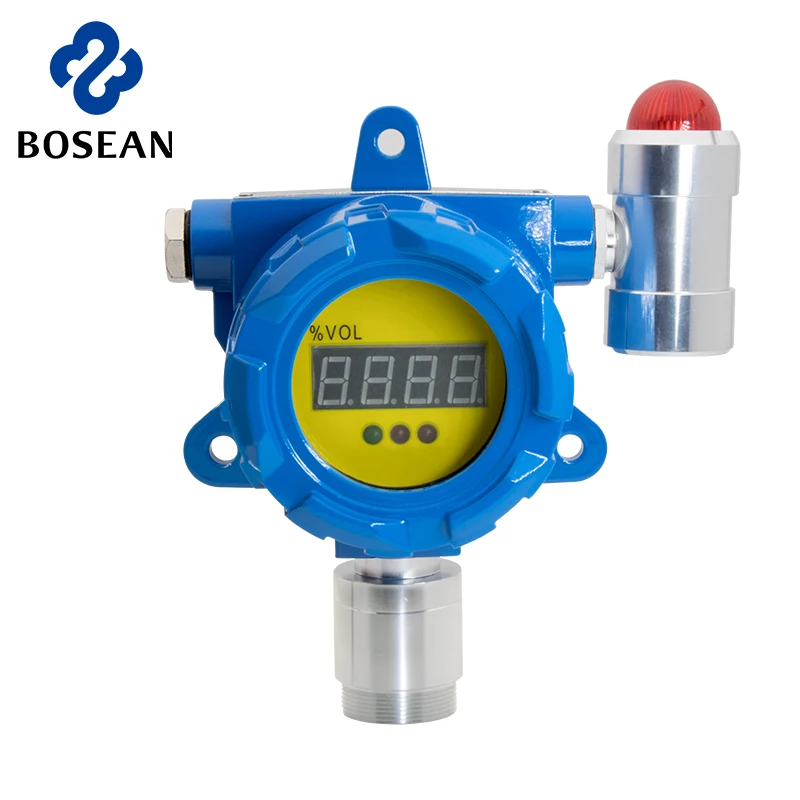

K-G60 fixed gas detector is a new type of gas detector developed in combination with the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.

Main Features

The product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc.

 It adopts industrial grade sensor, the instrument casing adopts explosion-proof explosion-proof structure design, 4-20mA standard signal or directly enters DOS system, which can be widely used. In the metallurgical, petroleum, chemical, municipal and other industries, it is at the leading level of similar products in China.

Product Parameters
Product type
K-G60 Fixed gas detector
Explosion proof grade
Exd ⅡC T6 Gb
Response time
<30S
Power supply
DC24V±15%
Working temperature
-20℃~50℃
Sensor
Electrochemical ,catalytic combustion ,semiconductor , PD, infrared gas sensor
Contact output
Free contact output, max power 1kW
Single input
4~20mA and RS485
Installation method
Wall-mounted
Shell material
Aluminum
Dimensions
200*181*90mm(L*W*H)
Weight
≤ 1.6kg
Product Application

The detector is suitable for explosion-proof, toxic gas leakage and rescue, underground pipelines, mines, metallurgy, power plants, chemicals, tunnels, etc., effectively avoiding the occurrence of poisoning accidents, ensuring the safety of workers and avoiding losses of production equipment.

Measurable Gas Meter
No.
Detected
Gas
Detecting Scope
Resolution
Low/High
Alarm Point
Response
Time
Detection
Accuracy
1
PH3
0-20ppm
0.1ppm
5ppm/10ppm
≤25s
±5%(F.S)
2
O2
0-30%vol
0.1%vol
19.5%vol/23.0%vol
≤15s
±5%(F.S)
3
EX
0-100%LEL
1%LEL
25%LEL/50%LEL
≤5s
±5%(F.S)
4
CO
0-1000ppm
1ppm
50ppm/100ppm
≤25s
±5%(F.S)
5
H2S
0-100ppm
1ppm
10ppm/20ppm
≤30s
±5%(F.S)
6
NO2
0-20ppm
0.1ppm
3ppm/10ppm
≤25s
±5%(F.S)
7
NO
0-250ppm
1ppm
25ppm/50ppm
≤60s
±5%(F.S)
8
SO2
0-20ppm
0.1ppm
5ppm/10ppm
≤30s
±5%(F.S)
9
CL2
0-20ppm
0.1ppm
1ppm/10ppm
≤30s
±5%(F.S)
10
NH3
0-100ppm
1ppm
25ppm/50ppm
≤50s
±5%(F.S)
11
H2
0-1000ppm
1ppm
50ppm/100ppm
≤60s
±5%(F.S)
12
HCN
0-10ppm
0.1ppm
1ppm/5ppm
≤200s
±5%(F.S)
13
HCL
0-10ppm
0.1ppm
1ppm/5ppm
≤60s
±5%(F.S)
14
CH4
0-100%LEL
1%LEL
25%LEL/50%LEL
≤5s
±5%(F.S)

Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.

Detailed Images

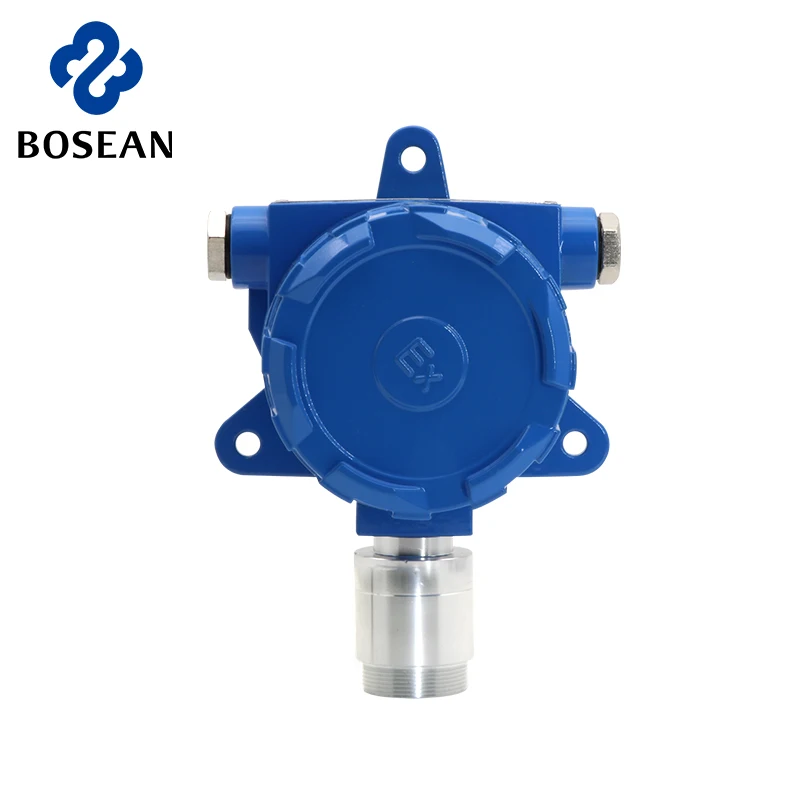

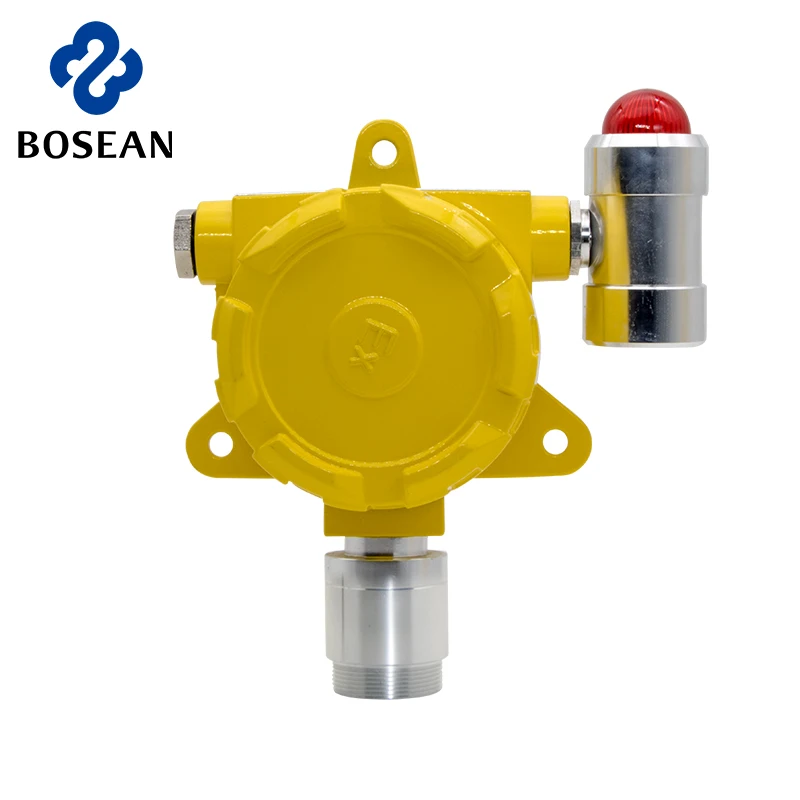

Orignal Structure

The outer casing is made of die-cast aluminum shell with flameproof structure. The groove of the upper cover is designed to lock the casing. The front of the sensor is designed as a downward structure to ensure good contact between the sensor and the gas. The inlet is made of explosion-proof waterproof joint.

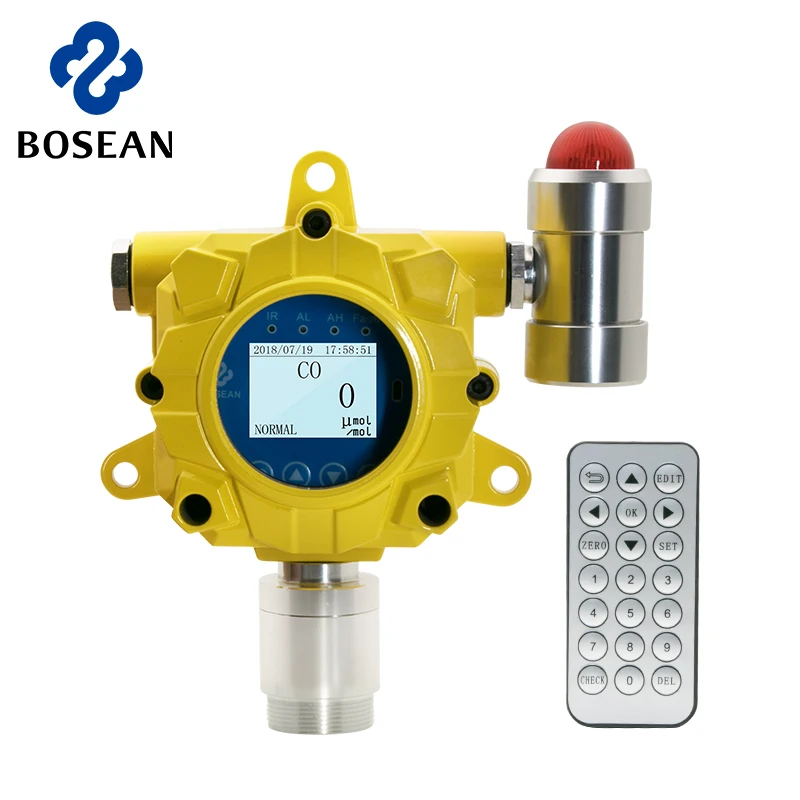

Simple Operation

The body of the detector is small and easy to carry. The interface is simple and easy to operate. The shell is made of high strength ABS material, IP65 protection grade, dustproof, waterproof, explosion-proof, and can withstand the test of harsh environment.

Three Alarm

Two-level triple alarm, not easy to ignore, high and low alarm value can be set.

Standard Packaging

Metal aluminum box, machine, manual, certificate, lanyard, data cable, charger, calibration cover.

Related Products

Portable single gas detector

Click the picture to enter the area

Multi gas detector

Click the picture to enter the area

Fixed gas detector

Click the picture to enter the area

About Bosean

Scope of Business

Bosean was founded in 2013, specializing in the development and production of gas detectors, gas analyzers and rangefinder. At present, our research and development instruments have been spread all over the world.

R&D and Production

Bosean has always strictly implemented the ISO9001 quality management system. We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

Service team

Porsche has a strong sales team and a comprehensive service process to serve end customers around the world.Whenever you have any questions, you can contact us at any time.

Warehousing Logistics

Bosean has an independent warehousing base. It integrates instrument research and development, manufacturing, warehousing and delivery. It supports small batch spot delivery and mass customization.

Delivery

Providing a variety of express and different modes of transportation to ensure the safe and timely arrival of goods. Supporting multiple payment methods.

FAQ
Q1:Are you a trading company or manufacturer ?
A1:We aremanufacturer.
Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available.
Q3:Does your company accept customization?
A3:We do customizing service for customers.
Q4:What about the Shipment?
A4:We'll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service?
A5:12 months warranty for all kinds of products.
