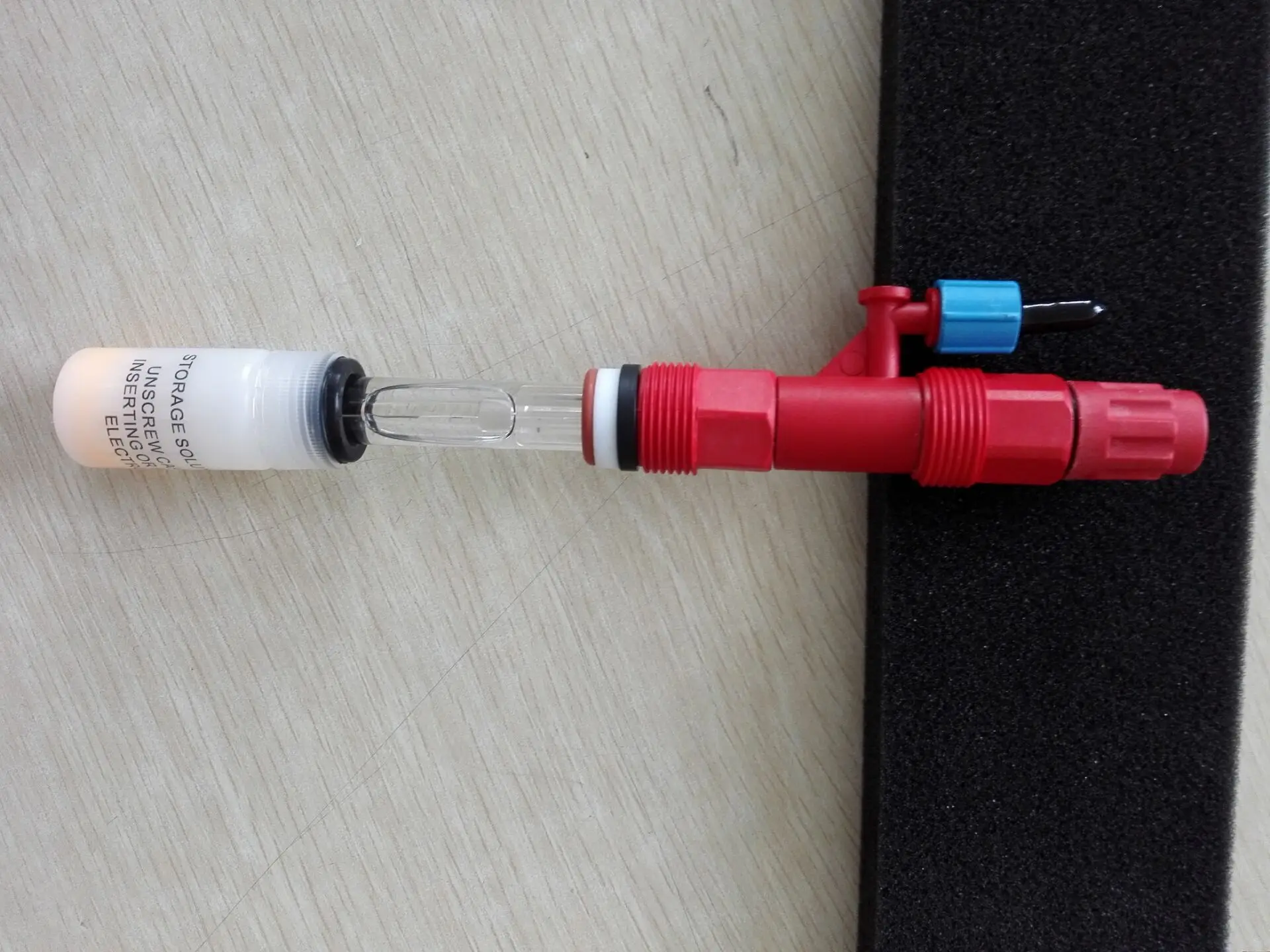

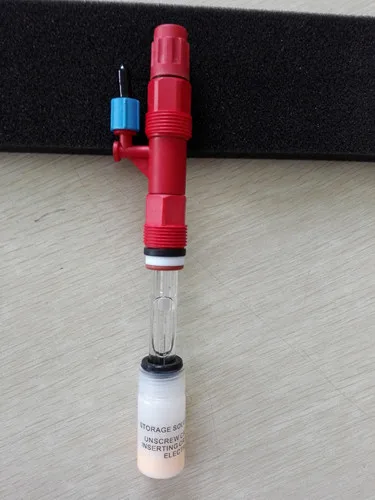

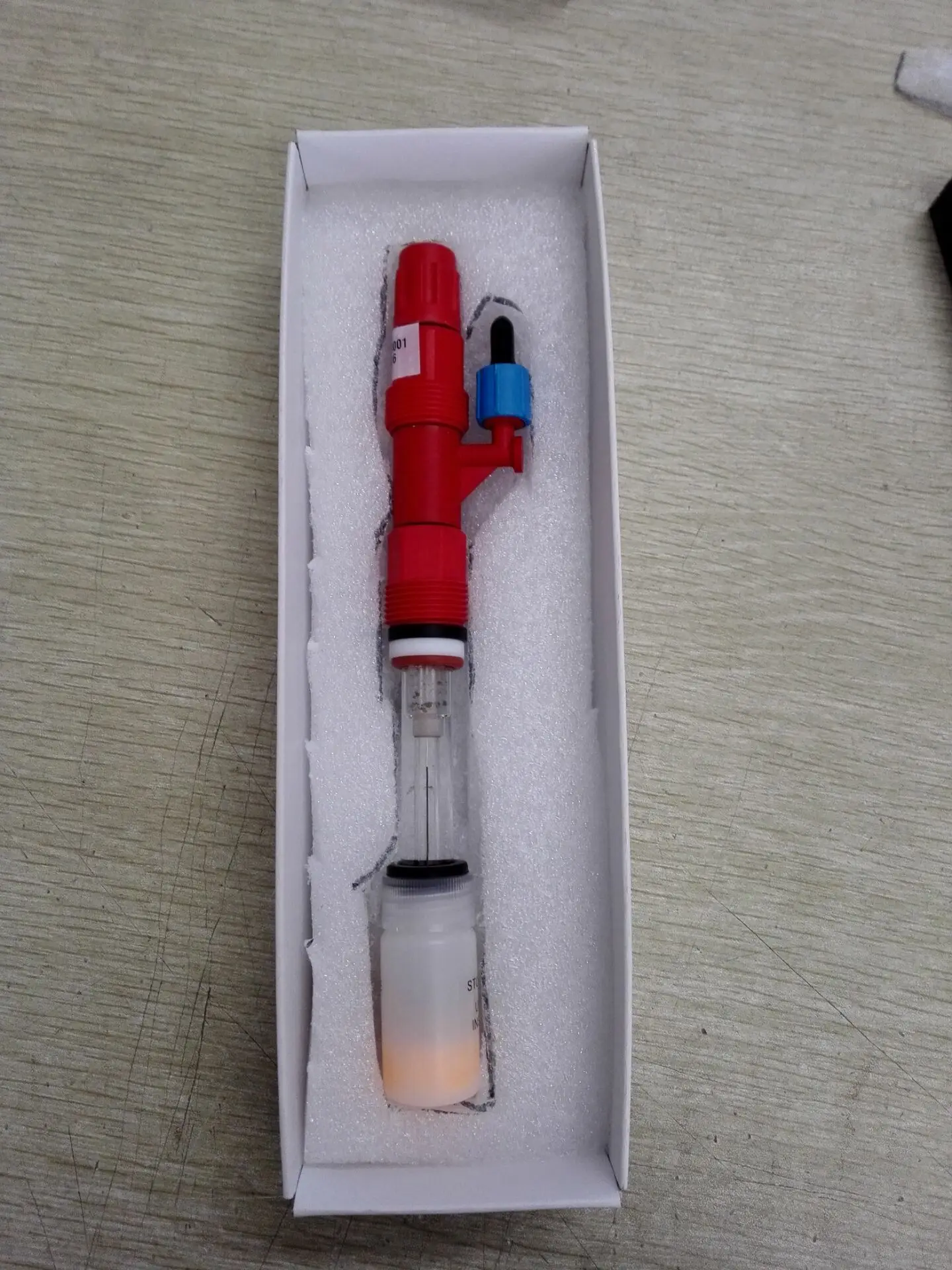

Features of food grade ph meter
1. It can be used in conjunction with the pressurized sheath; it can resist the pressure
to 0.6MPa and endures the high-temperature sterilization.
2. High measurement accuracy and good repeatability
3. Long life
4. It is used in conjunction with the pressurized sheath.
5. It adopts the S8 socket, which can be replaced by any electrode from abroad.
Main controller parameters of pH meter
Model | pHG-3081 | pHG-3081B | pHG-2091 |
Range | 0~14pH | ||
Temperation compensation | 0~150C | ~99C | |
Accuracy | 1%FS | ||
Resolution | 0.01pHm0.1C,0.1mV | 0.05pH,0.3C | |
Communication | RS485(optional) | ||
Output | 0~10mA,4-20mA(double output for option) | 0~10mA,4-20mA | 4-20mA |
Alarm relay | two relay output | ||
Power | 220V,24V(85~265V) | 220V | 220V(110V) |
Protection grate | IP65 | IP65 | IP54 |
Dimension | 146*146*150mm | 220*190*130mm | 96*96*135mm |
Hole size | 138*138mm | / | 92*92mm |
Installation | wall/panel mounted | wall mounted | panel mounted |
Working condition | ambient:0~60C,relative humidity<90% |

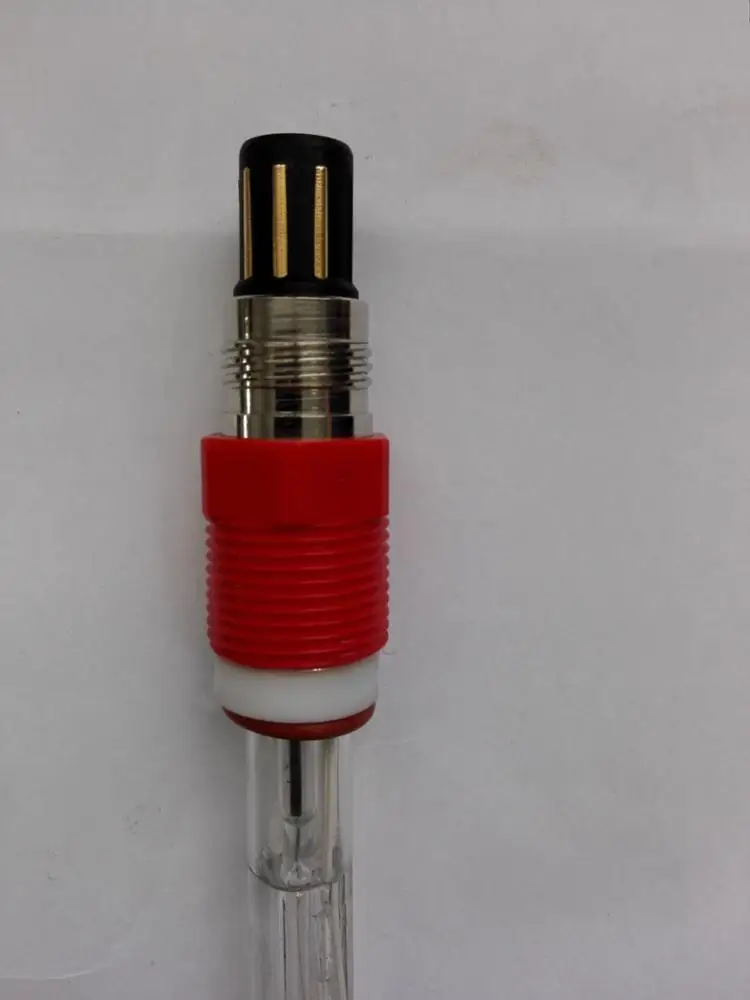

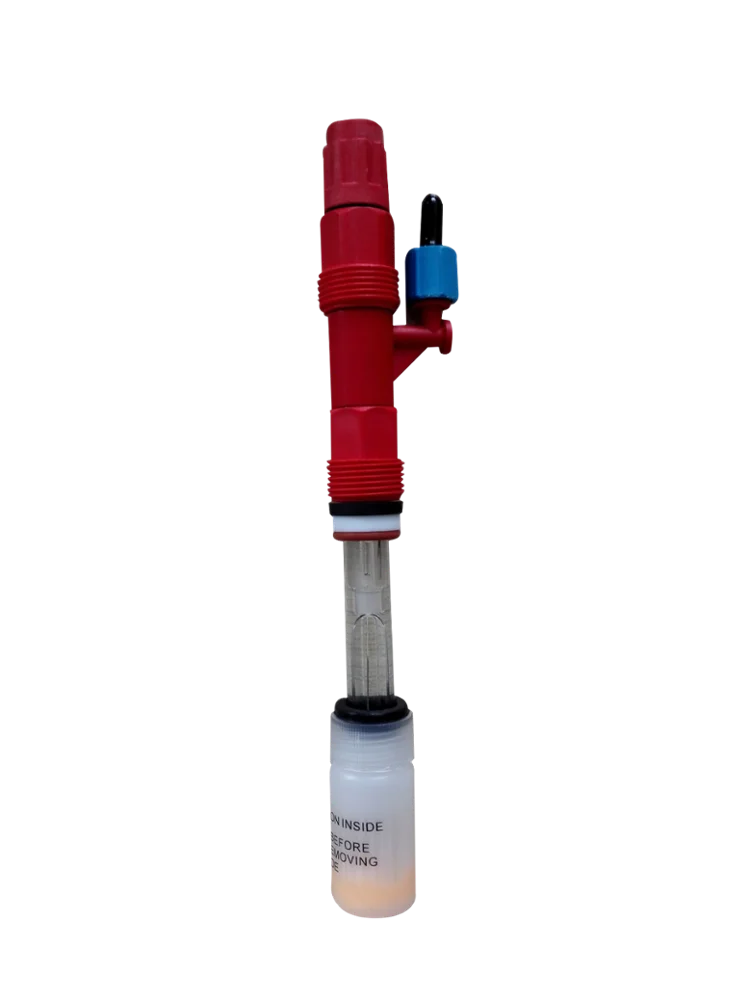

Pricision and long working life,it's special used for high temperature resistant gel and high temperature solid dielectric dual sensor, it's suitable for demanding online measurement. it's widely used for fermentation tank, biotechnology,pharmaceutical industry,food and beverage technology,starch paste etc.
Model | pH5806/S8 | pH5806/K8S | pH5806/VP | pH5806/5M | pH5805 |
Range | 0~14pH | ||||
Temp | 0~130C | ||||
Cable Connction | AS9 | AK9 | VP | with cable | S7/VP |
Dimension | 12*120/150/225/325mm | 12mm*120/150/ 200/250/450mm | |||
Temp compensation | NO | NO | YES | YES | YES/NO |
Application:thermal power,checmical fertilizer,chemical industry,metallurgy,environment protection,pharmacy manufacturing,biochemistry,food industry and running water.
Model | PH8011 | PH8012 | PH8083 (ORP) | CPH600 | GPE-100 |
Range | 0~14pH | +/-2000mV | 0~14pH | ||
Temp range | 0~65C | ||||
Max pressure | 0.3Mpa | ||||
Sensor face Material | Antimony | glass | platinum | glass | |
Housing material | PPS/PC/PTFE | glass | |||
Connection | up and lower 3/4NPT | PG13.5 thread | |||
Remark | lower-noise cable | waterproof connector |
Application: ultra pure water, pure water ,such as thermal power plant etc.
Model | PH8000 | PH8022 | GPE800/801 | SYM300 |
Range | 0~14pH | |||
Temperature range | 0~80C | 0~65C | ||
Pressure | 0.3Mpa | / | ||
Slope | >/=96% | >97%(25C) | ||
Zero | E0=7H+/-0.3 | |||
Connection | Rotary locking,3/4NPT | 3/4NPT | S7,PG13.5 | BNC |
Housing | PPS/PC/PTFE | PPS/PC/PTFE | Glass | Glass |
BOQU was found since 2007, now has more 70 staff and engineers, instruments has be exported to over 75 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.
BOQU Instrument was found since 2007, now BOQU has more 70 staff and engineers and has core technology of electrodes and develope more 50+ software for various controllers by self.
BOQU pH meter use latest generation of microprocessor-based instrument, a high intelligent, multi-function, high measurement performance, environmental adaptability and other characteristics. It is a highly intelligent online continuous monitoring instrument, integrate with the sensor and the second meter. Can be equipped with three composite or two composite electrodes to meet a variety of sites. Can be widely used for continuous monitoring of PH value for thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and water and other solution.
BOQU has a strong Develope Department and can develope many new instruments or technology, so we will hold 5~8 exhibitions in China or Foreign to show our results.
Industrial ION Analyzer Turbidity Analyzer Dissolved oxygen analyzer
Multi-parametes analyzer Residual Chlorine meter Online conductivity meter
COD BOD Analyzer Silicate phosphate sodium analyzer
Why to choose BOQU pH meter?
1.National High-tech Enterprises Certificates
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
