Product Description

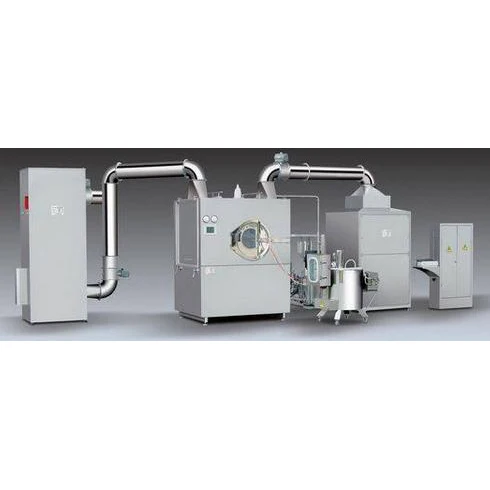

This product is currently an ideal coating equipment for the domestic pharmaceutical industry, used in pharmaceutical, food, biological products and other fields, it can be a variety of tablets, pills, candy, etc. package all kinds of organic film, water-soluble film, sugar coating Special equipment f, widely used in pharmaceutical and food industries, with obvious advantages and advantages in similar products:







1. Using a new microcomputer and temperature module control system, the touch screen is imported from Japan. The graphic display, simple operation, high efficiency and energy saving, clean and safe, and convenient cleaning conform to GMP requirements.


2. Efficient coating host, high-efficiency filtration heat fan, dust removal exhaust fan, and spray device. All parts that come into contact with drugs are made of imported high-quality stainless steel.


3. The entire process is controlled by the microcomputer programmable system. The control system has application programs, multiple operating modes, drive control and multiple display functions.


4. The coating process is carried out in a closed state to prevent dust and spatter from spilling. The surface of the cabinet is polished and the “light pollution” treatment is eliminated.


5. The drive system uses explosion-proof gear motor and chain sprocket drive, frequency conversion stepless speed regulation.


6. High-efficiency filtration heat blower can directly collect winds from the outside, after the primary, middle and high-efficiency three-stage filter heating is used by the host, the air purification can reach the 100,000 level clean requirement, and the dust extraction and exhaust fan can directly discharge the air to the outside to avoid affecting the central air conditioning. ,save energy.


7. The spray gun adopts WA-100 spray gun imported from Japan. The atomization effect is good, the nozzle is not blocked, the spray volume is adjustable, the spray angle is adjustable, and the structure is simple and easy to clean.


At present, the model is relatively large in the domestic market and its prospects are promising. Many manufacturers have used it many times and successfully passed the GMP acceptance.





Main Coating Machine









































Capacity



40kg/batch



Rotary Chamber Speed range



3-28 rpm



Feeding nozzle diameter



340mm



Coating chamber diameter



750mm



Coating chamber hole diameter



3mm



Main motor power



1.1kw



Compressed air by customer



0.8m3/min  >0.4Mpa.



Main machine dimensions



1160*840*1830mm






Air heating cabinet






























Power



1.1KW



Filter precision



0.5 um 100000 Grade



Air amount



1600m3/h 3-grade



Air temperature



40-80 centigrade adjustable



Overall dimension



810*700*1830mm



Weight



300kgs






Air exhausting cabinet


























Motor power



2.2KW EX PROOF



Exhausting air amount



3571m3/h



Material



Matts stainless steel



Overall dimension



730*730*1660mm



Weight



300kgs




Company Information


Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.





cov










 HTB1oqieQpXXXXcMapXXq6xXFXXXw








Packaging & Shipping


Packaging:





Whole machine and every parts wrapped by plastic film for dusting-proof.


Packed in export standard wooden case with pallet, conducive to forklift handling.





wooden case.jpg








Shipping:





Shipping method: by sea, by air, by international express company.


Delivery time: 30-45 days after order confirm.


Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.




























Our Services


Guarantee:


12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.





HTB1MVCIQpXXXXbfXFXXq6xXFXXXR





Technical support:


1, Technical support by phone, email or MSN/Skype around the clock


2, Friendly English version manual and operation video CD disk


3, Engineer available to service machinery overseas





After sales services:


Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.


You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.










FAQ


Why choose us?


15 years gold supplier of Alibaba.


20+ years experience of machinery.


Trade assurance member of Alibaba.





How long can we get the goods?


For standard machine, we usually delivery in two weeks.


Customized machine delivery in 30-60 days.





How should I do if meet some trouble while using?


We supply 24 hours online service.





What is your terms of payment?


Online trade assurance order, L/C, T/T or as negotiated terms with clients.
