Карманные воздушные фильтры YANING F7
- Категория: >>>
- Поставщик: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Сохранить в закладки 60819876295:
Описание и отзывы
Характеристики

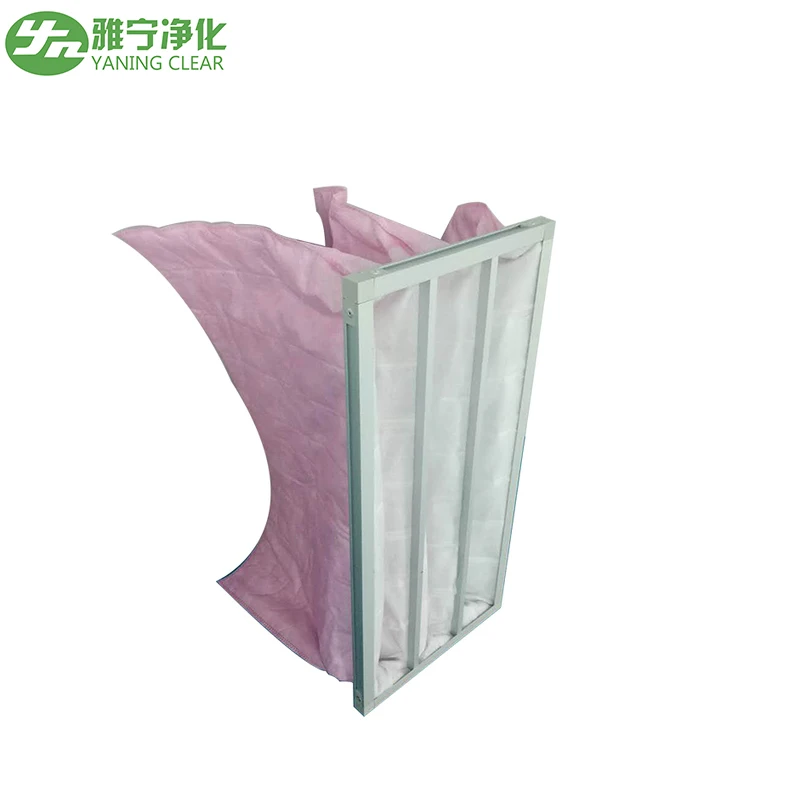

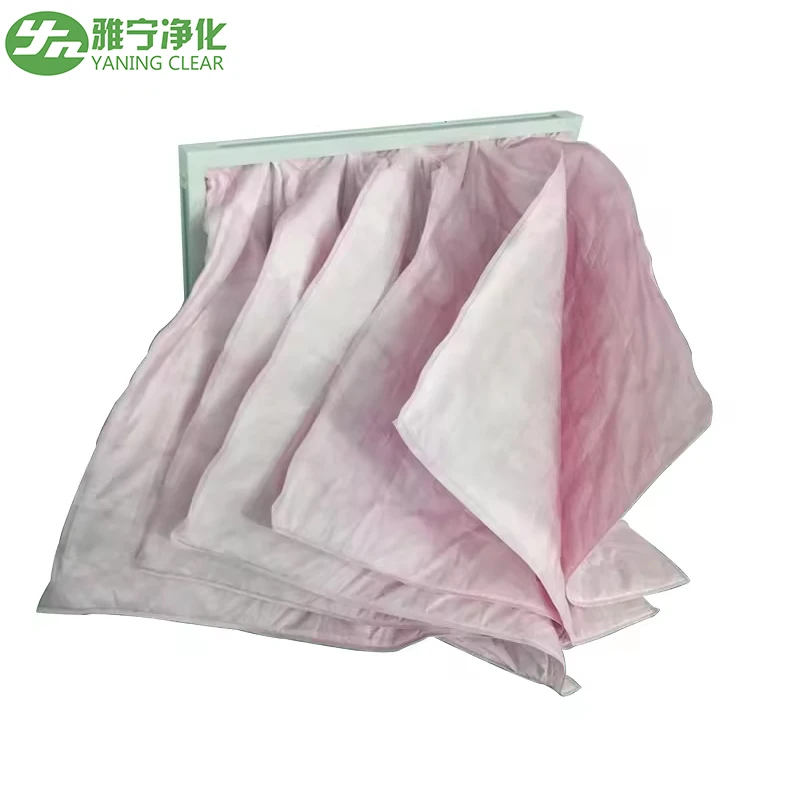

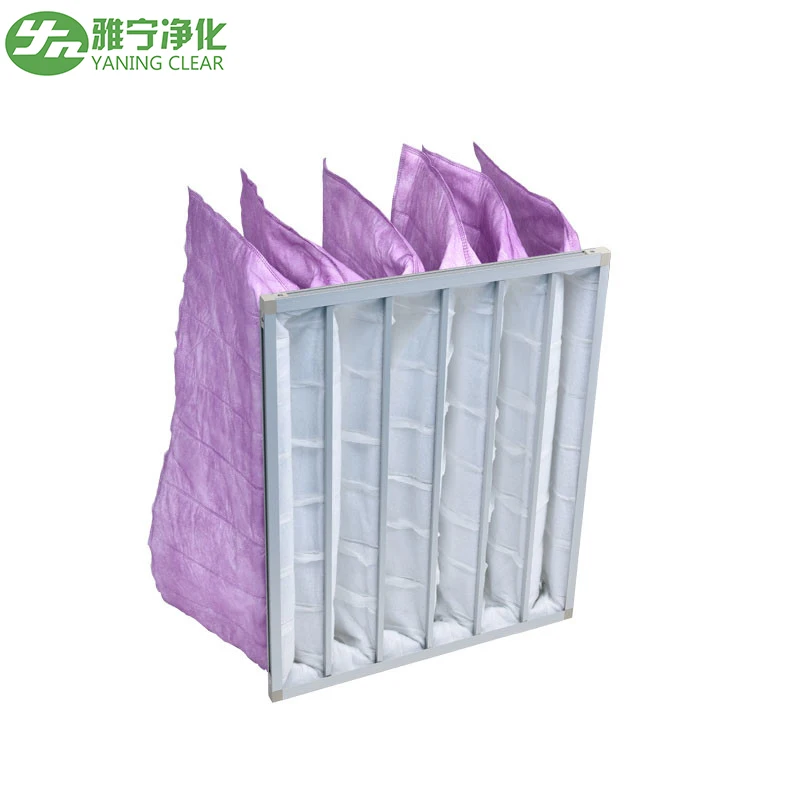

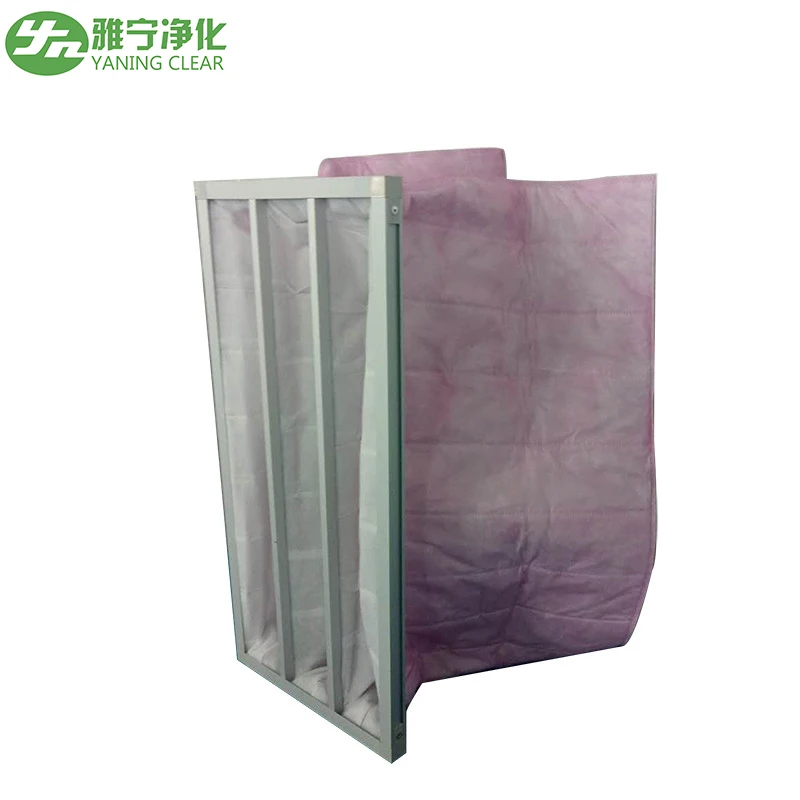

F7 Medium Pocket Filter
Pocket air filters features:
1) Function: Capturing 1-5um of dust particles
2) Type: frameless and framed bag
3) Filter: Special nonwoven or glass fiber
4) Efficiency: 60%~95%@1~5um (colorimetric method)
2) Type: frameless and framed bag
3) Filter: Special nonwoven or glass fiber
4) Efficiency: 60%~95%@1~5um (colorimetric method)

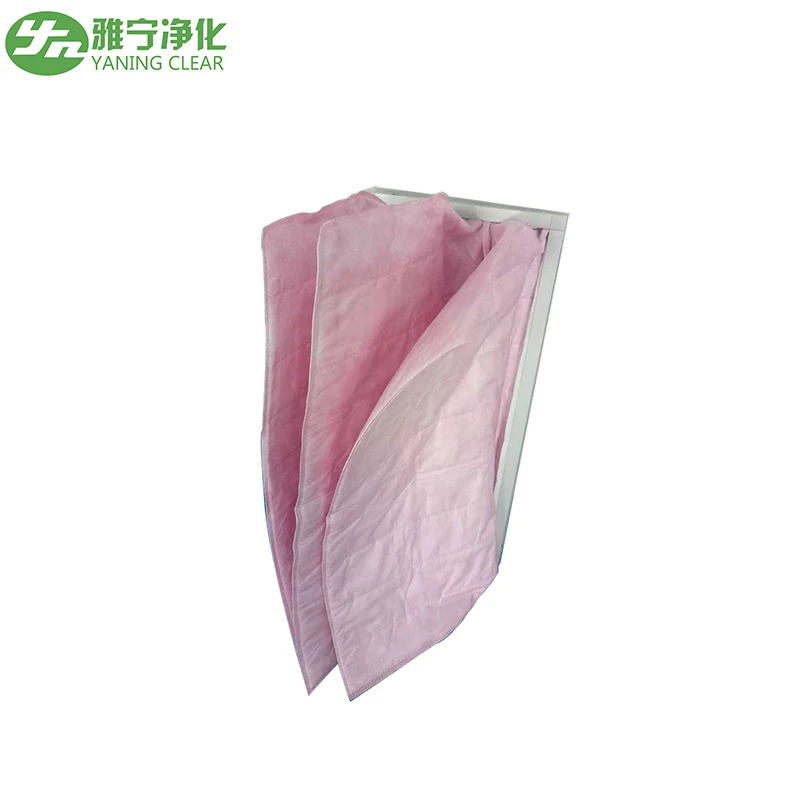

Pocket air filters structure:
Bag-style medium-efficiency filter with its unique bag structure ensures that the air flow is evenly filled with the entire bag.
The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.
The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.
The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads. After the introduction of the bag filters, their application in the pharmaceutical, automotive and food manufacturing industries, commercial buildings, and various industrial and ventilation systems have successfully demonstrated that they have increased their industry standards with value and performance.
Product Parameter | ||||||||||||||||
Model | Overall Dimension(W*H*Dmm) | Bag Qty | Rated Air Volume m³/h | Initial Pressure（pa) | Efficiency (Class)% | EN779 | Material | |||||||||
Media | Wrapper | |||||||||||||||
YN-F7-01 | 595x595x600 | 6 | 3200 | 110 | 80-85 Colorimetry | F7 | Aluminum Galvanized Sheet | F7 Non woven | ||||||||
YN-F7-02 | 595x595x600 | 5 | 2700 | |||||||||||||
YN-F7-03 | 595x495x600 | 6 | 2500 | |||||||||||||
YN-F7-04 | 495x295x600 | 6 | 1600 | |||||||||||||
YN-F7-05 | 495x295x600 | 4 | 1300 | |||||||||||||
Standard Model Technology Parameter | ||||||||
Efficiency | Size(mm) | Air flow(m/h) | Initial pressure drop (Pa) | Number of bags | ||||
F5 | 595*595*500 | 3200 | 50 | 6 | ||||
F5 | 495*595*500 | 2700 | 50 | 6 | ||||
F6 | 595*495*500 | 3200 | 60 | 6 | ||||
F6 | 495*495*500 | 2200 | 60 | 5 | ||||
F7 | 595*495*600 | 3200 | 105 | 10 | ||||
F7 | 595*495*600 | 3000 | 105 | 8 | ||||
F8 | 595*595*600 | 3000 | 115 | 10 | ||||
F8 | 595*495*600 | 2700 | 115 | 8 | ||||
Material and Operation Conditions | ||
Media | SALthetic fiber | |
Pocket-type | Sewing bag,Ultrasonic bag | |
Frame | Aluminum/Galvanized steel/Stainless steel/Plastic | |
Filter Efficiency(EN779) | F5:45%@0.5μm; F6:65%@0.5μm; F7:85%@0.5μm;F8:90%@0.5μm;F9:95%@0.5um | |
Max. Temperature | 80℃ | |
Max. Humidity | 100% | |
A variety of filters for you to choose
Nylon Mesh Filter

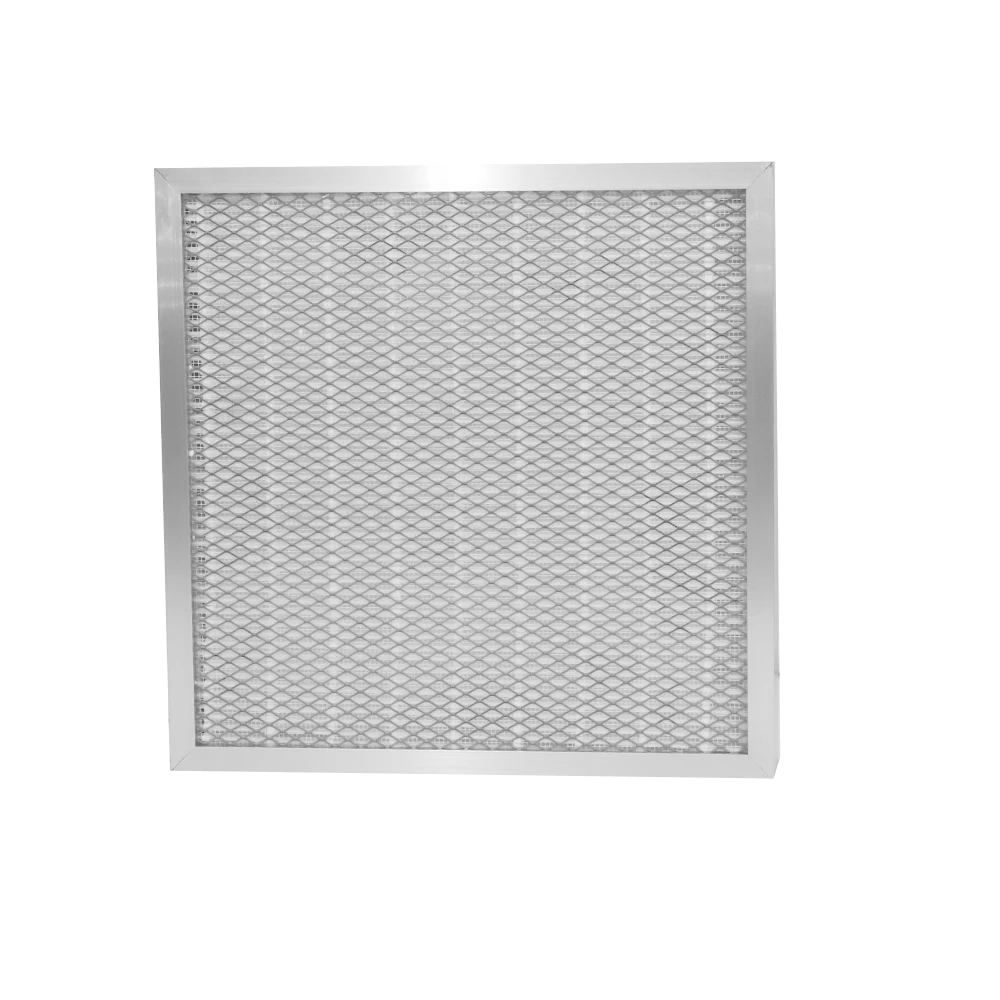

Plate Pre Filter
Activated Carbon Filter
Medium Pocket Filter
F5/M5 Medium Pocket Filter
F6/M6 Medium Pocket Filter
F7 Medium Pocket Filter
F8 Medium Pocket Filter
F9 Medium Pocket Filter
HEPA Filter
V-bank HEPA Filter
Mini Pleated HEPA Filter
Deep Pleated HEPA Filter
Gel Seal HEPA Filter
High Temperature Resistant HEPA Filter
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.
30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Packaging & Delivery
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Похожие товары

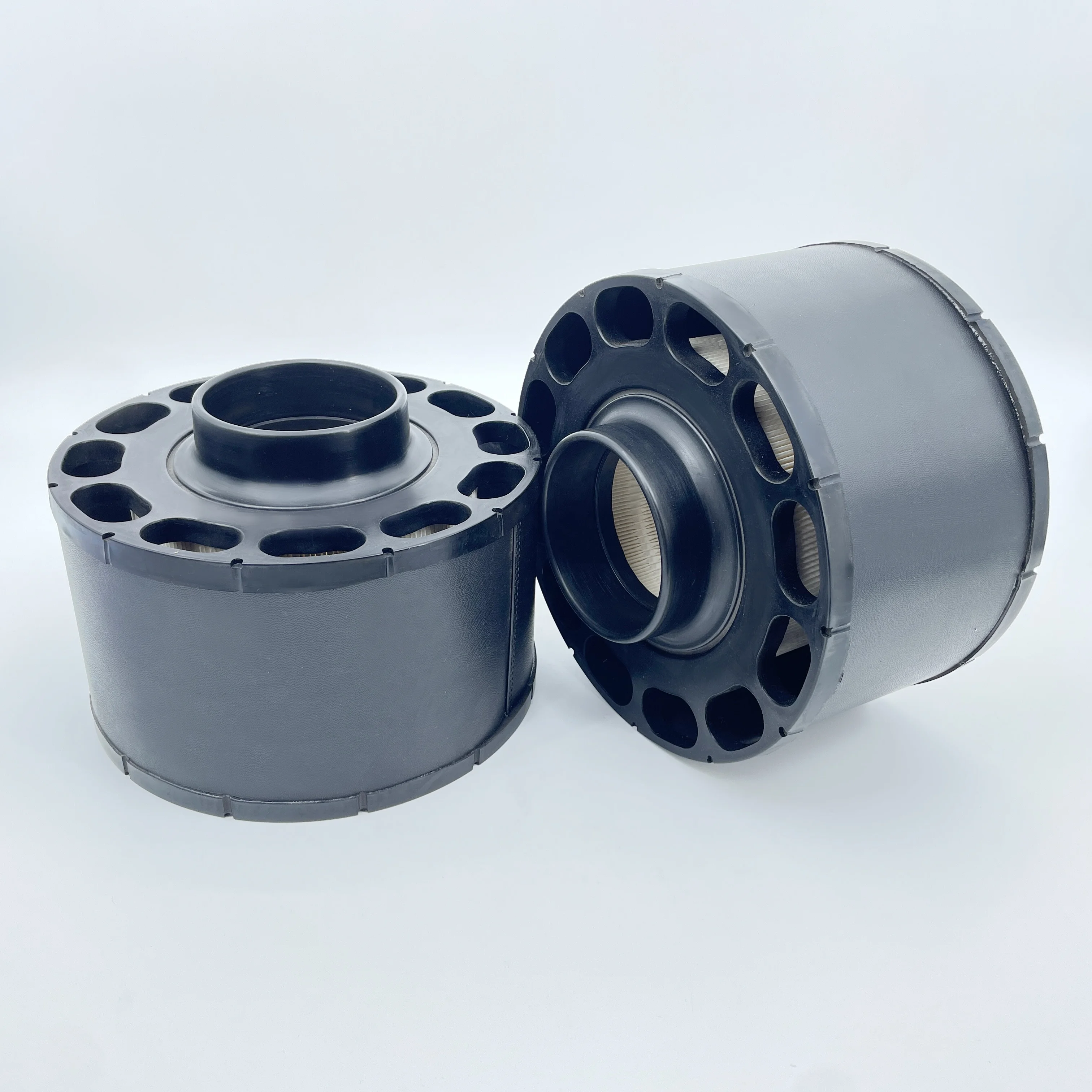

Воздушный фильтр в сборе воздушный корпус очиститель C105003 42791 AH1140 PA2830 SL12926
1 148,00-1 377,60 ₽

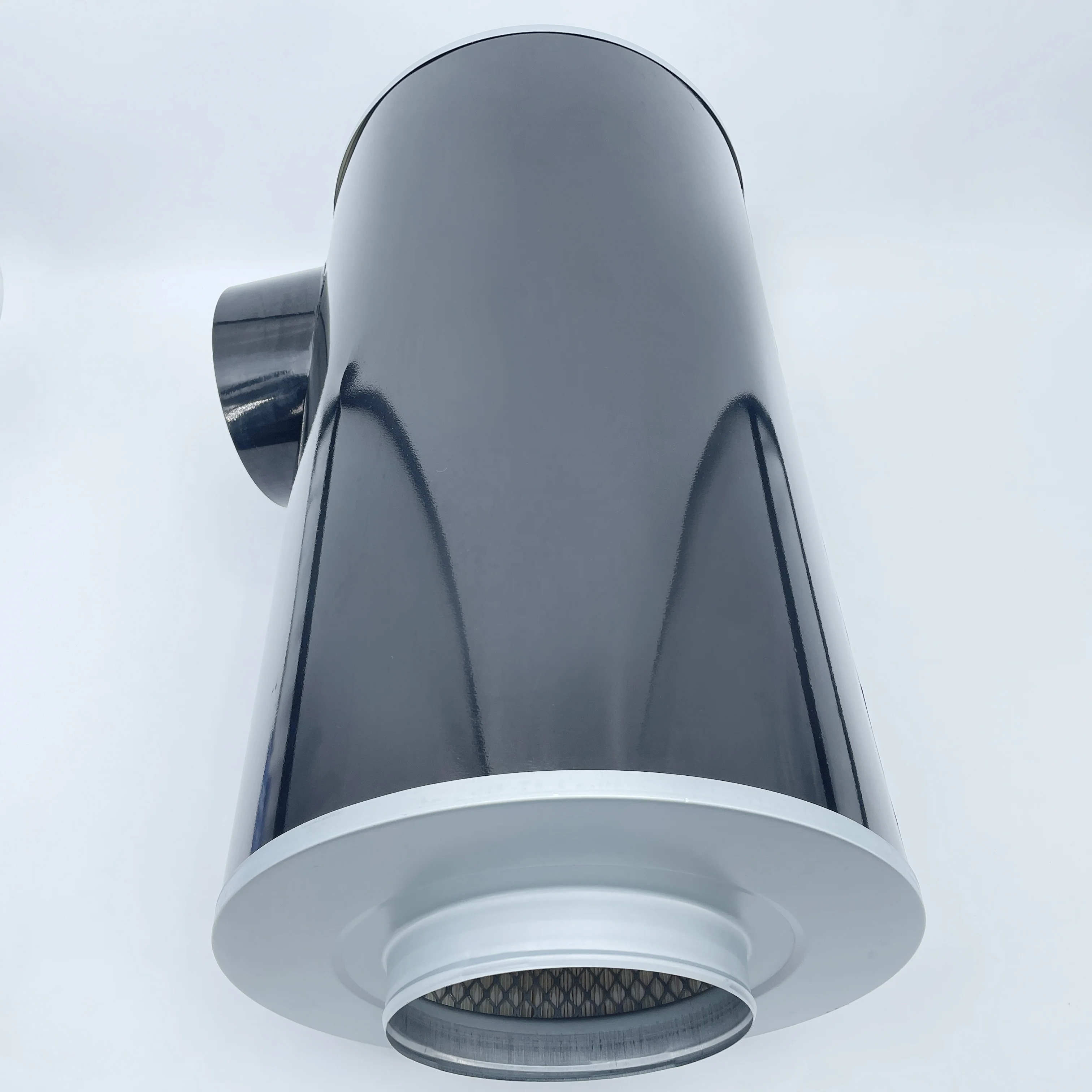

Воздушный фильтр высокого качества в сборе AH8500 AH8501 AH8502 AH8503 AH8504 AH8505
2 273,04-2 869,99 ₽
Для чистых помещений ULPA H12 H14 U15 U16 U17 воздушный фильтр hvac
585,48-631,40 ₽
12x24 портативный Оцинкованный Каркас HEPA воздушный фильтр для FFU
2 296,00 ₽

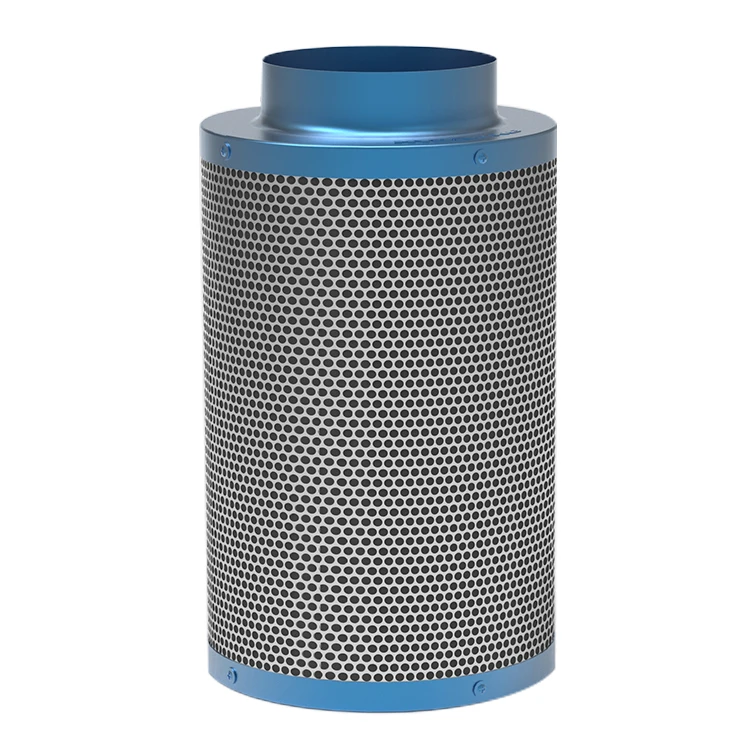

4-12-дюймовый гидропонный воздушный фильтр с активированным углем
1 435,00-1 561,28 ₽
MERV 8 12 домашний воздушный фильтр с хлопчатобумажной средой плиссированный из синтетического волокна для домашнего ресторана производства
1 722,00-2 296,00 ₽

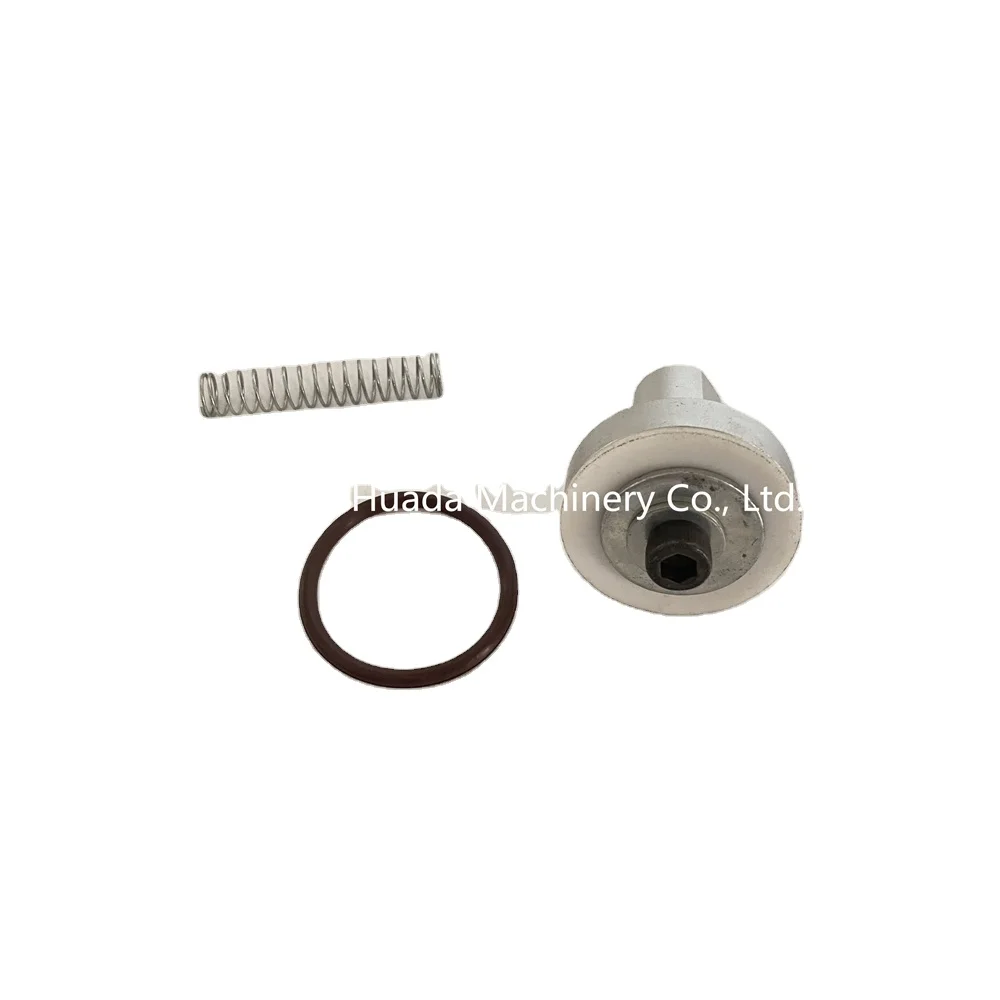

Хорошее качество минимальный набор для обслуживания клапана давления 02250110-988 используется воздушного компрессора
