We are a professional heat exchanger, condenser, evaporator, heat pump,air cooler and air conditioner manufacturer in China,which has more than 15 years experience in HVAC area. Our products have been exported to Europe,USA, Japan and Middle east etc.

paste-pic-dp_uuid_84fey

product detail.jpg

Products Features

1. Application range: food processing, logistic center, meat processing center,chain restaurant, medicine stores, seeds processing store, medical lab, biological medicine store, dairy products processing, edible fungus breeding center, temperature range from -5 ℃ to -23℃.
2. Equip with semi-hermetic Germany Brand refrigeration compressor, good quantity and reliability.
3. Reliable and integrated design, easy handling and installation with brand compressors and components.

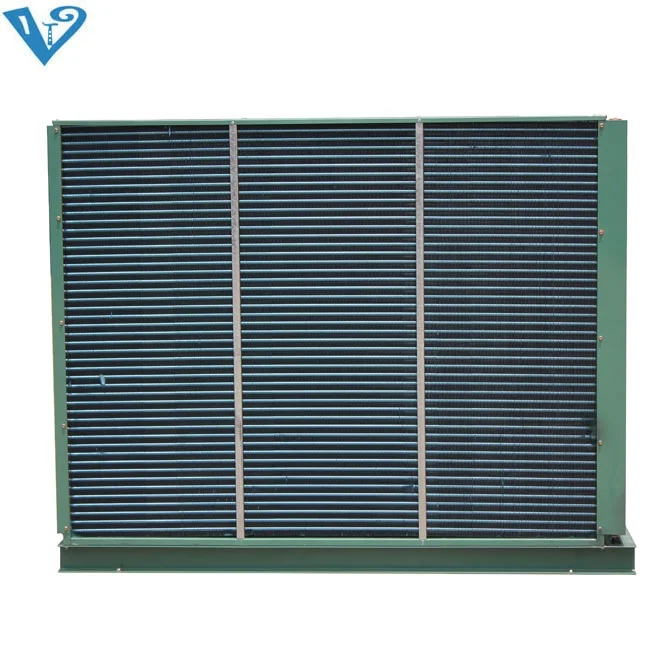

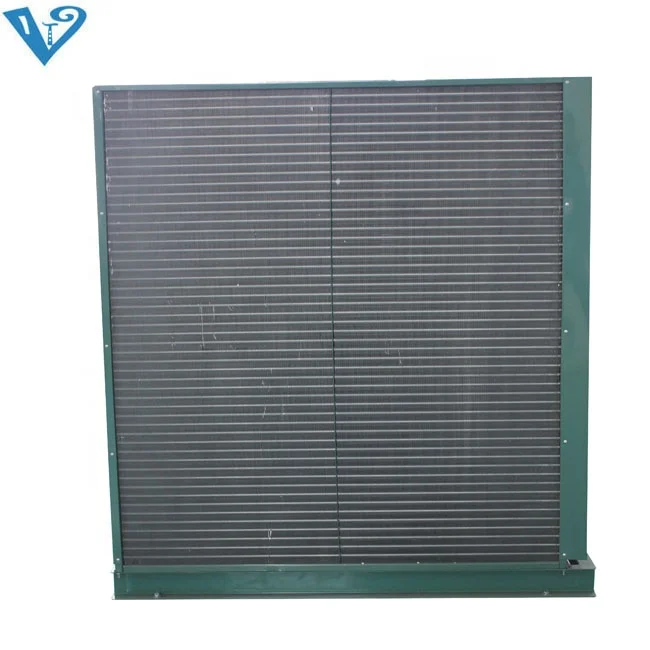

4. Condenser make of copper pipe and aluminum fin heat exchanger or high- efficiency shell and tube heat exchanger with long lifetime.
5. Extemal rotor fan with low noise, high efficiency.

Technical parameter

Open type Germany Brand condensing unit parameter

Compressor	Supply power	Cooling capacity	Air cooled condenser				Connection pipe spec.		External dimension
Compressor	Supply power	Cooling capacity	Heat transfer area	Air volume	Fan diameter	Motor capacity	Inlet pipe	Outlet pipe	Length A	Width B	Height C
2HC-2.2H	380v/3Ph/50HZ	3380	18	3000	400	190	16	10	700	600	580
2GC-2.2H		3990	18	3000	400	190	16	10	700	600	580
2FC-3.2H		4820	22	3000	400	190	16	10	700	600	580
2EC-3.2H		5670	22	3000	400	190	16	10	700	600	580
2CC-4.2H		8350	33	3000	400	2*190	22	12	1050	710	580
4FC-5.2H		9640	49	5000	400	2*190	22	12	1050	710	680
4EC-6.2H		11850	55	5000	400	2*190	28	12	1050	710	680
4DC-7.2H		14480	60	6000	400	2*190	28	16	1050	800	680
4CC-9.2H		17500	80	6000	400	4*190	28	16	1050	800	980
4VCS-10.2H		19190	100	10000	400	4*190	28	16	1050	800	1280
4NCS-12.2H		23150	120	10000	400	4*190	35	16	1050	800	1280
4PCS-15.2H		27700	130	14000	450	4*250	35	22	1050	800	1280
4NCS-20.2H		32300	150	14000	450	4*250	42	22	1250	800	1280
4H-25.2H-V		42250	200	14000	500	3*420	54	22	2120	1100	1680
4G-30.2H-V		48500	270	20000	550	3*550	54	22	2300	1100	1680
6H-35.2H-V		63400	300	27000	600	3*800	54	28	2450	1100	1680
6G-40.2H-V		72800	350	36000	550	4*550	54	28
6F-50.2H-V		86300	410	45000	600	4*800	54	35

Application

Widely applied to supermarket store, meat producing store, commercial cold room, food processing, dairy products cooling, medicine stores, seeding processing store, medical lab etc.
