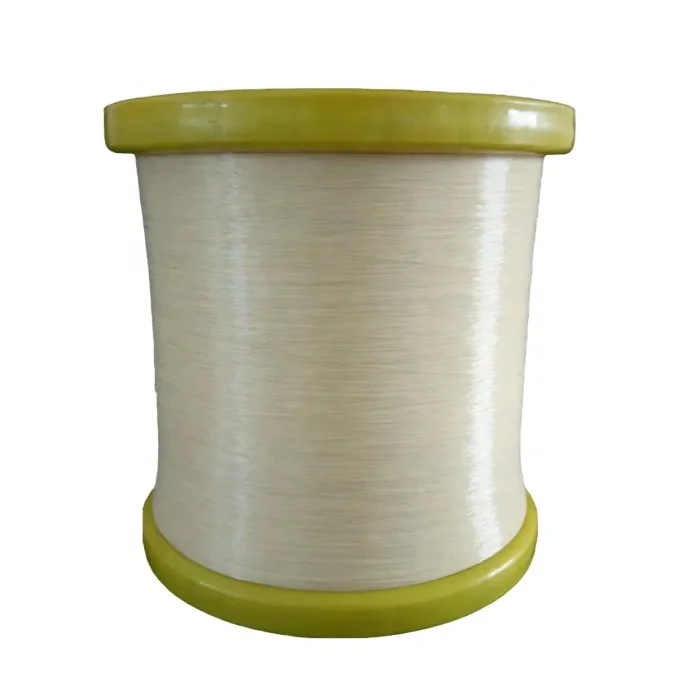

Заводская распродажа высокая температура Полифениленсульфид PPS моноволоконная пряжа 0,06-1,5 мм
30,00 $
Круглый ЖК дисплей с интерфейсом mipi dsi 3 34
- Категория: >>>
- Поставщик: Shenzhen Elsun Technology Co. Ltd.
Сохранить в закладки 60820712885:
Описание и отзывы
Характеристики
Product Description
3.34 inch mipi dsi interface round lcd display
3.34 inch 320x320 600 nit micro hd round lcd display key mechanical data :
| Main Parameters: | |
| Item | kingtech 3.34 inch 320x320 600 nit micro hd round lcd display |
| Model No | PV033400AR17A |
| Resolution | 320(RGB) X 320 |
| Outline Dimension | 66.20(H)×69.30(V)×2.66(T) |
| Active Area(mm) | Diameter 60mm |
| Interface | MIPI (Command Mode) |
| Viewing Angle | 12 o’ clock |
| LED Numbers | 6 LEDs Seria |
| Warranty | 12 months |
| Driving IC | ST7796SI |
| Display Mode | TM with Normally White |
| Technology Type | a-si TFT |
| Pixel Pitch (mm) | 0.1875 x 0.1875 |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Surface treatment: | HC |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Color Depth | 16M dithering |
| Brightness | 600 nits |
3.34 inch 320x320 600 nit micro hd round lcd display front picture:
3.34 inch 320x320 600 nit micro hd round lcd display application
3.34 inch 320x320 600 nit micro hd round lcd display, pure round active area
600 nits 3.34 " SQVGA mipi dsi interface circle lcd display mechanical drawing
Similar round tft LCD , please click below Model No to review product details
| Size and Feature | Model No | Pixel | Outline Dimension | TP |
| 1.22" round display | PV12200YQ13IPS | 240*204 | 34.66(W)*34.82(H)*1.14(T) | CTP |
| 1.3'' Round AMOLED | PV013002T45B | 360*360 | 35.34(W)*36.84(H)*0.678(T) | tool |
| 1.39"Round AMOLED | PV013901PY20B | 400*400 | 38.6 (W)×40.5(H)×0.7(T) | CTP |
Workshop
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
For every new model, before mass production, we do reliability test to ensure our material choice and our workmanship are designed properly.
This can help to avoid reliability issues happening at our customer side
Our factory cutting LCD panel from mother glass into smaller pieces.
We also etch LCD panel to be thinner for some hand hold devices, which request slim and light weight
Other Products
Other product products, please click below Model No to review product details
| Size and Feature | Model No | Pixel | Outline Dimension |
| 1.3'' Round AMOLED | PV013002T45B | 360*360 | 35.34(W)*36.84(H)*0.678(T) |
| 1.39"Round AMOLED | PV013901PY20B | 400*400 | 38.6 (W)×40.5(H)×0.7(T) |
| 2.4" IPS TFT LCD | PV0241F2CZ0_V00 | 240*320 | 42.72(W)*60.7(H)*2.21(T) |
| 3.5" IPS/Free viewing angle | PV0350B2Z10 | 320*480 | 53.76(W)*84.18(H)*3.30(T) |
| 3.5" 480*640 Transflective | PV03501LZR40C | 480*640 | 63.00(W)×85.00(H)×2.9(T) |
| 4.0" IPS/Free viewing angle | PV0401FT25B | 480*800 | 57.14(W)* 96.85(H) *1.93(T) |
| 4.3" high brightness | PV043WQ-CTNC4001 | 480*272 | 105.5(W)*67.1(H)*2.95 (T) |
| 4.3" IPS/Free viewing angle | PV04300FT40C | 480*800 | 61.46(W)*104.75(H)*2.20 |
| 5.5'' IPS/Free viewing angle | PV05502FT39D | 720*1280 | 76.8(W) * 137.4(H) * 2.7(T) |
| 10.1" 1000nits IPS/free viewing | PV10101LZR40B-C | 1280*800 | 229.80(W)*149.00(H)*5.95(T) |
With Customers
800nits 4.3inch 480x272 rgb high brightness tft lcd display
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
Our Advantage
LARGE-SCALE
800K/Month,6000 square meter factory,with about 300 employees,16 enginners and 20 Q.C people.Starting our business
as LCD panel and IC distributor.This makes us have good control of quality ,supply and price.
ADVANCED EQUIPMENT
With our own LCD cutting factory and cut big amount of LCDs every year.This helps us to get a lot of information
in time.Good source to provide our customer what they can not find in regular market
QUALITY ASSURANCE
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
About 5years gold supplier in Alibaba.High cost performance ratio.
Kingtech History
| Year | Event |
| 1995--2003 | Founder of Kingtech work in LCD display moudule enterprise |
| 2003 | Start distribution for LCD panel and Driver IC |
| 2006 | Started LCD display module R&D, manufacturer, export |
| 2009 | Establish factory to cut LCD panel to smaller size |
| 2013 | Acquisition a factory to etch LCD panel to be thinner |
| 2014 | Became Alibaba Top10 supplier |
| 2016 | Establish our backlight factory |
| 2016 | Award of Alibaba B2B Good Faith Demonstration Base |
| Mission | To be custom small and middle size LCD module specialist |
More
Похожие товары
Заводская цена, силиконовая пенопластовая трубка большого диаметра 20 мм, мягкая трубка, цветная силиконовая пенопластовая трубка
0,04 $

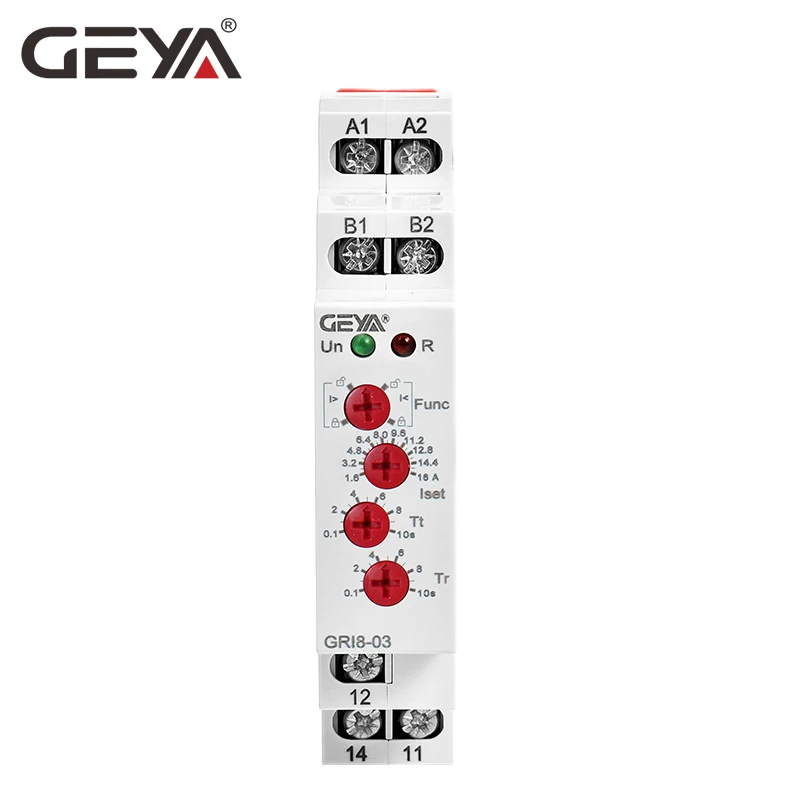

GEYA GRI8-03 Регулируемый перегрузки по току под Реле тока 0.05A 1A 2A 5A 8A 16A ток реле контроля
9,31 $ - 11,94 $
ЕС Силиконовый чехол арабском языке протектор для Iphone, для Ipad, для Ipad Mini Pro 16 дюймов 2019 сенсорной панелью и за счет сканера отпечатков пальцев A2141
0,33 $ - 0,40 $
Производитель OEM ODM промышленные силиконовые формовочные аксессуары под заказ резиновые изделия
Unique design egg shape colored candle jars wholesale glass clear candy
Заводские поставки высококачественного термостойкого стекловолокна PA6/PA66, полимерные сырые пластиковые частицы
2,10 $

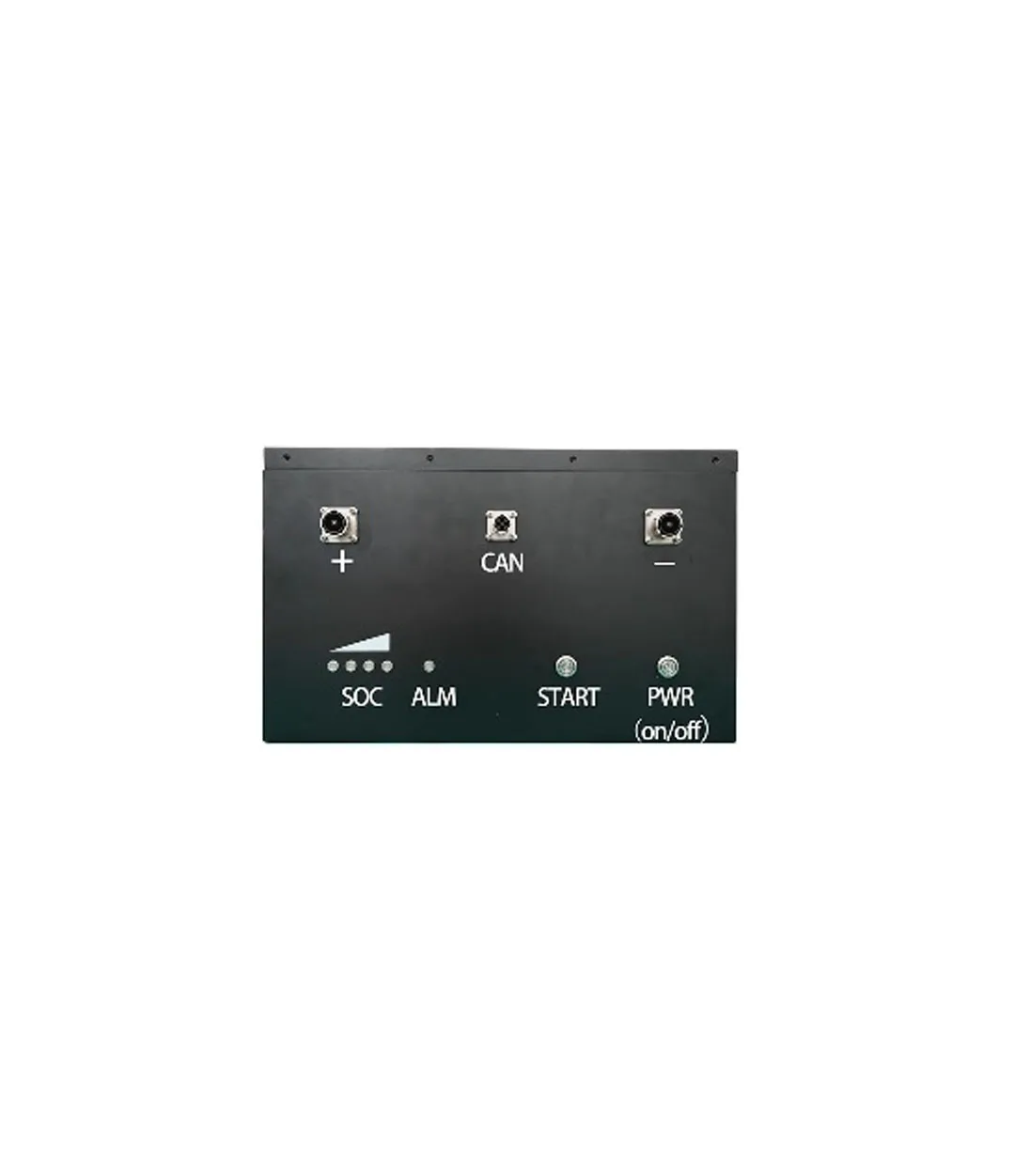

Литий-ионная батарея Rosen lbattery 72 в 5 кВт 10 кВт gso, литиевая батарея TBC высокого качества
