E33 433T13D EBYTE SX1212 с низким энергопотреблением Wake Up детей ТЭК UART DIP 433 м беспроводной передачи данных hdmi передатчик и приемник МГц Rf

    Brand

    Ebyte

    IC

    SX1212

    Model

    E33-433T13D

    Interface

    UART

    Power

    12dBm

    Distance

    1000m

    RF connector

    SMA-K

    Frequency

    433MHz (425-440.5MHz)

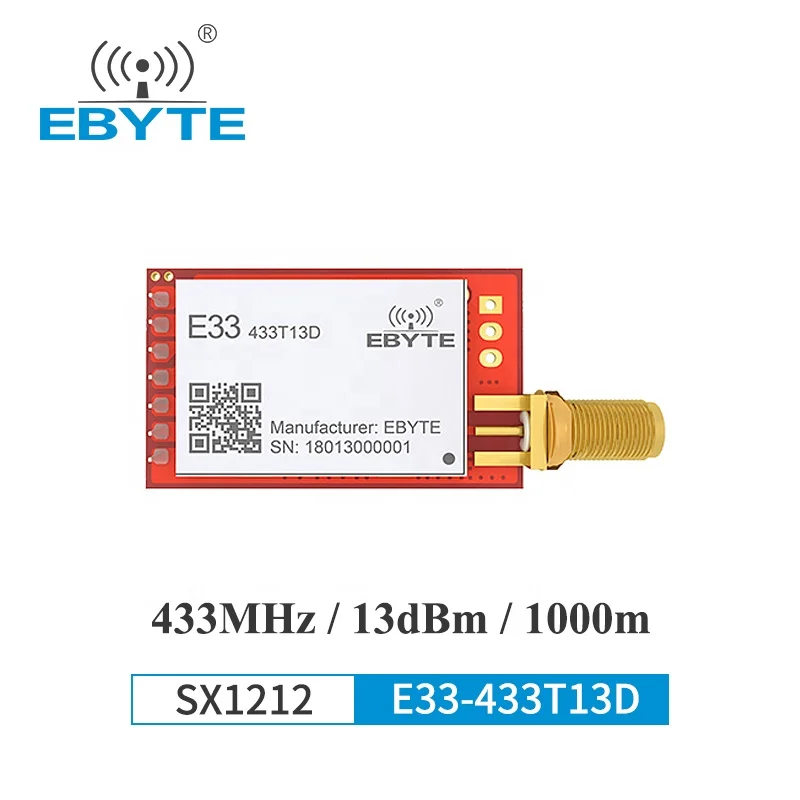

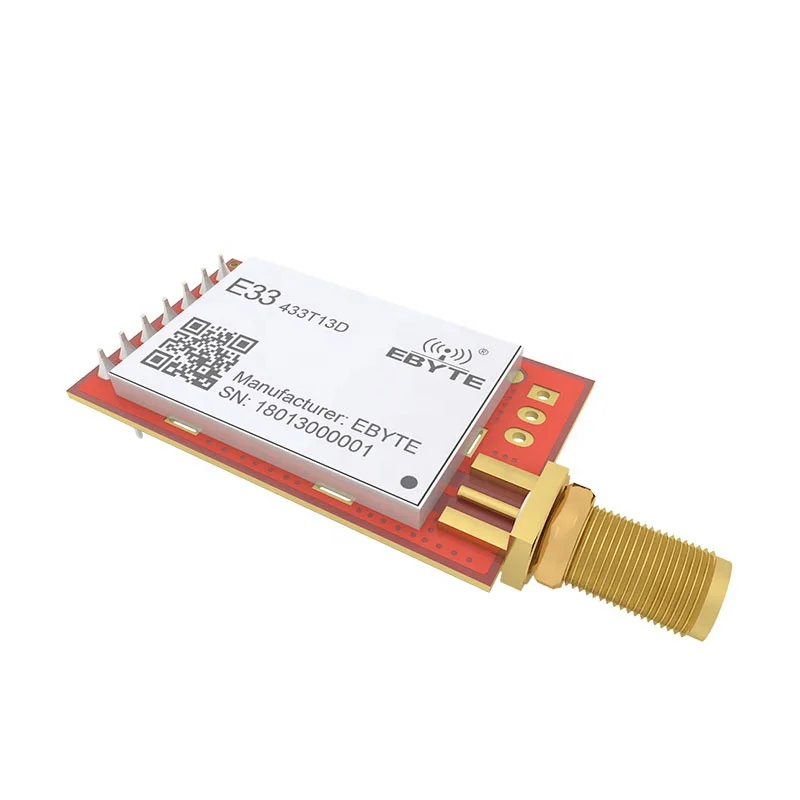

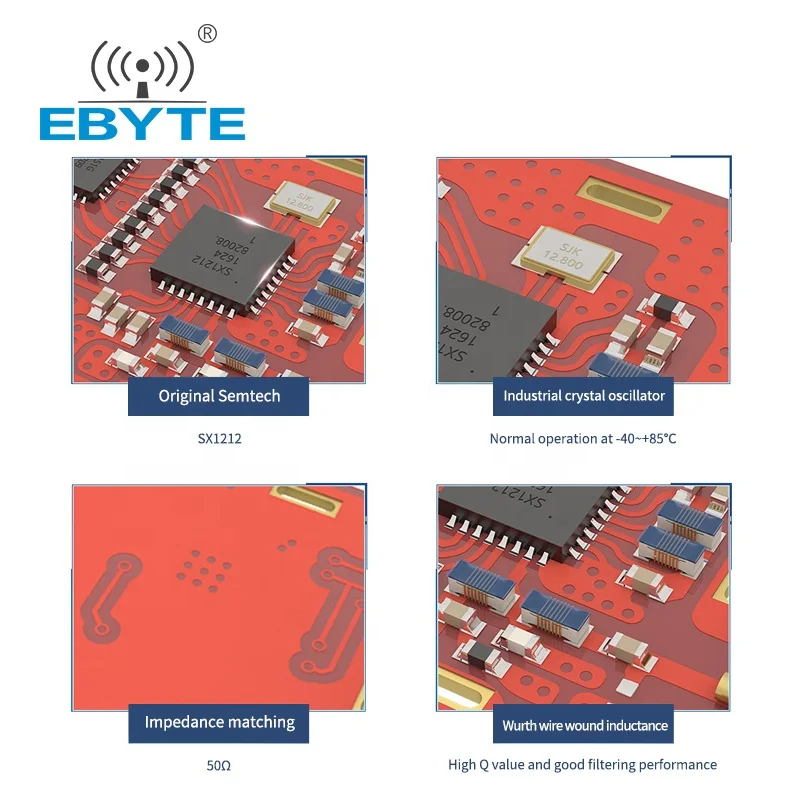

E33-433T13D is a 20mW wireless transceiver module, which operates at 425-440.5MHz (default: 433MHz), based on originally imported RFIC SX1212 from Switzerland, transparent transmission is available, TTL level. The outstanding advantage of this module is point to point wake-up, which is very suitable for ultra-low power consumption applications.

    General parameters

    Antenna type

    SMA-K

    50Ω characteristic impedance

    Operating temperature

    -40 ~ +85℃

    -

    Operating humidity

    10% ~ 90%

    Relative humidity,No condensation

    Storage temperature

    -40 ~ +125℃

    -

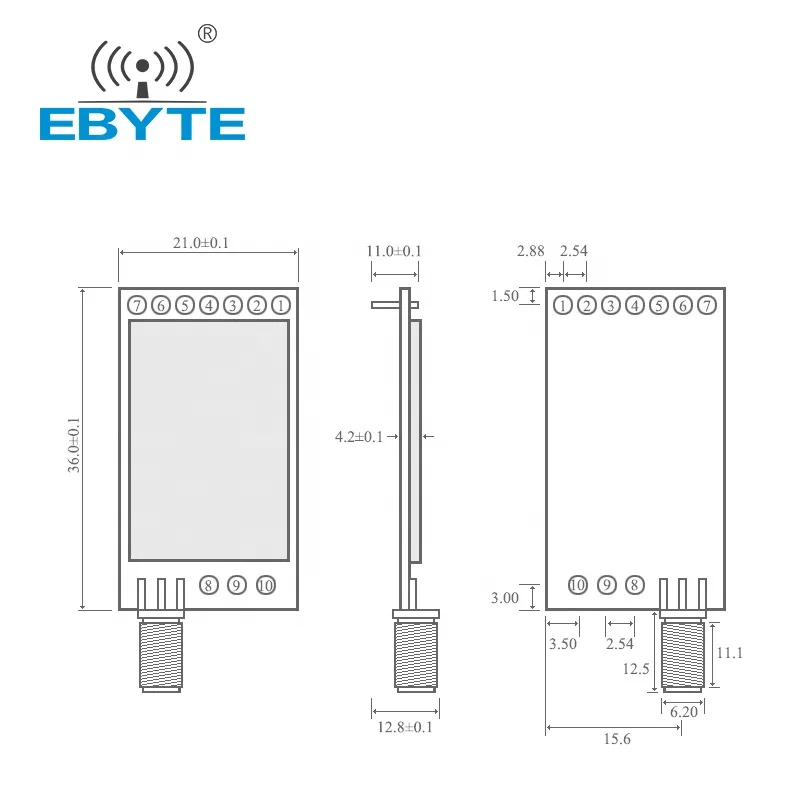

    Size

    21 * 36 mm

    -

    Weight

    6.7g

    -

    Connector

    1*7*2.54 mm

    Plug-in

    Operation Range

    About 1000m

    Test condition: clear and open area& 12dBm, antenna                gain:5dBi, height: 2m, air data rate: 2.0kbps

    Communication interface

    UART

    8N1, 8E1, 8O1,

    Eight kinds of UART baud rate, from 1200 to 115200 bps

    Transmitting length

    512 bytes buffer

    58 bytes per package

    Receiving length

    512 bytes buffer

    58 bytes per package

   Electrical parameters

    Default: 433.0MHz, channel:32

    Notes: the voltage higher than 5.5V is forbidden

   Communication voltage

    Maximum 5.2V

    Recommended difference between supply voltage is less            than 0.3V to lower power consumption

    Eight optional level(12, 9, 6, 3, 0, -3, -6, -9dBm)

    2kbps

    Four optional level (2, 5, 10, 15kbps)

    M1=1,M0=1 ( Mode 3 )

    ≥150mA

   Receiving current

    3.0mA

    Mode 0 or Mode 1

   Sensitivity

    Sensitivity has nothing to do with baud rate or timing

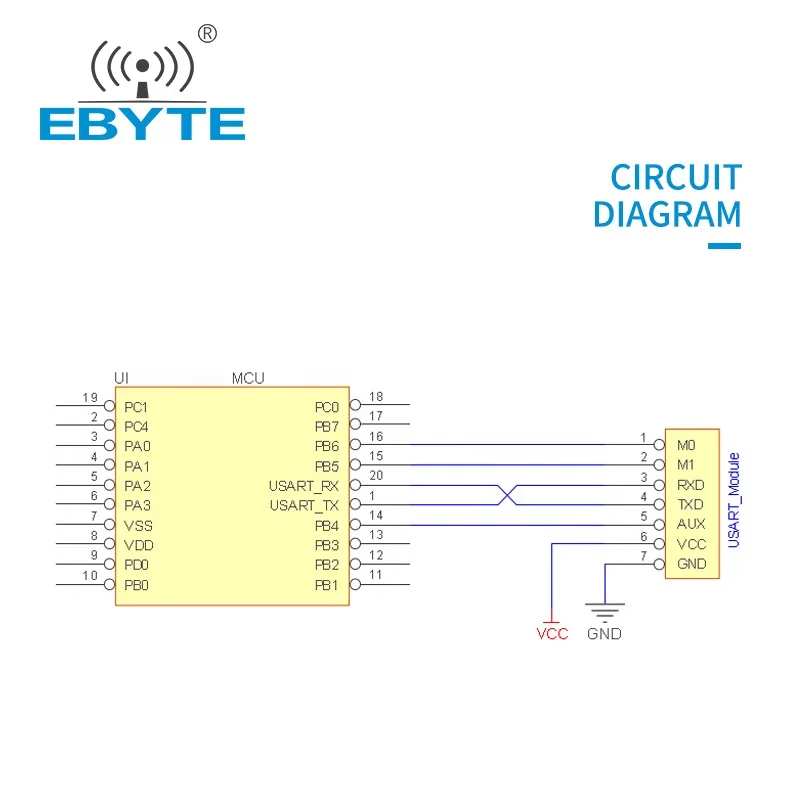

PinA No.

Pin item

Pin direction

Pin application

1

M0

Input

    Work with M0 & decide the four operating modes

2

M1

    Work with M0 & decide the four operating modes

3

RXD

Input

    TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be          configured as open-drain or pull-up input.

4

Output

    TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be          configured as open-drain or push-pull output

5

AUX

Output

    To indicate module’s working status & wakes up the external MCU. During        the procedure of self-check initialization, the pin outputs low level. Can            be configured as open-drain output or push-pull output

6

VCC

    Power supply 2.3V-5.5V DC

7

GND

    Ground

8

Fixing hole

    Fixing hole

9

Fixing hole

    Fixing hole

Fixing hole

    Fixing hole
