Application:
LBFA186G carding machine is mainly used for processing cotton and chemical fiber, processing the material from the front procedure, making all the curly, block of cotton into basic straight state of single fiber, and in the procedure, get rid of the broken seed, impurities and short pile, and then cluster into certain specifications of the sliver, stored in the sliver can, for the use of draw frame.
Main specifications:
Applications | This machine is used for processing cotton,wool,chemical fibers and blends in length 22-76mm |
Sliver count(g/m) | 3.5-6.5 |
Lap size(mm) | Max diameter550, width 980 |
Production(kg/h) | Max 30 |
Delivery speed(m/min) | 57.7-121.2 |
Total draft | 67.5-120.5 |
Licker-in speed(r/min) | 800 930 |
Doffer speed(r/min) | 21.3-38.2 |
Cylinder speed(r/min) | 330 360 |
No. Of revolving flats (working/total) | 41/106 |
Flat speed(mm/min) | 71 91 129 141 184 241 342 |
Auxiliary carding segment | Carding segment under licker-in: 1 piece Rear stationary flat: 3 pieces Front stationary flat: 3 pieces |
Can size(mm) | Diameter: Ø600 Height: 900 1100 (Square coiler is optional) |
Total installed power(kw) | 4.4 |
Safety cover form | Totally enclosed |
Space requirement (Length × width) | 3809 × 2092(mm) |
Working width(mm) | 1000 |
Continue air suction(m3) | 1300 |
Air pressure(pa) | 500-600 |
Net weight(kg) | About 4500 |

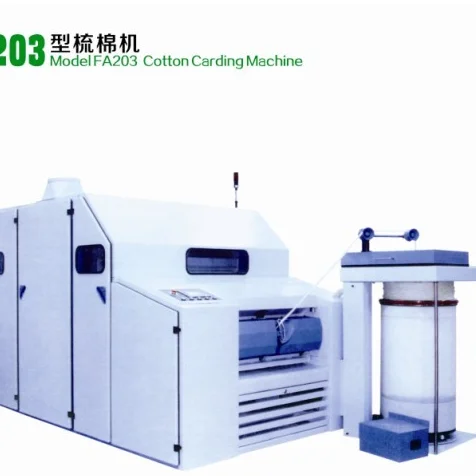

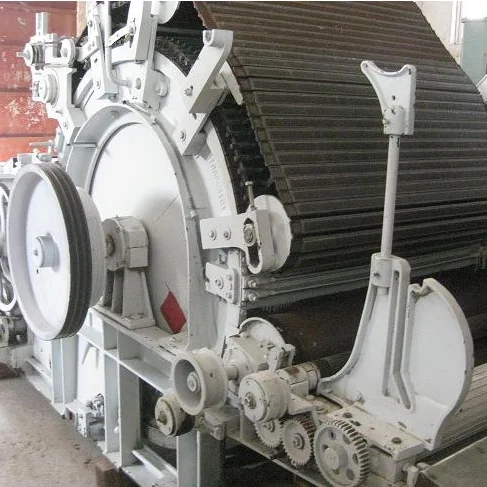

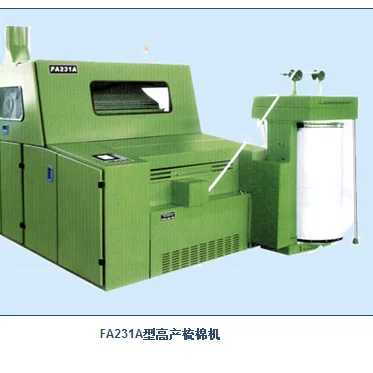

product picture
applicalble raw material
final product
Export standard package
1) wooden case/polywood case
2) plastic foam packing
3) nude packing
1) Engineers available for overseas service according to request.
2) Any machine from our factory has one year guarantee.
3) 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4) manual book in English version with details.
Qingdao Lebon Industry Co.,ltd a famous company with 28 years of experience which in design and manufacturing with total area 20,000 square meter workshop,158 workers, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all product delivered are qualified ones that have already been tested.
Lebon specializes in design,manufacturing,mainly produces medical cottonmachine,spinning carding machine,weaving machine(water jet loom/medical gauze air jet loom),needle punching machine,wadding line,quilting machine and nonwoven machine,finish medical cotton and nonwoven product.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.
We warmly welcome you to contact us for more relative information about our product.We are sincerely looking forward to cooperating with all customers.
CERTIFICATION
1. Q: Are you factory or foreign trade companies ?
A: We are factory with our own trading department.
2. Q:How old is your factory is engaged in the textile machinery production ?
A:There are 30 years of experience. We can produce any type you need
3. Q: Are your product quality is reliable ?
A:Our factory regarding doing first the person and go into business as the principle, we welcome you come to our factory to inspect the machine before shipping.
4. Q:How to get you factory?
A: After arrived at Qingdao airport just 40 minutes of expressway can be reached.
