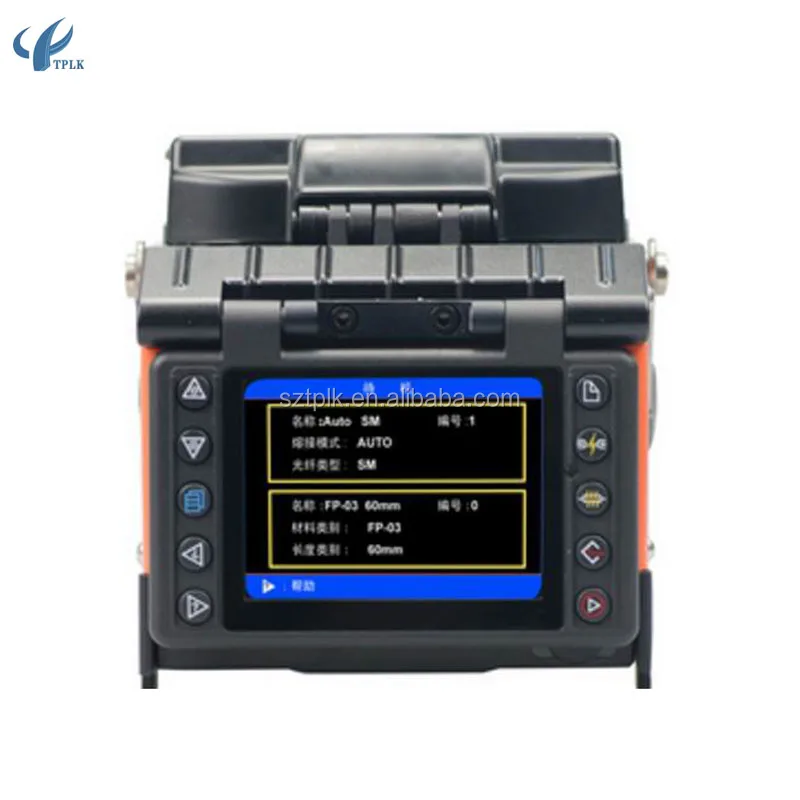

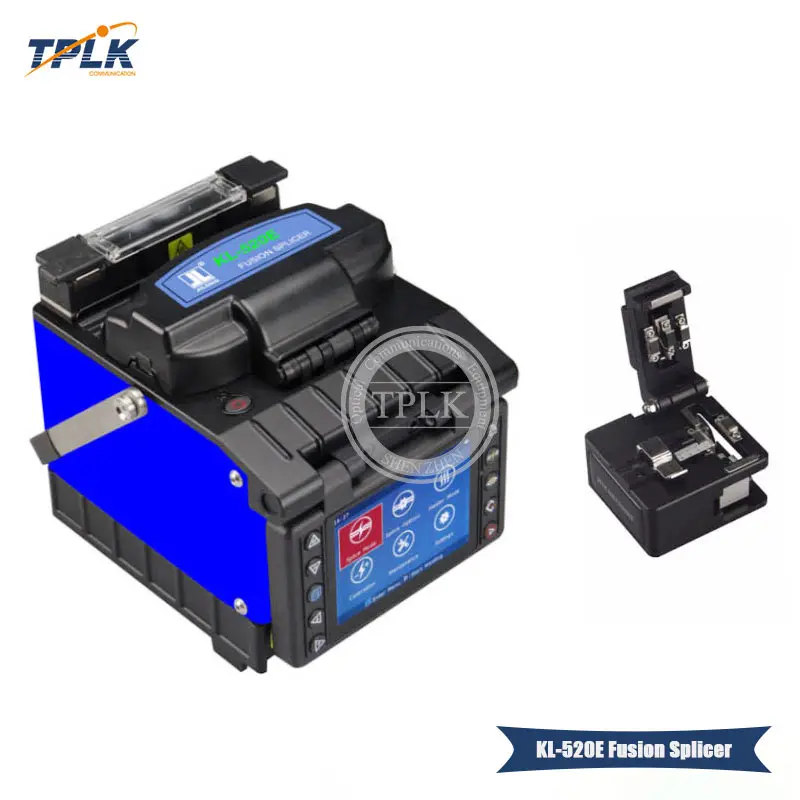

Оптовая продажа Лучшая цена оригинальный Jilong KL 520E аппарат для сращивания оптических волокон сварочный KL520E
- Категория: >>>
- Поставщик: Shenzhen Toplink Technology Co. Ltd.
Сохранить в закладки 60823390344:
Описание и отзывы
Характеристики
Product Description
Applicable fibers | SM MM DS NZDS |
Fiber diameter | Cladding diameter:80-150μm;Coating diameter:100-1000μm |
Fiber aligning method | Meticulous,Core,Clad,Manual |
Actual average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Typical splicing time | Typical 9 sec (standard SM fiber) |
Tube typical heating time | Typical 30 sec |
Storage of splice result | 4000 results, 20 parameter per result |
Fiber image magnification | 200X (X or Y view),50X (X and Y view) |
Battery capacity | Typical 300 cycles (splice/tube heat with inner Li-battery) |
Monitor | 3.5 inch TFT color LCD monitor |
Power supply | AC 100-240V with AC adapter inner Li-battery (5200mAH) |
Dimension | 25mm(L)×105mm(W)×113mm(H) |
Fiber cleaved length | 8-16mm (Coating diameter:250μm) |
Fiber count | Single |
Return loss | >60dB |
Splicing mode | Auto Calibrate Normal Special |
Splicing program | 53 (templet), 40(user) |
Protection sleeve length | 60mm, 40mm |
Tube heating program | 9 (templet),24(user) |
Tension test | 2N |
Electrode life | 2500 |
Terminal | USB |
Operating condition | 0-5000m above sea level, -10-50° Max wind velocity of 15m/s |
Weight | 1.55Kg including battery |
Feature
1.Automated and programmable wind protector
2.6 seconds Splicing Time;14-second automated tube heater
3.Fully ruggedized for shock, dust and moisture,
4.Li-Ion battery with 230 splices/shrinks per charge
5.5 mm cleave length for splice on connector or small package needs
6.Sheath clamp or fiber holder operation
7.On-board training and support videos
8.Internet software upgrades

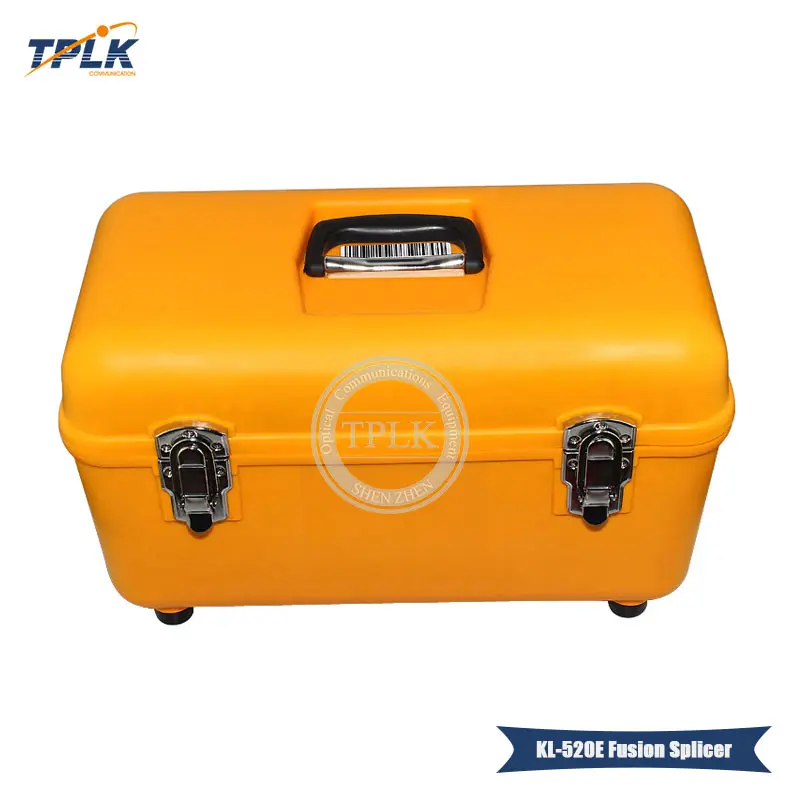

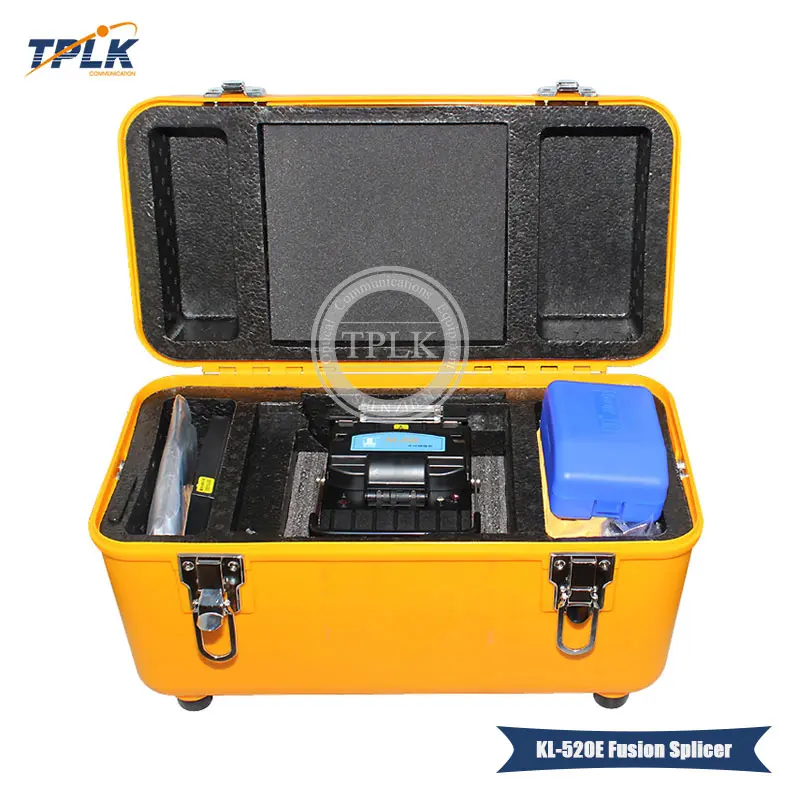

9.Multi-function transit case with integrated workstation
Application
1.Fiber Optical Communication Systems
2. Optical Fiber CATV
3. Passive Optical Network (PON)
4. Fiber Optic Amplifiers
5. Fiber Optic Access Networks/LAN
6. Monitoring Systems
7. Optical Fiber Sensor
Customer feedback
QC process
Company Profile
Shenzhen Toplink Technology was established in 2008. We are a professional factory for passive and active components. TPLK's optical fibre and cable products, together with various network construction solutions are capable of satisfying rigorous demands from a diverse range of customers. The solutions have been widely applied by communications operators such as China Telecom, China Mobile, China Unicom, and across a range of industries from power grids, broadcasting and television. The products have been sold to more than 100 countries and regions including the USA, Europe, Southeast Asia, the Middle East and Africa.TPLK will continue to dedicate itself to Fiber Optical Cable products and comprehensive solutions, facilitating the universal use of optical fibre in the whole world, so as to promote the development and wide application of optical communications technologies, and enable everyone to enjoy the benefits that optical communications brings to their lives.
Certifications
FAQ
1.Are the products hot selling and with competitive price?
--- Yes, they are. We are manufacturer, we have more than 7 years experience in this field. And sold over 500,0000USD fiber products to overseas each year, we have stable customer in Poland,Spain,Russia,Brazil, Colombia,Ecuador etc. EU,AU and other country
2.Can we get a lower price? Any discount?
---- Yes, price is not a problem, everything could be negotiated based on the quantity.We will give you the competitive price tomake sure to win-win.
3.Do you test all products?
---- Yes, All test before delivery. We have professional QC to control quality before shipment.
4.We are new in this PON fields, can you help me and recommend me some items?
---- Yes, of course. It is our pleasure to help you with it.You only need to offer us more details about your application.
5.What is your MOQ?
---- No MOQ for any sample test.
6.For Trade terms, such as payment and leadtime.
> Payment Terms: We mainly support T/T bank transfer, Alibaba Trade Assurance, Paypal and Western Union
> Price terms: FOB Shenzhen
> Lead time: 3-7 working days( after received your payment)
7.How can i trust you?
---- We are honesty and professional, Assessment report will could be sent to you by E-mail, Skype, WhatsApp, Wechat. Now we have many cooperation customers from all around the world, if possible, we can send you our proof of customer's payment and our certification. Contact Us! Do Not Hesitate, best service for you!
2.Can we get a lower price? Any discount?
---- Yes, price is not a problem, everything could be negotiated based on the quantity.We will give you the competitive price tomake sure to win-win.
3.Do you test all products?
---- Yes, All test before delivery. We have professional QC to control quality before shipment.
4.We are new in this PON fields, can you help me and recommend me some items?
---- Yes, of course. It is our pleasure to help you with it.You only need to offer us more details about your application.
5.What is your MOQ?
---- No MOQ for any sample test.
6.For Trade terms, such as payment and leadtime.
> Payment Terms: We mainly support T/T bank transfer, Alibaba Trade Assurance, Paypal and Western Union
> Price terms: FOB Shenzhen
> Lead time: 3-7 working days( after received your payment)
7.How can i trust you?
---- We are honesty and professional, Assessment report will could be sent to you by E-mail, Skype, WhatsApp, Wechat. Now we have many cooperation customers from all around the world, if possible, we can send you our proof of customer's payment and our certification. Contact Us! Do Not Hesitate, best service for you!
Related production
Похожие товары

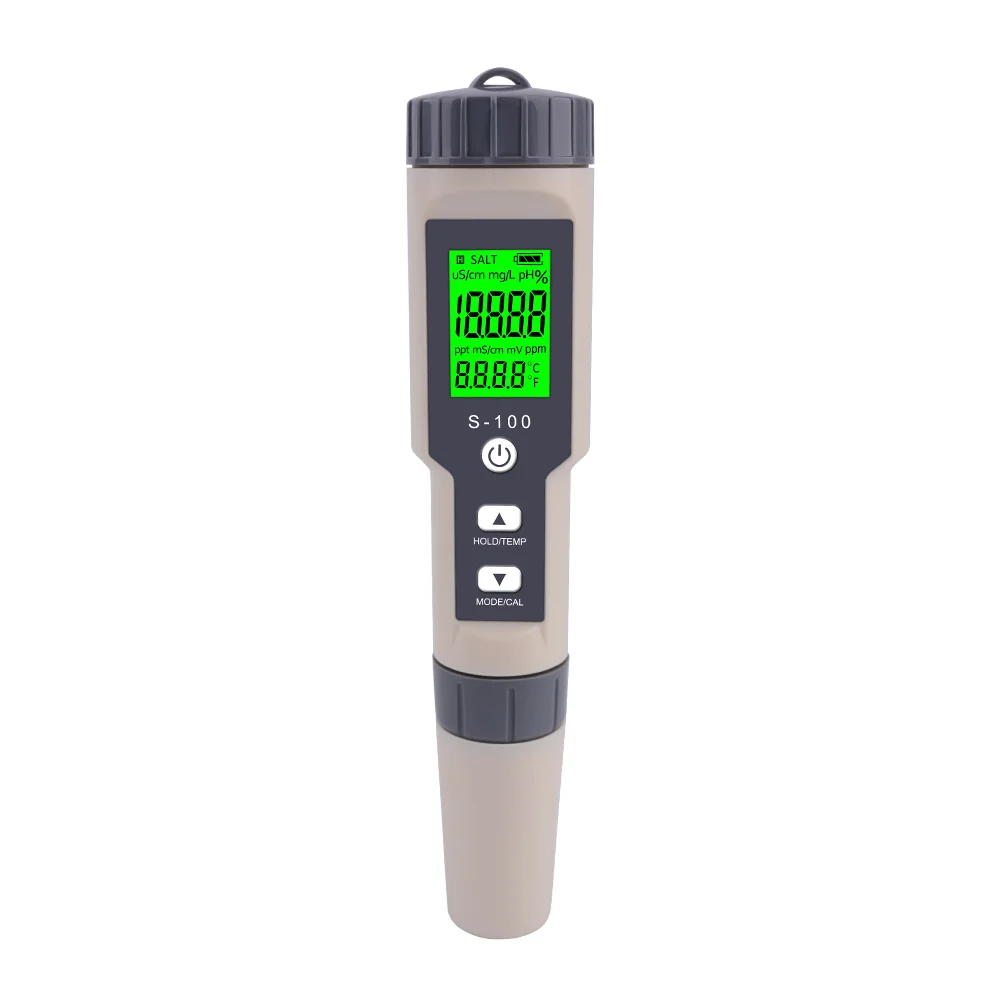

Водонепроницаемый TDS-метр 4 в 1 Анализатор воды измеритель солености ЖК-дисплей онлайн EC-метр тестер морской виде
14,00 $ - 20,20 $

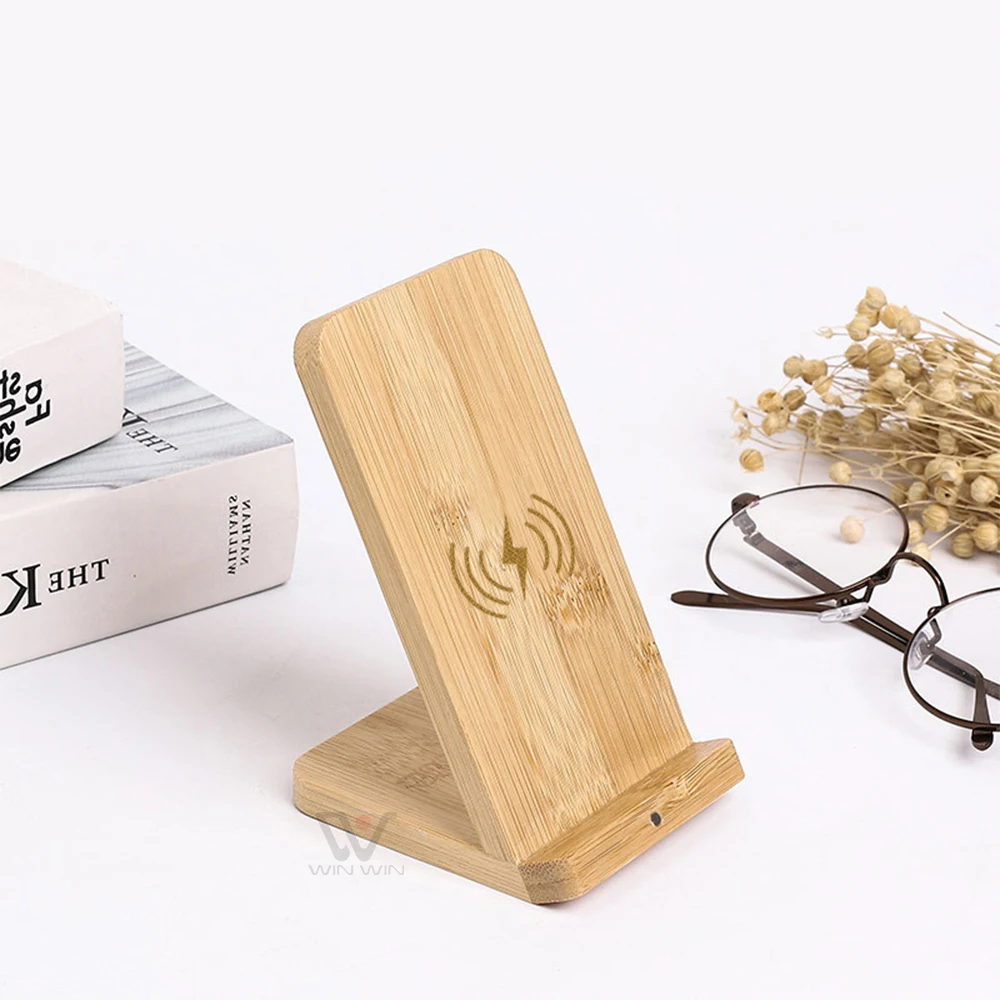

Высококачественное многофункциональное бамбуковое Беспроводное зарядное устройство Быстрая зарядка Настольный телефон зарядная станция
3,77 $ - 3,97 $

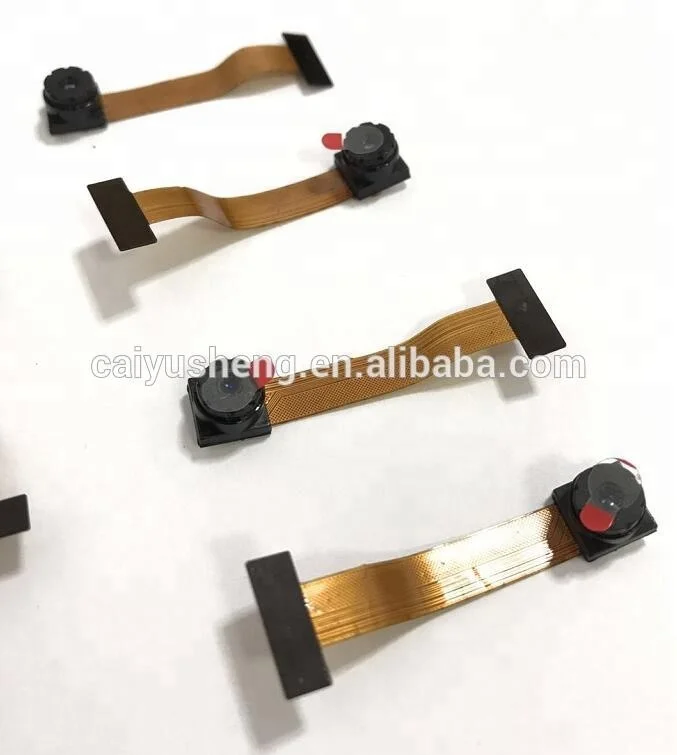

Модуль камеры OV2640 OV2610 OV2710 OV2655 OV2643 OV2715 CMOS

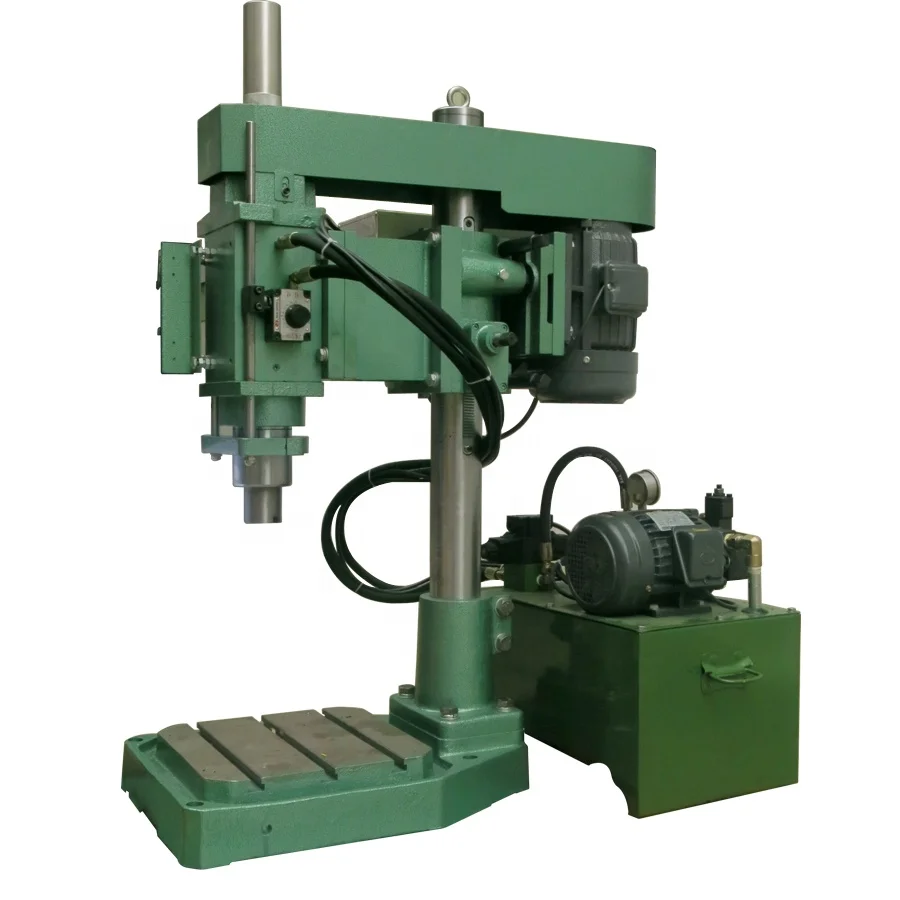

Новое состояние, прямые продажи, сверлильный станок, сверлильные машины по заводской цене
3 626,00 $ - 3 971,00 $

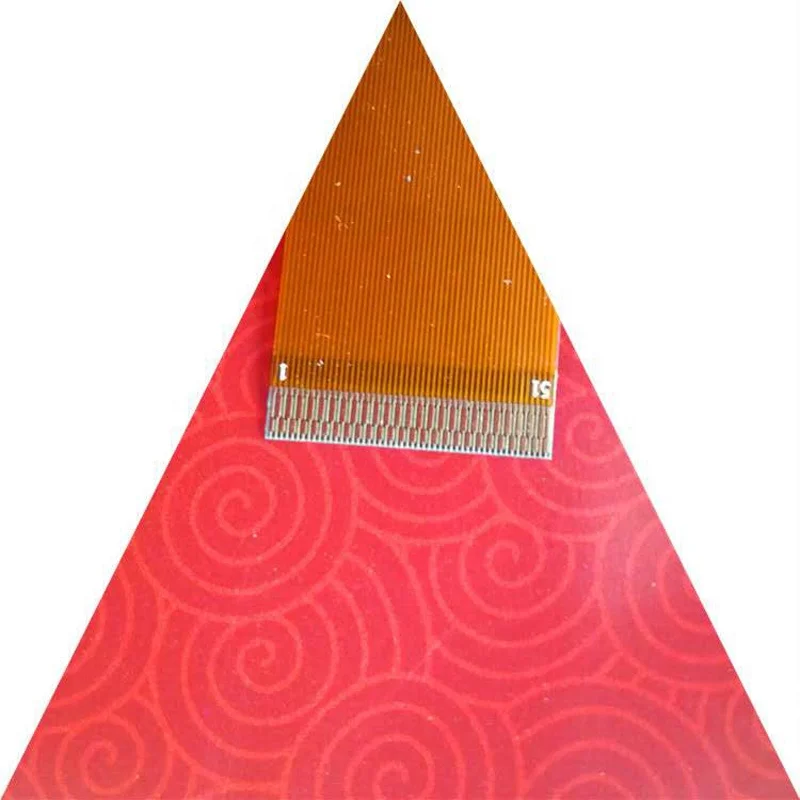

Полимидный медный гибкий плоский коллектор печатных плат FPC, используемый для ноутбуков, компьютеров, спутниковой навигации, автомобильная электроника
0,30 $ - 0,50 $
Заколка для волос, аксессуары для волос с серебряным покрытием, детская заколка для волос, новейший дизайн, модная заколка от производителя a Z, 100 шт.
14,50 $ - 15,00 $

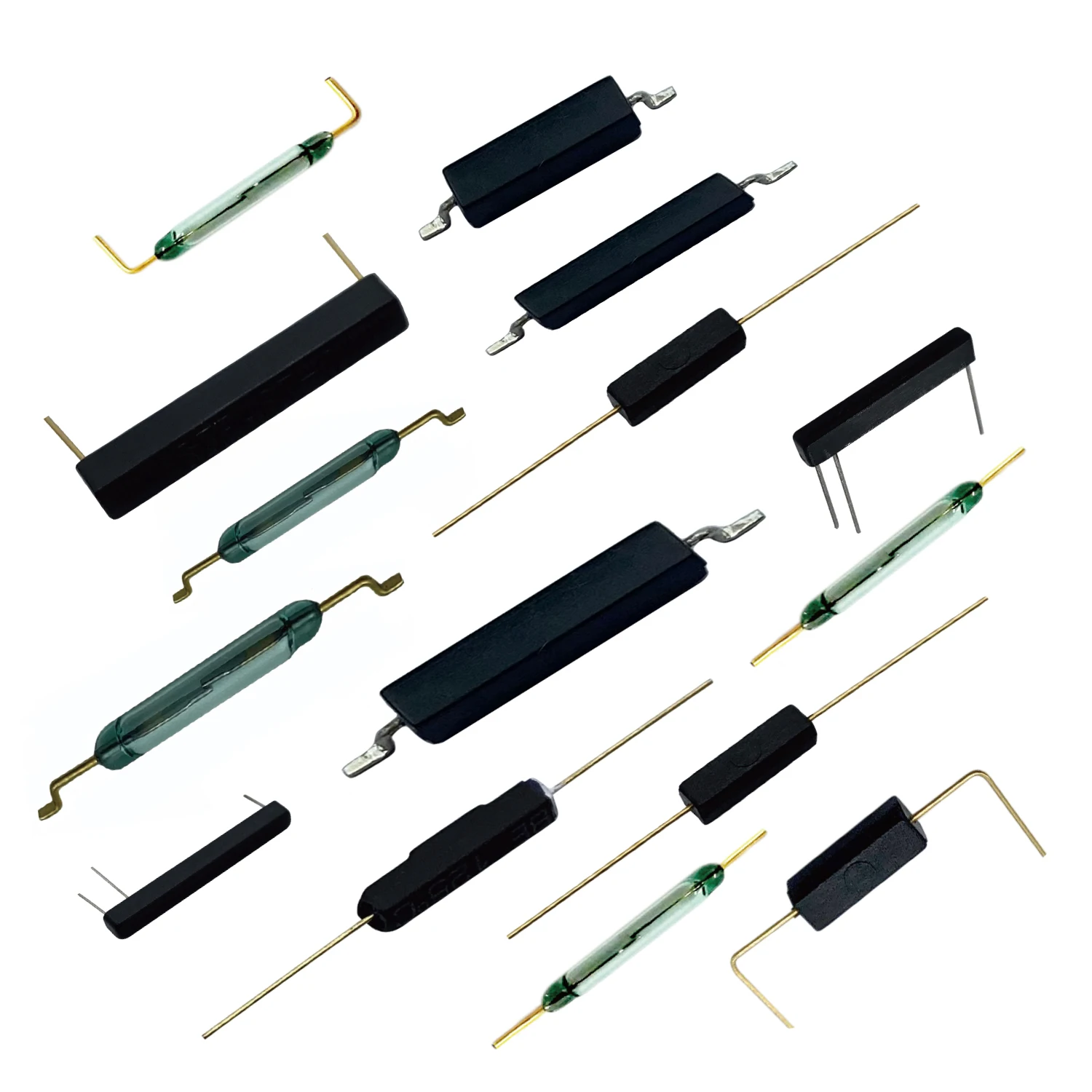

7 мм Мини Магнитный SMD герконовый переключатель датчика для счетчика воды
