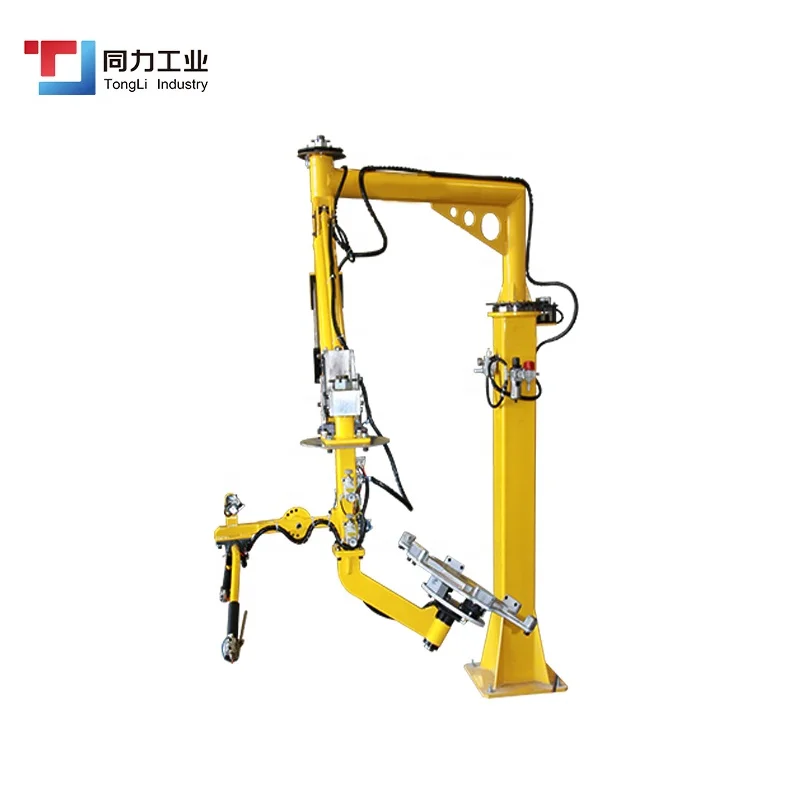

Высококачественный коммерческий пневматический Вакуумный робот промышленный Балансирующий манипулятор крана для литейной промышленности
- Категория: >>>
- Поставщик: Jiangyin Tongli Industrial Co. Ltd.
Сохранить в закладки 60824223410:
Описание и отзывы
Характеристики
Products Description
Name | Manipulator with fixture |
Load-bearing | within 500kg |
Working radius | 2500mm |
Lifting height | 0-2000mm |
Working pressure | 0.5-0.8Mpa |
Fixture type | Clamp type, hook type, expansion type, lifting type, flip type (turn 90° or 180°) |

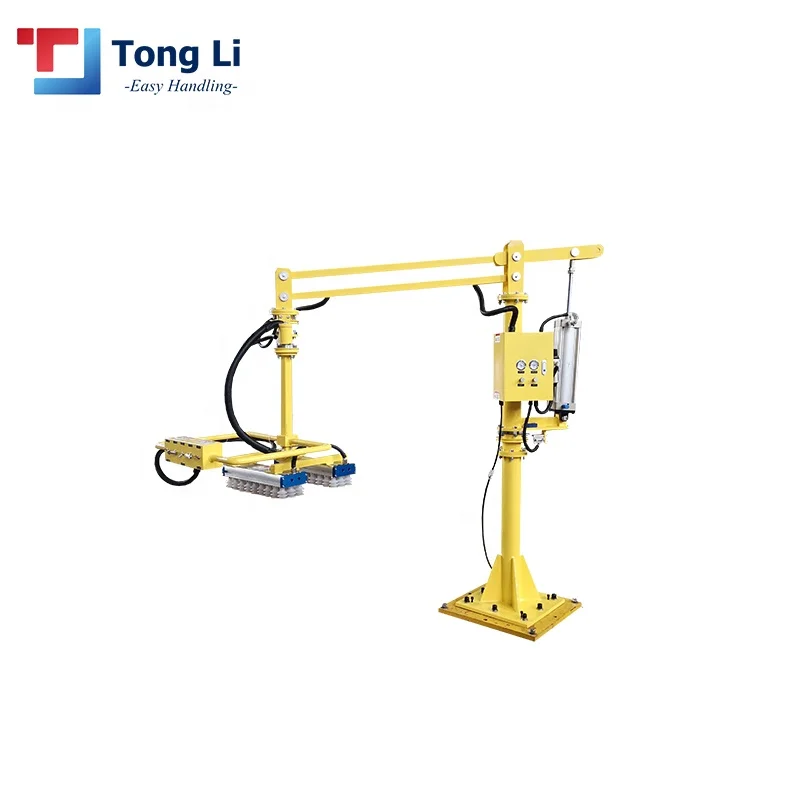

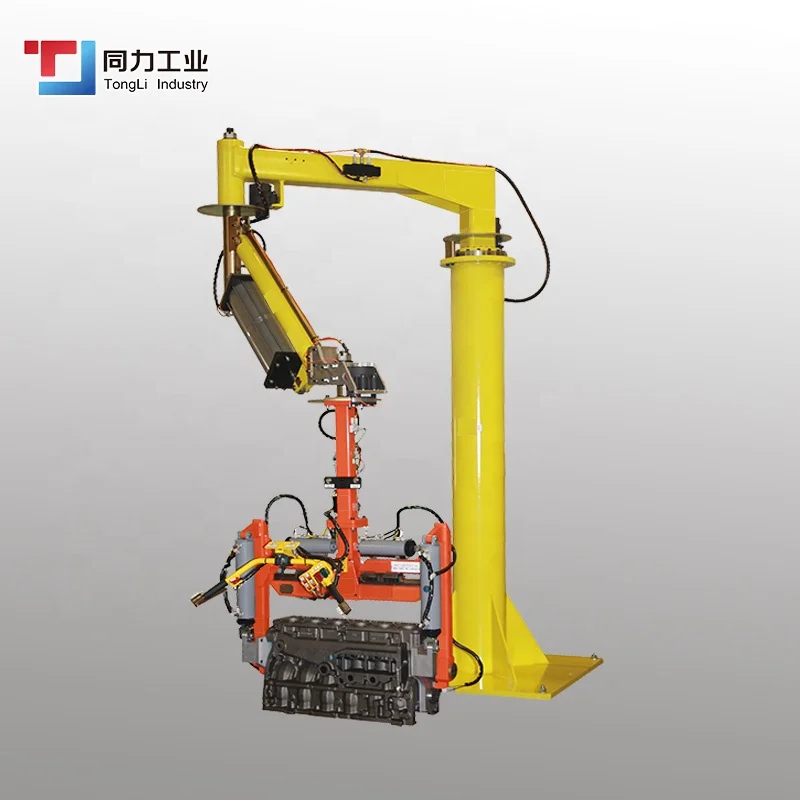

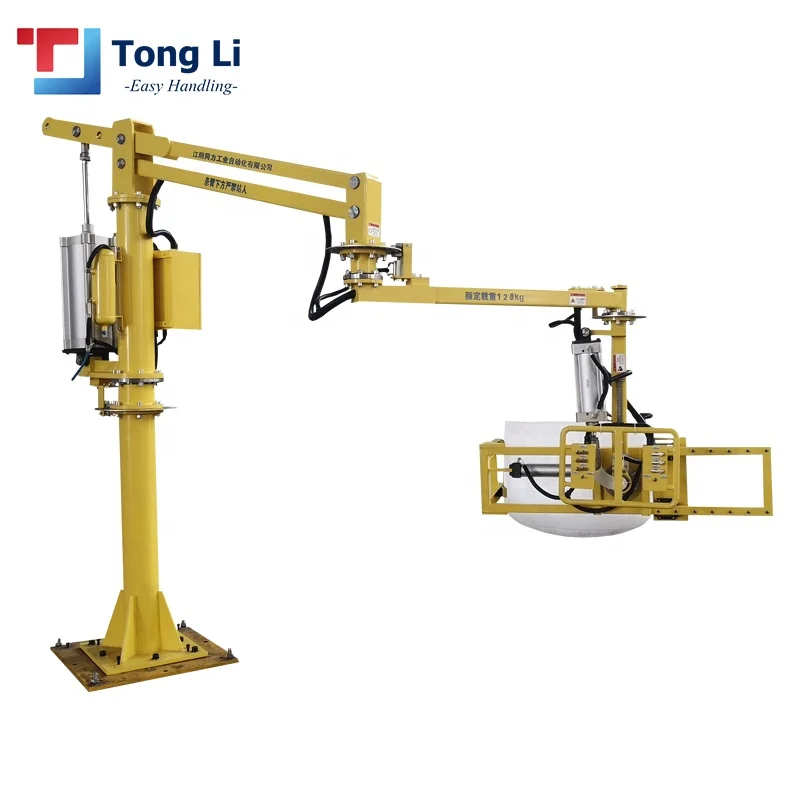

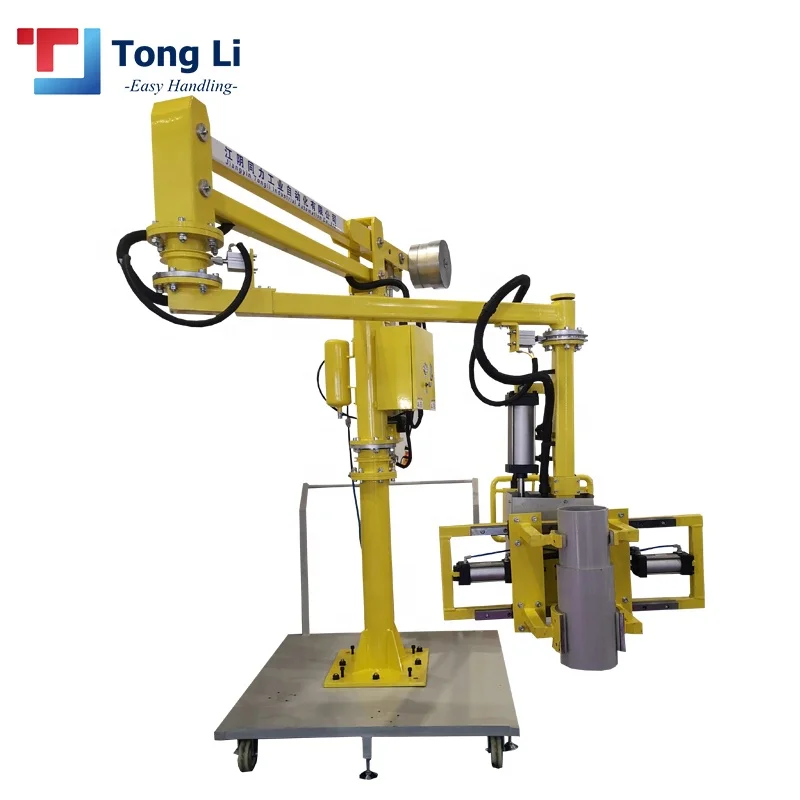

Manipulator Style Display
Product Features
Handling crucible
a) The same force hard arm assist manipulator can balance various weights from 2 to 500kg.
b) The power-assisted manipulator is composed of a balance host, a grasping fixture, and an installation structure.
b) The power-assisted manipulator is composed of a balance host, a grasping fixture, and an installation structure.
Handling car wheels
c) The manipulator host is the main device that realizes the non-gravity floating state of materials (or workpieces) in the air.
d) The manipulator is the device that realizes the grasping of the workpiece and completes the corresponding handling and assembly requirements of the user.
d) The manipulator is the device that realizes the grasping of the workpiece and completes the corresponding handling and assembly requirements of the user.
Handling security door
e) The installation structure is a mechanism that supports the entire set of equipment according to the user's service area and
site conditions.
site conditions.
Related Products
Product Specifications
Equipment model | TLJXS-YB-50 | TLJXS-YB-100 | TLJXS-YB-200 | TLJXS-YB-300 |
Max Load-bearing | 50KG | 100KG | 200KG | 300KG |
Working radius L1 | 2500MM | 2500MM | 2500MM | 2500MM |
Lifting height H2 | 1500MM | 1500MM | 1500MM | 1500MM |
Air pressure | 0.5—0.8Mpa | 0.5—0.8Mpa | 0.5—0.8Mpa | 0.5—0.8Mpa |
Rotation angle A | 330° | 330° | 330° | 330° |
Rotation angle B | 300° | 300° | 300° | 300° |
Rotation angle C | 360° | 360° | 360° | 360° |
Safety device of manipulator
What are the safety devices of the manipulator:
1. Gas cut-off protection device: the one-way valve and air storage tank are adopted to ensure that the manipulator will not cause accidental injury after the sudden gas cut-off, and can provide continuous and stable working pressure. Fixture self-locking device. The fixture is equipped with a stop valve to ensure that in case of sudden air leakage of the system, the fixture will not loosen unless the operation button is operated;
2. Low pressure alarm device: when the air source works abnormally, it will detect in real time and give a safety warning signal in time to remind the operator to take measures quickly;
3. Misoperation protection device: monitor the movement speed of the manipulator to prevent accidental injury caused by the rapid rise or fall of the manipulator during misoperation;
4. Pressurization device: when the on-site air source pressure is not high or unstable, the pressurization device can be selected to increase the working pressure of the air source and ensure the normal operation of the system;
5. Load bearing limit protection device: when the manipulator grabs the overweight workpiece, it will send an alarm. In case of serious overweight, the safety valve will be opened to prevent danger;
6. Braking device: a braking device is set at the link joint of the manipulator to prevent the manipulator from rotating or loosening. It is used to park the manipulator after work.
1. Gas cut-off protection device: the one-way valve and air storage tank are adopted to ensure that the manipulator will not cause accidental injury after the sudden gas cut-off, and can provide continuous and stable working pressure. Fixture self-locking device. The fixture is equipped with a stop valve to ensure that in case of sudden air leakage of the system, the fixture will not loosen unless the operation button is operated;
2. Low pressure alarm device: when the air source works abnormally, it will detect in real time and give a safety warning signal in time to remind the operator to take measures quickly;
3. Misoperation protection device: monitor the movement speed of the manipulator to prevent accidental injury caused by the rapid rise or fall of the manipulator during misoperation;
4. Pressurization device: when the on-site air source pressure is not high or unstable, the pressurization device can be selected to increase the working pressure of the air source and ensure the normal operation of the system;
5. Load bearing limit protection device: when the manipulator grabs the overweight workpiece, it will send an alarm. In case of serious overweight, the safety valve will be opened to prevent danger;
6. Braking device: a braking device is set at the link joint of the manipulator to prevent the manipulator from rotating or loosening. It is used to park the manipulator after work.
Product Detail
Pneumatic Handling Manipulator For Wheel Hub
Grab the wheel hub and transfer position during processing
Operating handle：
Simple operation of all pneumatic systems.
Customized：
Fixture can be customized.
Filter the gas from the trachea
The existence of the bearing makes the working area of the manipulator close to a circle
The core gas path of the manipulator is concentrated in the control box
Company Introduction
Jiangyin Tongli Industrial Co., Ltd.
is a modern manufacturing enterprise specializing in the research and development, design, production, sales and service of storage and handling equipment automation. Since its establishment, the company has been committed to solving the storage and handling problems of various materials, providing corresponding, perfect and professional solutions to complex requirements. We can also provide effective and suitable solutions according to the customer's budget.
Похожие товары

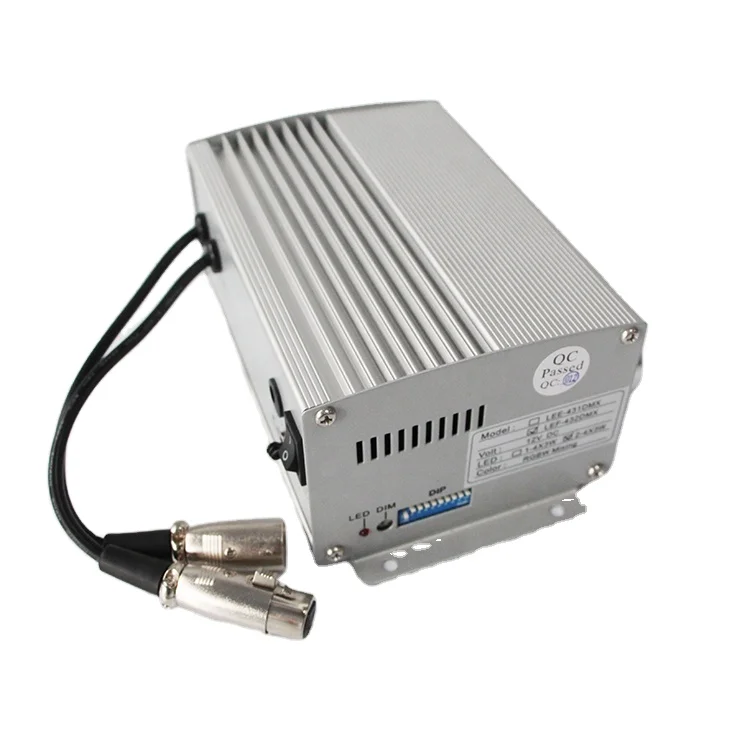

Сверхъяркий RGBW смешанный цвет изменение регулировка скорости 2 выходных фонаря волоконно-оптического
73,00 $

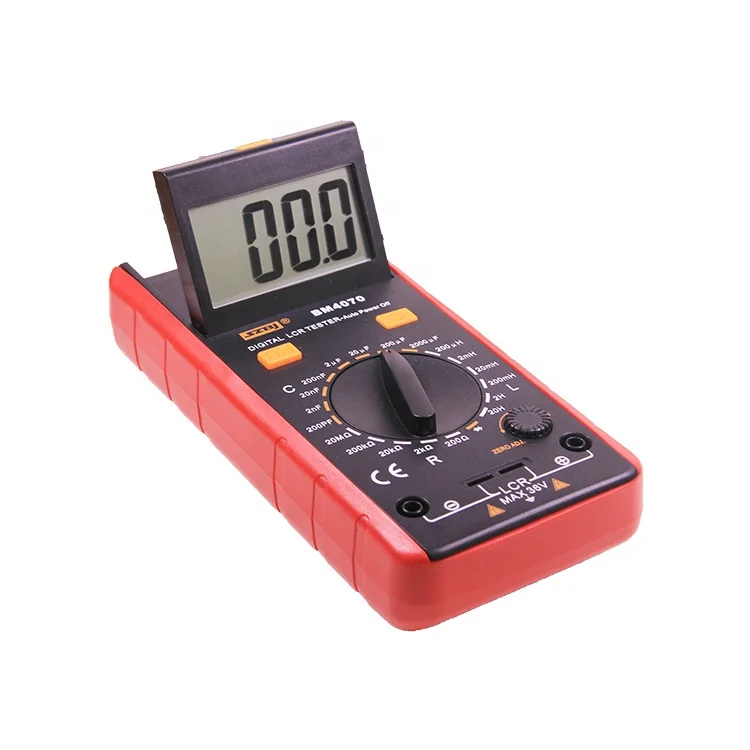

Цифровой измеритель BM4070 с ЖК-дисплеем, тестер индуктивности и сопротивления, мультиметр с зажимом под крокодила, измерительный инструмент с сумкой
