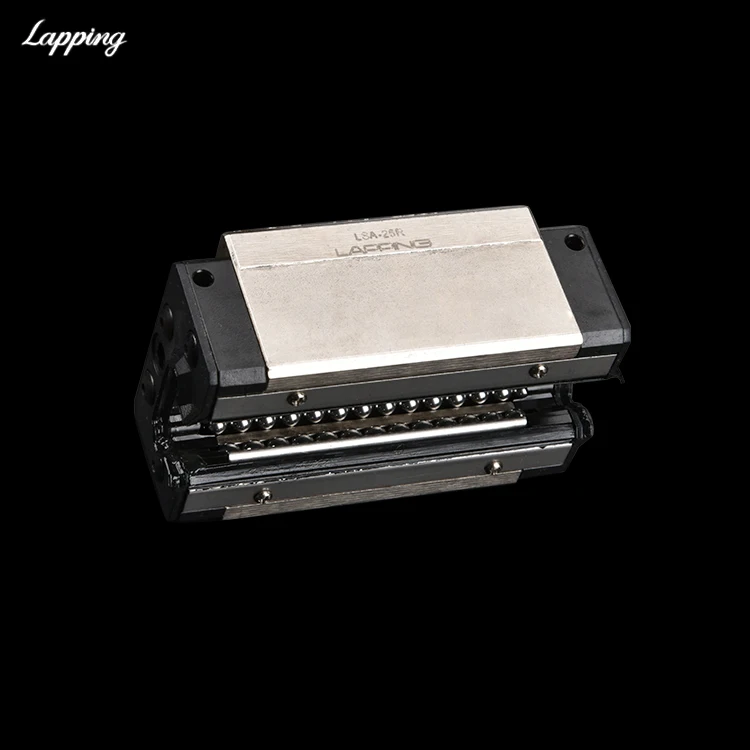

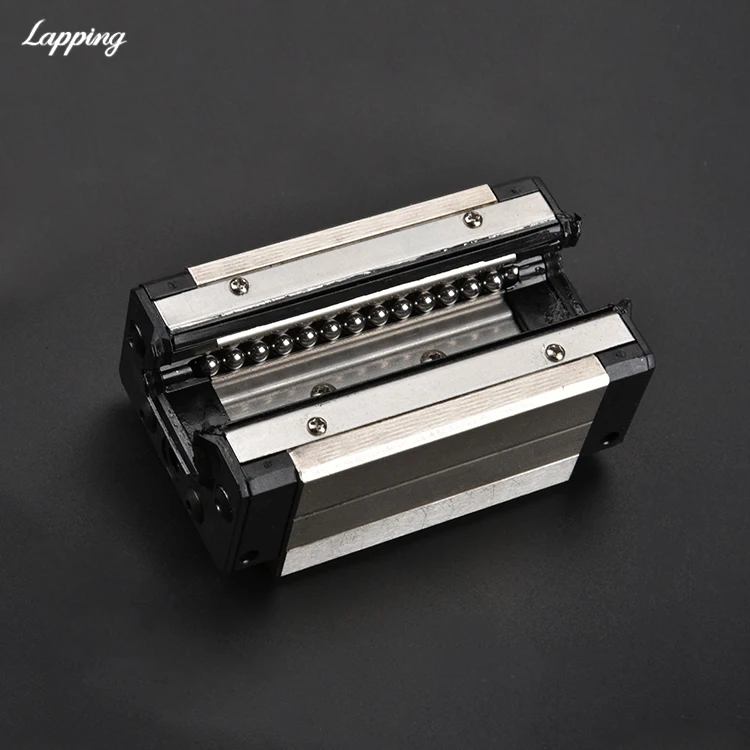

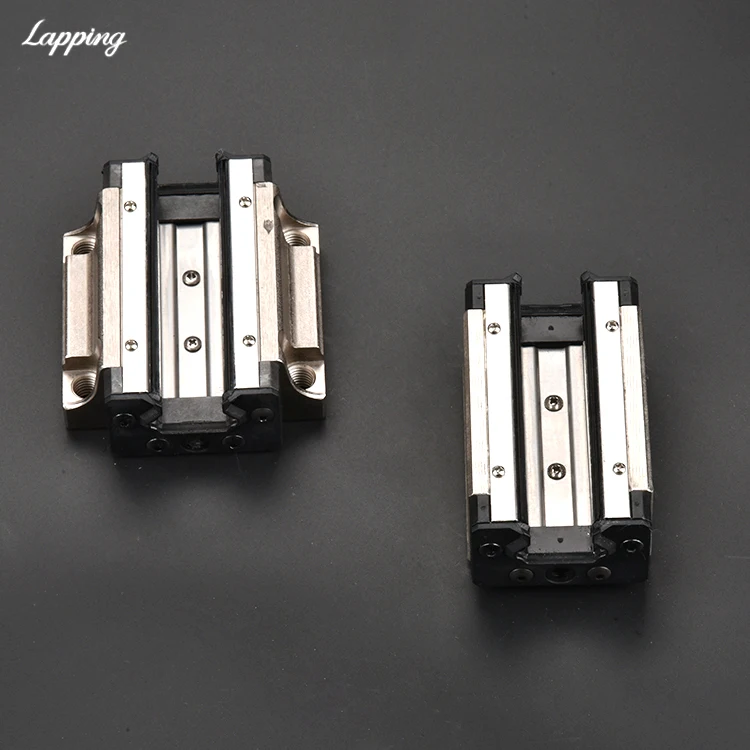

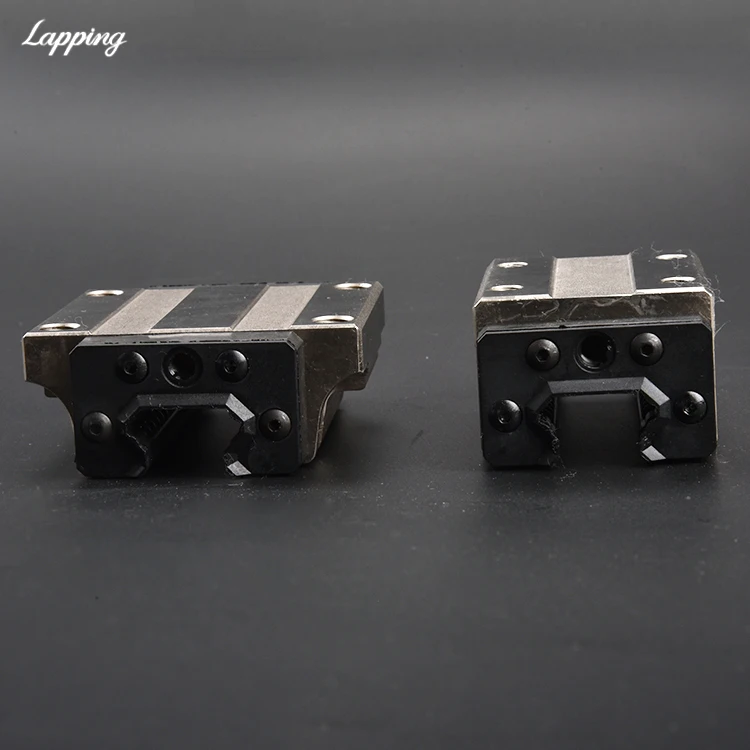

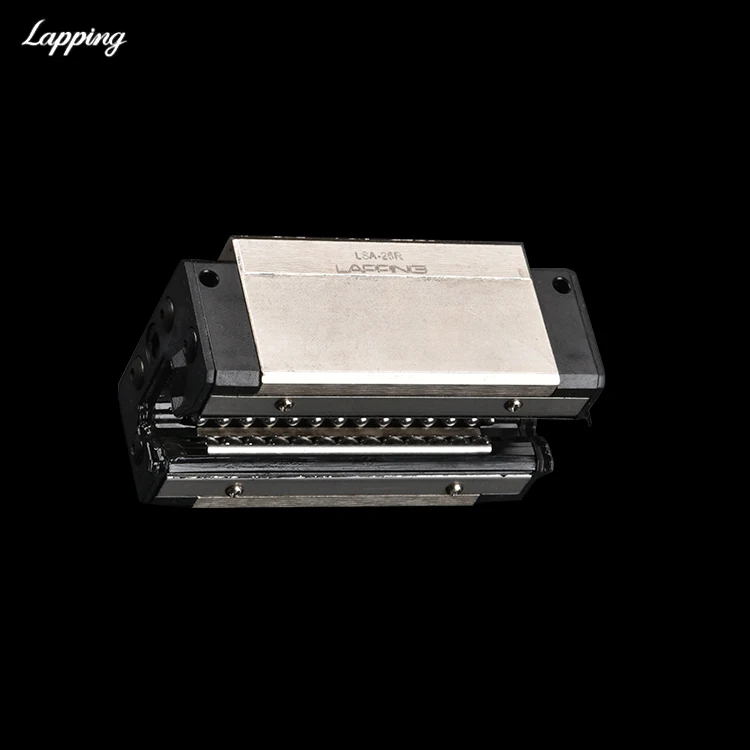

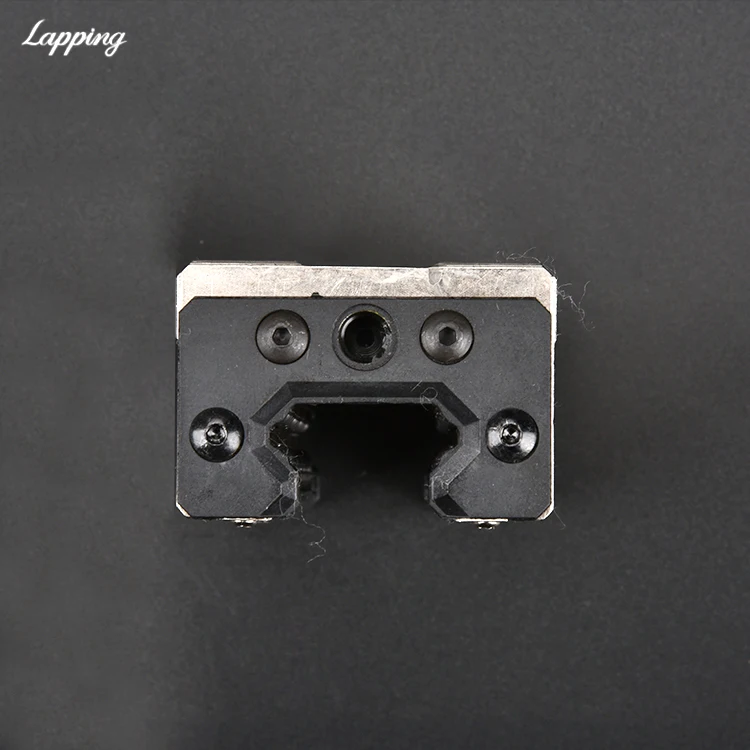

Воздушный подшипник линейный направляющий блок для станка с ЧПУ сертификацией ISO

Difference between models

1. Type A has a longer threaded hole than Type B; Type B can be assembled not only from the top of the slider, but also from the bottom of the slider;

2. Type B is compared with C type, the hole of type C is a through hole, and the hole of type B is a threaded hole;

3. The R type has a smaller width than the A/B/C type;

4. Compared with A/B/C/R type, the LA/LB/LC/LR type has the same section size, the length of the slider is increased, and the number of load steel balls is increased to improve the overall load capacity.

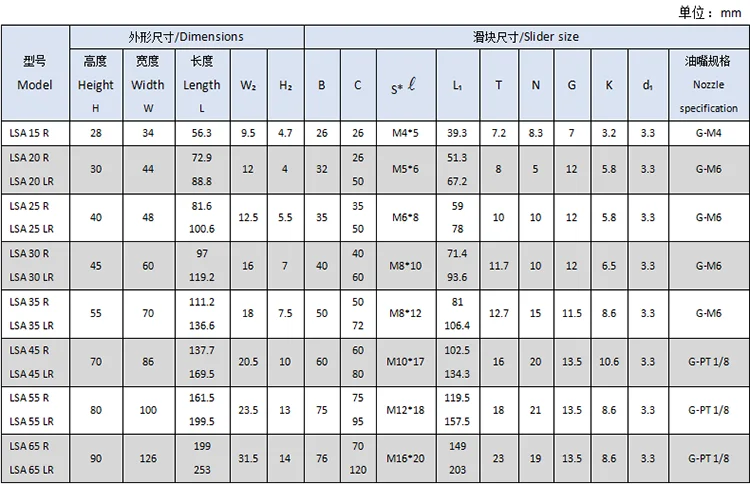

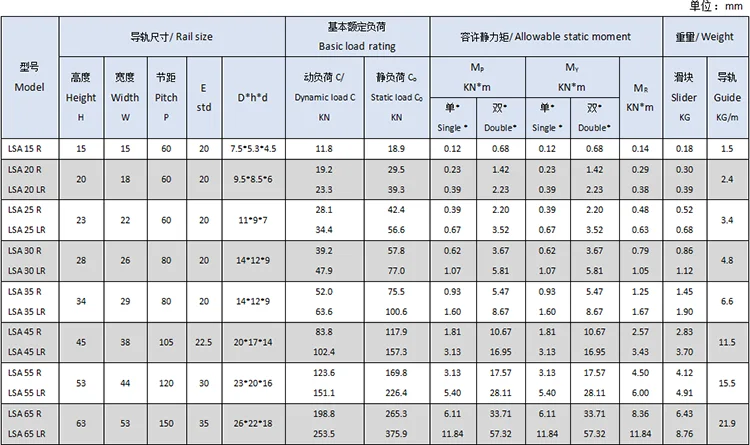

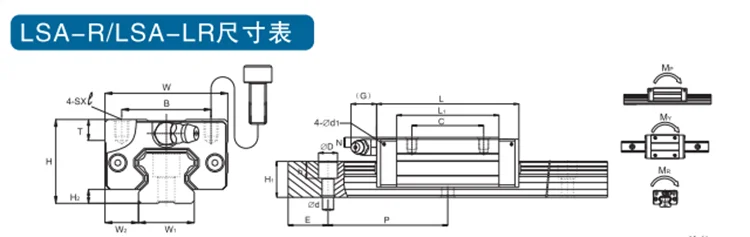

 LSA-R / LSA-LR Series

Note: Requirements for specifications 55 and 65, please use LSA-B/LSA-LB model.

Note*: Single: single slider     Double: double slide tightly arranged.

Note: The basic rated fatigue life of ball rolling linear guide is C 50km. If the C of the rated fatigue life of 50km is converted to 100km, its C₁₀₀ can be used in the lower form C=C₁₀₀*1.26.

Advantage

1. Adapt to various work too assembled

2. Designed with L-shaped or extended type

3. Self-aligning ability

4. The slider and the guide rail are interchangeable

5. High rigidity in all directions

6. The product is easy to install, easy to operate and fast to transport.

7. High-precision machining: from material optimization to fully automated equipment

8. Quality Assurance: The most efficient laser quality inspection instrument and self-developed slider simulation operation instrument for accuracy inspection

9. Technological innovation: The product has applied for six invention patents and used 27 patents.

Use caution

1. Prevent rust: Keep your hands dry and coated with high quality mineral oil during use. Pay special attention to rust prevention during the rainy season and summer.

2. The installation tool should be suitable: avoid using items such as cloth or short fibers.

3. Keep the environment clean

4. Installation should be carefully
