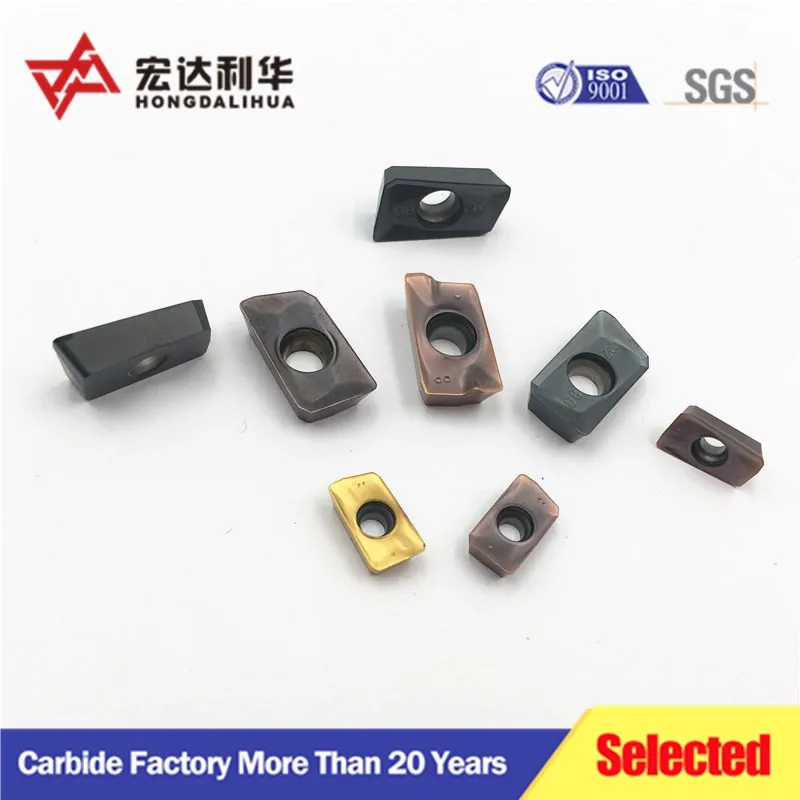

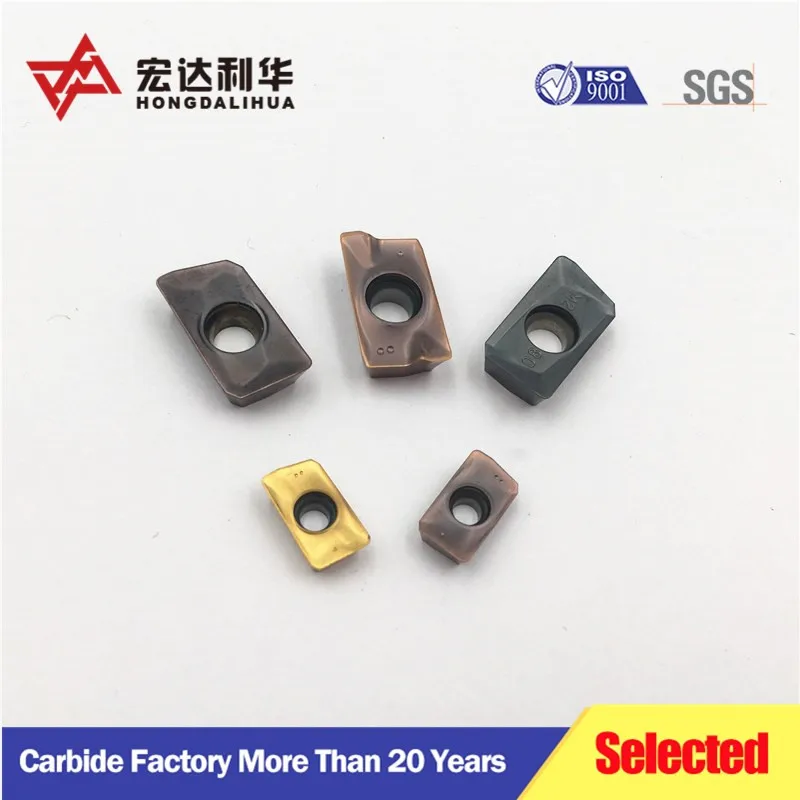

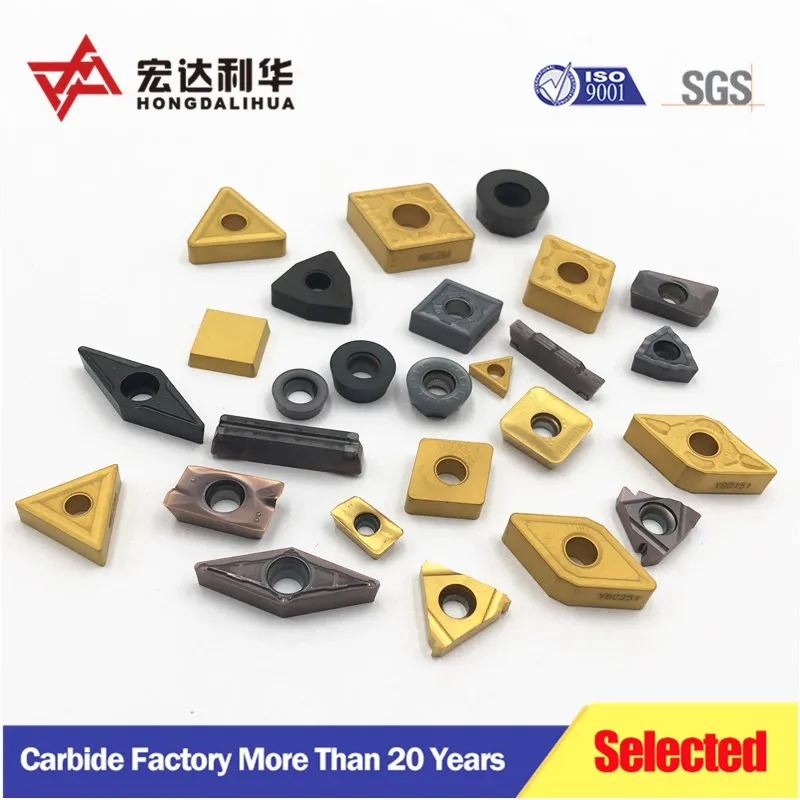

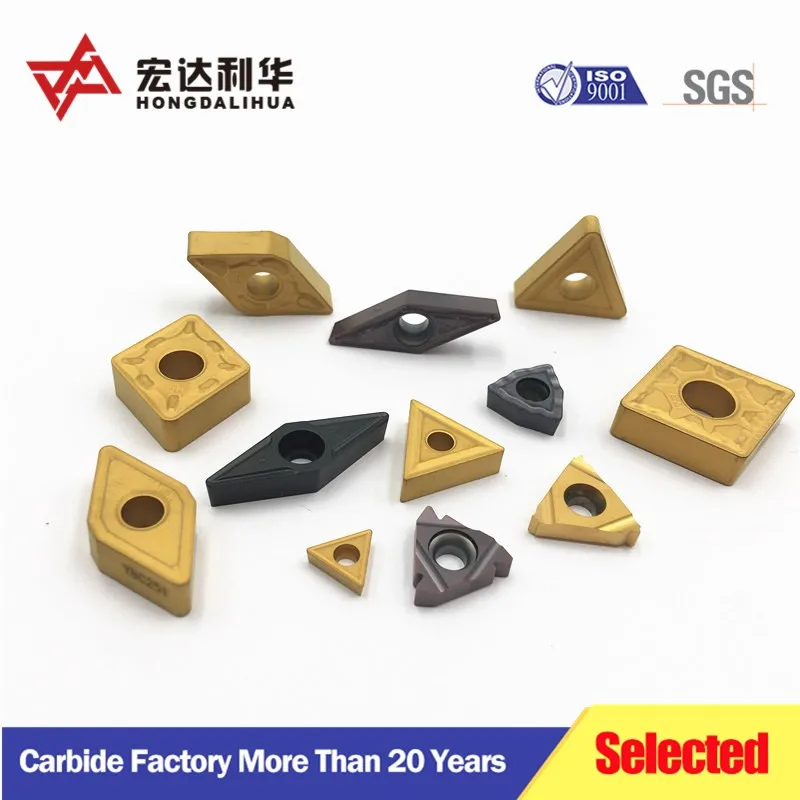

China manufacturer tungsten carbide cnc inserts for hard turning
Applications
Tungsten Carbide blade is used for cutting wood, metal, or other hard materials.
Can be hand-operated or power-driven.
Our carbide inserts have used in surface processing of cast irons, colored metal and alloys, as well as nonmetal materials for hard metal, carbide rough turn, rough planning, and precision milling.
Applicable Machine | Tungsten carbide inserts for turning, milling, threading, grooving tool, cutting tools, etc. |
Stock | For standard, have enough in stock |
For non-standard, need to be customized | |
Nonstandard order | Customize as request |
Packing: | Can laser printing your logo and packing with your label |
Coating: | CVD or PVD coating or as your require |
Suitable for steel , cast iron , stainless steel etc materials |
Product Model
No | Chip Breaker | Introduction |
1 | PM | Double sided chip breaker for medium machining. Wide range of application in steel and cast iron. |
2 | DF | Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron. |
3 | DM | Double sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability. |
4 | DR | Double sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron. |
5 | EF | Double sided chip breaker with good chip control. Suitable for finishing and medium machining of steel and cast iron. |
6 | EM | Double sided chip breaker with sharp cutting edge and large rake angle. Process reliable medium machining of stainless steel. |
7 | ER | Double sided chip breaker with large rake angle for low cutting forces. Suitable for roughing of stainless steel. |
8 | LH | Single sided chipbreaker for machining of cast aluminium alloys. Sharp cutting edge with positive rake angle. G-tolerance for high repeatability. |
9 | LC | Single sided chip breaker with excellent cutting edge design. Sharp cutting edge with positive rake angle. G-tolerance for |
10 | HF | Single sided chip breaker with good chip control. Suitable for finishing to medium machining of steel and cast iron. |
11 | HM | Single sided chip breaker for medium machining. Wide range of application due to excellent balance of sharpness and cutting edge stability. |
12 | HR | Single sided chip breaker with positive rake angle and stable cutting edge for light to medium roughing of steel and cast iron. |
13 | TC | Double sided chip breaker with surrounding cutting edge. Process reliable machining due to highest cutting edge stability. |
MORE DETAILS,PLS CONTACT US . |
Tungsten Carbide CNC Inserts Grade Information
Grade Recommendation of Tungsten Carbide Inserts | |
Grade | Applications |
YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
YBC152 | Thick TiCN and Al2O3 coating |
YBC251 | tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBG102 | nc-TiAN coating and fine-grained matrix. |
YBG202 | nc-TiAN coating and fine-grained matrix. |
YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
YBG302 | nc-TiAN coating and flexible cemented carbide matrix. |
YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
YD101 | Fine particle hardness phase WC and bond phase Co. |
YD201 | Middle particle hardness phase WC and bond phase Co. |
Company Introduction
About Lihua Cemented Carbide Factory
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in Zhuzhou city which is the hometown of tungsten carbide in China.
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .
Main Products
Our Main products include: Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .
Monthly capacity of 15Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Shipping
We normally will dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Below shows the estimate delivery time for different courier:
TNT: 10-14 working days
DHL: 7-10 working days
FedEx: 8 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
Payment
Less than or equal to $1000: 100% advance via Paypal ,or Western Union
Over $1000: 30% T/T advance , Balance before shipment .
