FPC сепаратор машина для разрезания мягкой гибкой печатной

Описание и отзывы

Характеристики

 LED strip lights soft PCB cutting machine

fiber PCB separator machine, fr4 pcb cutting machine, soft LED strip cutting machine, soft led strip separator

Product features:

1200mm FPC Cutting machine

First, purpose of machine:

1. Manually on the FPC light bar.
2. Automatic cutting.
3. Suitable for all light strips with a board width of less than 12mm (replacement of jigs, tool holders, and clamps on both sides).
4. Knife modular, replaceable.

Second, technical requirements:

1. Light bar length (1200D type) 600~1500mm (replacement of bottom plate jig)
2. Width of light bar (1200D type) 6~12mm (replacement of jigs, tool holders, two side clamps).
3. Cut 30pcs each time.

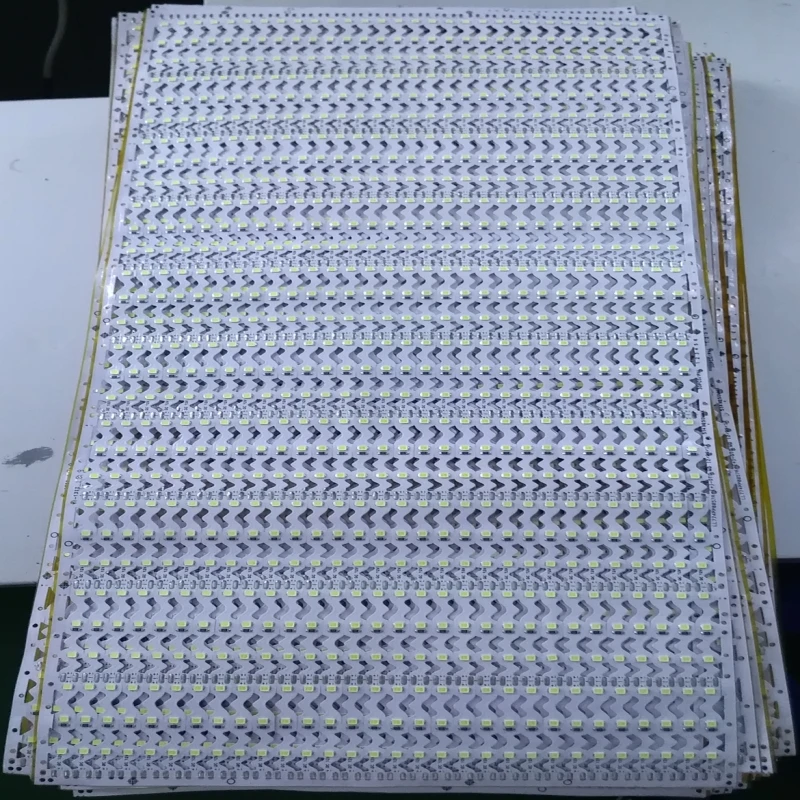

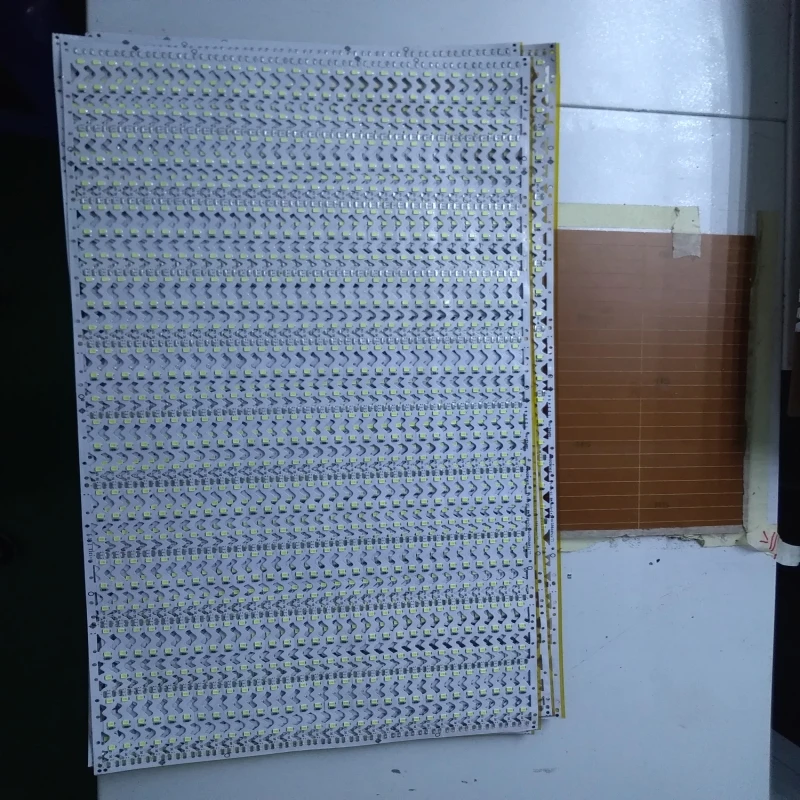

4. There are positioning holes at the front and rear ends of the light bar (Soft PCB).
5. Manual feeding Light bar substrate (soft PCB).
6. Automatic cutting of the head and tail end of the substrate
7. Suitable for 2835 lamp beads (replace lamp plate to place mold)

Overall structure

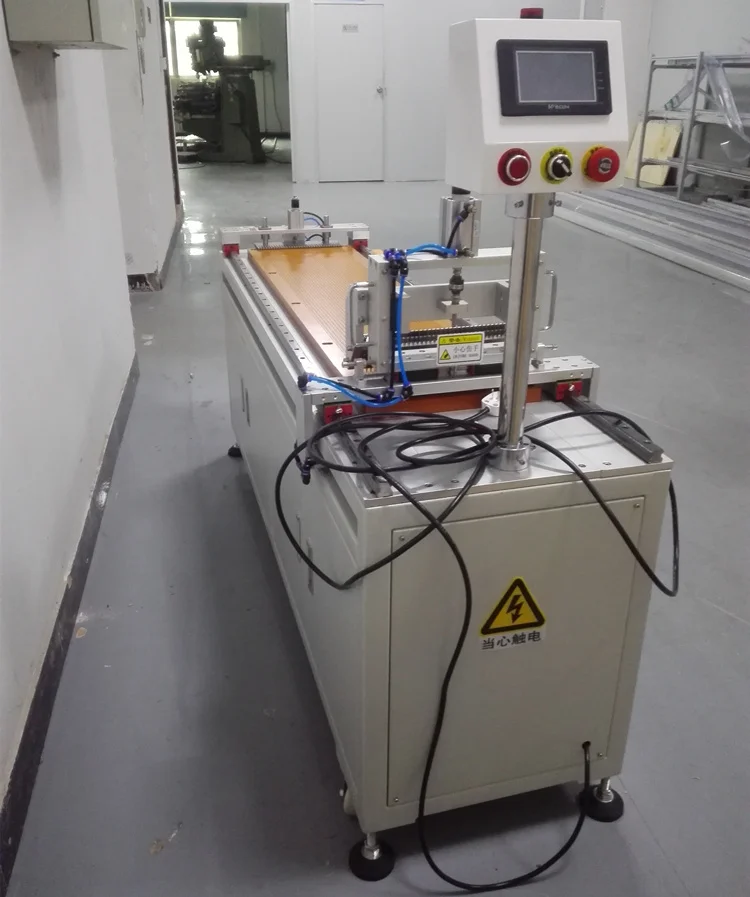

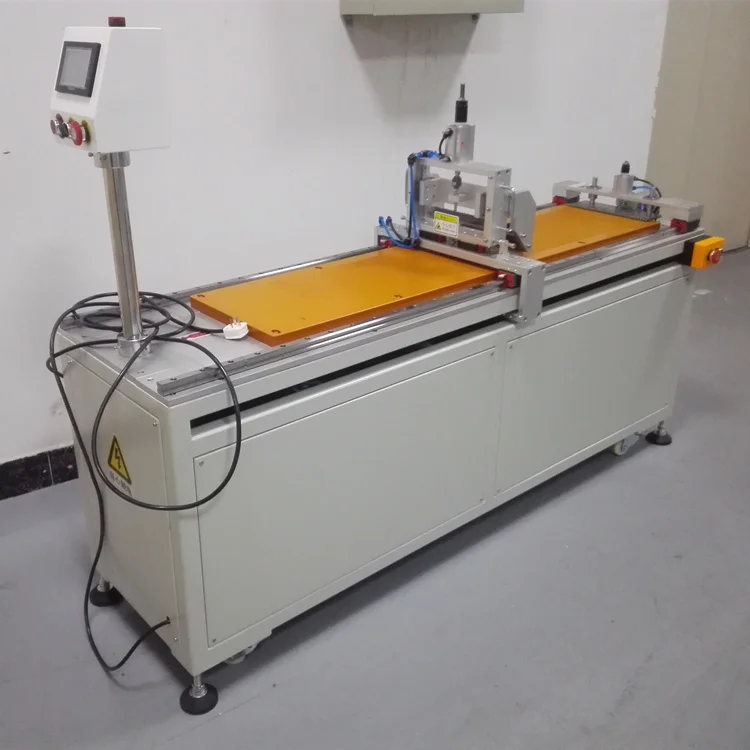

Figure 1 (front side view)

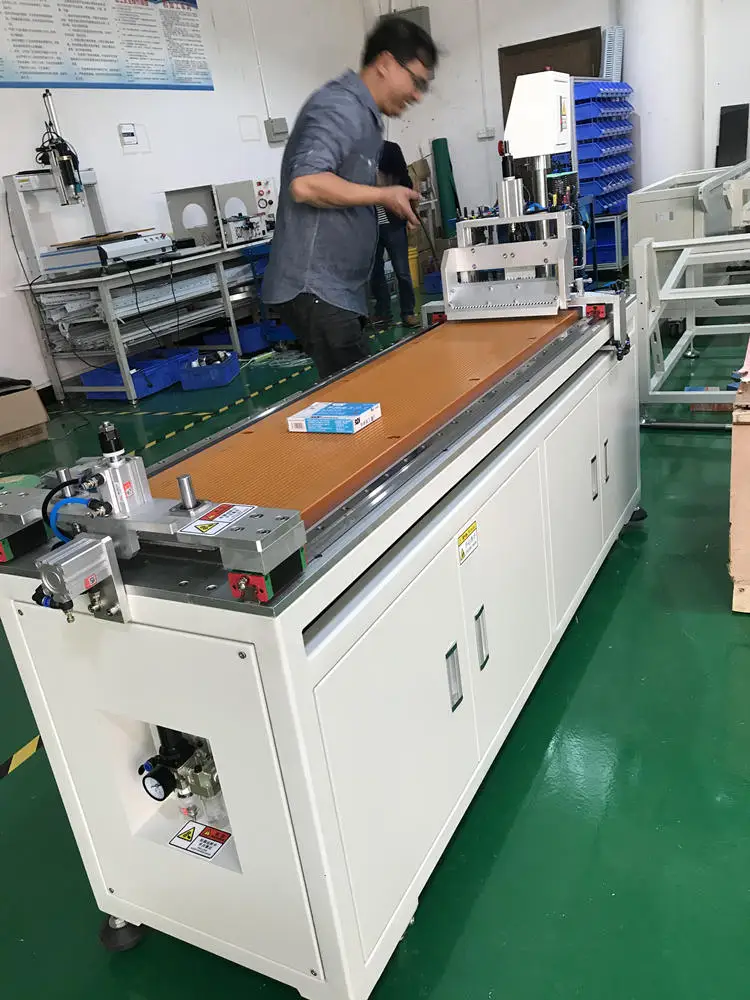

Figure 2 (Top view)


Figure 3

Part structure diagram

1, light bar positioning

2. Cutting blade

Substrate front end cutting blade slide

Main parts configuration list

The theoretical capacity of the equipment is above 1200PCS/H (the number of jointed board is above 24PIN)
