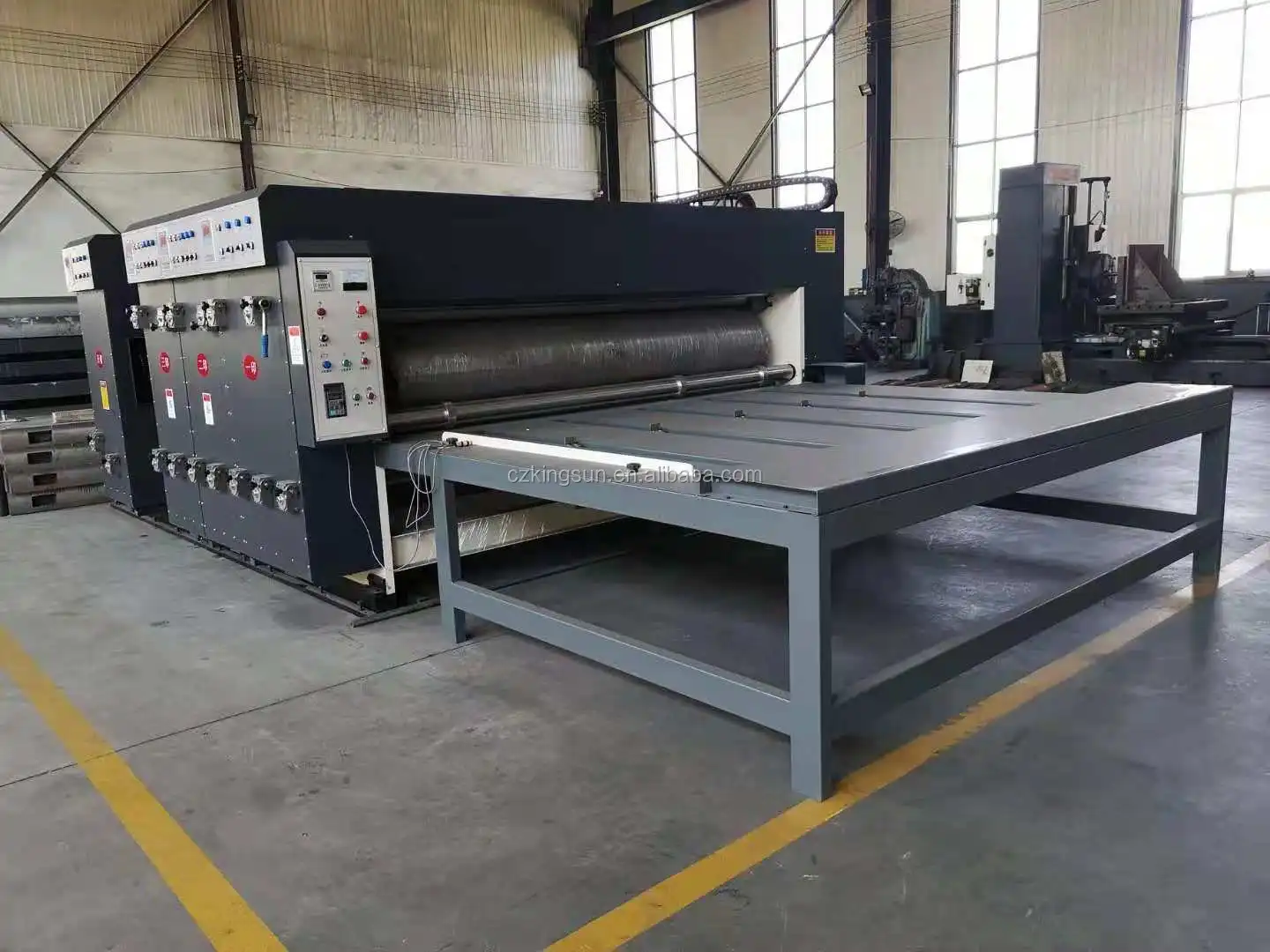

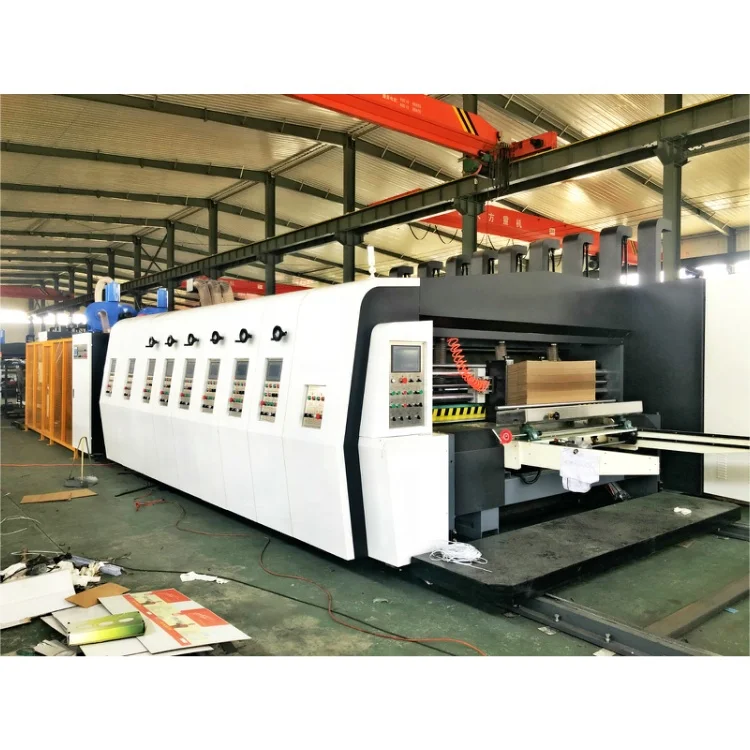

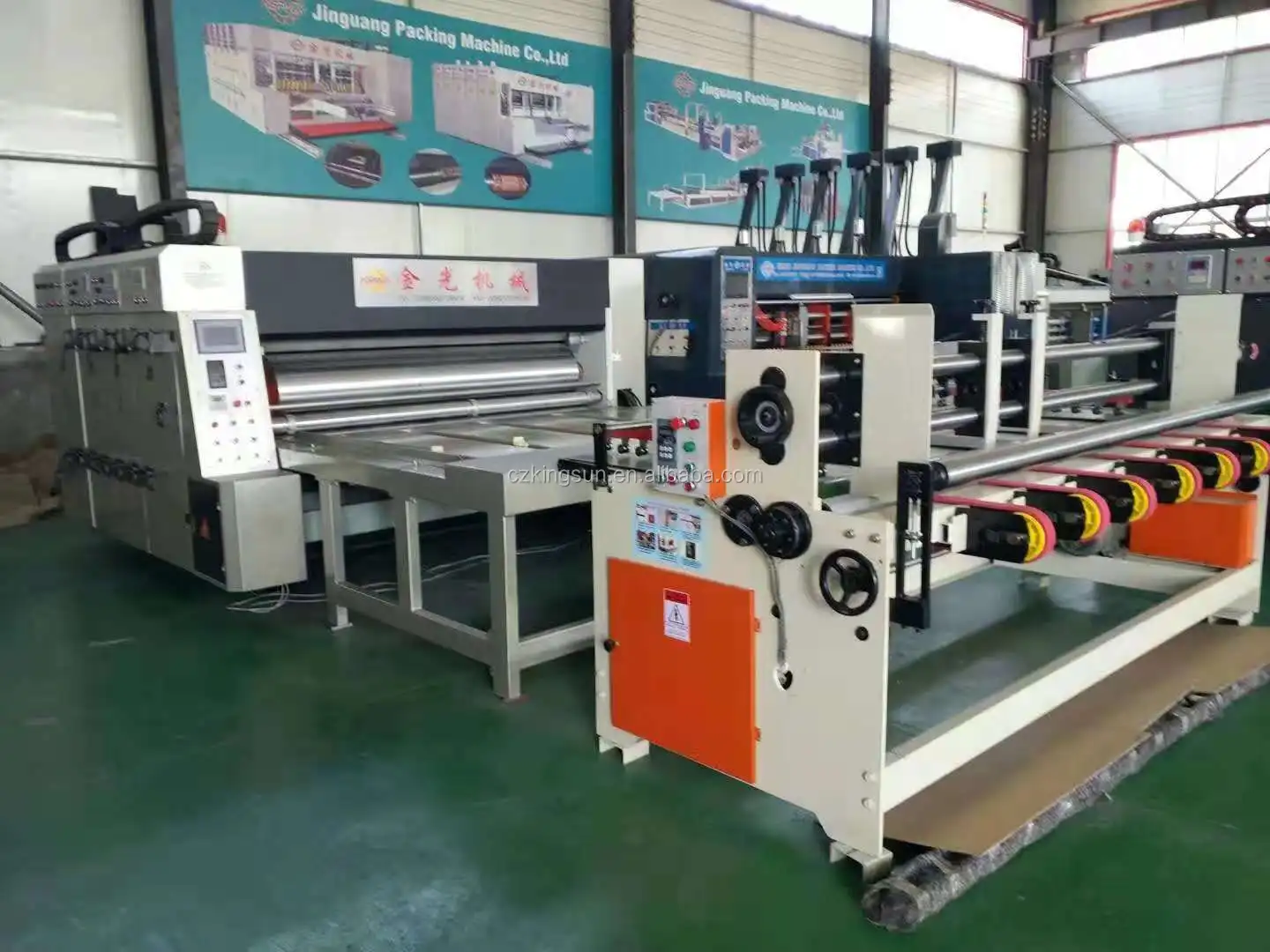

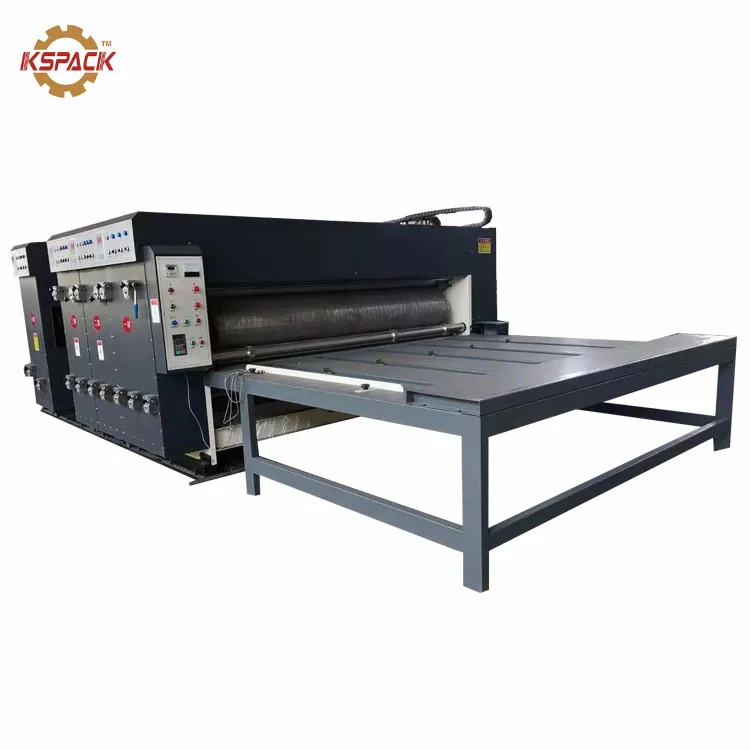

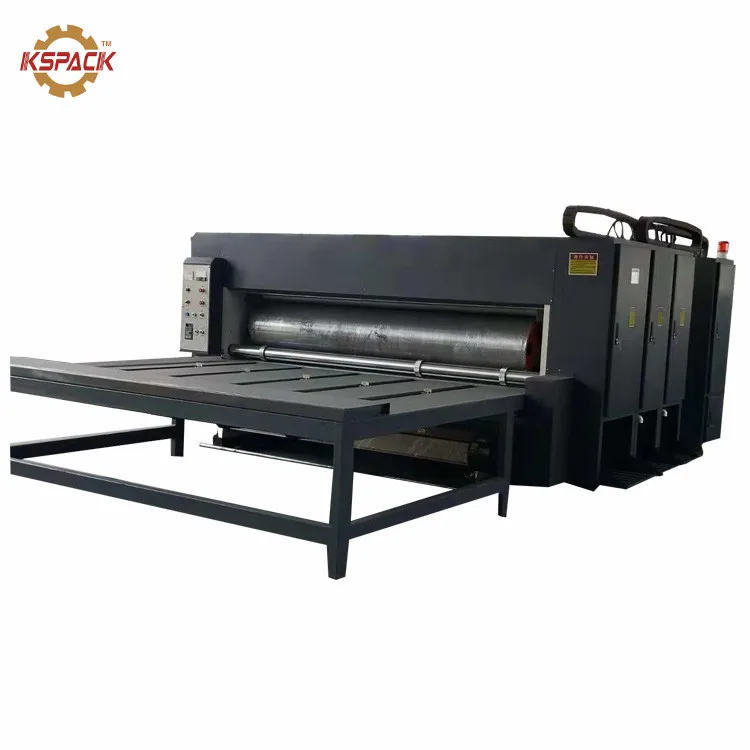

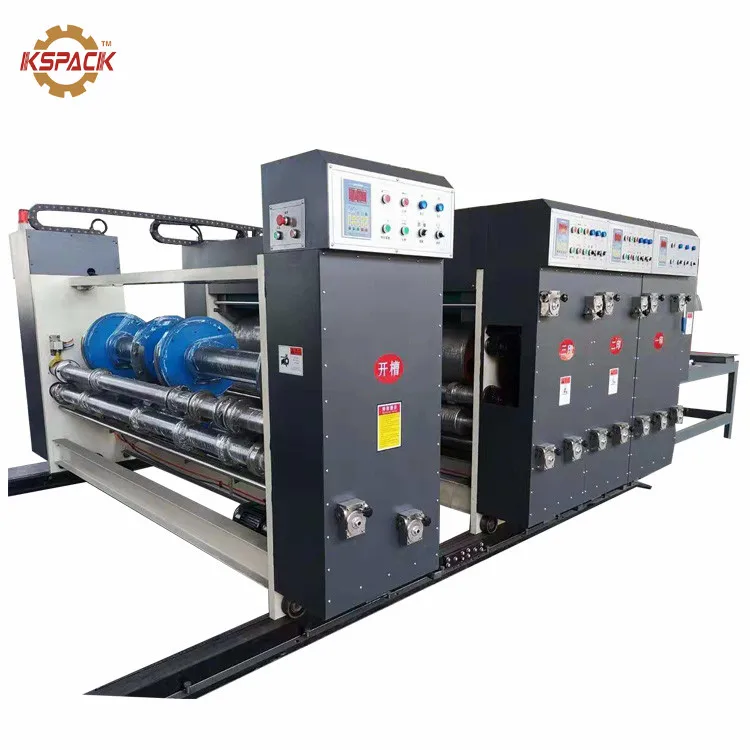

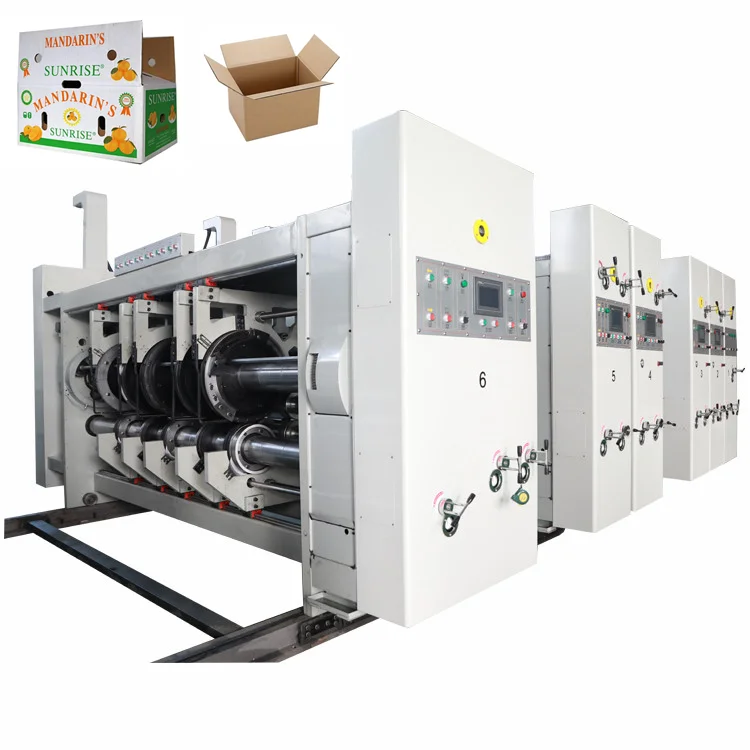

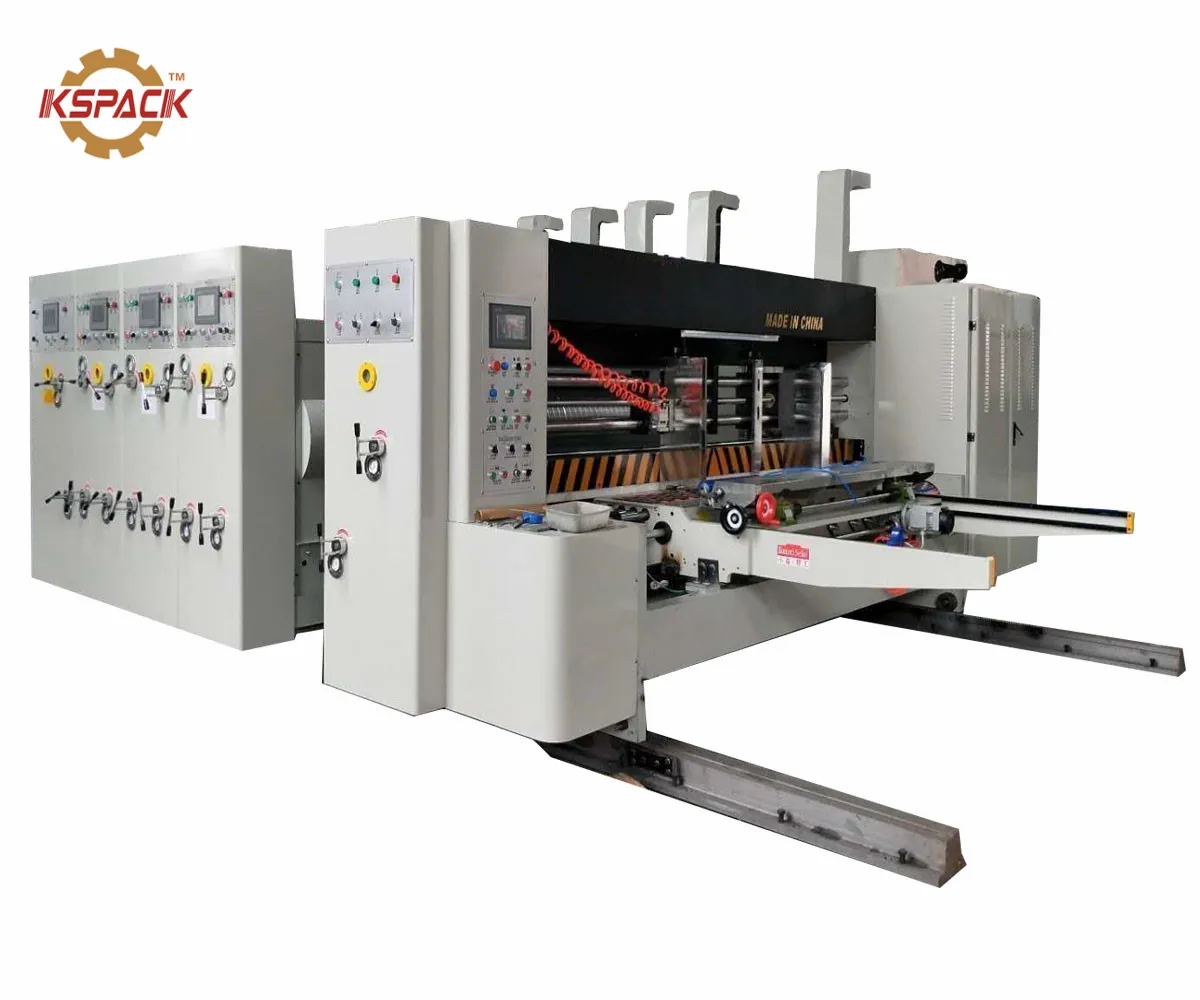

Packaging machine flexo printing fruit carton box making machine

1.Packaging machine carton box

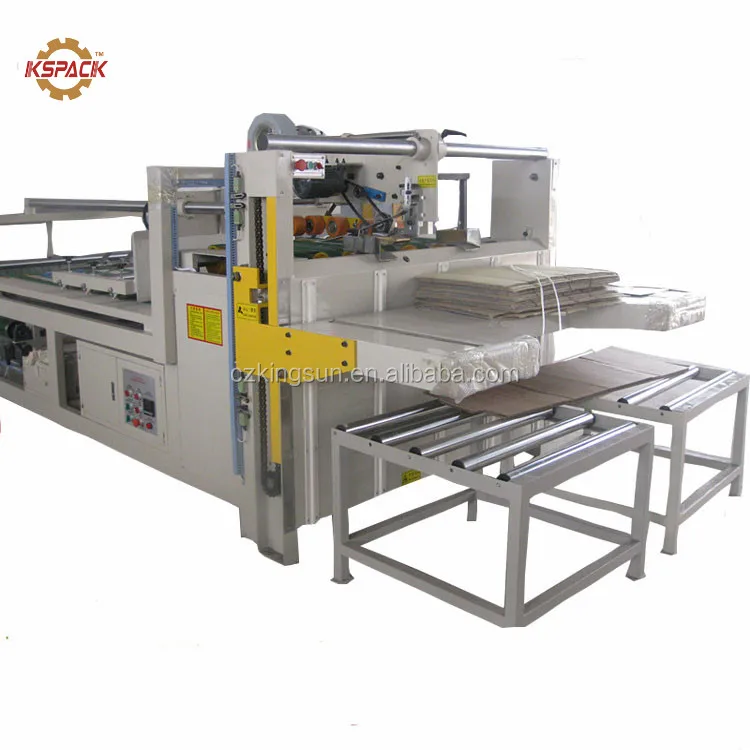

Craft paper roll -------- corrugated paper -------- printer slotter die cutter (slotter for standard box , die cutter for special box ) -------- carton box stitching and gluing machine

2.Detailed technical parameters for Packaging machine carton box

3.Detailed instructions for Packaging machine carton box

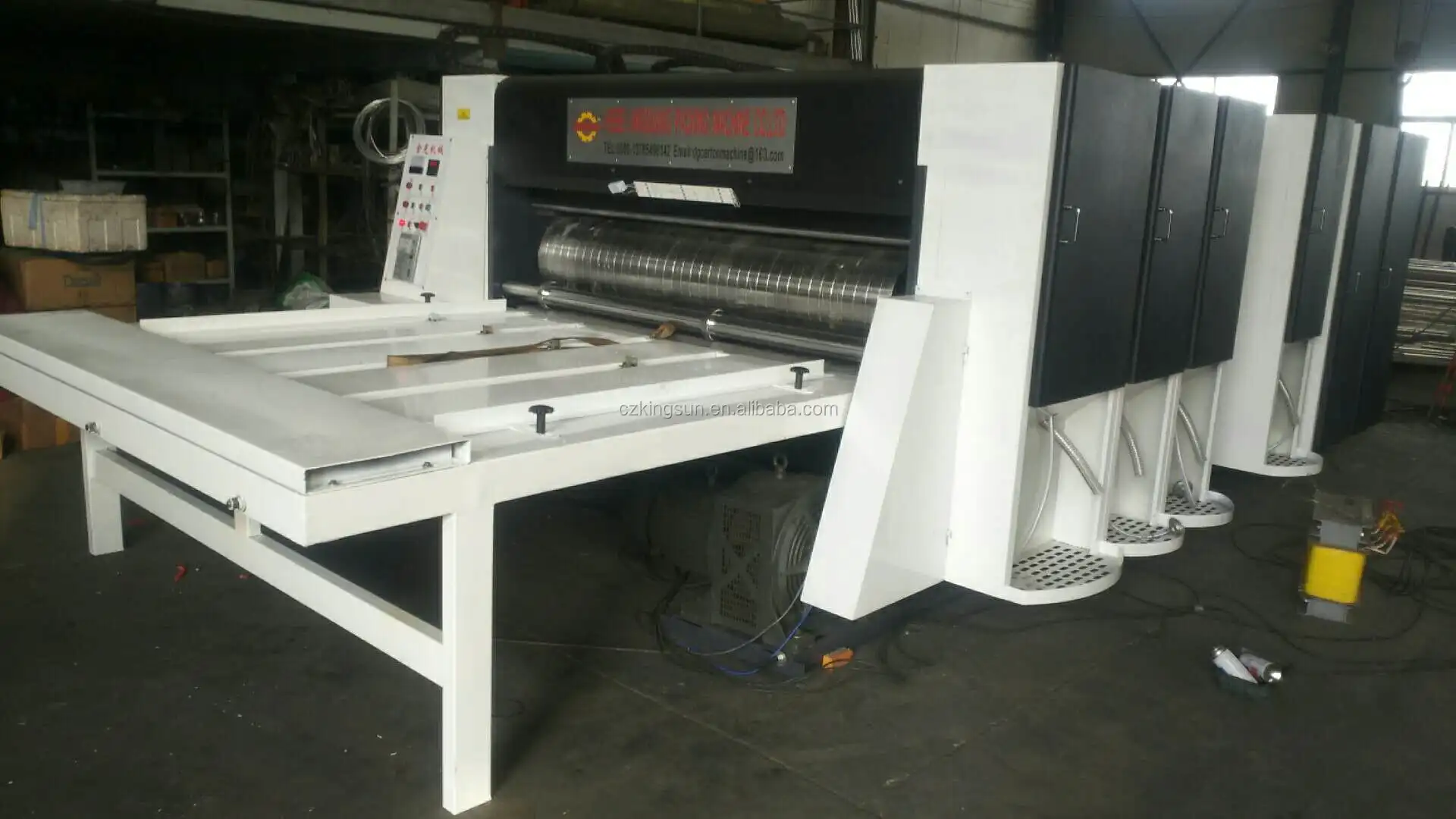

Part one : Feeding table for Packaging machine carton box

It adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products , function is feed the corrugated paper to machine

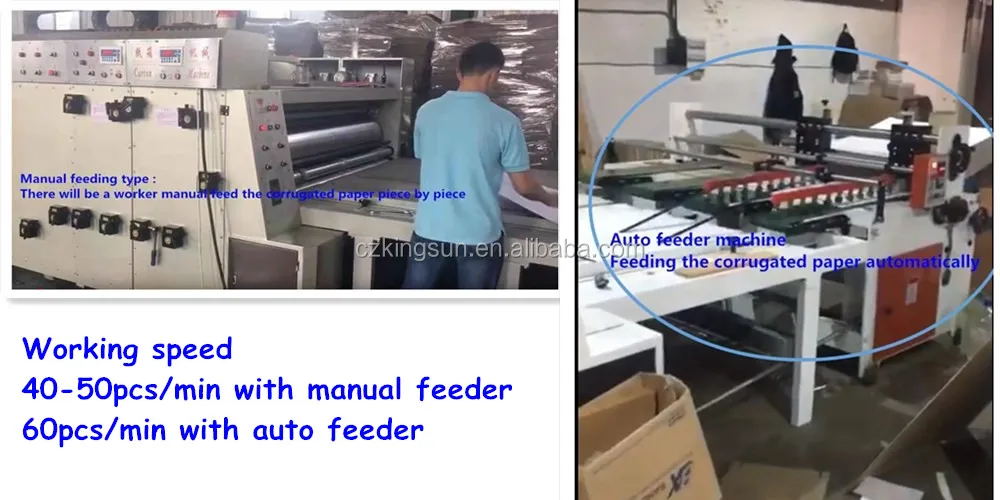

Two design - manual feeding or auto feeding

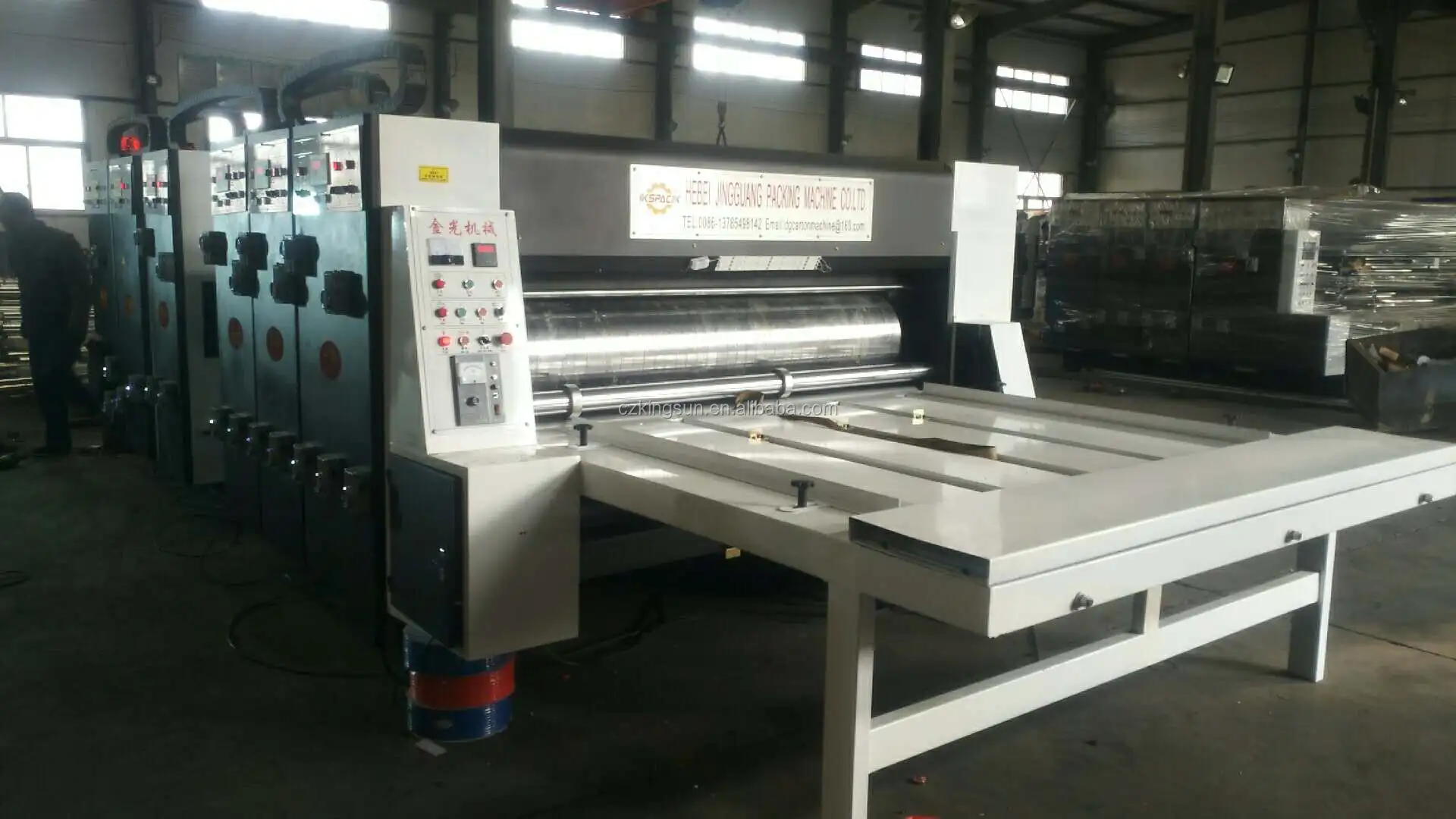

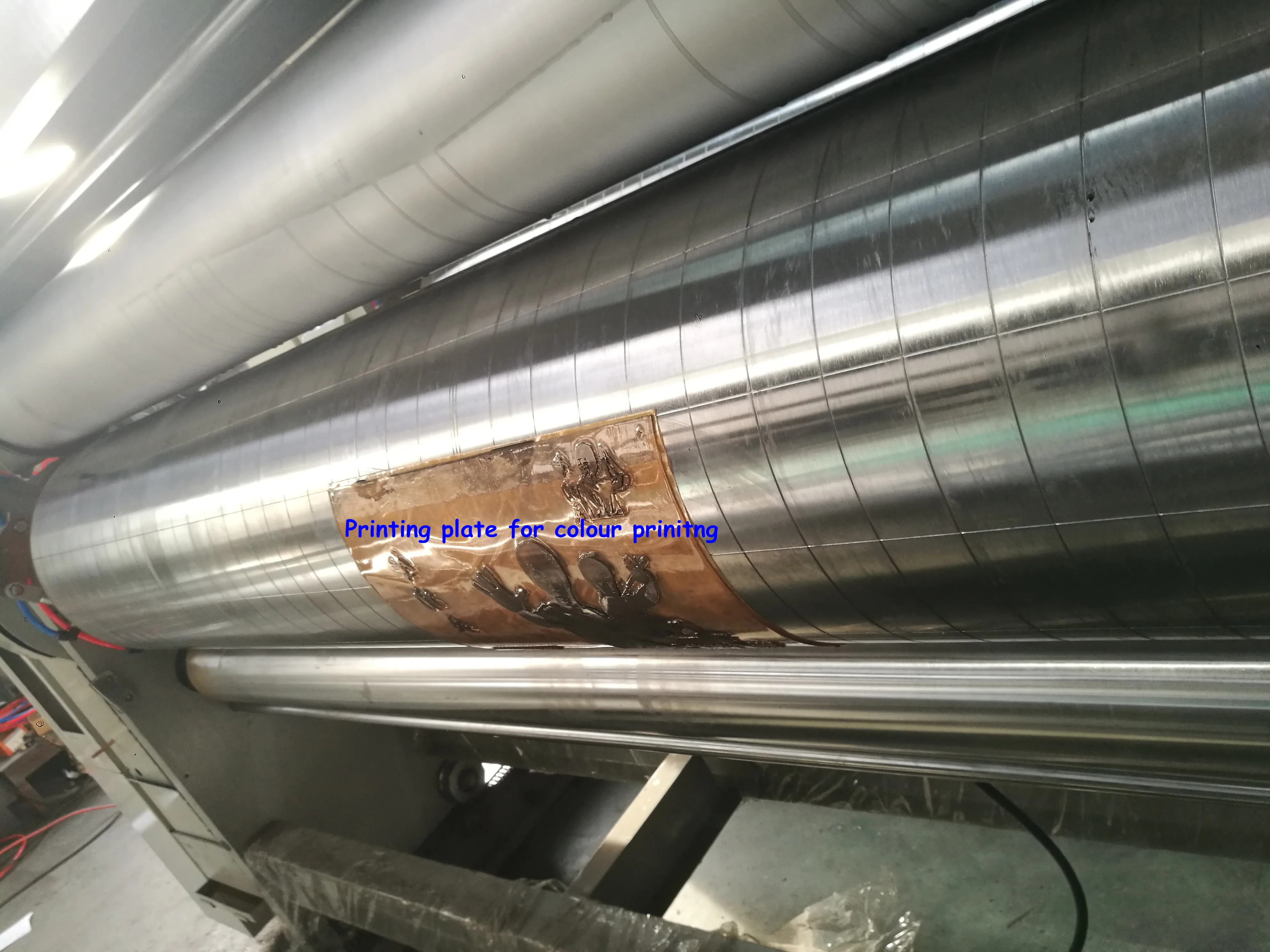

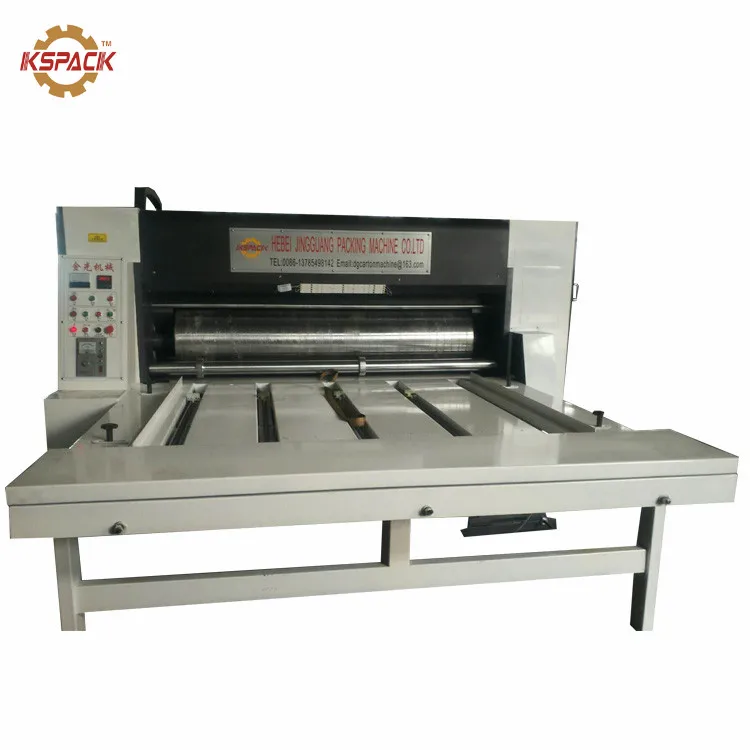

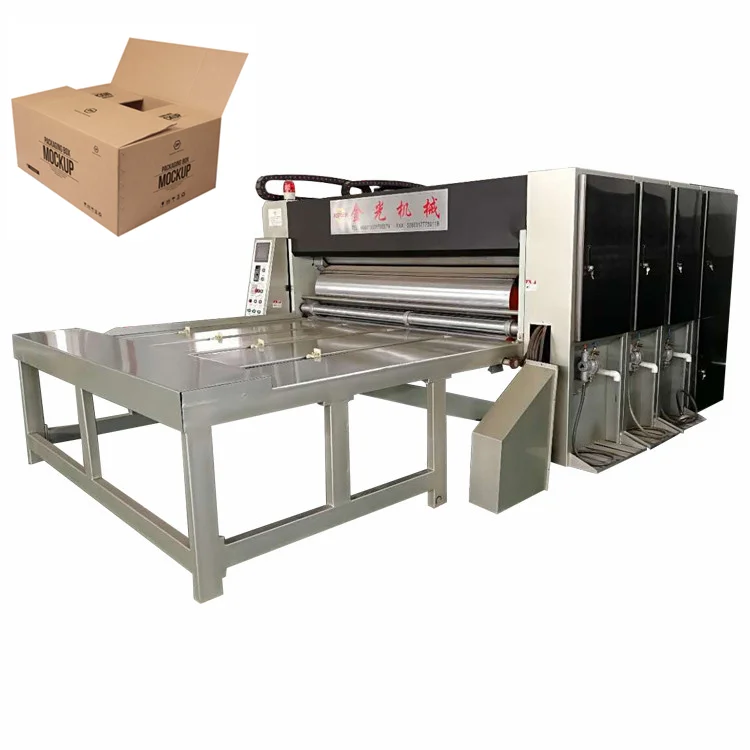

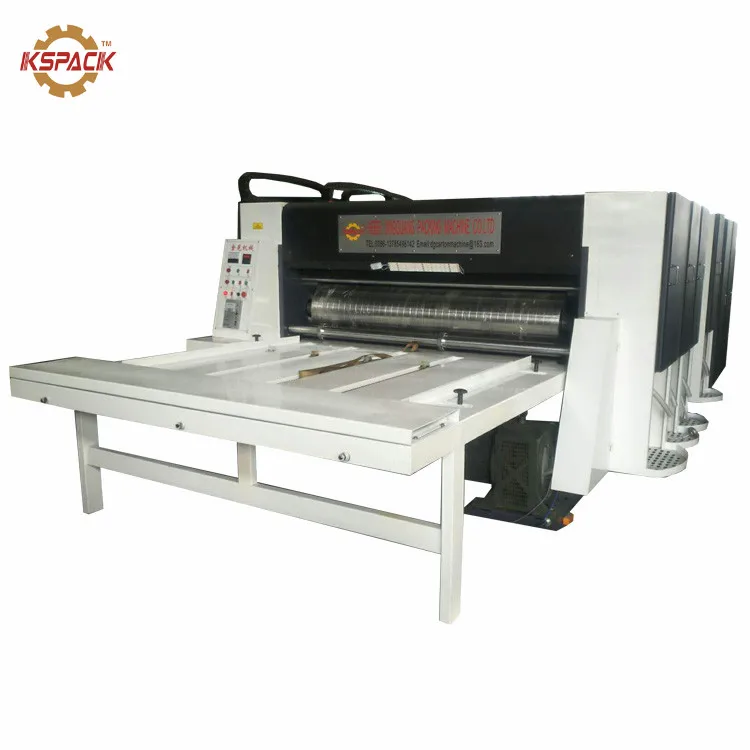

 Part two : Printing Unit for Packaging machine carton box

1.the printing roller diameter .400mm. 480MM  530mm

2.Adopt digit number electrical phase controller ,can 360degree adjust ,save the adjust time ,increase adjust accurate

3.Auto rise the ink plate ,the inker turning to prevent ink dried.

4.Adopt electrically separation ,pneumatic locking

5.Ink supplied by pneumatic diaphragm pump

6.Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life

7all the roller must be chrome –plating in order to increase the hardness

8.the auto count function

9. Have alarm system ,when machine start work there have alarm ,guarantee the work safe

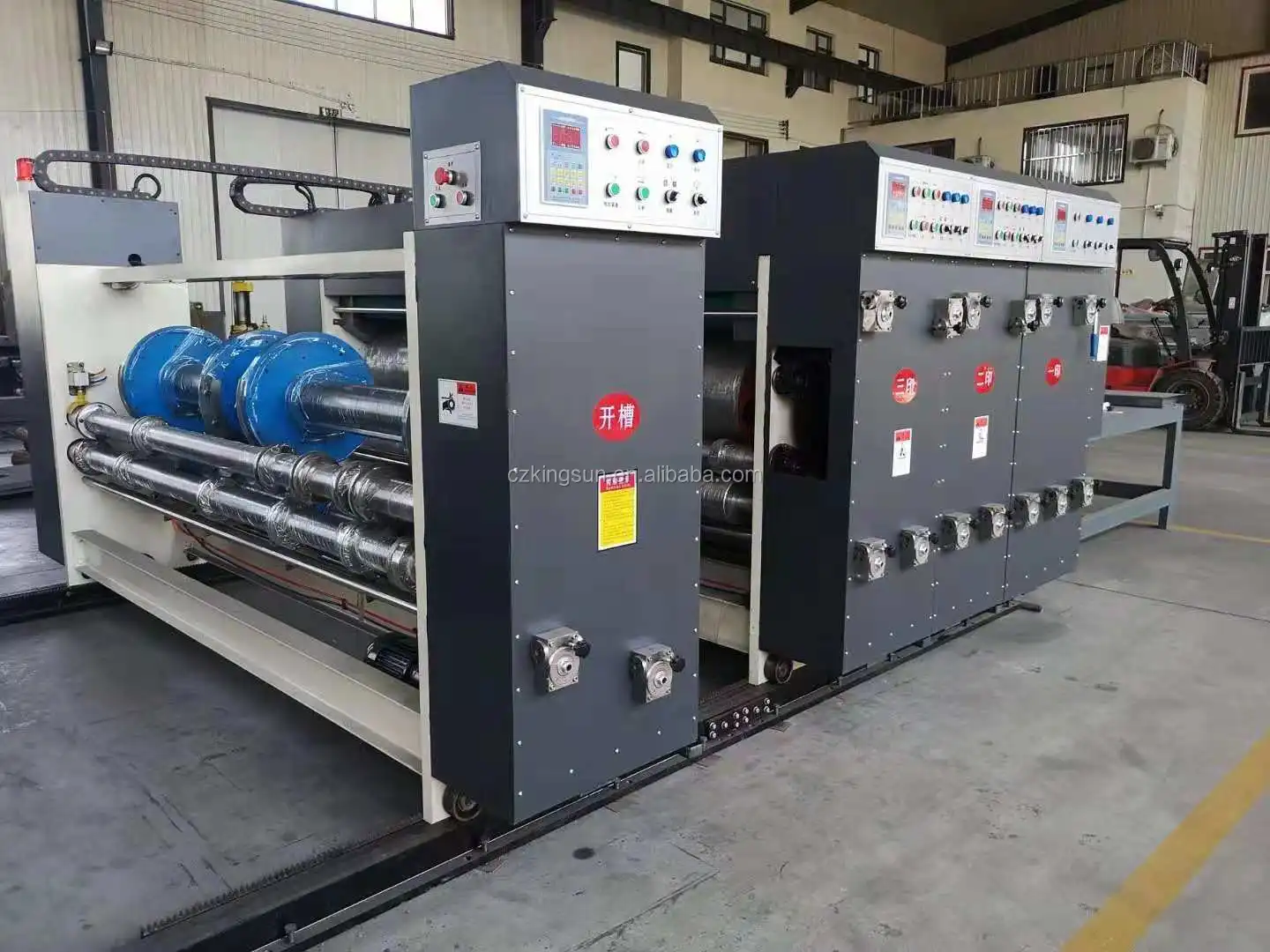

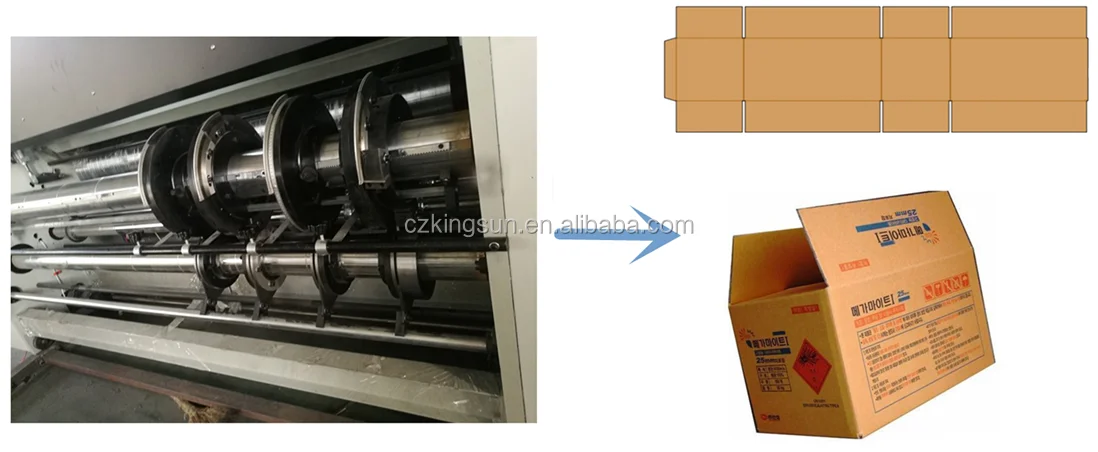

 Part three : Slotter Unit for Packaging machine carton box

 Note- slotter Unit is used for standard box making

1. Four slotter knives , open the slot ,creasing the line and cut the corner

2. The knives use the good material ,long use life

3. Our slot knives can be same time adjust

4. The phase can be adjust by electrical 360oC

5. Feed roller all be chrome plate

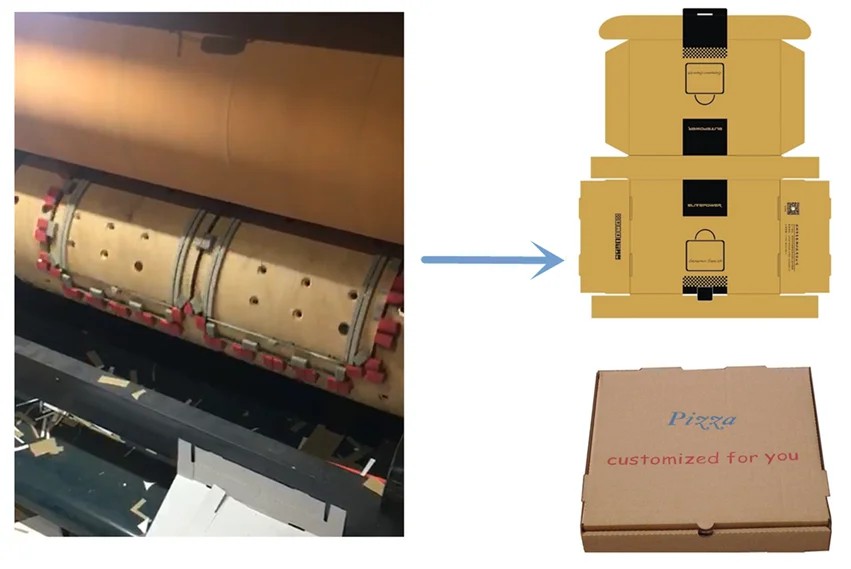

Part Four : Die cutter Unit for Packaging machine carton box

Note- Die cutter Unit is used for special carton box

1.Rubber cushion imported from Taiwan

2.Double-worm abrasive belt cushion correction facility

3.Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )

4.Speed difference self-compensating function

5.Die cutting phase is adjusted by electric
