Factory direct sale grooved end butterfly valve

banerFeatures:

1. Small in size, light in weight, easy installation and maintenance.

2. Simple and compact construction, quick 90 degree on-off operation.

3. Minimized operating torque, energy saving.

4. Flow curve tending to straight line, excellent regulation performance.

5. Long service life, standing the test of tens thousands opening/closing operations.

6. Wide selection of materials, applicable to various medium.

Performance:

Nominal pressue (MPa)

1.0

1.6

Nominal diameter(mm)

50-1000

50-1000

Test pressure

Shell

1.5

2.4

(MPa)

Seal

1.1

1.76

Applicable temperature

150

Applicable medium

Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.

Operating mode

manual, worm gear, pneumatic, electric, etc.

Standard:

Design & Manufacture

Flange Connection

Face to Face Dimension

Test & Inspection

MSS SP-67
API609
EN593

DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E

API609
ISO5752 series 20
BS5155

API 598


NO.PARTMATERIALSTANDARD
1BodyDuctile LronGGG50
2ScreenStaninless Steel304/316DIN SS304/316
3Body GasketGraphite
4BoltsSteelDIN PRST37-2
5CoverDuctile lronGGG50
6PlugStaninless SteelDIN SS304

DIMENSIONS IN INCHES AND MILLIMETRES

DNLDgDKDfbn-dH

15

1304665952144-1468
2015056751052164-1478
2516065851153164-1488
32180761001403184-1998
40200841101503194-19128
50230991251653194-19153
652901181451853194-19183
803101321602003198-19219
1003501561802203198-19238
1254001842102503198-19279
1504802112402853198-23315
20060026629534032012-23315
25073031935540532212-28482
30085030410460424.512-28565








 baner_04

Company Information

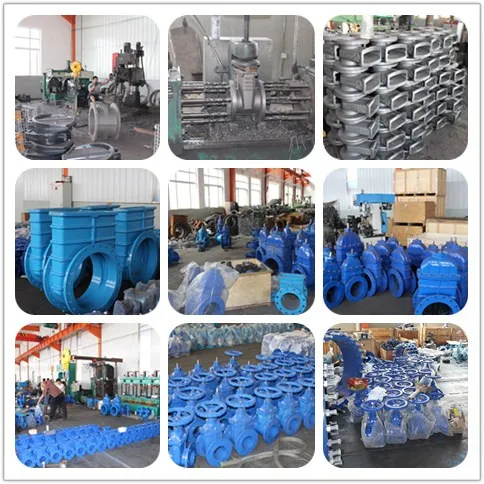

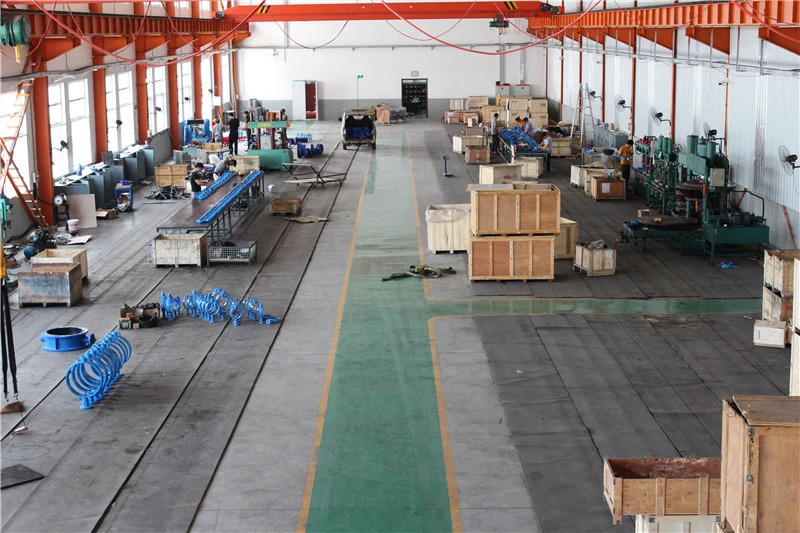

 IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.1.jpg

We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!

2.jpgbaner_07

FAQ



1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.

2. Q: Do you have agent or representative abroad?

A: We dont have agent abroad,please contact us to purchase valves

from TIANJIN UNION VALVE CO.,LTD. directly.

3. Q: What's your product range?

A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,

generally 30-35 days.

5. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

6. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS

7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service

8. Payment
T/T, L/C, OA, D/P, D/A

9.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea

10. Do you provide free sample?
Free sample is ok for us.

11. Do you accept custom design on size?
Yes, if the size is reasonable

Our Services

We promise that we will ship the goods on time;

We can customize your company logo on valve body;

We can do different colors according to your requirements;

We can produce different standards valves to different markts.

We provide perfect after-sales service and technical support.
