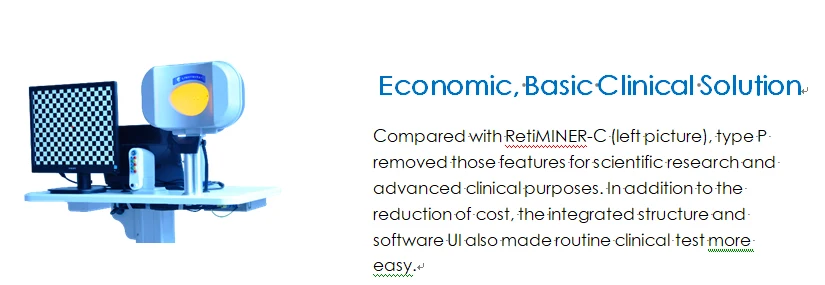

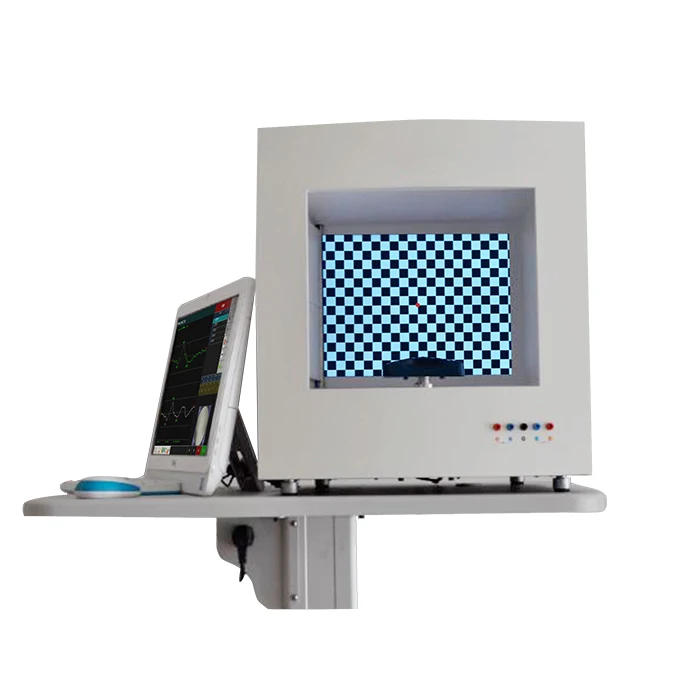

Ретимайнер п Китай экономическое клиническое решение визуальная электрофизиология

Сохранить в закладки 60829559331:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики










Trditional Visual Electrophysiology -4th Generation


Can do Animal experiment











































































































Amplifier







Input Impedience



≥ 1000 MΩ



CMRR



115dB



Input Noise



4μVpp



Filter

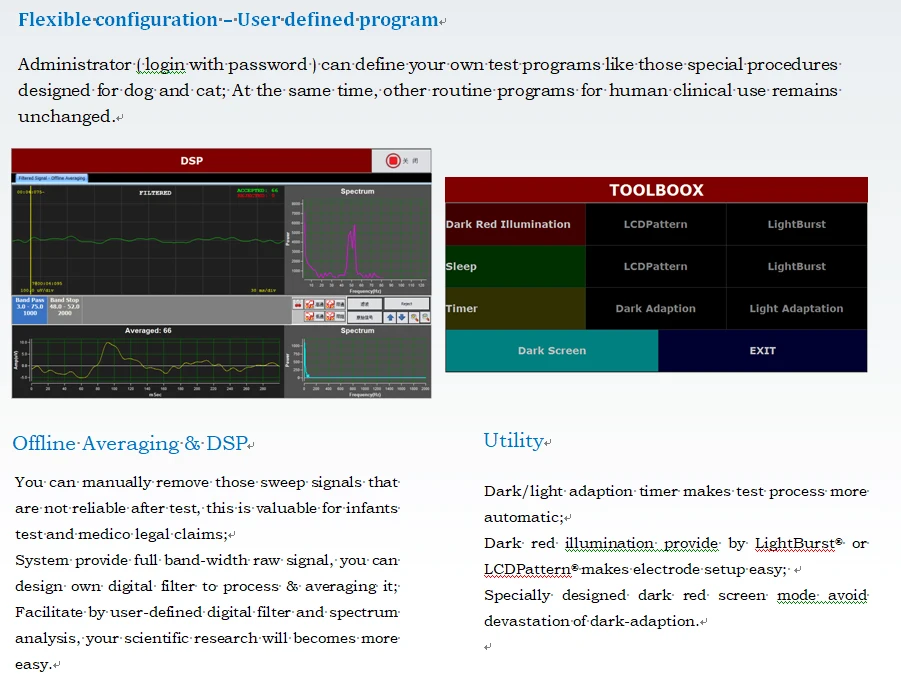

Full real time digital filter, band-pass, band-stop, high-pass, low-pass, comb filter apply to every channel independently



A/D Resolution



24 bit



Port



Optical isolated USB 2.0



Power Supply



Li-ion battery, switch to USB power automatically when low battery



Flash Stimulator







Light Source Color



White, Red, Green, Blue and any of their combination



Flash Luminance



Can produce 30cd·s/m2 broad-band white flash in < 4ms



Flash Luminance Range



0-100 cd·s/m2



Stimuli Mode



Single, Double, String, On/Off, On duration can be adjusted



Background Illumination



0-500 cd/m2



Stimuli Frequency



0.01-200Hz

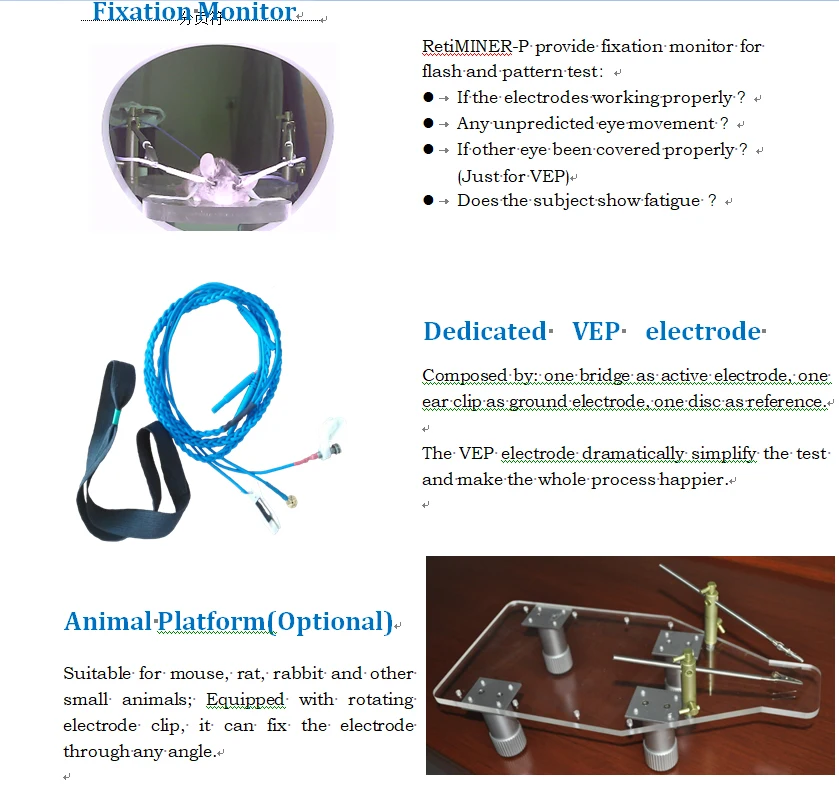

Fixation & EOG



3 Fixation/EOG indicator, 64 adjustable intensity



Monitor



Infra-red camera



Pattern Stimulator







Luminance



0-200 cd/m2



Contrast



> 98%



Pattern Shape



Checkerboard, Horizontal/vertical stripes, rectangle, adjustable element angle



Stimuli Field



Full field, left/right/upper/lower half, up-down/left-right margin;


¼ left-top/right-top/left-bottom/right-bottom;


horizontal/vertical center, 1/8 center;


Center cirle with any angle;


Field outside center cirlle with any angle.









VISUAL ELECTRO.jpg
