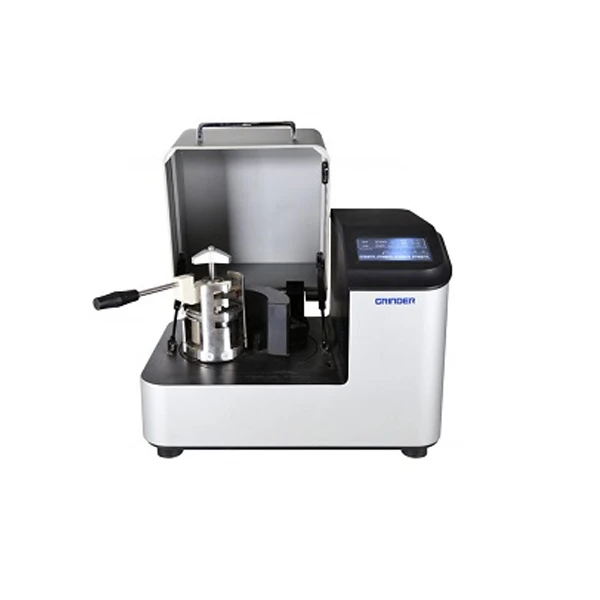

Планетарная шаровая мельница BM6Pro шлифовальная

Описание и отзывы

Характеристики

The planetary ball mill is suitable for grinding (dry or wet grinding) and mixing of soft, hard, brittle and fibrous samples, and the grinding results are reproducible to meet the requirements for fineness. In addition to the classic mixing and grinding process, the planetary ball mill can meet the technical requirements of colloid grinding, and its energy input can meet the requirements of mechanical preparation of alloys.
working principle
When the instrument is started, the motor drives the common sun gear to rotate, while the grinding tank on the sun gear rotates around its own axis. The rotation direction of the grinding tank is opposite to the direction of the sun gear. The ratio of the speed of the sun gear to the grinding tank is generally 1:2. When the grinding ball is operated together with the grinding pot, it is affected by the superposition of the rotation biasing force. Under this influence, the grinding ball releases a large amount of kinetic energy, and the sample is continuously hit by the grinding ball, and at the same time, a large amount of friction is generated with the grinding inner wall, thereby being highly Smash.

Performance advantage
* 5-inch LED touch display
* Grinding room automatic ventilation system
* Can be equipped with 5 kinds of volume grinding tanks
* 6 different material grinding tanks to choose from
* Automatic reverse operation to prevent sample agglomeration
* Long-term sample preparation and continuous operation
* Intelligent operation interface, simple and convenient
* Extremely high speed for grinding samples to sub-micron fineness
* German Red Dot Designer Award Winning Team Design
* Unique safety sealing device
* Ergonomically designed to combine comfort and safety in operation
* Intelligent safety door lock to ensure the safety of instrument operation
* When used for colloid grinding, the grinding tank is equipped with a safety sealing ring, which is gas tight and dustproof.
* The venting cover protects the inert gas generated in the grinding tank.
Product parameters
Injection size <10 mm
Sample size <0.1 μm (colloidal grinding to nanometer scale)
Sun wheel speed 100 ~ 650 rpm
Time range 000~999 points/time (number of cycles 01~99 times)
Speed ratio 1:-2
Effective sun gear diameter 260 mm
Rated power 750 watts
Rated voltage: 220 volts, 50 Hz
Instrument size (horizontal * vertical * height): 685 * 510 * 506 mm
Package size (horizontal * vertical * height): 898 *784 * 700 mm
Instrument weight: 145 kg
