OPTO EDU A14.1021 400x Тринокулярный Перевернутый Биологический микроскоп

Сохранить в закладки 60830583563:


Цена:991,79 $ - 1 234,22 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики




A14.1021 Inverted Laboratory Biological Microscope, Newly Designed With Comfortable Operating With Ergonomic Structure, With Better Illumination, Convenient Replacement Of Attachment With Sliding-in Center Adjustable Condenser.

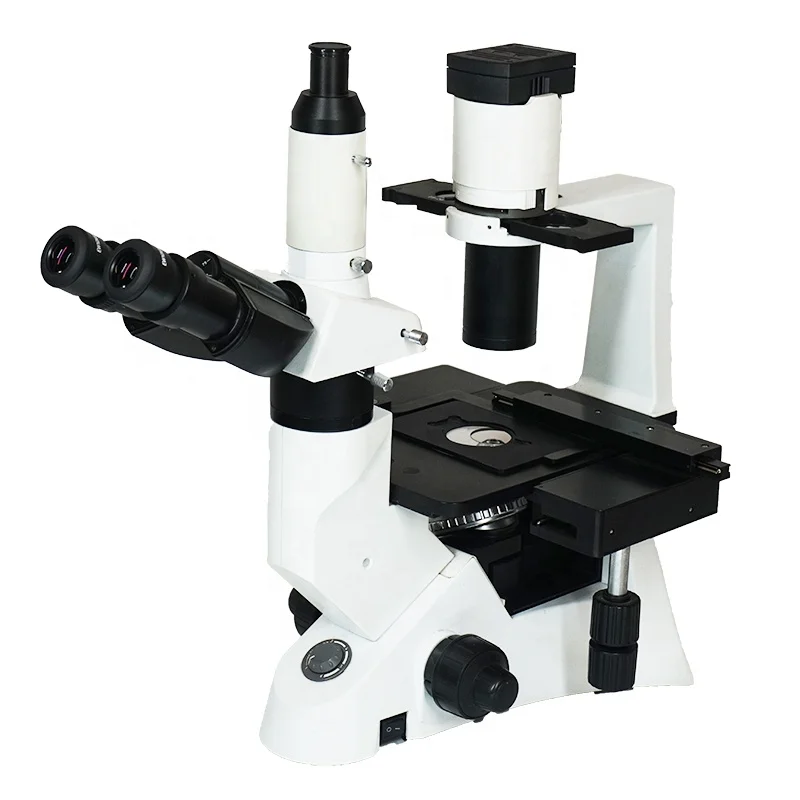

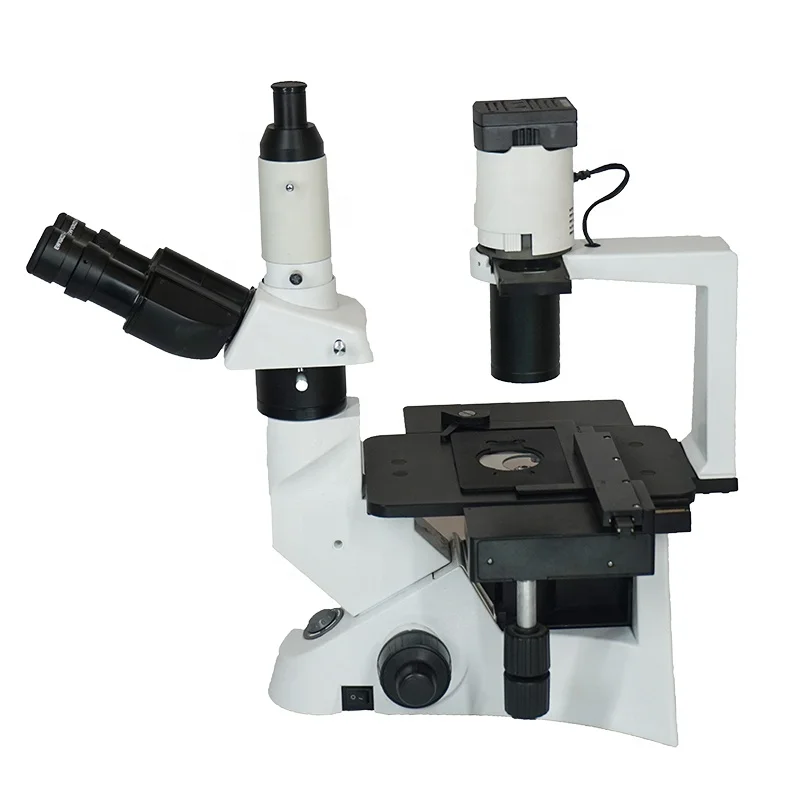

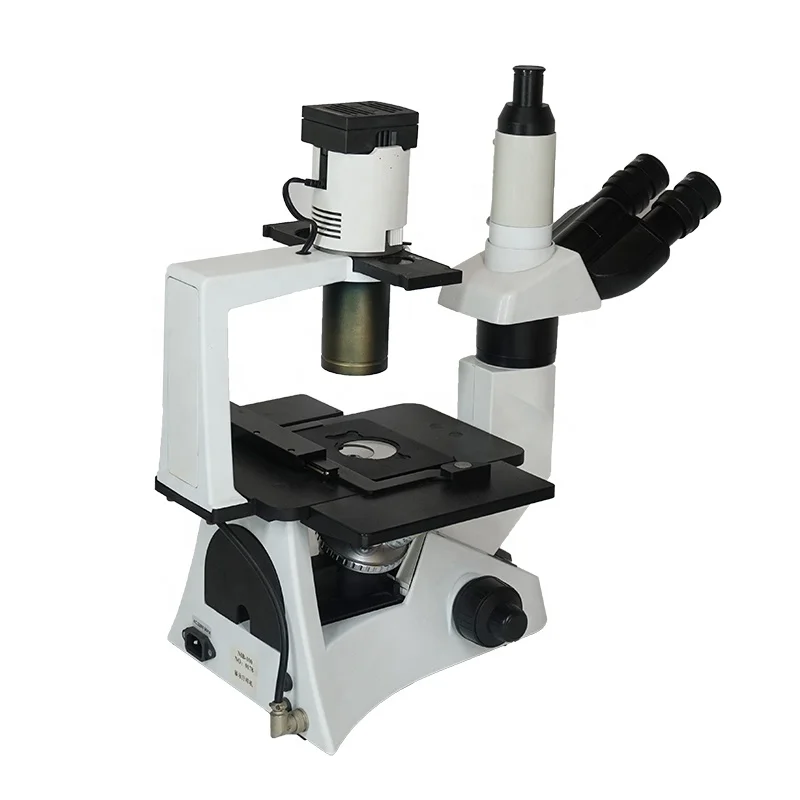

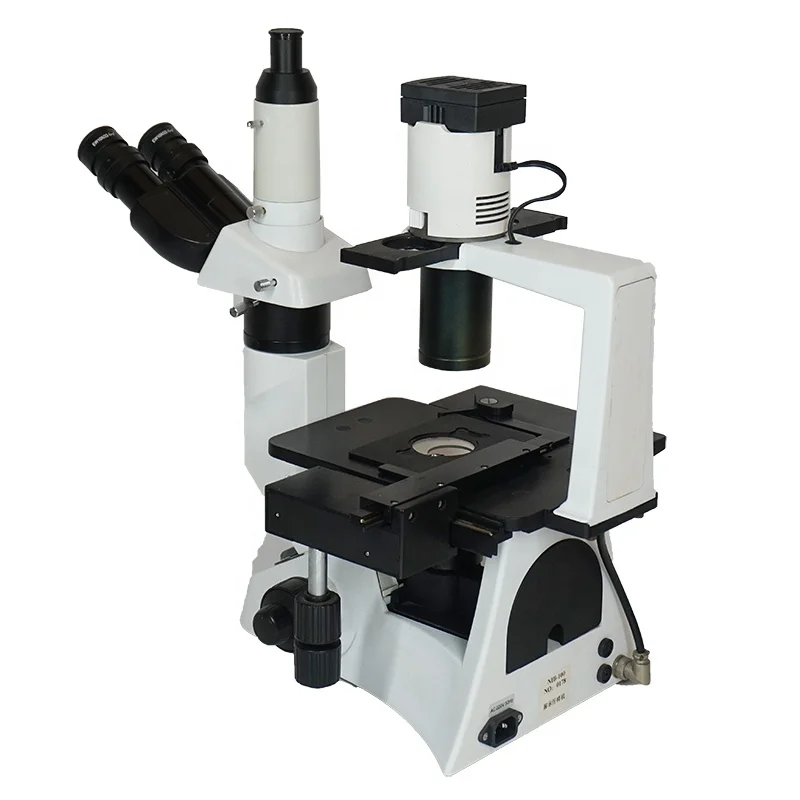

A14.1021 Inverted Laboratory Biological Microscope


Optical System


Infinity Optical System


Head


Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable


Eyepiece


Extra Wide Field Eyepiece EW10x/22mm, High Eyepoint



Nosepiece

Quintuple Nosepiece
ObjectiveInfinity Plan LWD
Achromatic Objective
4x/0.1, W.D.18mm
40x/0.6, W.D.2.6mm,Cover Glass 1.2mm
Infinity Plan Phase ContrastAchromatic ObjectivePH10x/0.25, W.D.10mm
PH20x/0.40, W.D.5.1mm
FocusingCoaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation
Working Stage--Plain Stage 160*250mm
--Glass Insert Plate
--Auxiliary Stage 70*180mm
CondenserELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser
Phase Contrast--Centering Telescope, Tube Dia.30mm
--Phase Contrast Slide, 2 Holes For 10x-20x Objective
FilterGreen, Blue, Ground Glass, Dia.45mm
IlluminationExternal Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable











































































A14.1021 Inverted Laboratory Biological Microscope Optional Accessories

ObjectiveInfinity Plan LWD
Achromatic Objective
10x/0.25,W.D.10mmA5M.1031-10
20x/0.4,W.D.5.1mmA5M.1031-20
Phase ContrastInfinity Plan Phase Contrast
Achromatic Objective
PH40x/0.6,W.D.0.35mmA5C.1023-40
Phase Contrast Slide, 3 Holes For 10x-20x-40x ObjectiveA5C.1013-3
Wokring StageAttachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm
Ergonomic Stage Knob's Height & Position Along Y-Axis Movable To Where It Is Most Comfortable, Tightness Adjustable
A54.1006-XY
Terasaki HolderA54.1006-T
Petri Dish Holder Dia.38mmA54.1006-38
Slide Glass Holder Dia.54mmA54.1006-54
Slide Glass Holder Dia.90mmA54.1006-90
AdapterPhoto AdapterA55.1001
C-Mount 1.0xA55.1002-10
C-Mount 0.5xA55.1002-05
FluorescentFluorescent Attachment, Upgrade to A16.1023A5F.1003







A14.1021_12.jpgA14.1021_14.jpgA14.1021_16.jpgA14.1021_17.jpgA14.1021_18.jpgA14.1021_20.jpg


Inverted Biological Microscope Is Equipped With Extra Wide Field Eyepiece EW10x/22mm, High Eyepiece Long Working Distance Plan Achromatic Objectives, It Can Observe Transparent And Unfinished Living Specimen In Culture Bottle Or Culture Utensil.It Is The Ideal Tools For Research Of Living Specimen Struture, Liquid, Deposits And So On.




OPTO-EDU is a unique, long-term and excellent supplier of microscopes and educational instruments from China. We focus on the international market of microscopes and education instruments. At present our customers come from more than 80 countries, such as the United States, Britain, Russia, Canada, Germany, Denmark, Poland, Sweden, the United Arab Emirates, Qatar, Saudi Arabia, Egypt, Argentina, Korea, Thailand, Brazil and so on. OPTO-EDU as our trademark is well known in the professional field, our products ranked No.1 in Alibaba.com. We have been working tirelessly for the sale of high quality optical products and educational products made in China to the world market.




As one of the most professional and most dynamic suppliers of optical and educational products in China, we have been concentrating on this field for more than 10 years. We have created the most professional product database of microscope & educational instrument, with 5000+ products and 500+ professional suppliers in system. We can provide our customers with the most comprehensive range of products in the related field, from the primary entry products to professional-level solutions, to meet the different needs of customers in the field of scientific research, teaching, industry, agriculture and various industries.
