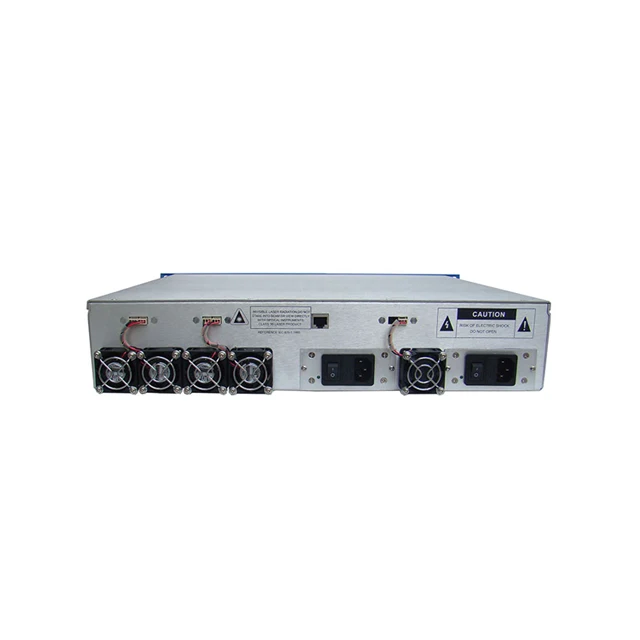

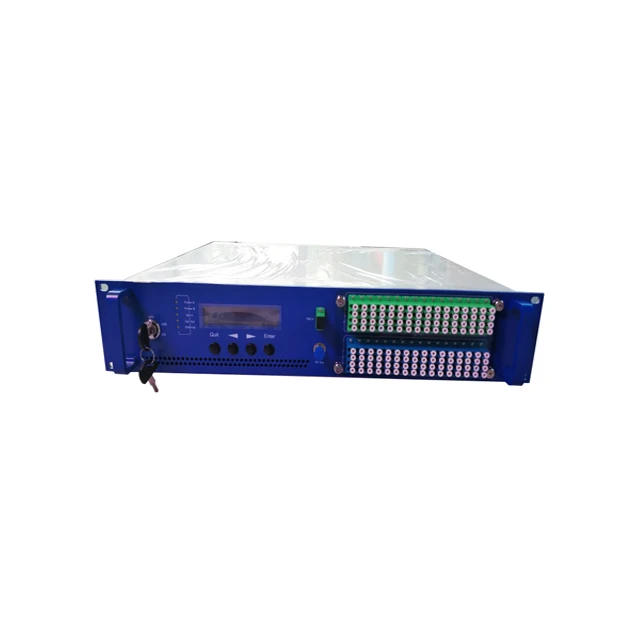

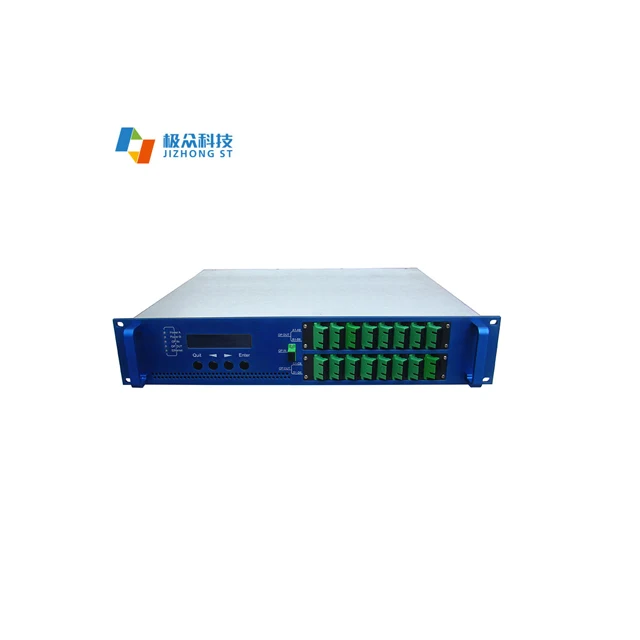

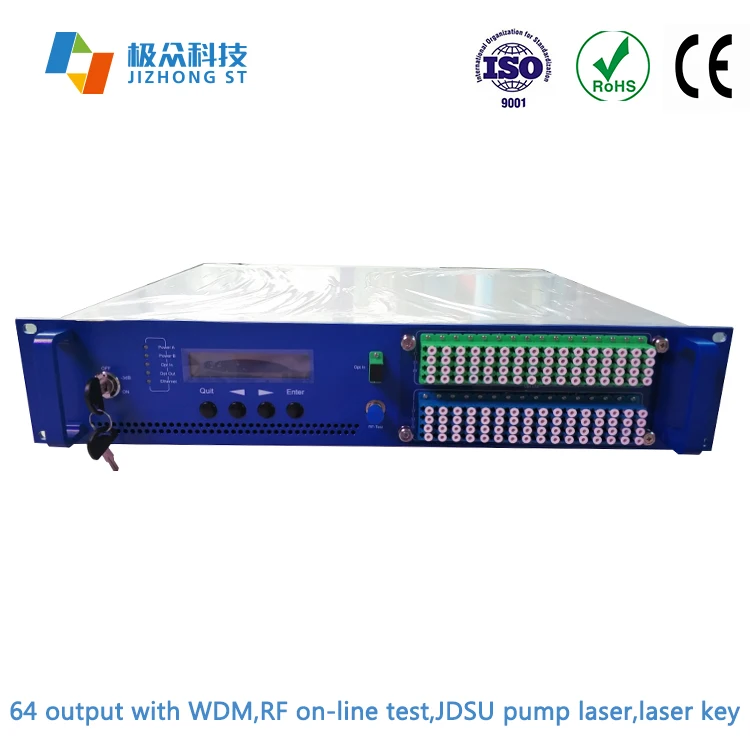

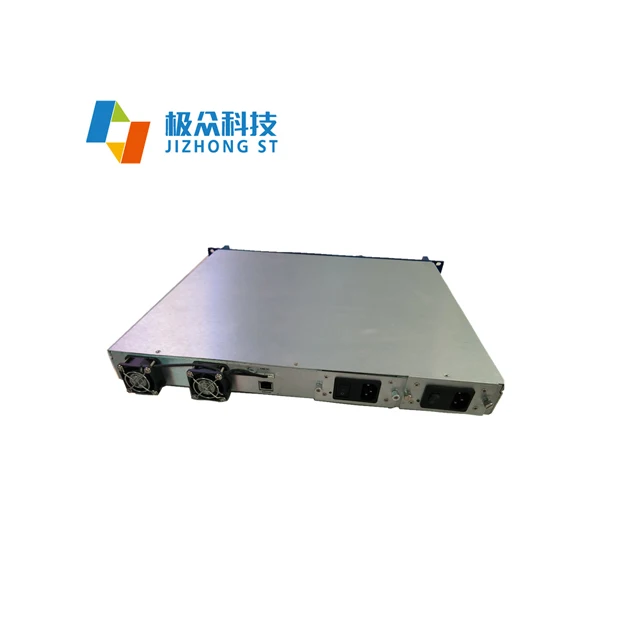

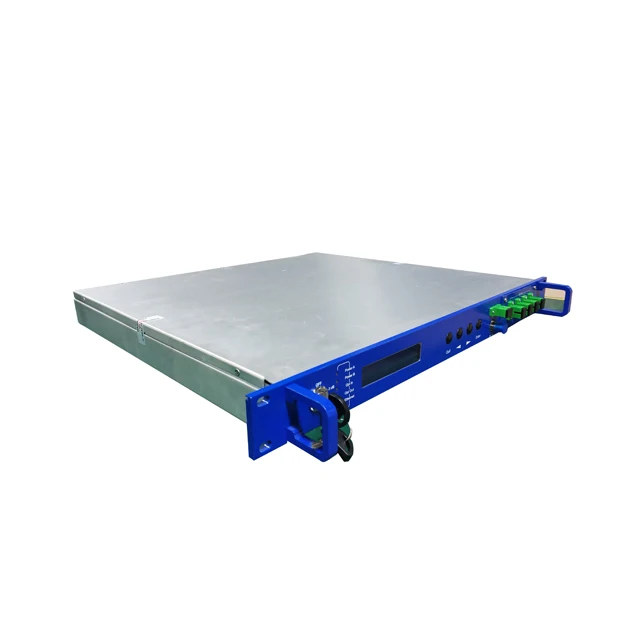

Высокая мощность EDFA 1550nm оптический усилитель с WDM JDSU насосом

Name: Высокая мощность EDFA 1550nm оптический усилитель с WDM JDSU насосом
SKU: 60830639767
Availability: InStock

Цена:*

Количество:

High power EDFA 1550nm optical amplifier with WDM JDSU pump

Product Description

FEATURE:

Adopting Canada CorActice high performance erbium ytterbium fiber, high efficiency of energy conversion

Output optical power (APC) function, with overload protection and laser overheating protection. Output gain (attenuation)

Adjustable range of -5~0dBm, adjust accuracy of 0.1dBm. Input and output both with optical isolation

High reliability:With high performance switch power supply built-in,working voltage 85-265VAC,DC48V (option).ATC for head dissipation of case.

Technical Parameter:

Item	Unit	Technical Parameter
Wavelength	nm	1530 to 1565
Input optical power	dBm	-10 to +10
Rated input optical power	dBm	+3
NoiseFigure(+3 Bm,@1550nM)	dB	≤4.5
Gain Flatness	dB	<±0.3
Optical power output stability	dB	<±0.1
Polarization sensitivity	dB	<0.2
Polarization mode dispersion	PS	<0.5
C/N	dB	>52
C/CTB	dB	>65
C/CSO	dB	>65
MER	dB	>36
BER(before encode)	dB	≤1.0E-8
Optical connector	IN	SC/APC
Optical connector	OUT	SC/APC;SC/PC (LC/APC;LC/PC)
Pump working No.	N	1to 5
Saturate output power	dBm	Max total power 30~40
Power supply	Vac	90~265(plug in power)
Power supply	Vac	-48(plug in power)optional
Working temperature	℃	0~50
Dimension	mm	2U(88×482.6×387) 3U(128×482.6×387)
PON optical path with WDM
PON port working wavelength	nm	1310/1490
PON port insert loss	dB	<1
1550 port insert loss	dB	<0.5
Optional
*Frontpanel RF-TESTstandard level	dBuv	80±5
*Front panel direct current 5VDC	A	2
* time shift of optical switch	ms	<10
Power supply	Mw	≤50
