Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack
Product Description
Specifications of:

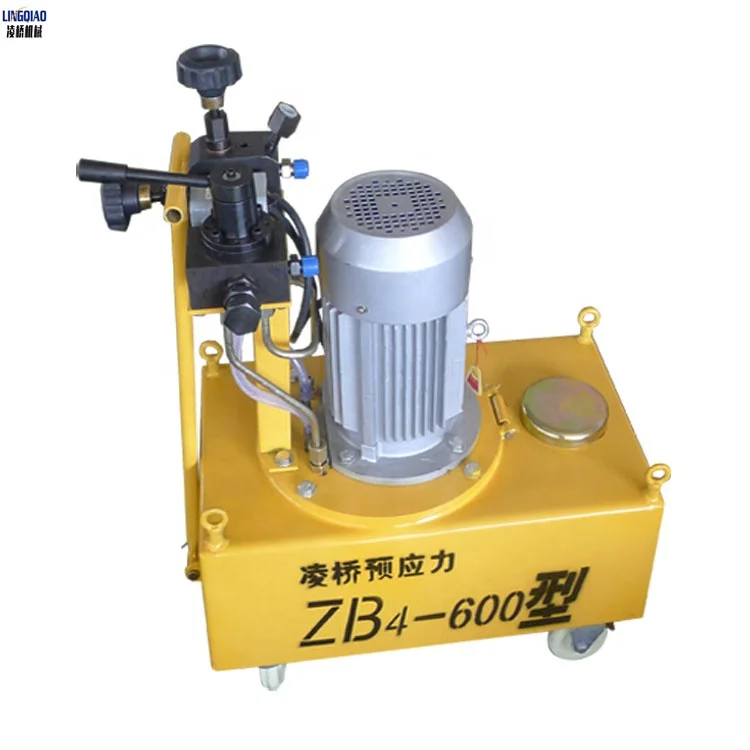

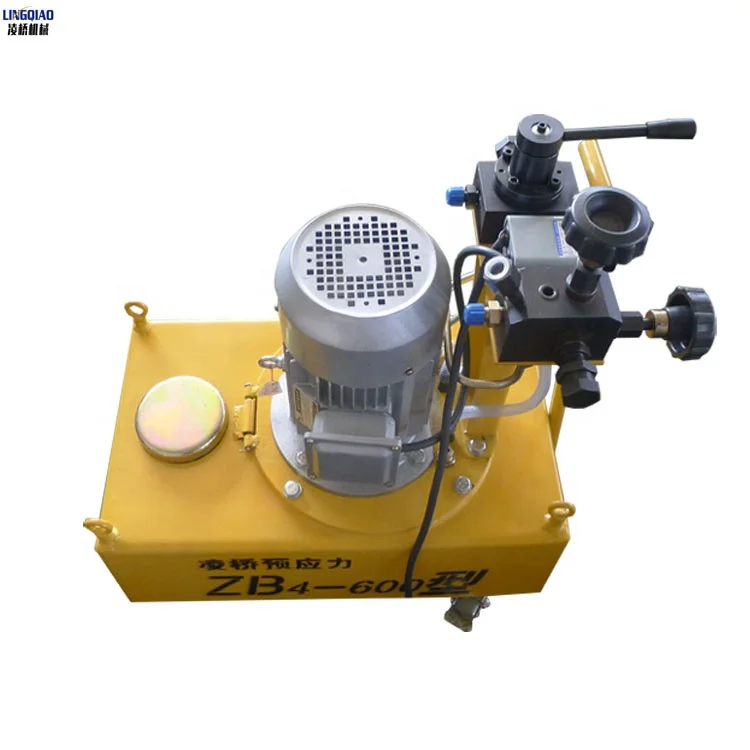

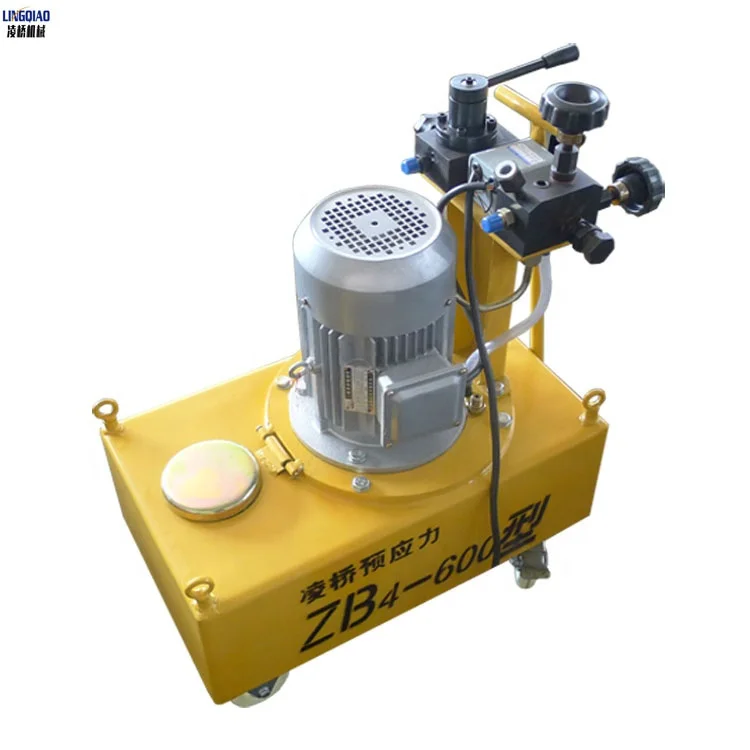

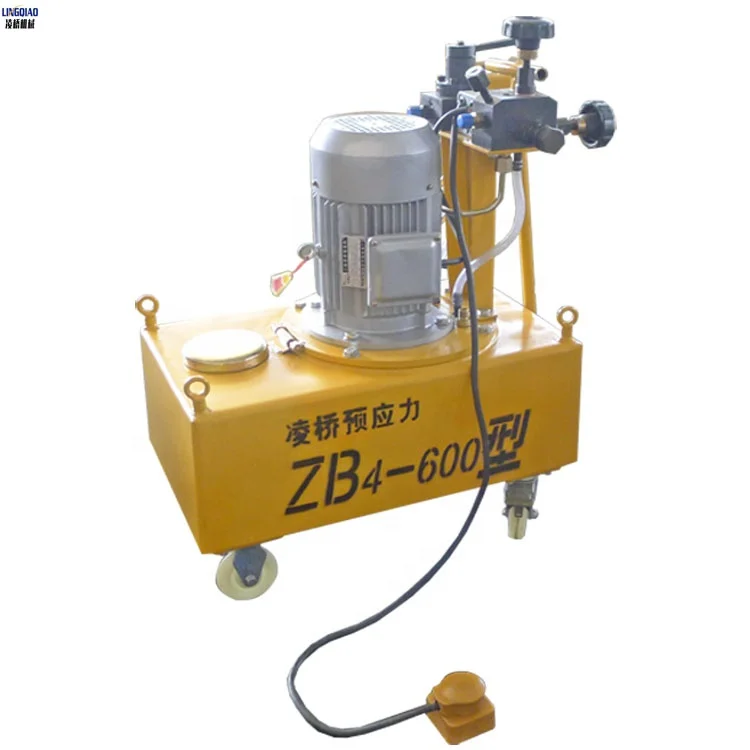

ZB serise Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack consists of pump, control valve,cabinet,and internal pipes.P1 hydraulic system.
| Type | Nom. Pressure | Nom. Flow | Power | Cylinder capacity | Frequency | Weight | Size |
| MPa | L/Min | KW | L | HZ | KG | MM | |
| ZB2-500 | 50 | 2x2 | 1.5 | 25 | 50 | 60 | 660*460*260 |
| ZB4-500 | 50 | 2x2 | 3 | 42 | 50 | 120 | 745*494*1052 |
| ZB4-600H | 50 | 4x4 | 3 | 42 | 50 | 120 | 745*494*1052 |
| ZB6-600 | 60 | 6x6 | 5.5 | 120 | 50 | 270 | 1090*590*1120 |
|
P1:Hydraulic System Chart
(1)The device is a self-priming axial plunger Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack. When motor drives axis9, leaned tray will push the plunger into plunger sleeve and return spring raises the plunger. The plunger repeats the operation to meet the function of in-taking and out-putting oil.
| P2:Pump Structure  | 1 | Screw Plug |
| 2 | Distributing | |
| 3 | Nozzle | |
| 4 | Lower Part | |
| 5 | Plunger Sleeve | |
| 6 | Plunger | |
| 7 | Return Spring | |
| 8 | Upper Part | |
| 9 | Axis | |
| 10 | Out-Put Port |
FAQ
Q: What kind of manometer do we have?
A: We have the standard manometer and shock-proof manometer.
Q: Is the Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack equipped with the oil pipe?
A: It often is no.but if need, it will be kindly provided.kindly know, the jack often complete with the oil pipe.
Q :What is your term of delivery?
A: We accept EXW, FOB Shenzhen, FOB Guangzhou, CFR, CIF, DDU.Kindly choose the one which is the most convenient or cost effective for you. The DDU is often delivery by express.
Q: What about the lead time for the mass production?
A: We often arrange our product within 7 working days. But h onestly, it depends on the order quantity and the season you place the order.
Related Products
Product Application
ZBs Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack electric oil pump is the power resource and control device for wire tension, which is used in conjunction with various jacks(Nom. Pressure 50MPa), as well as other low flow or high-pressure hydraulic types of equipment.ZBs pump is based on ZBs additional installation of a three-way four-way valve improved, the advantage of the construction of the top tensioning anchor can be carried out at the same time, without having to separately uninstall the tubing.
Packaging & Shipping
· One set Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack in one wooden box.
Company Information
We, Liuzhou Lingqiao Prestressed Machinery Co., Ltd, established in 2011.With the guidance of experienced building experts in prestress.We Lingqiao prestressing anchorage, jack, Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack,mortar pump or other prestressed equipment are improving for construction demand. Our product is extensively applied in many projects, such as highway, railway, bridges, building construction, hydroelectric projects, TV tower,large containers, rock anchors and ground anchors.
Our company has a strong technical force, with a number of years engaged in prestressing anchorage machine design, manufacturing and maintenance and construction of professional and technical personnel, can provide customers with quality and cheap products, good after-sales service and professional technical advice.
Certificate:
Our enterprise has already passed ISO9001:2008 and CE certifications.
We adhere to the tenet of "People-Oriented, Focus On Innovation, Base On Sincerity and Honesty, Have a Self-Established Brand". Meanwhile, we persist in "Safety Goes First, Precaution Crucial, Comprehensive Handling". With the mature marketing, after-sale service and scientific research systems, our aim is to push forward the development of the prestressing force industry in China.
Our Services
Trade Terms:
l Payment: 30% by TT in advance, the balance by TT before shipment
l Delivery Date: Within 20-25 work days after receiving the payment
l Transportation Methods: Ocean freight ,Air freight,Express
l Shipping Port: SHENZHEN,GUANGZHOU,SHANGHAI,FANGCHENGGANG,CHINA.
Main Buying Procedures:
l Enquiry: contact us by email, phone call, fax, Skype, and let us your enquiry. Your inquiry related to our product & price will be replied within 24 hours.
l Proforma invoice offered to double confirm the order for both side records.
l Working time: 8:00am-6:30pm,Monday to Saturday (UTC+8).
Why Choose us:
Our company ZB series Bridge Concrete Construction Prestressed High Pressure Electric Hydraulic Stressing Oil Pump For Jack is the power resource and control device for wire tension,which is used in conjunction with various jacks(Nom. Pressure 50MPa), as well as other low flow or high pressure hydraulic equipments.ZB series pump is based on ZB additional installation of a three-way four-way valve improved, the advantage of the construction of the top tensioning anchor, can be carried out at the same time, without having to separately uninstall the tubing.
If you have any query, please do not hesitate contact me. thank you .
