Product Description

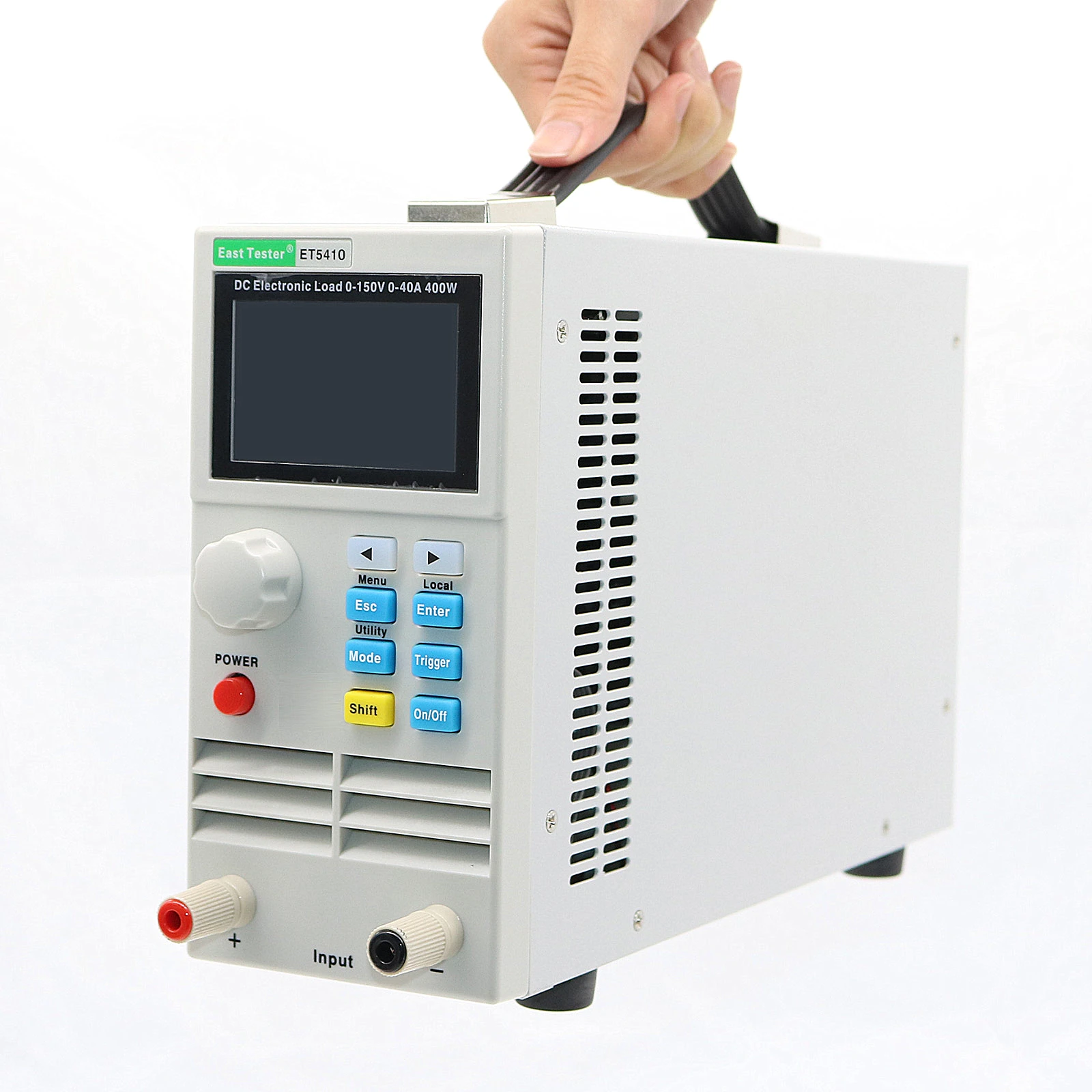

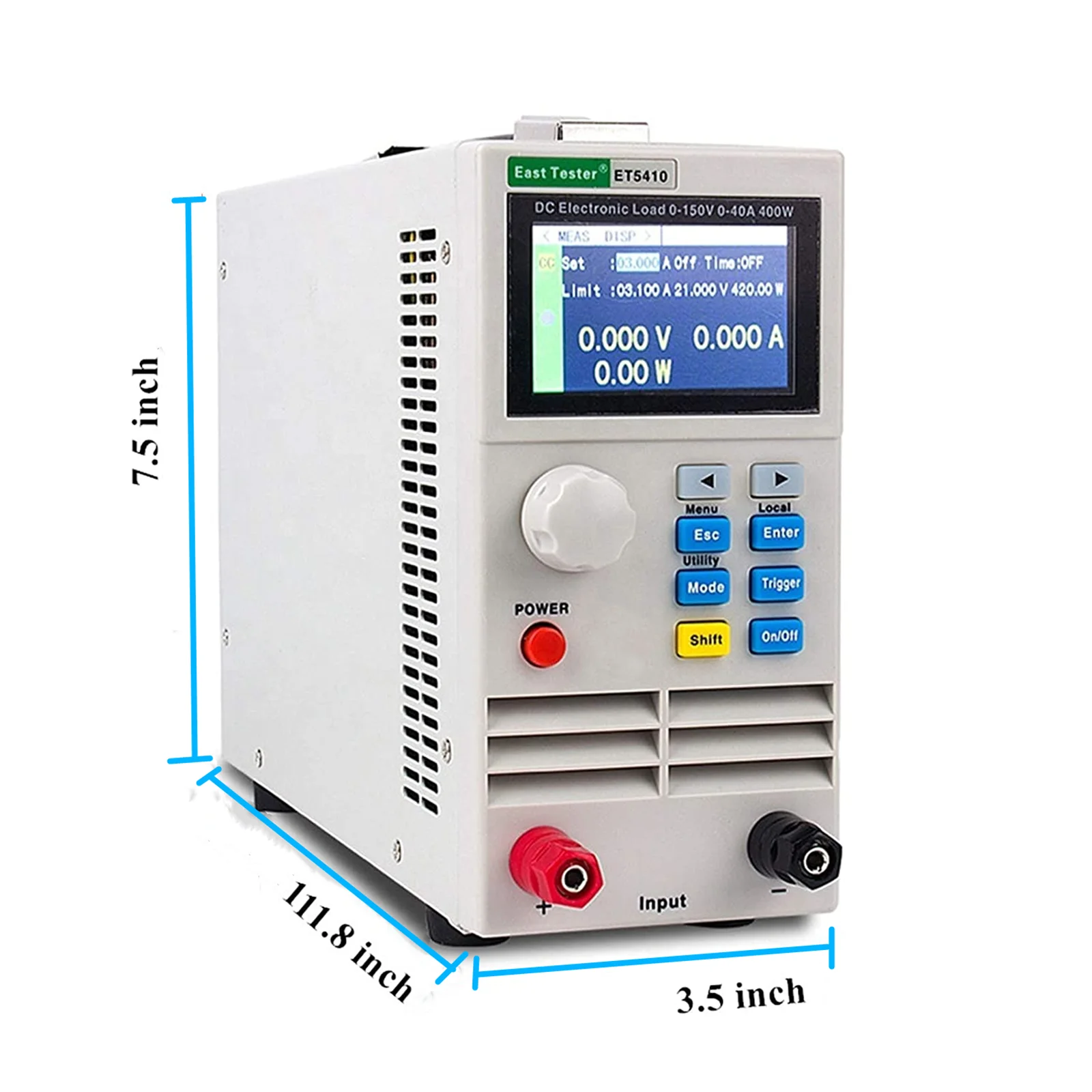

ET5410 hot selling 400W single-channel programmable DC electronic load

Basic information :

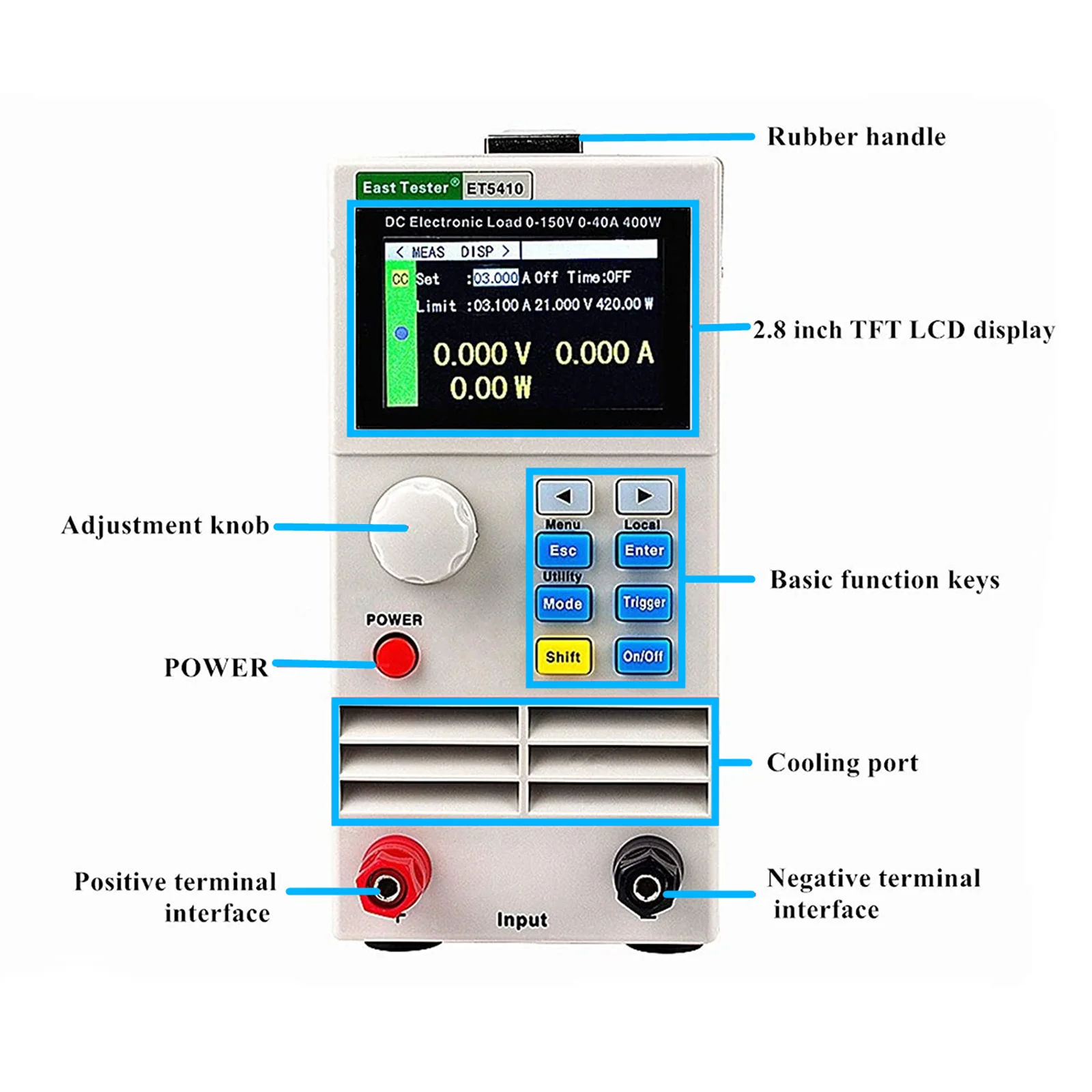

1 . humanized design.
2.8-inch TFT LCD display, rich display content, support Chinese and English display;
Simple and convenient operation process, with intuitive interface display system, easy to use;
key lock to prevent misoperation.

2 . high-performance load:

The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.
Provide professional battery test and LED test;
Dynamic test mode, can test the dynamic power output performance;
Scanning test mode can test the continuity of power output within a certain range.
List mode, which can simulate various loaded state changes;
Short circuit test for simulating load short circuit;
The measurement model of the far end can improve the measurement accuracy when the current is high.

3. Support external trigger input;
Built-in buzzer alarm;
Power off to maintain data storage function;

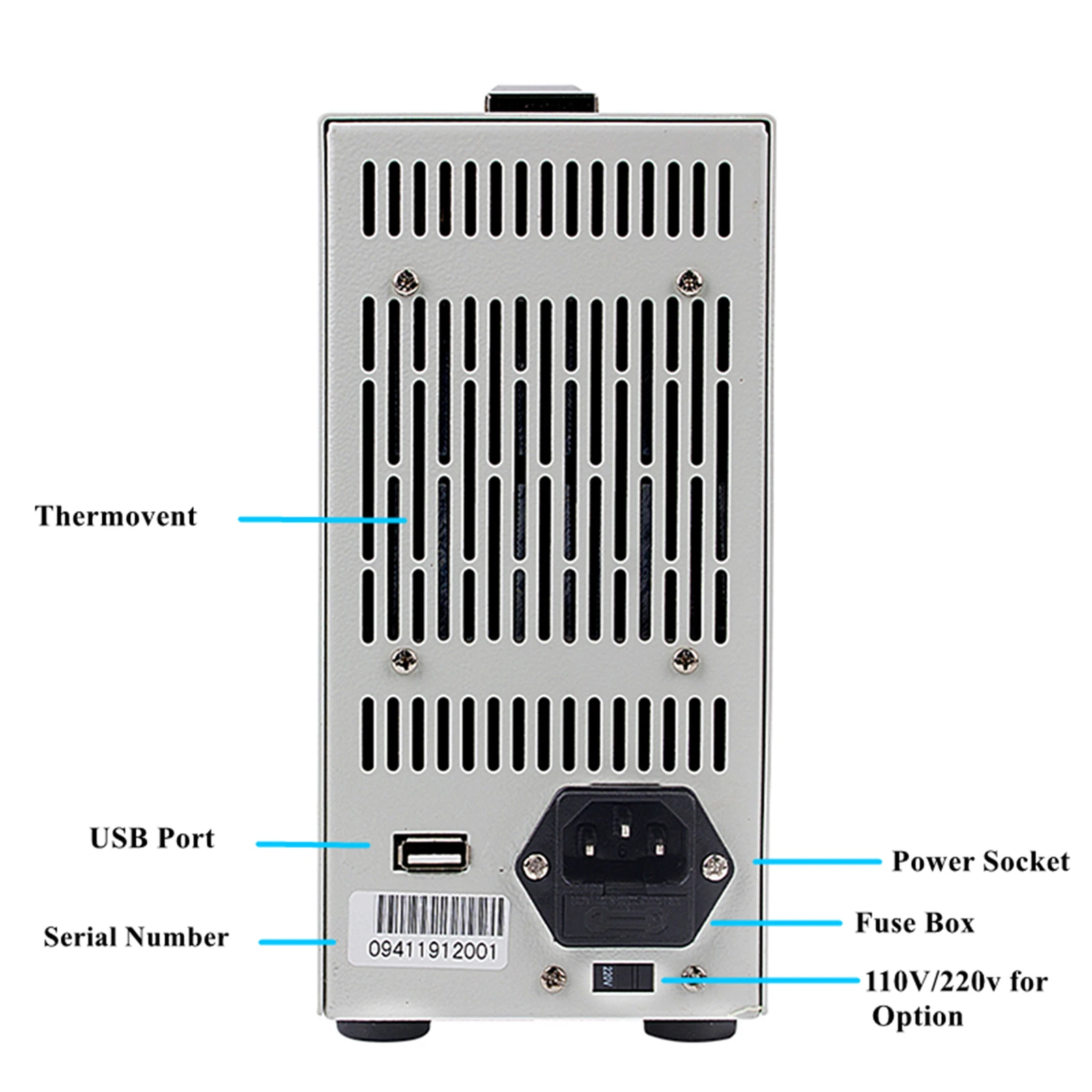

Remote operation can be carried out through RS-232 interface and USB Device interface.
With PS2 interface, support external keypad to set data values;

4 . safety protection:
With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be set flexibly to effectively protect the load.
It has the function of secondary over-temperature protection to realize the double over-temperature protection of software and hardware.
It has the function of intelligent fan speed control, which can effectively reduce the working fan noise.
With output polarity reverse protection;

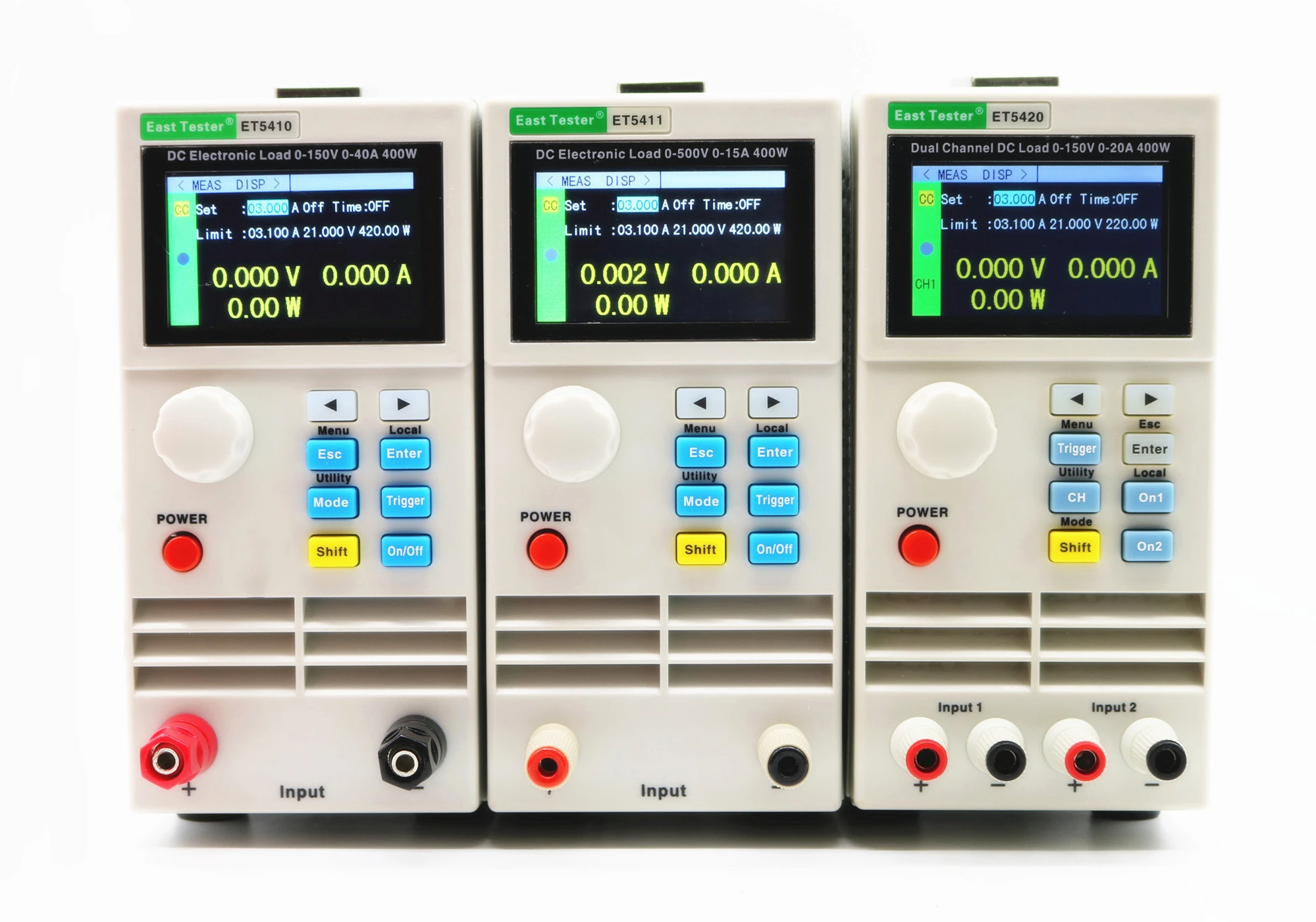

Model			ET5410	ET5411	ET5420
Channel NO.			Single channel			Double channel
Rated input	Power	400W			400W
	Rated input	Input voltage	0-150V	0-500V	0-150V
		Input current	0-40A	0-15A	0-20A*2
Constant voltage	Range	0.1~19.999V, 0.1~150.00V	0.1~19.999V , 0.1~500.00V	0.1~19.999V, 0.1~150.00V
		Resolution	1mV, 10mV
		Accuracy	±(0.05%+0.02%FS)
Constant current	Range	0~3.000A, 0~40.00A	0~3.000A,0~15.00A	0~3.000A, 0~20.00A
		Resolution	1mA, 10mA
		Accuracy	±(0.05%+0.05%FS)
Constant resistance	Range	0.05Ω~1kΩ，1kΩ~4.5kΩ
		Resolution	10mΩ，100mΩ
		Accuracy	±(0.1%+0.5%FS)
Constant power	Range	0~400W			0-200W
		Resolution	10mW
		Accuracy	±(0.1%+0.5%FS)
Dynamic test function	Model	CC, CV
Battery test function	Discharge mode	CC，CR
		Discharge capacity	9999Ah
		Resolution	1mA，10mA，10mΩ，100mΩ
Measuring range
Voltage read-back	Range	0~19.999V, 0 ~150.00V	0~19.999V , 0 ~500.00V	0~19.999V, 0 ~150.00V
		Resolution	1mV, 10mV
		Accuracy	±(0.05%+0.1%FS)
Current read-back	Range	0~3.000A, 0~40.00A	0~3.000A , 0~15.00A	0~3.000A, 0~20.00A
		Resolution	1mA, 10mA
		Accuracy	±(0.05%+0.1%FS)
Power read-back	Range	0~400W			0~200W
		Resolution	10mW
		Accuracy	±(0.1%+0.5%FS)
Scope of protection
Over voltage protection			> 155V Cut off	> 510V Cut off	> 155V Cut off
Over current protection			> 42A Cut off	> 16A Cut off	> 22A Cut off
Overpower protection			420W			220W
Over temperature protection			85℃			85℃
Short circuit protection	Current (CC)	≒3A, ≒40A	≒3A ≒15A	≒3A, ≒20A
		Voltage (CV)	0V
		Resistance (CR)	≒40mΩ

Our company

ODM and OEM factory with R&D department since 2003

Trademark: EASTTESTER
Certificate: ISO9001, CE, ROHS

The main products we are supplying are digital multimeter, process calibrator, function generator, LCR meter, programmable power supply, dry block temperature calibrator, combined multichannel calibrator and so on.

Exhibition

Now our products have been exported to many countries and regions all over the world, like America, India, Korea, Germany, Mexico.

Workingshop

Production Process:

PCB (Printed circuit board) --soldering --Assembling -- Visual inspeciton --Testing --Packing --Shipping
We have devoted ourselves to the whole production including R&D, production, sales and after service with a professional and experienced R&D team and QC team.

Packing & Delivery

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. For large order, we can do FOB shanghai or ningbo price, CIF price as u asked.
