800 м безотражательное измерение общая станция геометрическое оборудование инструмент наблюдения для строительства наземных дорог

800 м безотражательное измерение общая станция геометрическое оборудование инструмент наблюдения для строительства наземных дорог

Категория: >>>
Поставщик: Guangzhou Geodex Instrument Co. Ltd

Цена:1 490,00 $ - 1 790,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Features

High precision design, new axis and four-encoder system are adopted to ensure measuring accuarcy, angle measurement accuracy
reaches to 1″, distance measurement accuracy reaches to 1mm+1ppm.
Long reflectorless measuring distance reaches 1000m(R1000).
Precision Certification.

Technical Specifications

Telescope
Magnification/Resolving power	30× / 3"
Others	Objective aperture: 45mm 47mm
		Image: Erect, Field of view: 1°30', Minimum focus: 1.5m
Angle Measurement
Measuring method	Absolute encode
Minimum reading	1"
Detection method	Horizontal: Dual Vertical: Dual
Accuracy	2"
Distance Measurement
Measuring Range	5km (prism); 800m (reflectorless)
Accuracy	Reflectorless: ± (5mm + 3ppm·D)
		Reflector: ± (2mm + 2ppm·D)
Measuring time	Fine mode: <1.2S; Tracking mode: <0.3s
Display	Max: 99999999.9999m Min: 0.1mm
Uint	m/ft
Atmospheric correction	Auto correction, manual input
Atmosphericrefraction and	Auto correction, manual input
Prism constant correction	Auto correction, manual input
Vial
Plate vial	30"/2mm
Circular vial	8'/2mm
Auto Vertical Compensator
Type	Single axis Liquid-electric/Dual axis liquid-electric(optional)
Compensation range	± 3'
Accuracy	1"
Laser Plumment
Accuracy	± 0.8mm/1.5m
Laser class	II
Laser wavelength	650nm
Power supply
Type	Li-ion, Rechargeable
Voltage	DC 7.4V 3000mah
Continuous operation time	8hrs
General
Dust and water protection	IP55
Operating temperature	-20ºC to 50ºC
Size and handle	330 × 196 × 196mm
Weight with battery & tribrach	5.2kg

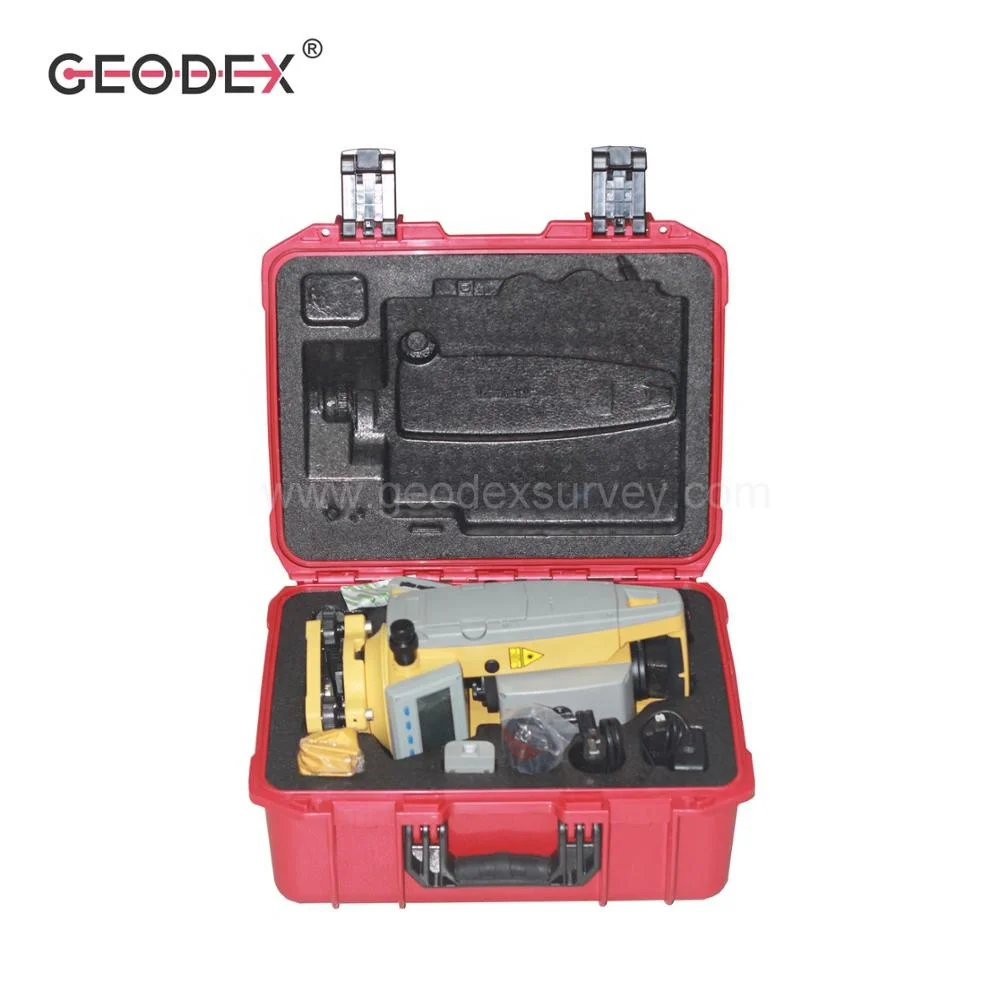

Standard Packing Componments

Main Unit	1x
Rechargeable Battery	2x
Charger	1x
Lens Cap	1x
Tool Kit	1x
Rain Cover	1x
Dryer	1x
USB Cable	1x
SD Card	1x
Reflector Sheet	1x
Shoulder Belt	2x
User Manual	1x

Optional Accessories

ATS-1

Aluminum Tripod for Mounting Total Station

TK19 Set

Single Prism Assembly as Survey Target

NSL35

Telescopic Prism Pole
