Китай гидравлическая платформа для транспортировки автомобилей подъемная ножничный автомобильный Лифт

Сохранить в закладки 60834186172:


Цена:7 600,00 $ - 8 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Display




Model
S-VRC
S-VRC-2
Lifting capacity
2,000-10,000kg
3,000kg per platform
Lifting height
2,000-13,000mm
2
Platform width
2000mm-6000mm
2000mm-6000mm
Platform width
2000mm-5000mm
2000mm-3000mm
Platform material
Diamond steel sheet (standard) / 4mm Aluminum steel sheet (optional)
Drive mode
Hydraulic cylinder
Operation
Button switch (standard) / remote controller (optional)
Power pack
5.5 kw hydraulic power pump
Lifting speed
4m/min
Safety devices
Mechanical anti-falling lock
Finishing
Powder coating with Akzo Nobel powder

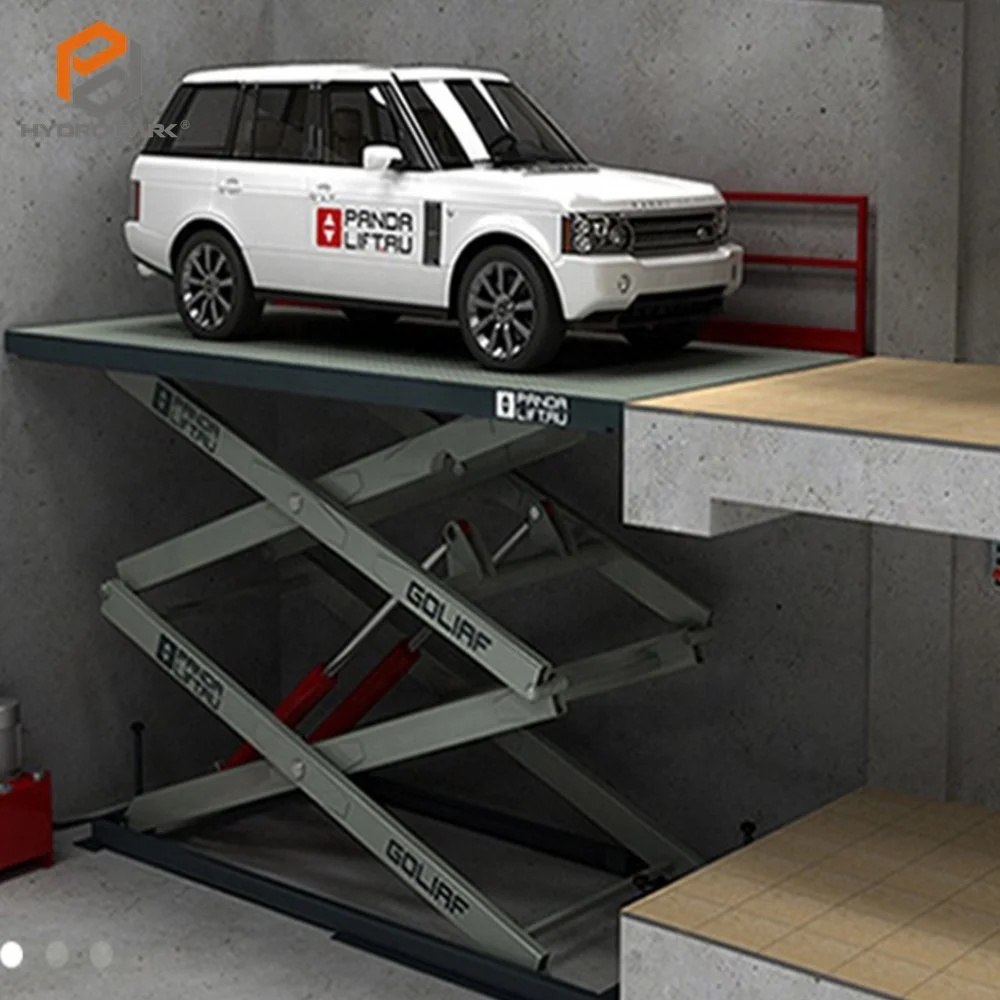

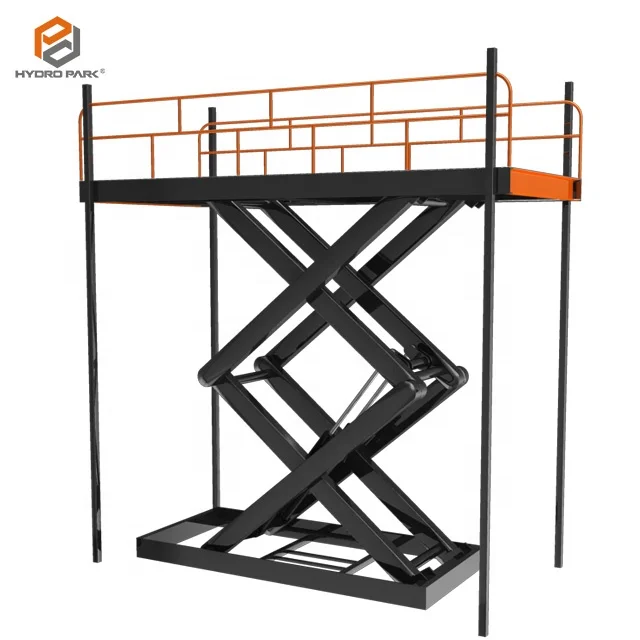

Details Images

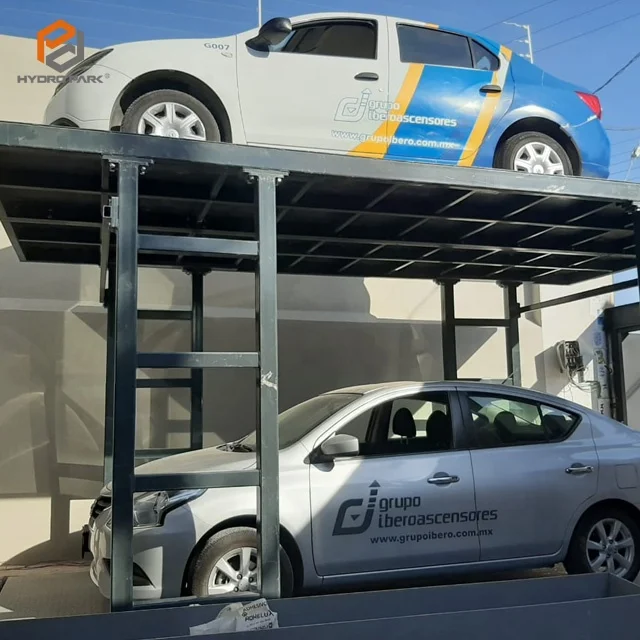

Project References
















FAQ


1. Is this product can be used indoor or outdoor?
S-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.

2. What is the pit dimensions needed for S-VRC?
The dimensions of pit depends on platform size and lifting height, our technical department will provide you the professional drawing to guide your excavation.

3. What is the surface finishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and looking.

4. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out.

5. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in your city.

6. What is the warranty?
It's five years for main structure and one year for moving parts.

7. What is the production time?
It's 30 days after prepayment and final drawing confirmed.

8. What is the shipping size? Is LCL acceptable, or it must be FCL?
As S-VRC is a fully customized product, the shipping size depends on the special secifiations you need.
As the structure of S-VRC is pre-assembled, the package will take most space of container, LCL cannot be used.
20 feet or 40 feet container is necessary as per the platform length.
