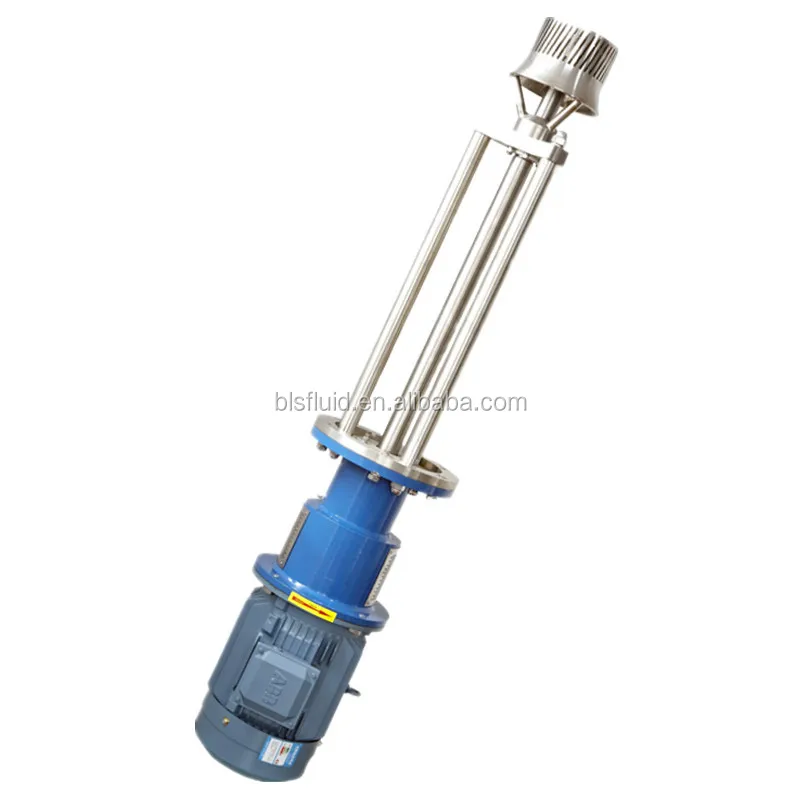

L & B BRH серийная Точная эмульгирующая роторная статорная рабочая головка из нержавеющей стали с высоким сдвигом однородный смеситель

Сохранить в закладки 60834529183:


Цена:480,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


 Product Overview:

L&B high shear batch mixer is a new products we develop and improve from foreign advanced technology, the index has reached domestic advanced level, We have imported High precision CNC machine especially the cutting high shear heads.Quality of products fully comply with the requirements of GMP Technical IS09001 certified products. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries, the overall structure is simple , small size, light weight, easy operation, low noise and smooth operation and various advantages.



Application scope:

Food industry:

Chilli sauce, sesame, fruit tea, ice cream, cream, jam, fruit juice, soybean, soybean paste, sweetened bean paste, peanut milk, SoyaMax, soymilk, dairy product, malted milk, essence, condiment and various eatables, etc;
Chemical industry:

Paint, pigment, dye, coating, lubrication oil, Octyldodecyl Neopentanoate, lubrication grease, diesel oil, petrochemical catalyst, emulsified asphalt, modified asphalt, paraffin, cementing agent, detergent, plastics, dynamite, glass fiber reinforced plastics, synthetic leather, resin, plastics, leather and emulsion explosive, etc; Commodity chemicals: Toothpaste, detergent, cream, lipstick, mildy wash, shampoo, shoe polish, senior cosmetics, shower gel, soap, coagulant, spiceand balsam, etc;
Pharmaceutics:

Various syrups, nutrient solutions, Chinese patent drugs, poultices, biological agents, cod-liver oil, pollens, royal jelly, vaccines, ointments, oral liquids, bactericides, injection, antibiotics, microcapsules and dropping liquid infusion, etc;

Building industry:

Various coatings including inner and outer wall coating,anti-corrosive and waterproof coating, ceramic coating,

multicolor finish, ceramic glaze, nano-coating and spraying, etc;
Paper manufacturing industry:

Paper pulp, cementing agent, rosin emulsifying agent, paper making additive and resin emulsion product, etc; Pesticide industry: Bactericide, seed coating formulations, herbicide, emulsifiable concentrates of pesticides, chemical fertilizer, biochemistry pesticide and biopesticide, etc;
Other industries:

Textile industry, null coal floating agent, rare earth, dispersion and depolymerization of nano materials, abstraction reaction and war industry, etc;

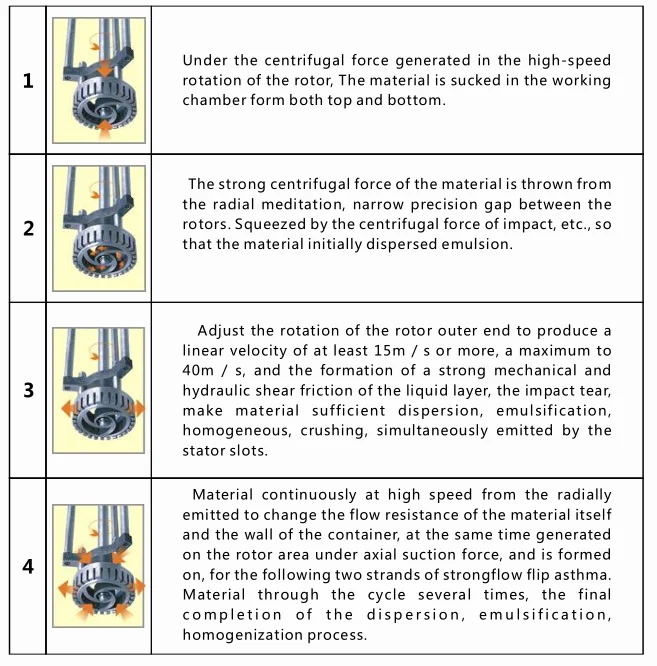

Work process of BRH mixer:


Warning! No counter rotation! No dry running! Make sure the mixing head is fully immersed in the processing material before starting !



Work principle of BRH mixer:

The BRH mixer is efficient, fast and evenly mix the material with one-phase or multiple-phase to another. In normal condition, the respective phases are mutually insoluble. By strong shearing force of the BRH mixer. The insoluble solid, liquid, gas, were emulsified, after a cycle of high frequency circulation, it result in stable high-quality products.



Treatment process of BRH mixer:

Mixing
Syrup, shampoo, washing liquid, juice concentrate, yogurt, desserts, mixing
of dairy products, inks, enamels.
Dispersive mixing
Methyl cellulose was dissolved, gelatinous body is dissolved, carbides dissolved, the oil-water emulsion, pre-mixed seasonings production, the stabilizer was dissolved, soot, salt, aluminum, pesticides,.
Dispersion

Suspension, pill coating, drug depolymerization, coating dispersion, lipstick, vegetable soup, mustard mixture, the catalyst, matting agents, metals, pigments, modified bitumen, Nanomaterials reconciliation poly.
Emulsification
The drug emulsion, ointment, cream, mask, cream, emulsified flavor, oil-water emulsions, emulsified asphalt, resin emulsion, wax emulsion, water-based polyurethane emulsion, pesticides.
Homogeneous
The drug emulsion, ointment, cream, mask, cream, tissue homogenates, dairy homogenizer, juice, printing ink, jam.



Technical Parameters


Name

L&B stainless steel batch high shear mixer/homogenizer

Logo

L&B(Can be Designed)

Contact Material

SS304 or 316L(SS316L has a stronger corrosion resistant function)

Voltage

Can be designed(e.g. 220Volt, 50HZ, 3Phase)

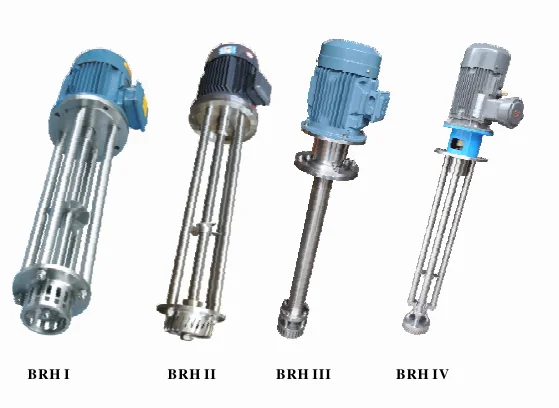

Model

BRH Series

Capacity

5-10000Litres

Motor Power

1.5-75KW

Motor Speed

2800RPM

Dimension

Customized

Application

Food Industry, Chemical Industry, Pharmaceutics, etc

Custom Order

Accept

Minimum Order Quantity

1 pieces

Supply Ability

100pieces per month

Term

EXW, FOB , CIF, etc

Packaging

Plywood Packaging

Leading Time

Within 7-10 days after received the payment

Payment

50% T/T advance

Warranty

12 Months

Certification

CE, ISO Certificate

Warning

No Counter Rotation! No dry running!



ModelPower(kw)Speed(rpm)Length(mm)Handing Capacity(L/H)
BRH-801.1280035010-40
BRH-901.5280035010-50
BRH-1002.2280065050-100
BRH-12032800750100-200
BRH-120A42800750100-300
BRH-1405.52800900200-600
BRH-140A7.52800900200-800
BRH-1601128001050500-1500
BRH-18018.528001200600-2000
BRH-2002214001200800-2500
BRH-22030140013551000-3500
BRH-24045140013951500-5000
BRH-27055140016002000-8000
BRH-29075140016503000-10000

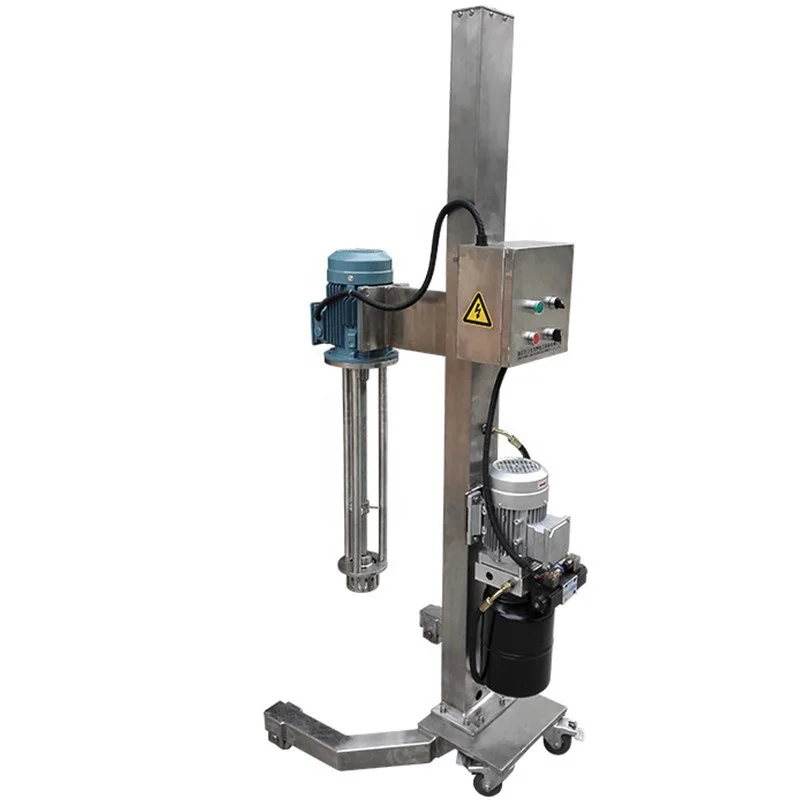

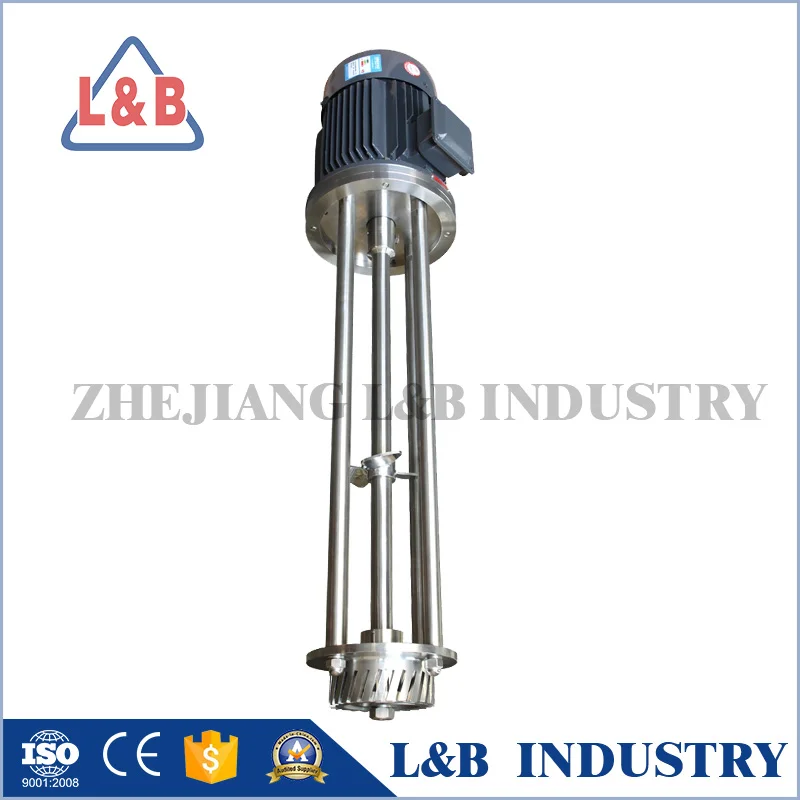

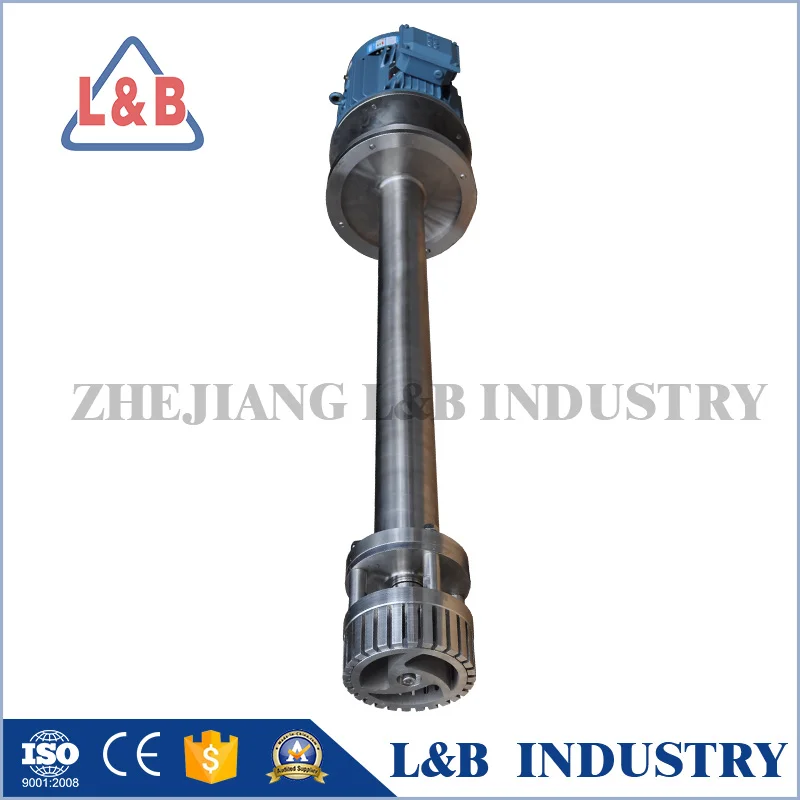

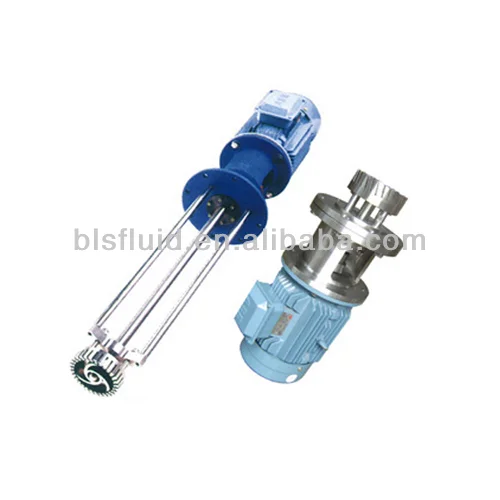

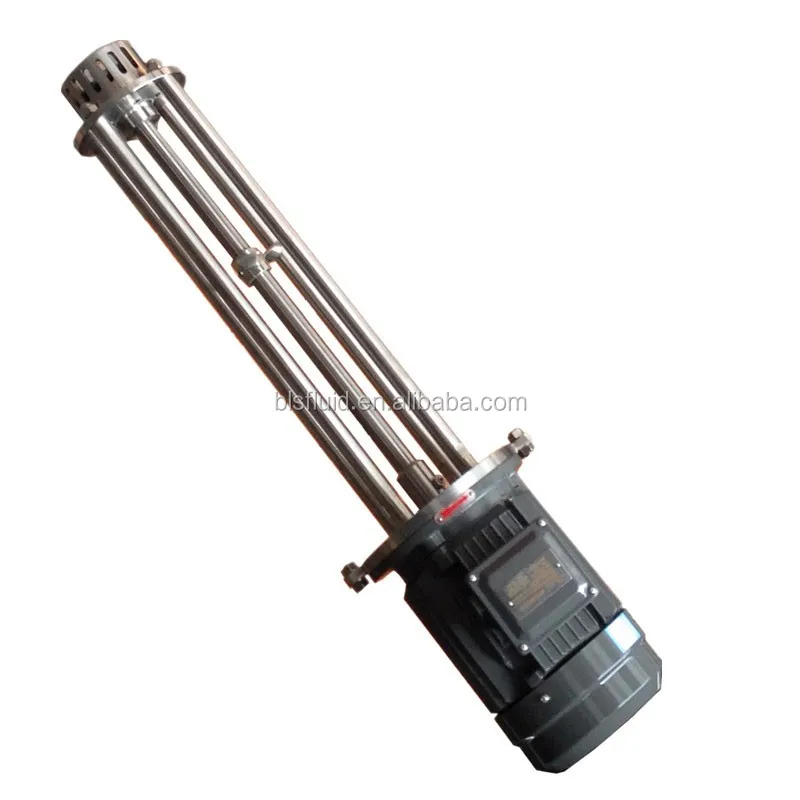

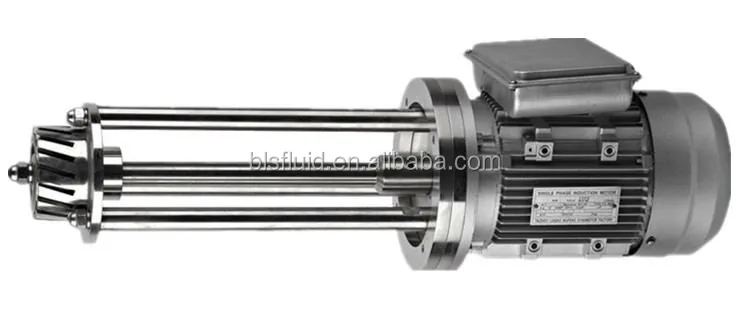

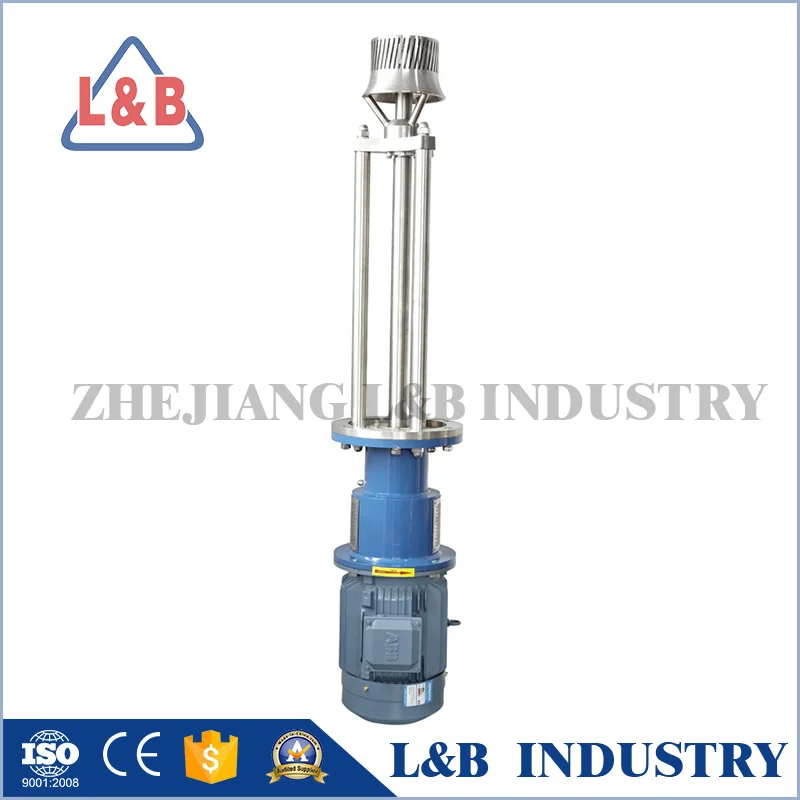

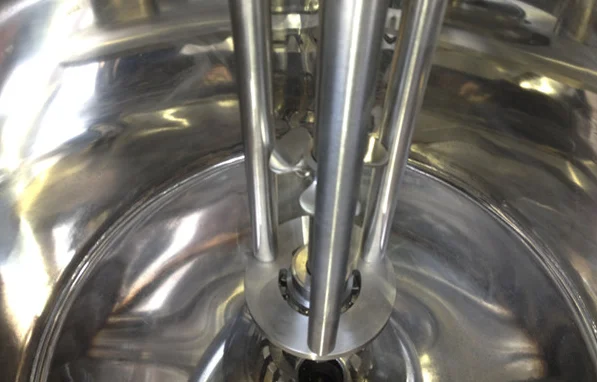

Product Photos










Packaging & Shipping





Certifications

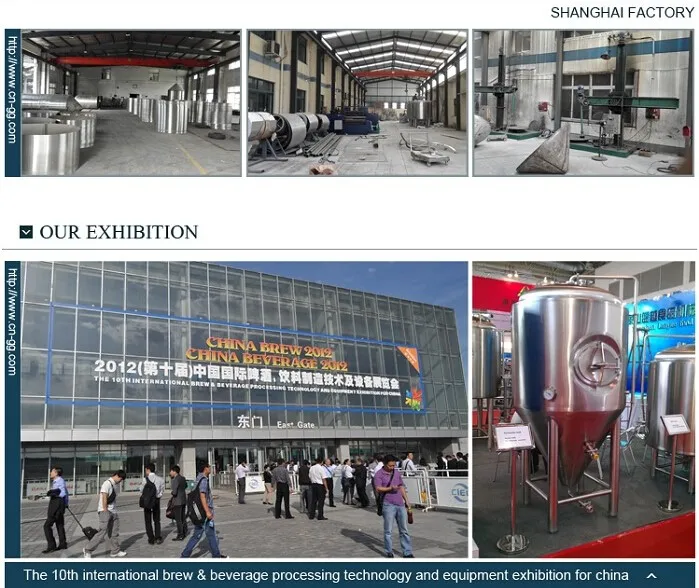

Company Information

 QQ20181015110712







Our Services



Why Choose Us

  1. We are direct factory which could offer you the best price and guarantee the quality.

  2. Strict QC inspection in every step of production.

  3. Over 20 years experience.

  4. Custom the product based on your requirement, also professional advice can be offered.

  5. Thoughtful Pre-sale/Selling/After-sale service, any questions or feedback will get active response!
