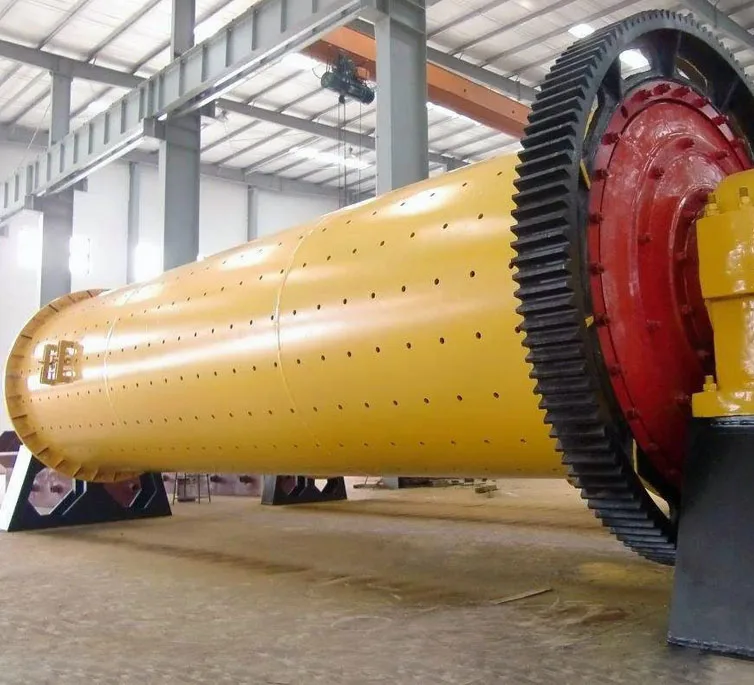

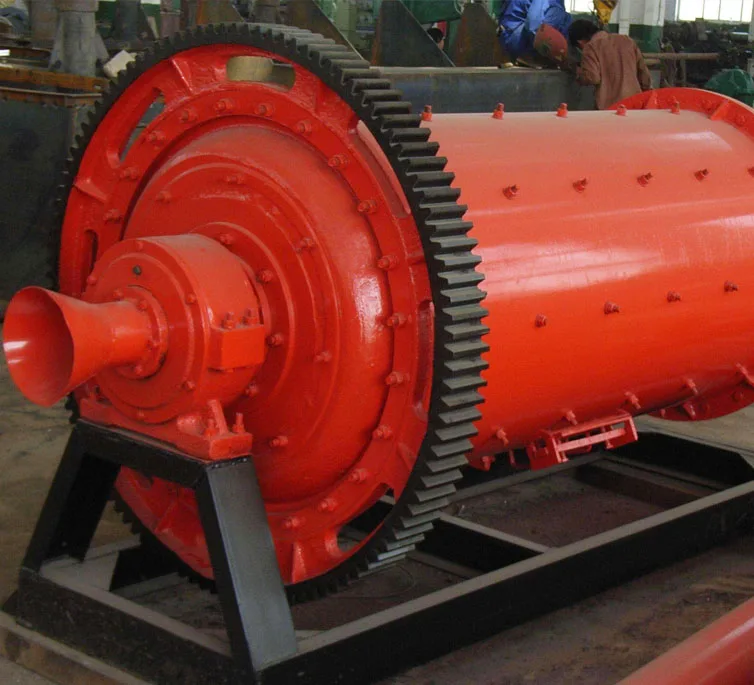

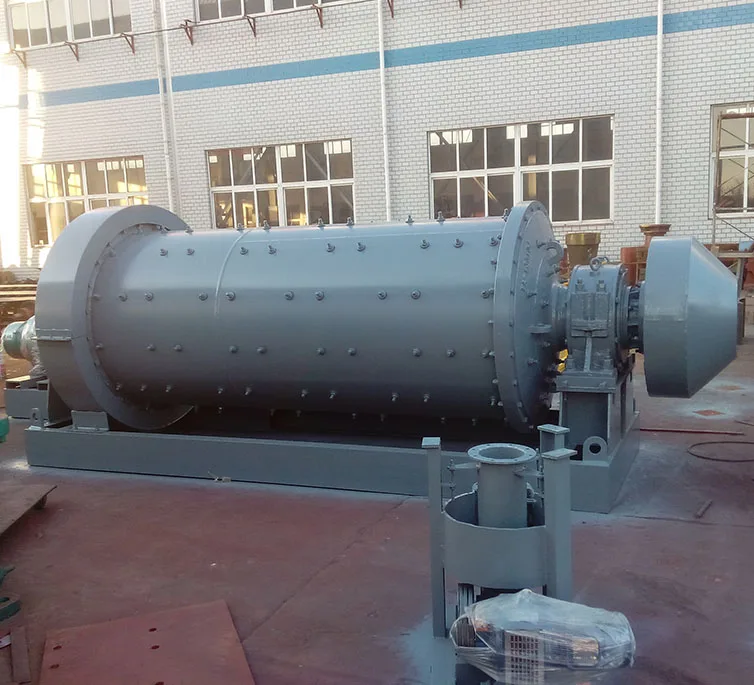

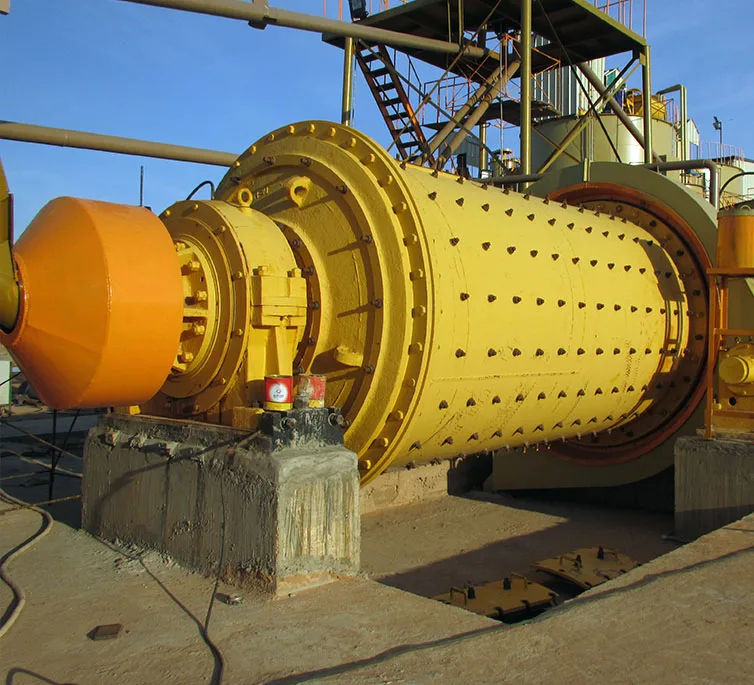

Шаровая мельница JinPeng для мокрого типа шлифовки золотой руды

Описание и отзывы

Характеристики

Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.

24-hour free hotline:+86-01056052822    Technology consulting:+86-13381157789

Gold mining high efficiency ball mill sold to more than 30 countries

 Mill is essential and widely used equipment for raw material crushing. Its main component is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded.

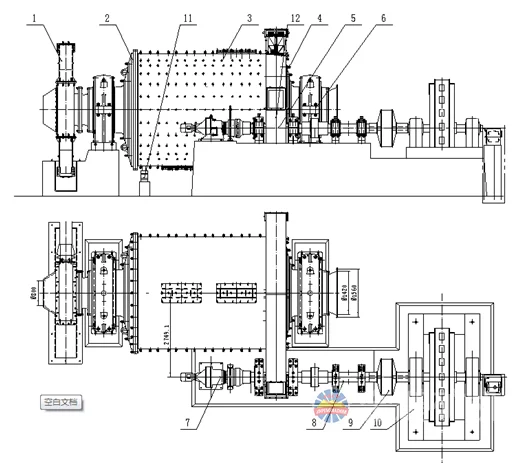

Structure

1.Joint feeder  2. feed inlet  3. Barrel  4. discharge hole  5. Power Train  6. Bearing  7. Slow speed transmission device   8. intermediate shaft  9. air clutch  10. electric motor  11. jack system  12. Spray lubricating device

working principle

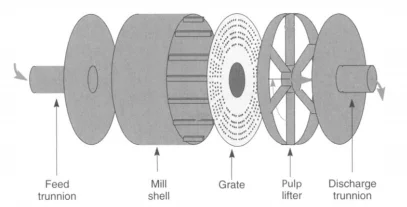

Its main component is a cylinder with bigger diameter and smaller length which can revolve via the transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded, because the falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. Acceptable ore particles are carried away by water by wet mill, or by air by dry mill. The discharge opening is equipped with a discharge grate, and the ore pulp horizon of discharge opening is low. These two factors prevent ores from being overly grinded, and iron balls from being dismissed. Under same circumstance, the processing capacity of energy-saving grate ball mill is bigger. Rolling bearings contribute enormous energy saving.

Characteristic

1. The transmission machinery of Energy-saving grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%.

2. Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.

3. Energy-saving grate ball mill adopts whole milling house, which makes it easy for construction and installation.

4. Energy-saving grate ball mill has bigger discharge opening and huge processing capacity.

5. Energy-saving grate ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

Technical parameters

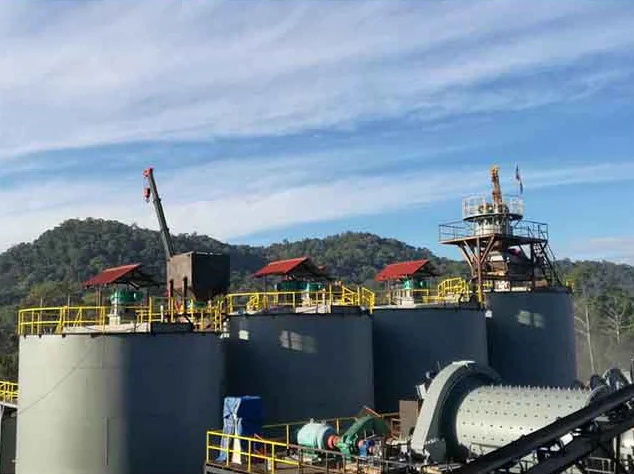

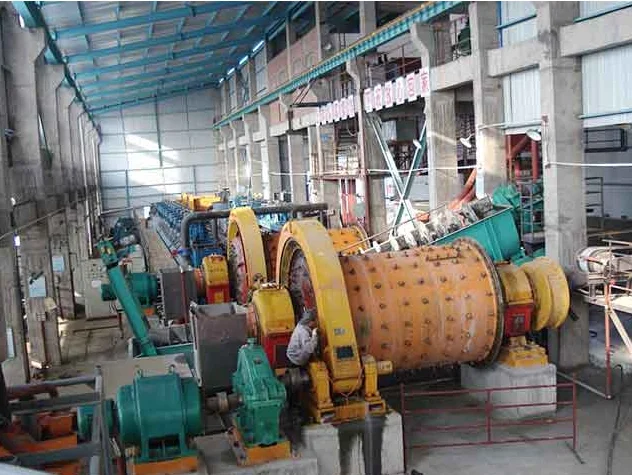

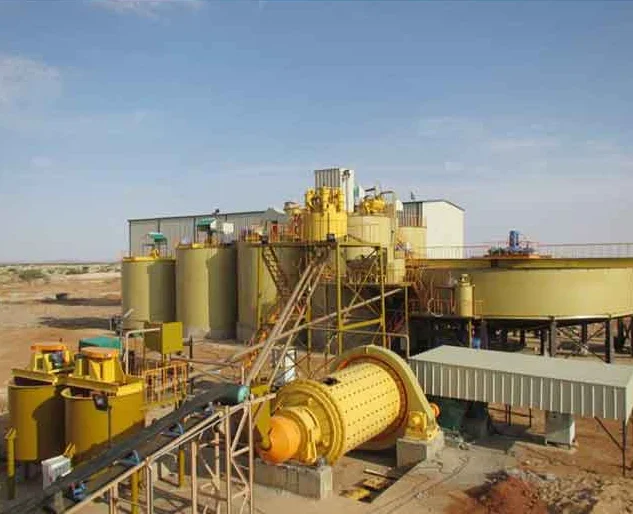

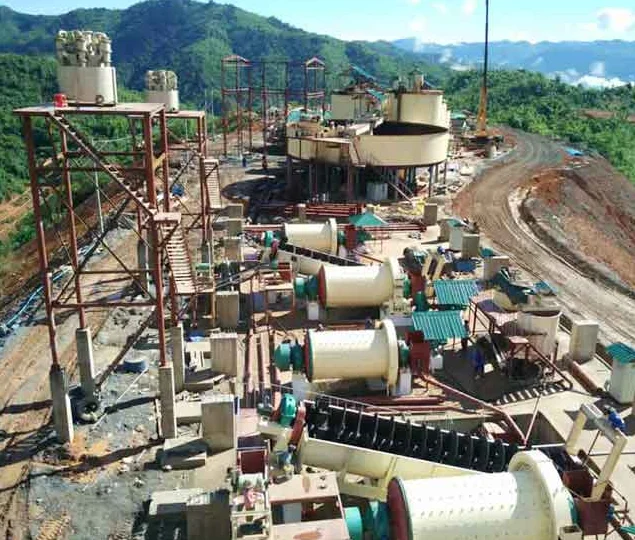

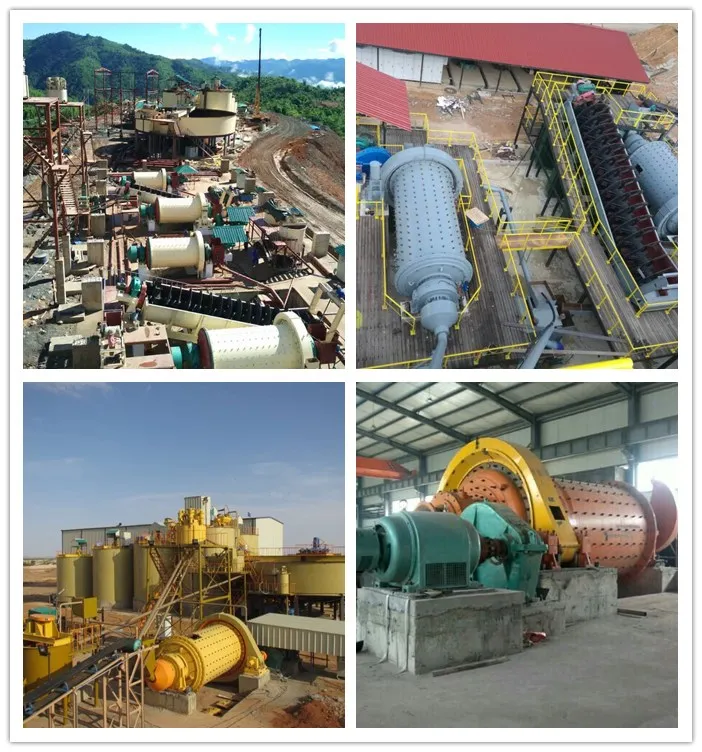

  Work onsite

Customers around the world

Welcome to visit our lab, design institute and factory!
