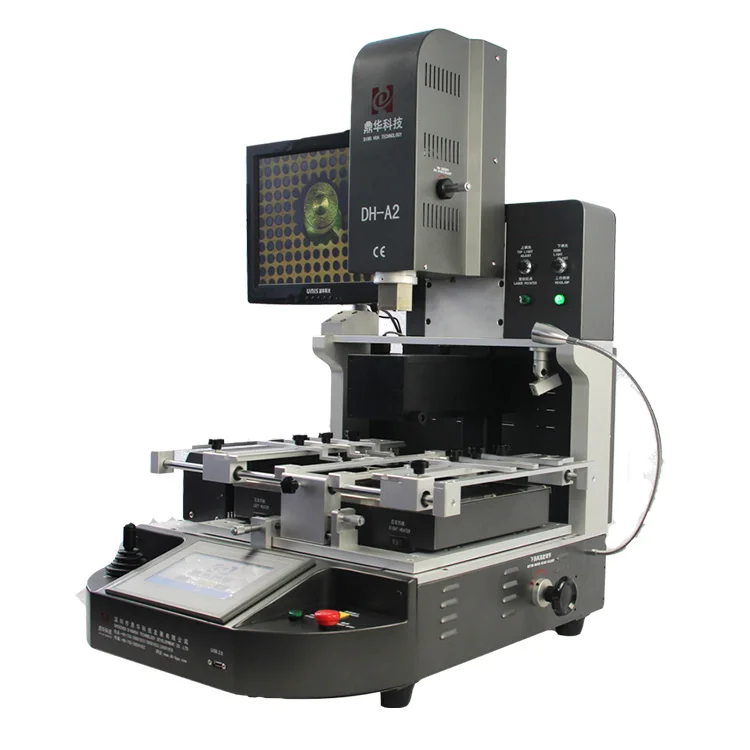

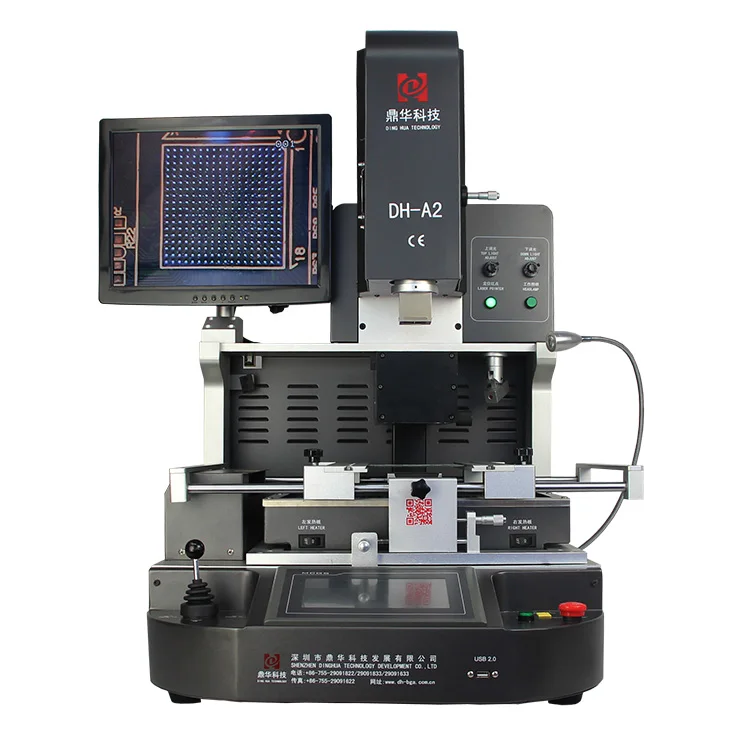

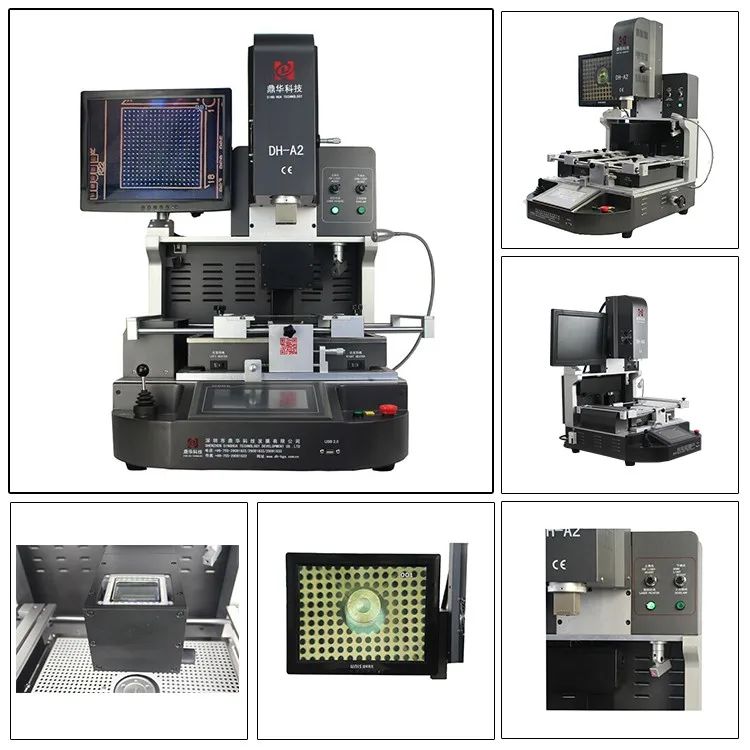

Популярный мобильный телефон керамические инфракрасные pcb подогреватель BGA паяльная станция для телефона 5s материнская плата

Smart PC(Brains of machine)

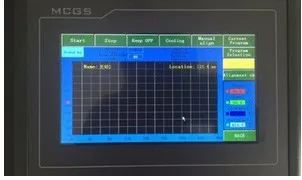

Name: 7'' High definition touch screen

Brand: MAGS

1.PLC system,human-machine interface with Touch screen for easy operation and high accuracy rework.
2.Manage the temperature profiles:setting,storage,application,analysis,debug.Up to 16-segments temperature control,100,000 groups storage for different BGA's rework temperature profile.
3.Control the machine.

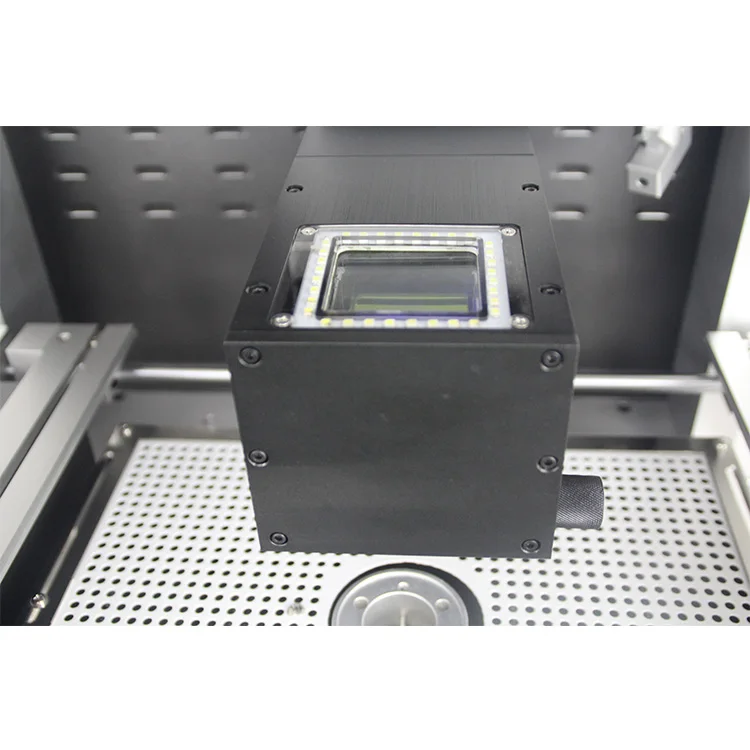

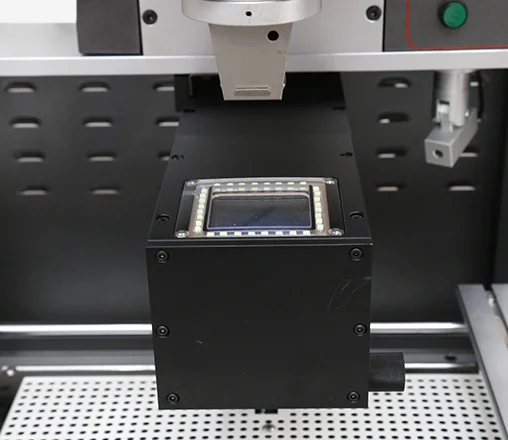

Optical Alignment

Name:CCD Camera Lens
Brand:Panassonic
Origin:Japan
1.Effectively increase the accuracy of alignment and success rate of repairing.
2.Image dispayed on monitor screen.

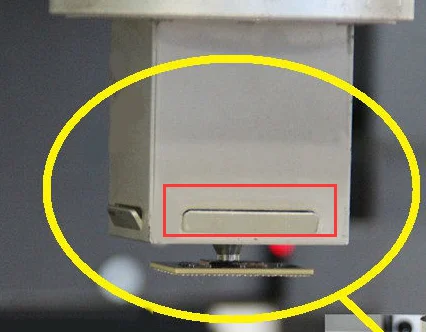

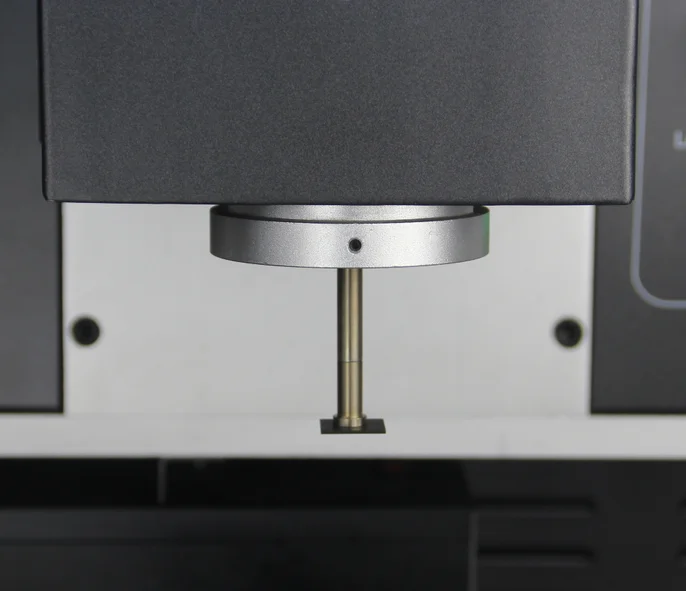

1.Mounting head with built-in pressure testing device, to protect the PCB from being crushed.

2.Build-in vacuum in mounting head pick up BGA chip automatically after desoldering completed.

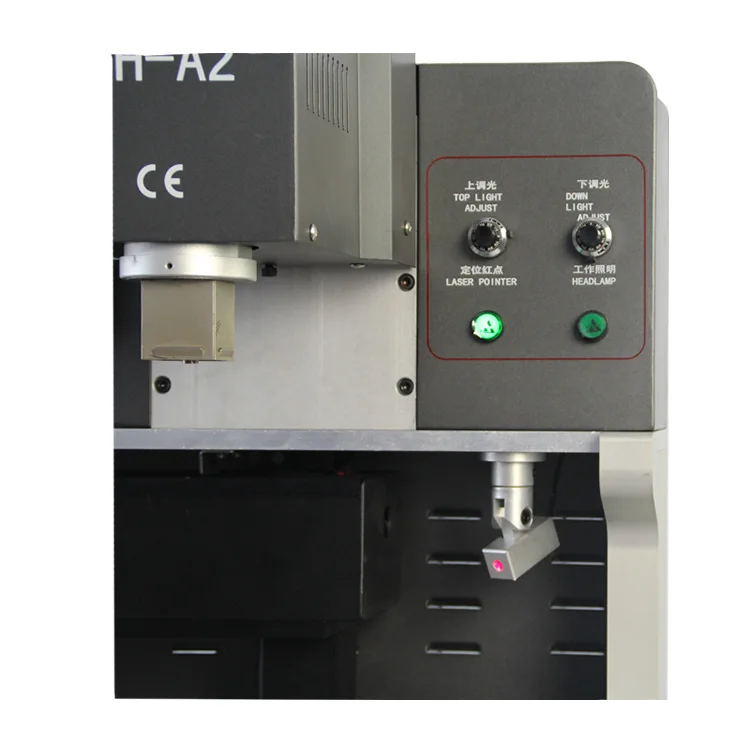

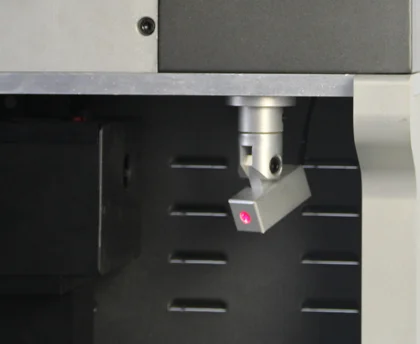

Built-in infrared laser positioning, help fast positioning for PCB board.

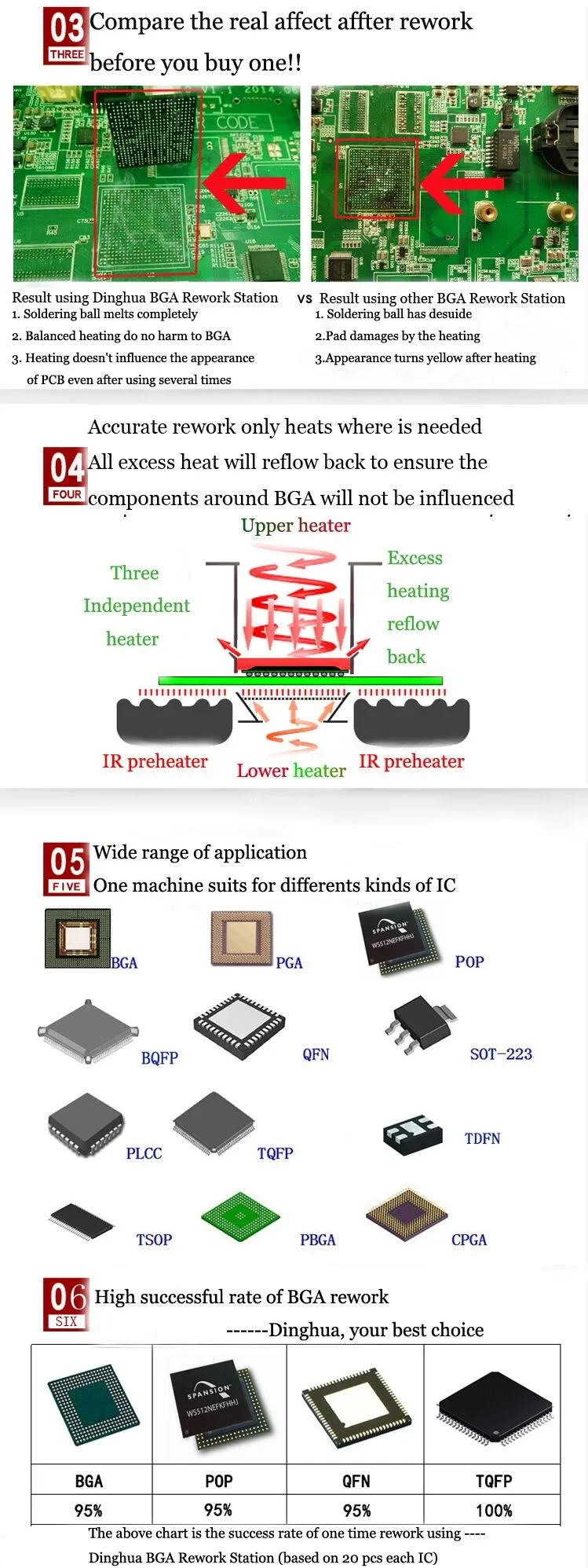

Three independent Heaters(3 Temp Zones)

1.Top Hot Air +Bottom Hot Air+Infrared preheating platform.The top and bottom can be moved upward/downward.

2.Make heating focusd and even.Effectively increase rework rate.

Manual & Automatic Mode

1.Manual:Joystic (①to right/left----camera images zoom in/out.② up/down ----top heater up/down)

2.Just press one botton to start soldering/desoldering/mounting process.

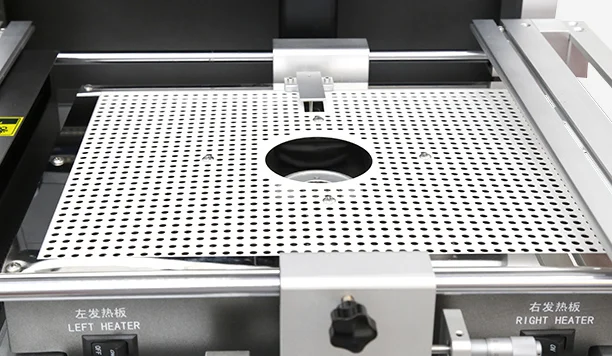

Plus size infrared preheating zone, covered with steel mesh

Nozzel with reflow vent.

1.All the nozzles are made of anti-rust Titanium alloy.

2.Top nozzle has reflow vent to prevent the damage to surroudingcomponents.

3.Magnetic nozzle.Easy to install/adjust/change.

Temperature control

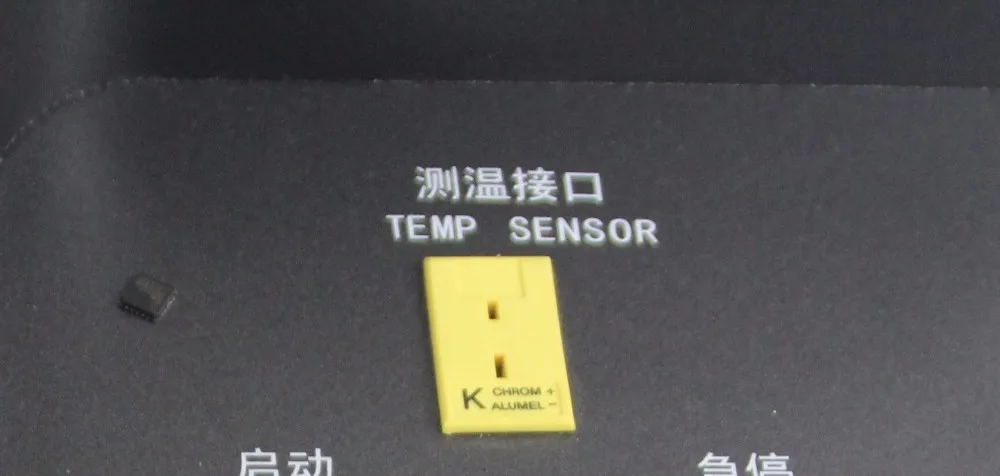

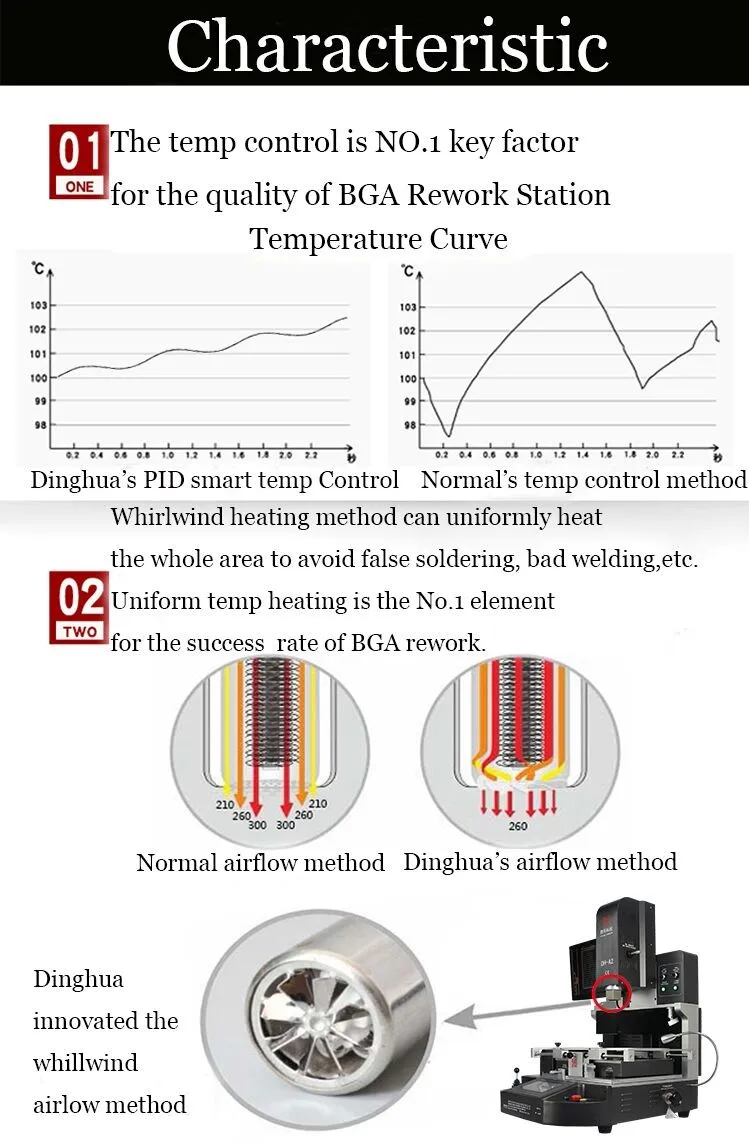

1.K-type thermocouple + closed loop + PID auto temperature compensation make temperature accuracy within 1º Celsius.

2.Effectively increase success rate of rework.
