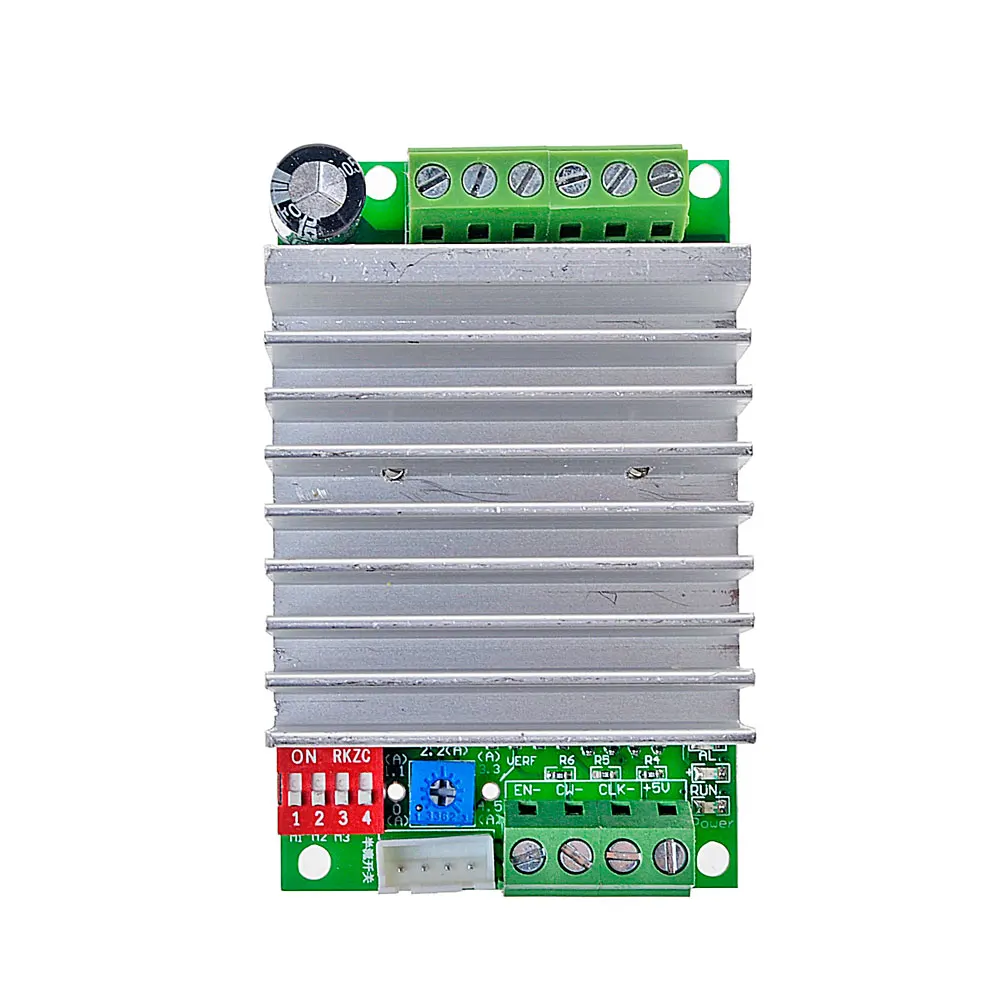

TB6600 4 5a Драйвер шагового двигателя плата драйвера одноосевой контроллер

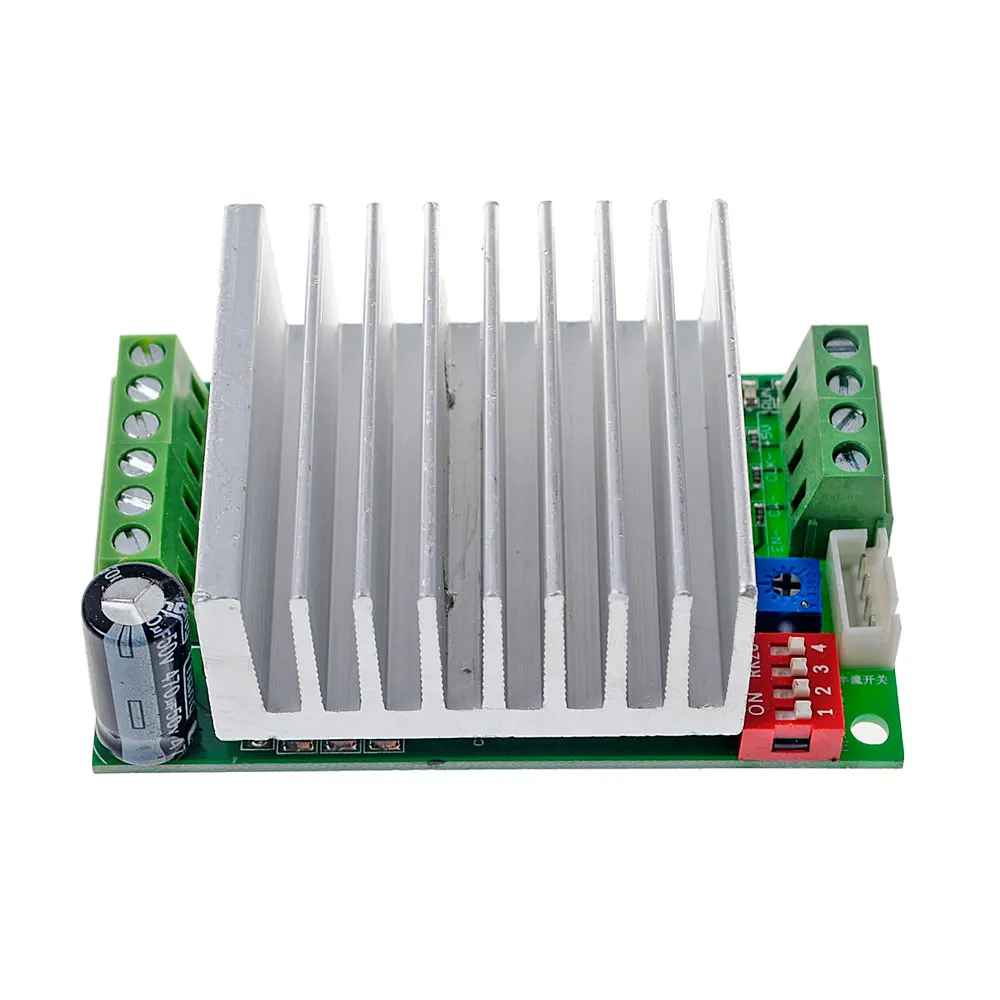

TB6600 4.5A Stepper Motor Driver Stepper Motor Driver Board Single Axis Controller

• Description:
• 1) Working voltage DC 10V-45V. It is recommended to use the switching power supply DC32V for power supply.
• 2) Adopt 6N137 high-speed diaphragm to ensure high speed without losing step.
• 3) Adopting Toshiba's new high-current, high-voltage TB6600HG brand new original chip, which has low-voltage shutdown, over-temperature shutdown and over-current protection circuit, and increased short-circuit protection compared to TB6560.
• 4) The rated maximum output reaches: ±4.5A.
• 5) For 42, 57, 86 two-phase / four-phase / four-wire / six-wire stepper motors within 4.2A.
• 6) Automatic semi-flow function.
• 7) Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivision.

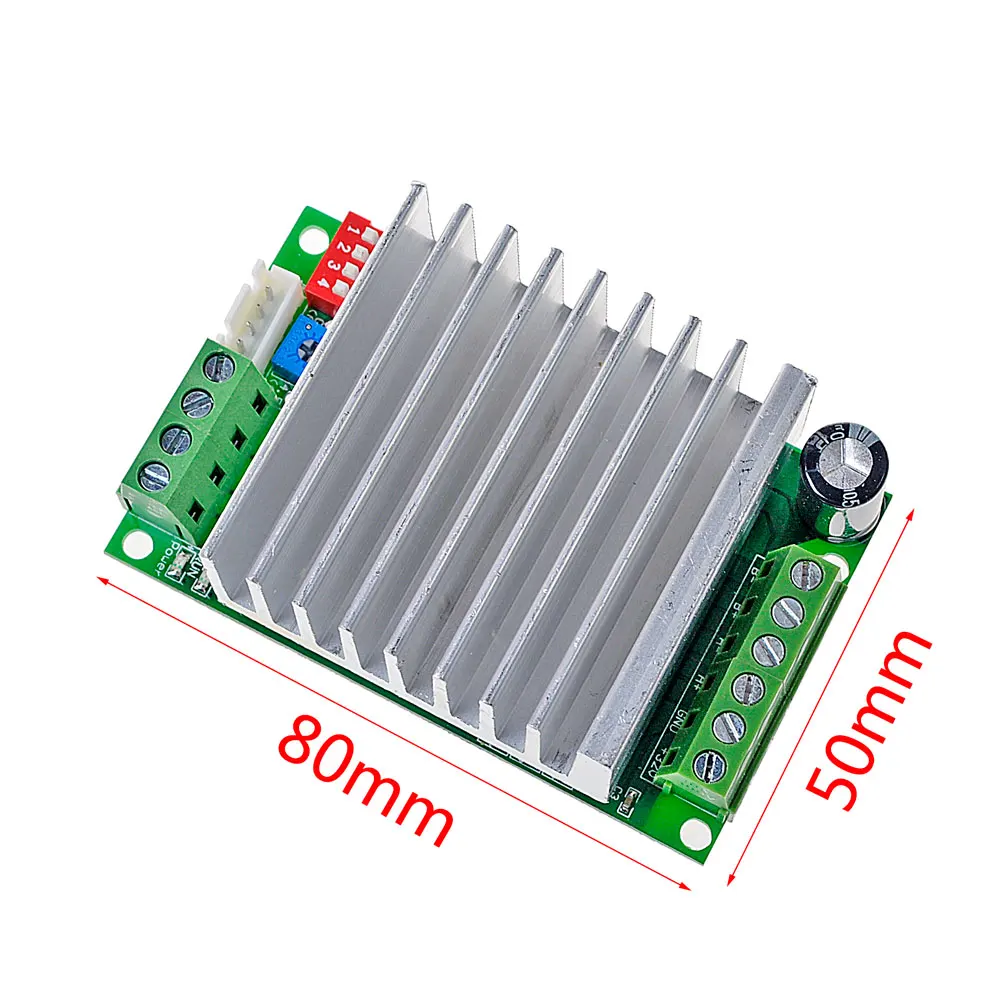

• 8) Volume: width 50* length 82* height 35 (MM)

• Feature of product:
• 1, the output current is steplessly adjustable to meet your various application needs.
• 2, automatic semi-flow function. It also has an automatic semi-flow switch for easy use.
• 3, using 6N137 high-speed diaphragm, to ensure high speed without losing step.

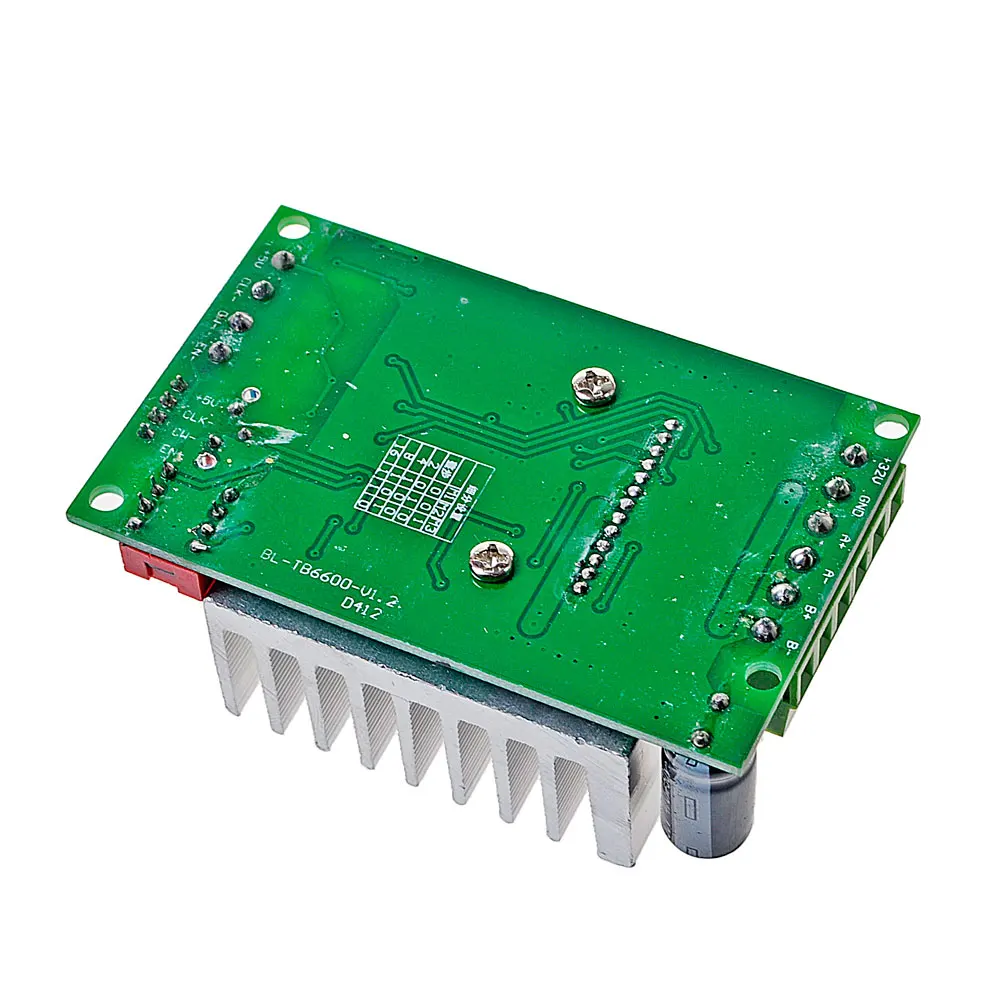

• 4. The back of the board is printed with a description of the subdivision settings.

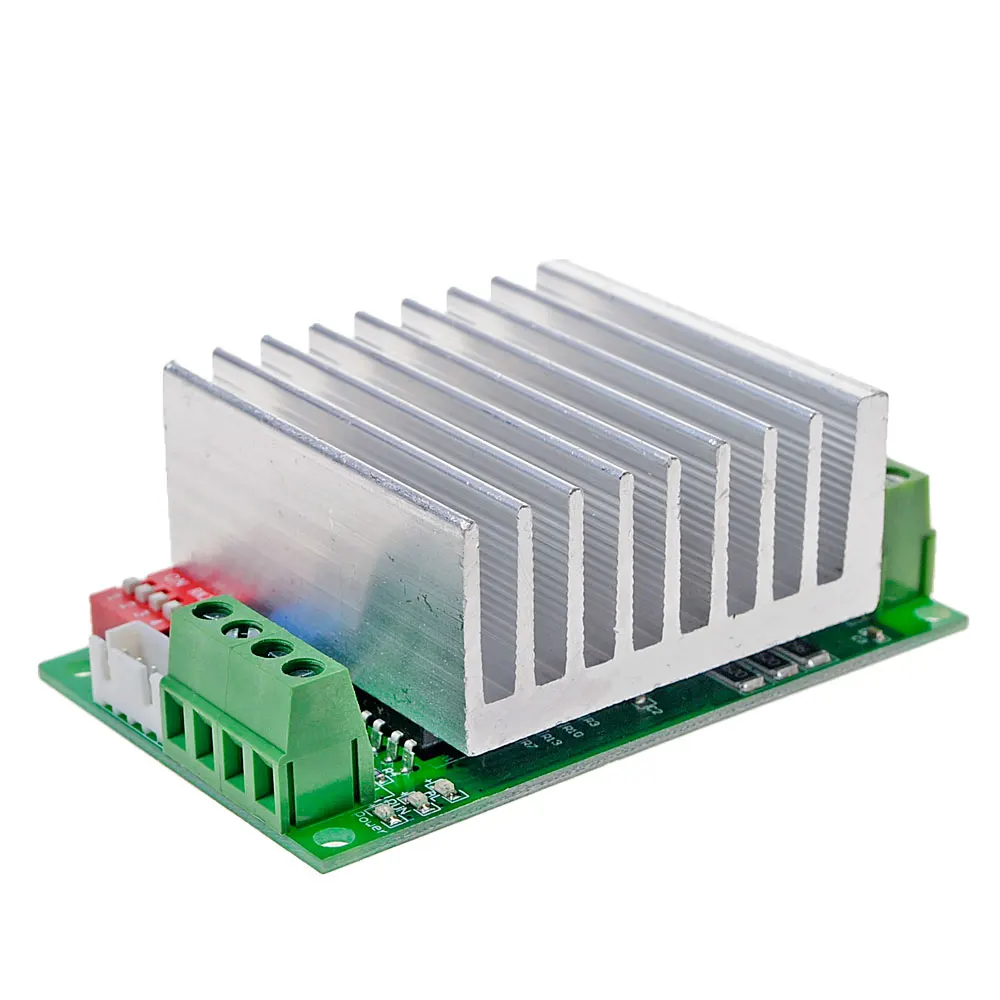

• 5, the use of increased heat sink, good heat dissipation.
• 6, with output short circuit protection, use worry-free.
• 7, using the common input method, there are two kinds of input terminals, wiring is more convenient. 1) Working voltage DC 10V-45V. It is recommended to use the switching power supply DC32V for power supply.

• Package Included:

• 1× TB6600 4.5A Stepper Motor Driver
