Product Description
OVERVIEWS

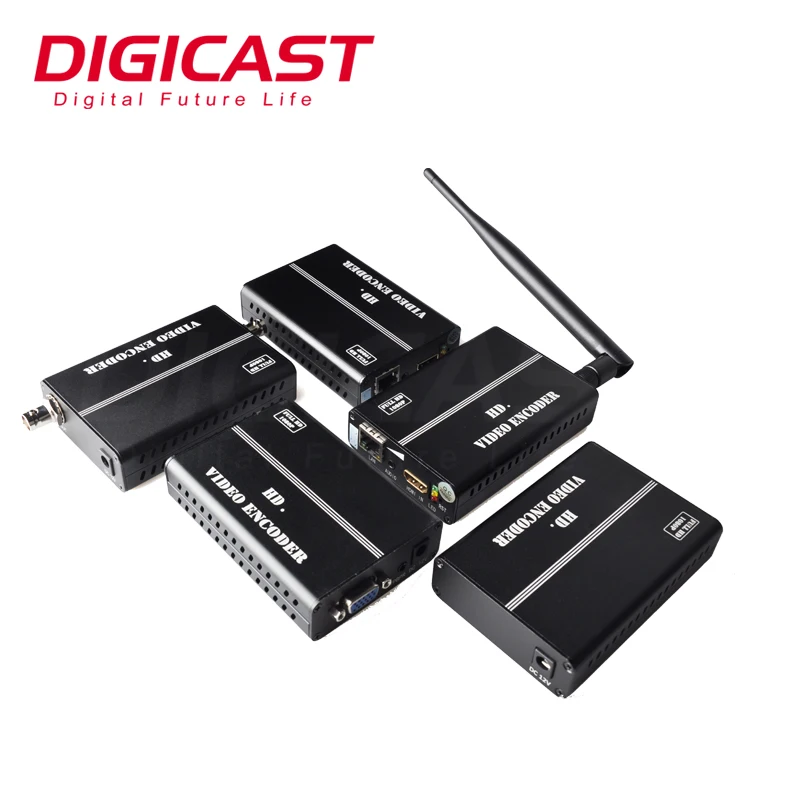

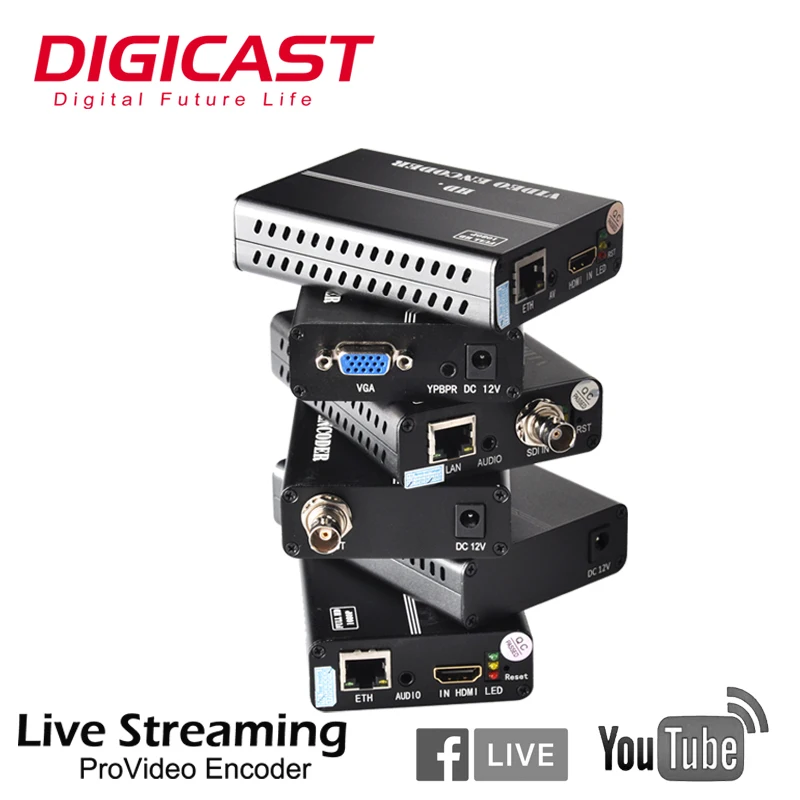

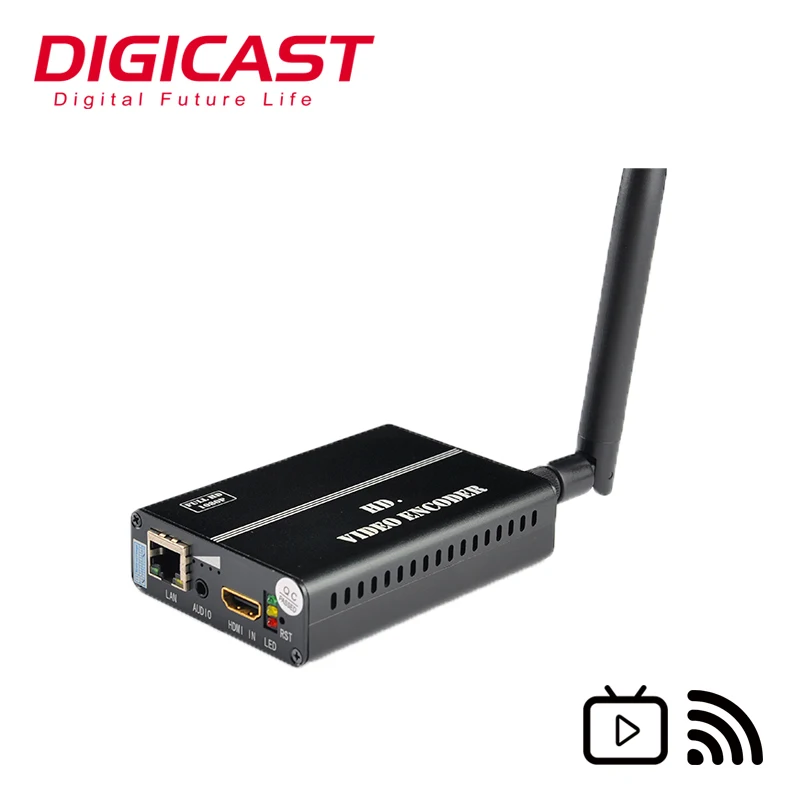

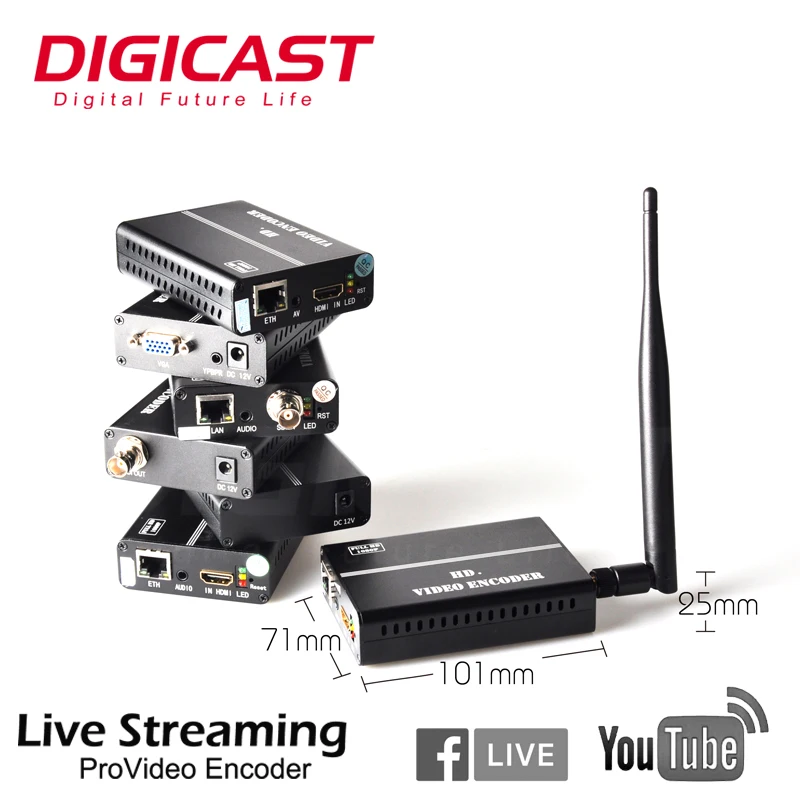

DMB-8800N/8900N Nano Real-Time IPTV Streaming Encoder (with built-in chargeable battery & WIFI as option) features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC and H.265/HEVC (Option), which realizes its resolution to be up to 1080P.
With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.
Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized. It can be applied to education, health care, IPTV & OTT,conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
FEATURES
◇Abundant inputs for option:SDI,Full HD ,CVBS,YPbPr,VGA
◆Up to 1080P@50/60fps with 4 TS over IP stream out
◇Support up to H.265 Main Profile/ High Profile and MP3 & AAC audio compression
◆Bitrate mode: CBR / VBR
◇Capable of image parameter settings
◆Switchable of audio output mode: Left, right and Stereo
◇Configurable of Multi-rate, Multi-resolution, Multi-protocol
◆Providing RTSP / HTTP / UDP,RTMP and HLS(m3u8) protocol
◇Support HDCP protocol
◆Any iOS browsers(iphone, ipad, MacBook etc) are able to have
streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
protocol without install any software players.
◇IPTV Streaming Server IP Video Cable TV Digital Encoder Full HD Encoder H.264 IPTV Encoder IPTV
◆Up to 1080P@50/60fps with 4 TS over IP stream out
◇Support up to H.265 Main Profile/ High Profile and MP3 & AAC audio compression
◆Bitrate mode: CBR / VBR
◇Capable of image parameter settings
◆Switchable of audio output mode: Left, right and Stereo
◇Configurable of Multi-rate, Multi-resolution, Multi-protocol
◆Providing RTSP / HTTP / UDP,RTMP and HLS(m3u8) protocol
◇Support HDCP protocol
◆Any iOS browsers(iphone, ipad, MacBook etc) are able to have
streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
protocol without install any software players.
◇IPTV Streaming Server IP Video Cable TV Digital Encoder Full HD Encoder H.264 IPTV Encoder IPTV
◇Any terminal devices/decoders are able to have streams from IPTV
Streaming Encoder directly by RTMP protocol with software players(such as VLC)◆Support ONVIF Network Video Protocol
◇Providing user name, password matching function which required
from destination server
◆Support multiple equipments display at the same time on a computer
◇System supports WINDOWS XP / VISTA / SERVER2003 /
SERVER2008 / WIN7 32 and WIN7 64, LINUX
◆Web-based management
◇Full-duplex mode 1000M
◆Insertable of logo and Scroll Caption; Adjustable of audio gain
◇Support WIFI function with built-in chargeable battery for running up to
5 hours.
(The specific working time would be depended by the settings).
SPECIFICATIONS | ||

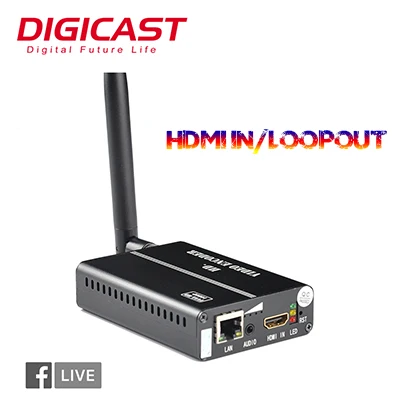

VIDEO SPECIFICATIONS: | Video compression: H.265/HEVC/H.264/AVC High Profile Level 4.0 Video inputs: 1*HDMI in/loopout+3.5mm Analog video input mode: PAL,NTSC | |
AUDIO SPECIFICATIONS: | Audio compression: AAC, MP3 Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate:48000,64000,96000,128000,160000,192000,256000 Re-sample:32000,44100 | |
OUTPUTS: | Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol For Full HD to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) Connector: RJ45, 1000M | |
GENERAL OPTIONS | ||
Resolution Full HD main stream: | 1920x1080,1680x1056,1280x720,1024x576,850x480, 720x576,720x540,720x480,720x404,704x576,640x480, 640x360,auto Full HD sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404, 704x576,640x480,640x300,352X288,320X240,320X180, auto Bit-rate: 16kbps ~ 12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering | |
GENERAL OPTIONS SYSTEM: | Configuration Interface: Web-based management. Upgraded: via networkConnector: RJ45, 1000M Ethernet interface. PHYSICAL AND POWER Voltage: AC220V±10%, 50/60 Hz Consumption: 80W Operating temperature: -20~80°C Dimensions: 250mm(W)*250mm(D)*80mm(H) Weight: 0.8kg/pc | |
Application

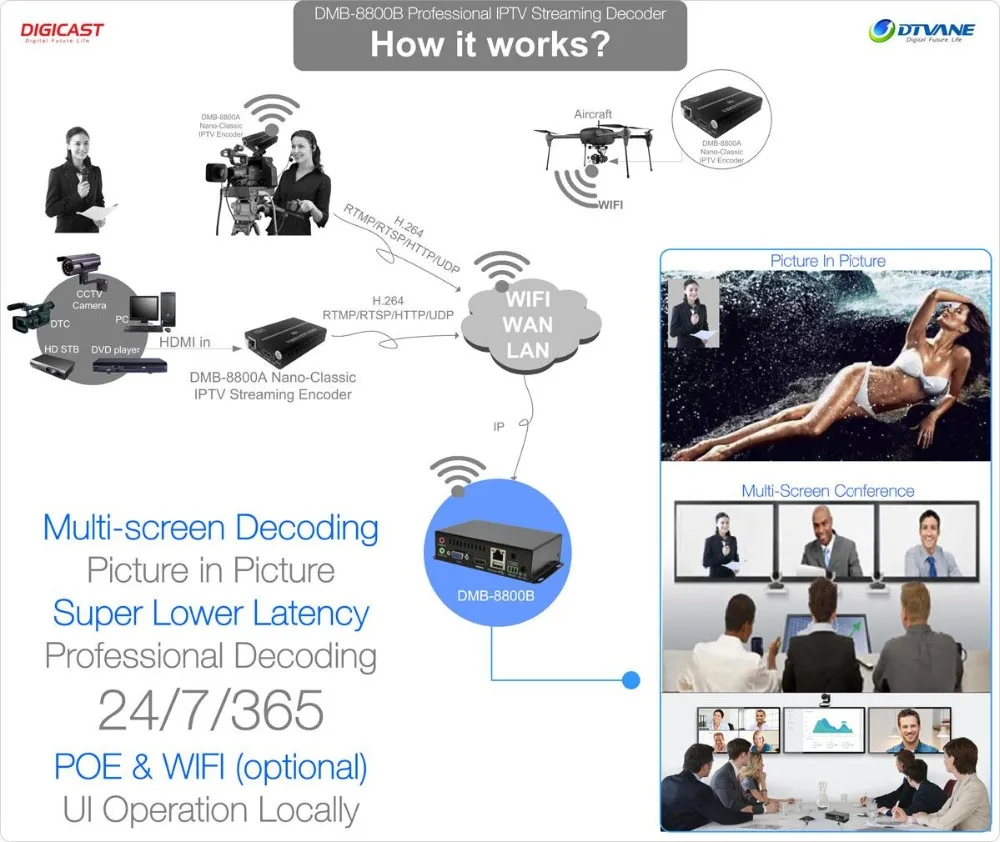

LIVE APPLICATION

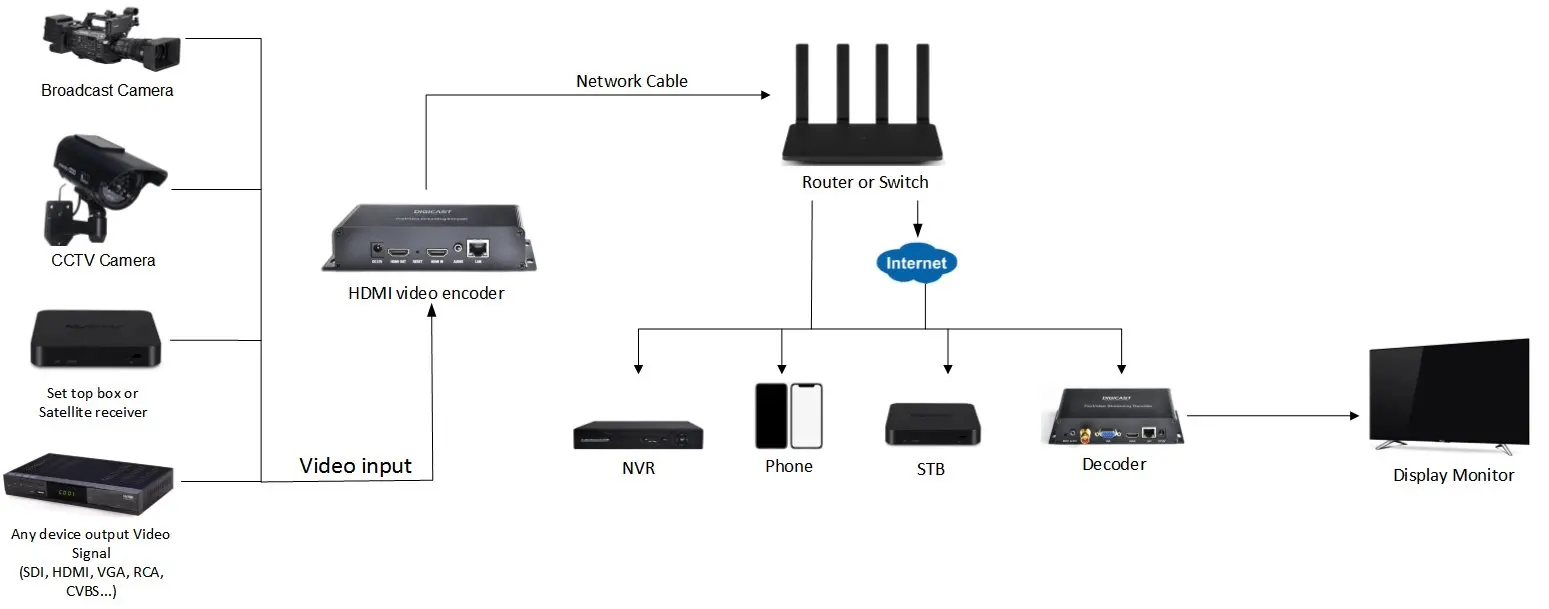

ideal for broadcast of audio/video or live streaming to Live Platform : YouTube Live, Facebook Live......or icould server
APPLICATION IN CCTV, Live Conference

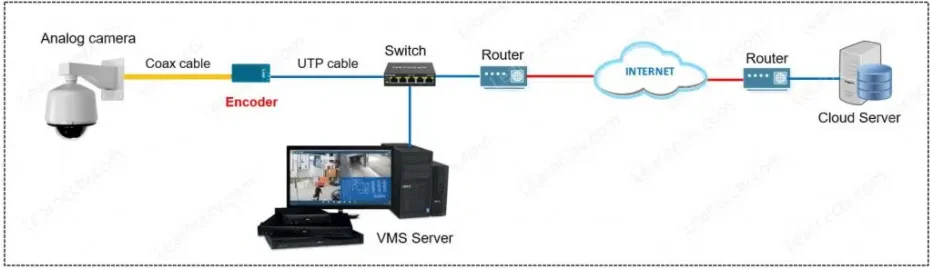

Our video encoders can help you migrate a traditional analog/digital camera into a modern IP system and use digital reocorders such as NVRs(network video recorder) and VMSs(video management system)
Our encoder support SRT,ONVIF for Surveillance, transmission between cameras
Live Conference
Related Product
DMB-8900BE Decoder
DIGICAST Encoder +Decoder set use for point to Point video conference application
DMB-8900A-EC VIdeo to IP Encoder
DMB-8900BE IP to Video Decoder
Ultra Low latency solution

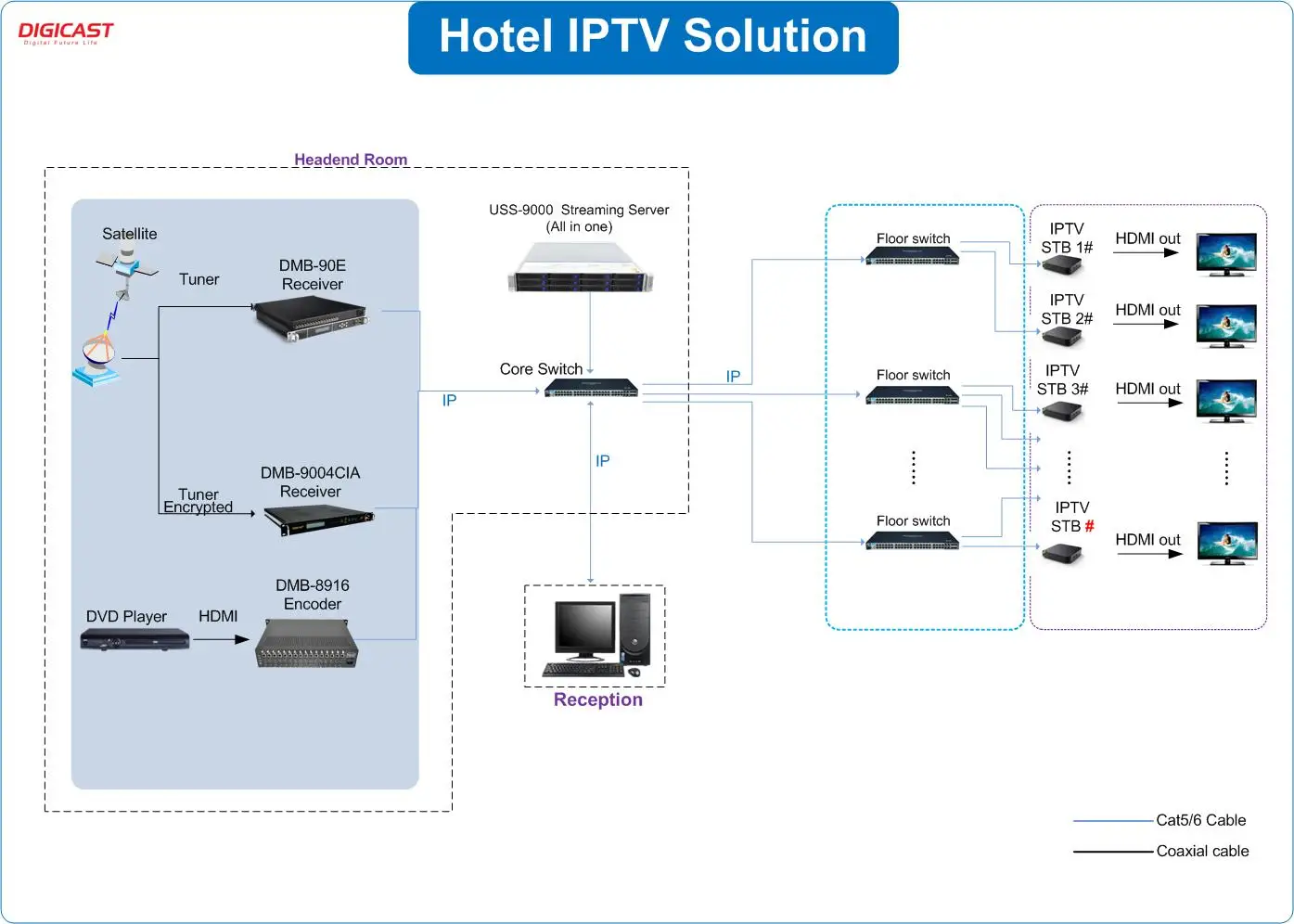

IPTV/OTT Headend System Solution
Our IPTV encoder series widely used for IPTV/OTT solution for Hotel, community, hospital, GYM,Bar,Resort,Vessel .....all application need watch the video on screens
IPTV encoder as the headend devices ,encoding and compression the HDMI/SDI/VGA/CVBS signal and transmission the video source by IP to USS-9000 ,ISS-9000 Streaming Server , terminals receiving the programs by the android set top box which built-in our IPTV APK .
Related products in IPTV Solution
Pls contact with our sales for customize a solution according your project details !
DMB-90E FTA Tuner to IP Gateway
Input: FTA max 24 Tuners +IP+2*ASI
Output:4*MPTS+512*SPTS+2*ASI
Highlights:
Input can be mixed input: Tuner+HDMI+CVBS
Tuner can be different RF standard DVB-SS2,DVB-TT2,DVB-C,ISDB-T,ASTC
USS-9000 Universal CMS Platform
1: Add/Edit management the Live /VOD program
2: Management terminals
3: Management advertisement
4: Connection with PMS system
5:APK one time fee,life use
Why Choose Us
FAQ
Q1:What is the application for your encoder | Q2: Can I get some Samples for testing? | Q3: Can you provide OEM service as per our request? | ||
A1: Our Video to IP Encoder series designed for streaming the Video/Audio channels to Media Live Platform(Wowza/Ustream,Facebook...) and Servers Best Partner for IPTV&OTT Project, also can be used for Live Applications Churchs, Schools, Classrooms, GYM, Airport, Business, Trains, homes, video conference and so on | A2: Yes, sample order acceptable . Furthermore you can check the web management by remote, we can sending the testing TS files, pushing the streaming to your servers Our professional engineers will offer the services according your testing requirements | A3: Yes, DIGICAST as the original factory , our R&D department can realized function customization based on your project application . also we offer Brand OEM services to global Agents &Clients Please consult the sales for detailed requirements. | ||
Q4: What about your Warranty? | Q5: What is your Lead time and method of Shipment? | Q6: What's your Payment method supported? | ||
A4: All products has 5 years' warranty whatever you ordered from our Agents or from us directly , as long as it is DIGICAST Brand,we offer original factory Warranty and technical supports online/phone, repair services by our experienced after-sales specialist. Service time: 9:00AM~23:59PM(GMT+8) | A5: we are factory ,adequate inventory, Generally delivery within 1-2 workdays after payment confirmed , all goods have to go through 100% QC testing and Aging Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 3-6 workdays to your designated address | A6: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc. | ||
