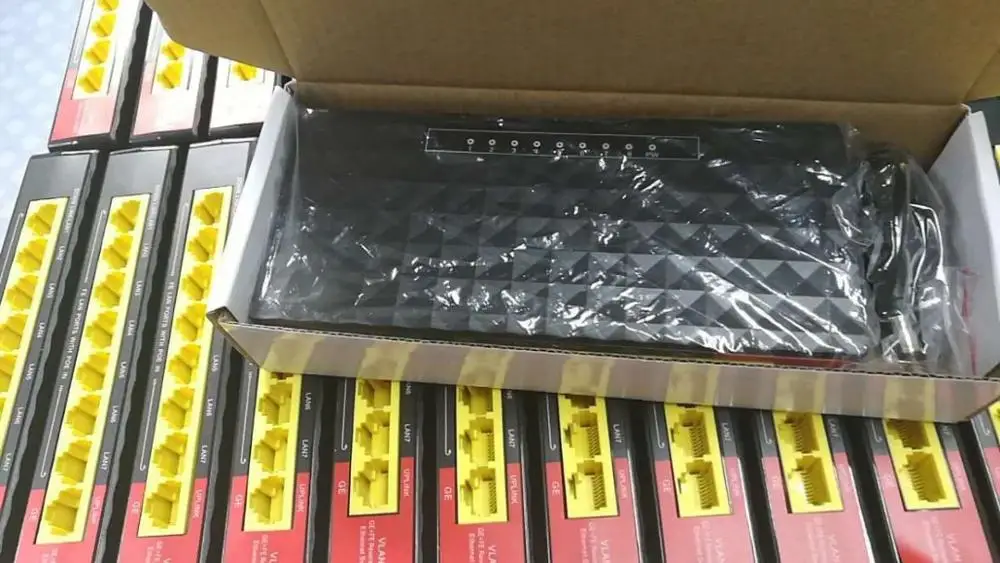

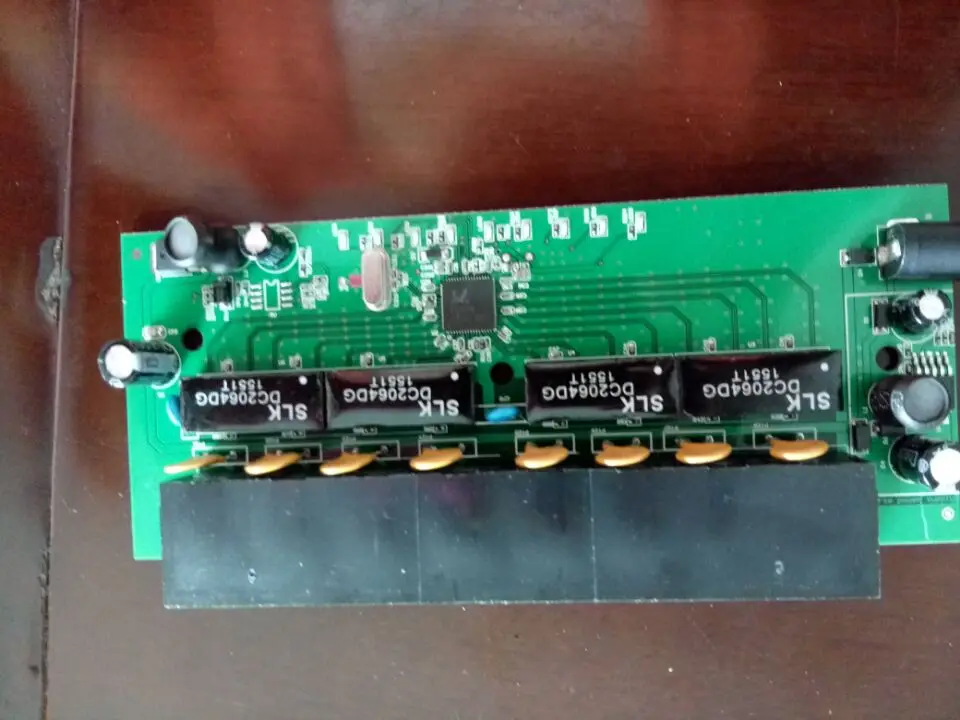

GEPON EPON ONU 100/1000 м 8 портов питания PD RPOE обратный коммутатор через ethernet

GEPON EPON ONU 100/1000 м 8 портов питания PD RPOE обратный коммутатор через ethernet

Категория: Оптоволоконное оборудование >>>
Поставщик: Shenzhen Powerlink Electronic Technology Company Limited

Цена:10,00 $ - 12,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Overview

8 1000M TP + 2 1000M SFP switch is ten ports 100M/1000M Ethernet Switch, it provides eight 1000M (10/100/1000M adaptive) RJ45 ports and 2 Gigabit SFP port uplink, include non-managed and managed types, managed types support Web management

8 1000M TP + 2 1000M SFP switch supports SFP hot plug; Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements

Character:

lSupport 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 1000M SFP port uplink

lIt can build 1000M fiber internet

lSupport SFP hot plug, Support Jumbo frames

lSupport 100/1000M port full rate, full-duplex non-blocking forwarding

lSupport 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth

lSupport WEB management

lSupport to provide wall-mounted hanger better for installation(optional), metal casing better for heat dissipating

Technical Specification

Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 1000M RJ45 ports : 10/100/1000Mbps 2 1000M SFP: 1 Gbps, 1000M SFP
MAC	16K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/1A
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	70mm (H)×290mm(W)×185mm (D)


1 (6) 1 (8) 1 (10) _16
