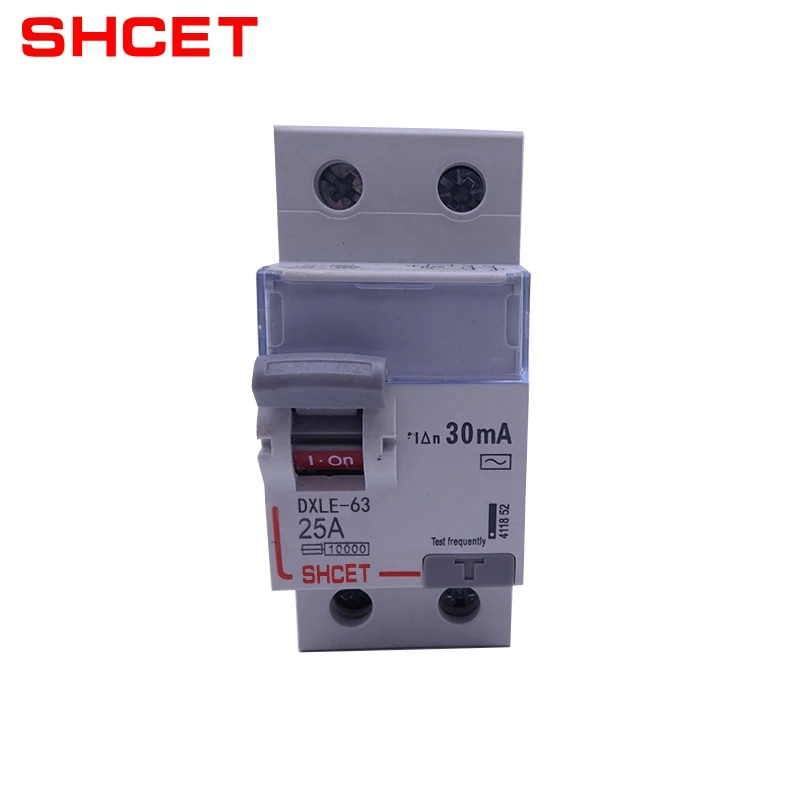

Лидер продаж автоматический выключатель утечки заземления 20/30 мА цена RCCB
- Категория: Выключатели >>>
- Поставщик: Shanghai Cet Electric Co. Ltd.
Сохранить в закладки 60866900098:
Описание и отзывы
Характеристики
1.Product Description
Circuit breaker is a kind of switching device which can turn on, load and break the current in normal circuit and can turn on, load and break the current in abnormal circuit within a specified time.
2.Specification
![Z_UT]9ALC25]T{VK`3JD6RR.png](http://sc02.alicdn.com/kf/H2e313d397dcf44f1ab6324db2a11c5d1p/200042417/H2e313d397dcf44f1ab6324db2a11c5d1p.png)
| Standard | IEC/EN 61008 | ||
| Product | Residual Current Circuit Breaker | ||
| Model | DXLE-63 | ||
| Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
| Rated Current | A | 16,20,25,32,40,50,63 | |
| Number Of Poles | P | 2P or 4P | |
| Rated Voltage Ue | V | AC230/400 | |
| Rated Sensitivity | mA | 30,100,300,500 | |
| Rated Frequency | Hz | 50/60 | |
| Rated Breaking Capacity | A | 1 | |
| Break Time Under In | S | ≤0.1 | |
| Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
| Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2.5 | |
| Pollution Degree | 2 | ||
| Thermo-magnetic Release Characteristic Curve | B,C | ||
| Mechanical Features | Electrical Life | t | 6000 |
| Mechanical Life | t | 20000 | |
| Protection Degree | IP20 | ||
| Storage Temperature | ℃ | -25-+70 | |
| Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
| AWG | 18-3 | ||
Standard | IEC/EN 61008 | ||
Product | Earth Leakage Circuit Breaker | ||
Model | DZ30LE(1P+N) | ||
Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
Rated Current | A | 6,10,16,20,25,32,40,50,63 | |
Number Of Poles | P | 1P+N | |
Rated Voltage Ue | V | AC230/400 | |
Rated Sensitivity | mA | 30,100,300 | |
Rated Frequency | Hz | 50/60 | |
SCPD Fuse | A | 10000 | |
Break Time Under In | S | ≤0.1 | |
Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2 | |
Pollution Degree | 2 | ||
Mechanical Features | Electrical Life | t | 4000 |
Mechanical Life | t | 10000 | |
Protection Degree | IP20 | ||
Storage Temperature | ℃ | -25-+70 | |
Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
AWG | 18-3 | ||
Standard | IEC/EN 61009-1 | ||
Product | Residual Current Circuit Breaker | ||
Model | DZ47LE | ||
Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
Rated Current | A | 6,10,16,20,25,32,40,50,63 | |
Number Of Poles | P | 1P+N or 2P or 3P or 3P+N or 4P | |
Rated Voltage Ue | V | AC230/400 | |
Rated Sensitivity | mA | 30,100,300 | |
Rated Frequency | Hz | 50/60 | |
Rated Breaking Capacity | A | 1 | |
Break Time Under In | S | ≤0.1 | |
Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 4000 | |
Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2 | |
Pollution Degree | 2 | ||
Thermo-magnetic Release Characteristic Curve | C, D | ||
Mechanical Features | Electrical Life | t | 4000 |
Mechanical Life | t | 20000 | |
Protection Degree | IP20 | ||
Storage Temperature | ℃ | -25-+70 | |
Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
AWG | 18-3 | ||
Standard | IEC/EN 61008 | ||
Product | Residual Current Circuit Breaker | ||
Model | E90LE(new type) | ||
Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
Rated Current | A | 16,20,25,32,40,50,63 | |
Number Of Poles | P | 2P or 4P | |
Rated Voltage Ue | V | AC230/400 | |
Rated Sensitivity | mA | 30,100,300,500 | |
Rated Frequency | Hz | 50/60 | |
Break Time Under In | S | ≤0.1 | |
Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2.5 | |
Pollution Degree | 2 | ||
Thermo-magnetic Release Characteristic Curve | B,C | ||
Mechanical Features | Electrical Life | t | 6000 |
Mechanical Life | t | 20000 | |
Protection Degree | IP20 | ||
Storage Temperature | ℃ | -25-+70 | |
Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
AWG | 18-3 | ||
Remark | E90LE are one series of E90 mcb | ||
| Standard | IEC/EN 61008 | ||
| Product | Residual Current Circuit Breaker | ||
| Model | HAG | ||
| Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
| Rated Current | A | 16,20,25,32,40,50,63 | |
| Number Of Poles | P | 2P or 4P | |
| Rated Voltage Ue | V | AC230/400 | |
| Rated Sensitivity | mA | 30,100,300,500 | |
| Rated Frequency | Hz | 50/60 | |
| Break Time Under In | S | ≤0.1 | |
| Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
| Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2.5 | |
| Pollution Degree | 2 | ||
| Thermo-magnetic Release Characteristic Curve | B,C | ||
| Mechanical Features | Electrical Life | t | 6000 |
| Mechanical Life | t | 20000 | |
| Protection Degree | IP20 | ||
| Storage Temperature | ℃ | -25-+70 | |
| Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
| AWG | 18-3 | ||
| Standard | IEC/EN 61008 | ||
| Product | Residual Current Circuit Breaker | ||
| Model | ID | ||
| Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
| Rated Current | A | 16,20,25,32,40,50,63 | |
| Number Of Poles | P | 2P or 4P | |
| Rated Voltage Ue | V | AC230/400 | |
| Rated Sensitivity | mA | 30,100,300,500 | |
| Rated Frequency | Hz | 50/60 | |
| Break Time Under In | S | ≤0.1 | |
| Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
| Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2.5 | |
| Pollution Degree | 2 | ||
| Thermo-magnetic Release Characteristic Curve | B,C | ||
| Mechanical Features | Electrical Life | t | 6000 |
| Mechanical Life | t | 20000 | |
| Protection Degree | IP20 | ||
| Storage Temperature | ℃ | -25-+70 | |
| Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
| AWG | 18-3 | ||
Standard | IEC/EN 61008 | ||
Product | Residual Current Circuit Breaker | ||
Model | CT2 | ||
Electrical Features | Type(wave form of the earth leakage sensed) | A, AC | |
Rated Current | A | 16,20,25,32,40,50,63 | |
Number Of Poles | P | 2P or 4P | |
Rated Voltage Ue | V | AC230/400 | |
Rated Sensitivity | mA | 30,100,300 | |
Rated Frequency | Hz | 50/60 | |
Break Time Under In | S | ≤0.1 | |
Rated Impulse Withstand Voltage(1.2/50) Uimp | V | 6000 | |
Dielectric Test Voltage At Ind. Freq. For 1Min | KV | 2.5 | |
Pollution Degree | 2 | ||
Thermo-magnetic Release Characteristic Curve | B,C | ||
Mechanical Features | Electrical Life | t | 6000 |
Mechanical Life | t | 20000 | |
Protection Degree | IP20 | ||
Storage Temperature | ℃ | -25-+70 | |
Installation | Terminal Size To p/buttom for cable | mm2 | 25 |
AWG | 18-3 | ||
3.Details
4.More Products
5.Shipping
6.Certificate
7.About Us
8.FAQ
Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.
Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen
Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
9.Contact Us
Похожие товары

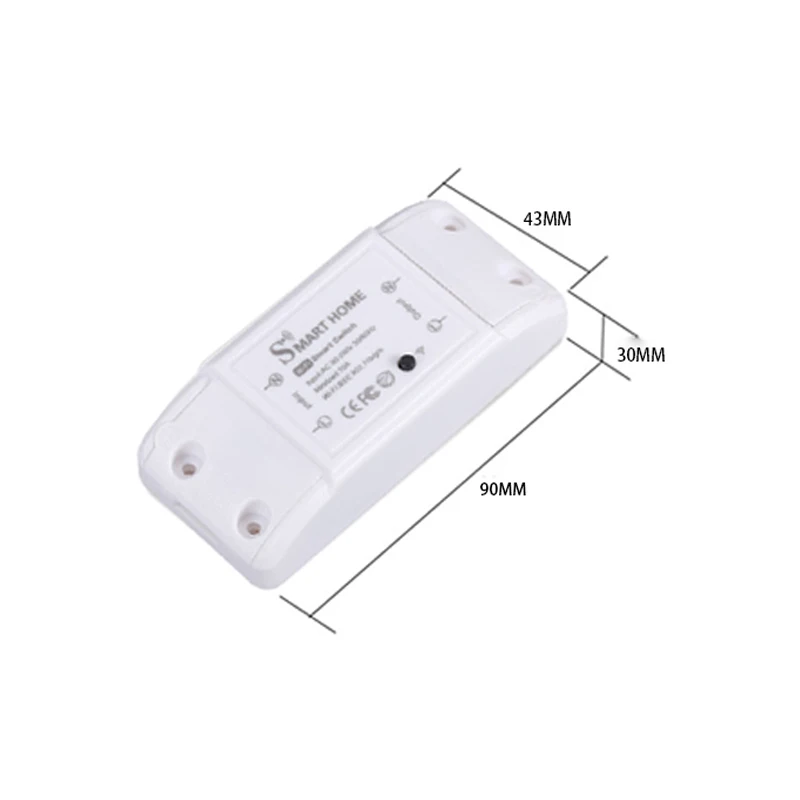

Умный выключатель Wi-Fi «сделай сам», универсальный беспроводной выключатель света с дистанционным управлением 10 А
5,00 $ - 8,00 $
Миниатюрный Электронный автоматический выключатель Suntree SL7 без полярности DC 6a-63а 550 в 800 в MCB для системы PV
Превосходное качество, Интеллектуальный универсальный автоматический выключатель, универсальные электрические автоматические выключатели ACB
Штекером постоянного тока системы хранения выключатель переключатель выключатель 500V 250A IEC & SAA

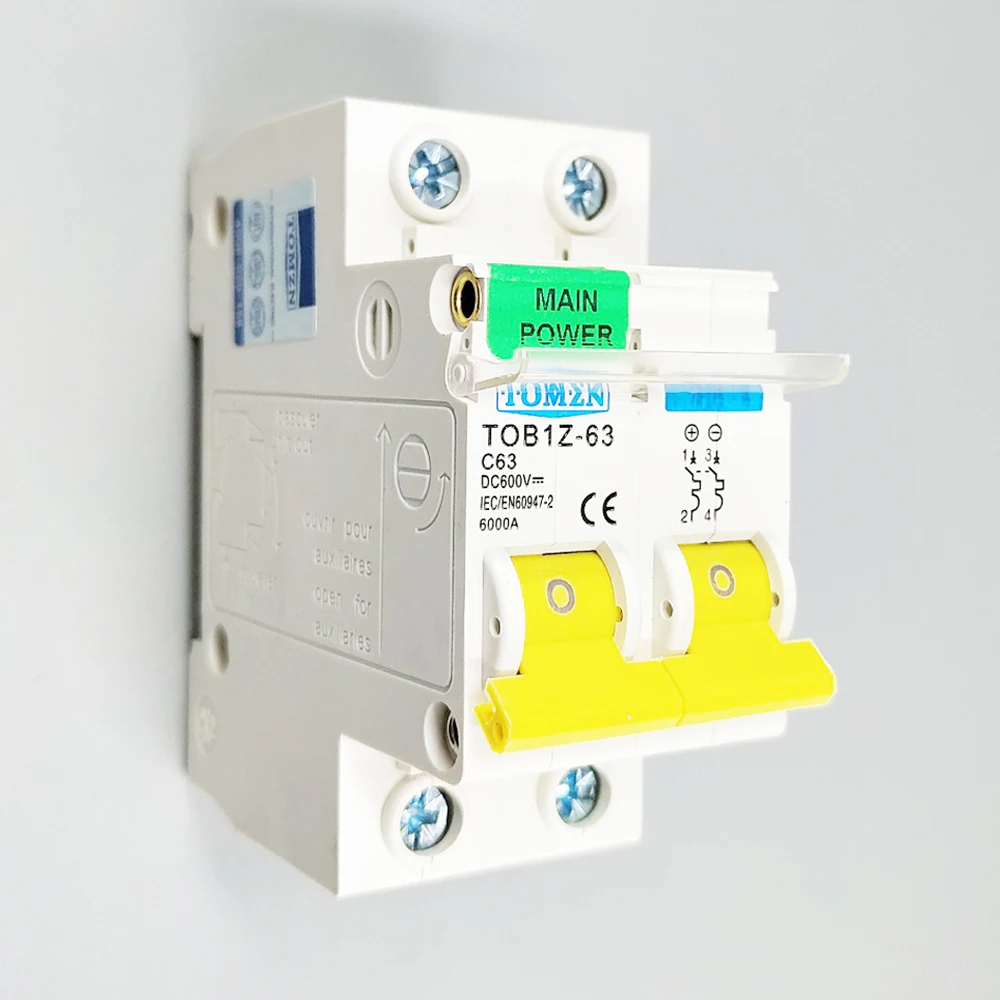

TOB1Z-600V DC 600V Американская классификация проводов 2р 16A 32A 40A 50A 63A 80A 100A 125A IP20 DC Миниатюрный автоматический выключатель для фотоэлектрических систем
Trolink Лидер продаж от производителя умный дом переключатель Wi-Fi выключатель 110-240V Универсальный Wi-Fi выключатель
2,90 $ - 3,10 $

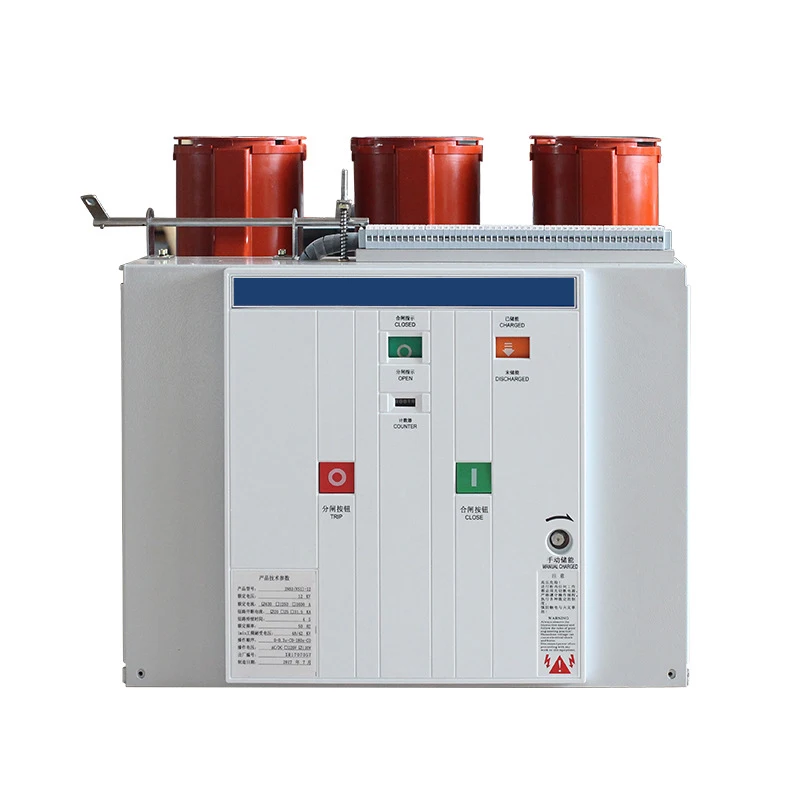

Zn63A-12 Vs1 12kv Vcb Высокое напряжение и низшее напряжение Крытый вакуумный выключатель
