HR CR GI PPGI черная стальная катушка из нержавеющей стали линия резки и автоматическая машина для металлических катушек

HR CR GI PPGI черная стальная катушка из нержавеющей стали линия резки и автоматическая машина для металлических катушек

Категория: Бобинорезательный станок >>>
Поставщик: Shanghai Honcang Industrial Limited

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Category

Steel pipe making machine.

ERW welded pipe / tube making.

Used for building, scaffolding, furniture, cars, water, gas...etc

Metal roll forming machine.

Steel profile product roll forming machine.

Model: C/Z Purlin, roofing/wall panel, gutter, downspout, keel steel, strut....

Coil cut to length line.

Cutting metal coil to sheet plate .

Thickness from 0.2 to 25mm. Coil width customized

\t ERW Pipe Making Machine	\t Slitting Machine	\t Cut to Length Line
\t Steel Roll Forming Machine	\t Metal Sheet Laminating Line	\t Coil Color Coating Line

Why Choose us?

1.30 years in metal processing equipment development

2.15 years export experience, serves hundreds clients in 40 countries

3.Top engineer team, advanced production process, maximize returns for client.

4.24 hours online service, excellent service system

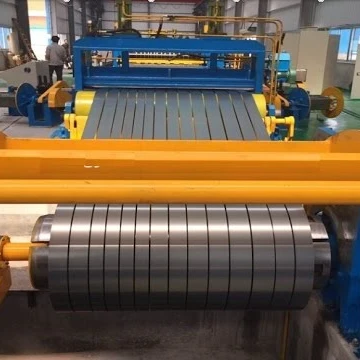

Slitting Machine

Sheet metal steel strip slitting machine sheet metal steel coil slitter machine steel coil cutting machine

Supplied Machine: metal coil slitting machine line
SINO POWER slitting is applicable to coils of various specifications. aluminum slitting is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. stainless steel slitting has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1: Specification of metal steel coil slitting machine line

\t Model	\t SP0.3-3.0x1600 SP0.8-5.0x1600	\t SP1-6x2000 SP2-8x2000	\t SP3-12x2200 SP4-16x2200
\t Coil material	\t SS / CS / GI/ PPGI /HR / CR /Aluminum /Copper
\t Thickness	\t 0.3-3.0mm 0.8-5.0mm	\t 1-6mm 2-8mm	\t 3-12mm 4-16mm
\t Coil width	\t 800-1600mm	\t 900-2000mm	\t 900-2200mm
\t Coil weight	\t ≤20T	\t ≤30T	\t ≤35T
\t Decoil I.D	\t 508mm,610mm,760mm
\t Recoil I.D	\t ≤2000mm	\t ≤2200mm	\t ≤2200mm
\t Strip Width	\t ≥20mm	\t ≥30mm	\t ≥40mm
\t Number of strip	\t 5-35	\t 3-10	\t 3-7
\t Slitting accuracy	\t ±0.03mm	\t ±0.05mm	\t ±0.05mm
\t Single side straightness	\t <0.3mm/min	\t <0.3mm/min	\t <0.3mm/min
\t Line speed	\t 0-120m/min	\t 0-80m/min	\t 0-40m/min
\t Electrical control system	\t PLC automatic control	\t PLC automatic control	\t PLC automatic control

Above are our standard series, we also accept customized. We have 0.3-3.0, 0.8-5.0, 1-6mm, 2-10mm, 3-12mm, 4-16mm, 5-20mm,etc.

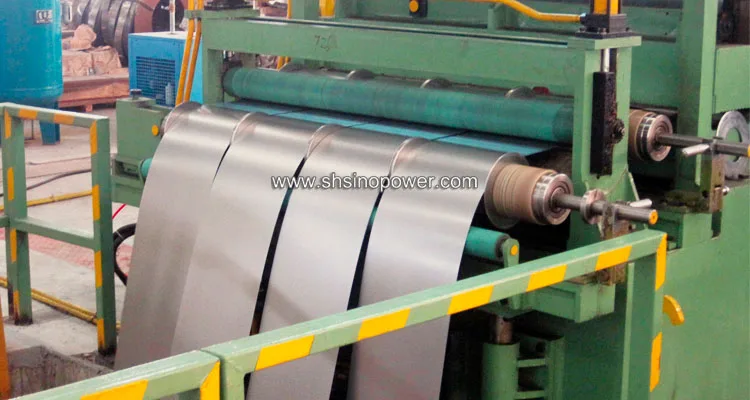

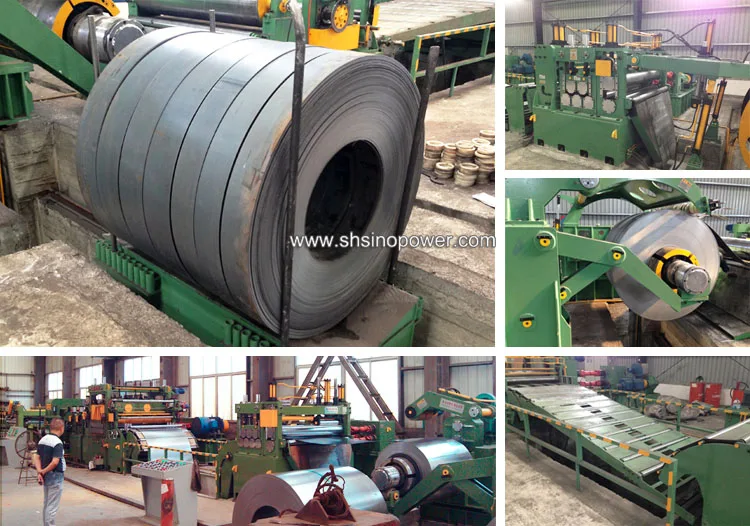

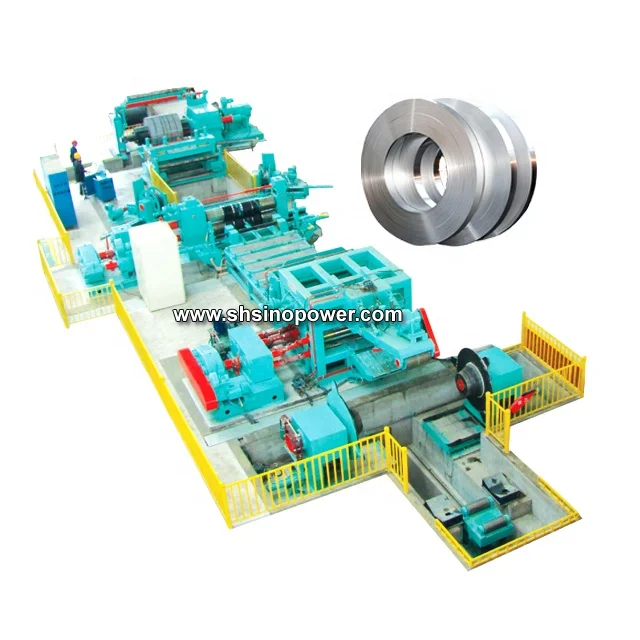

2: Whole review of slitting machine

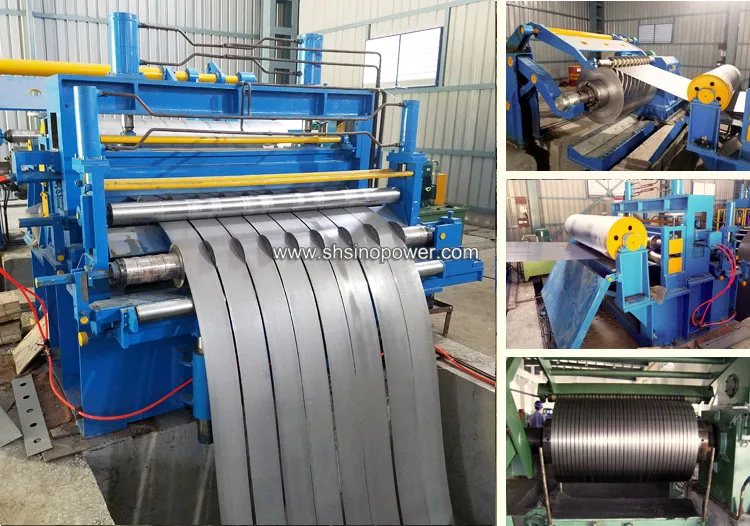

3. Flow Chart & Machine

Hydraulic bracket-Carrying coil car-Hydraulic single arm decoiler-Feeding guide plate fitting-pinching machine,coil head shearing-Front looping table-Side guiding fitting-Disc shear-Curling machine-Back looping table-Tension table-Recoiler-Discharging car-Hydraulic bracket-Hydraulic control-Electric control
