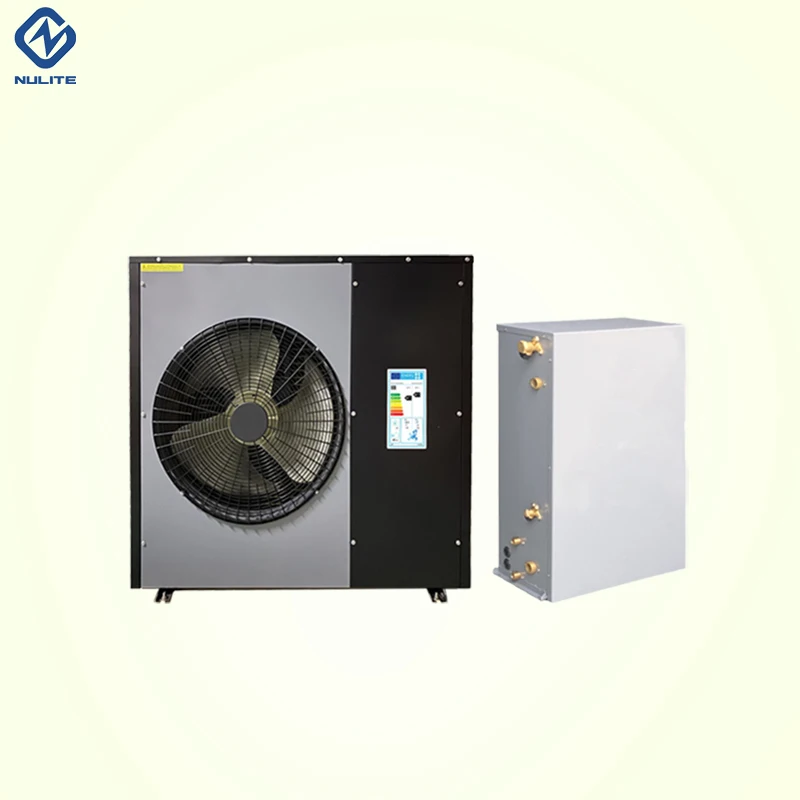

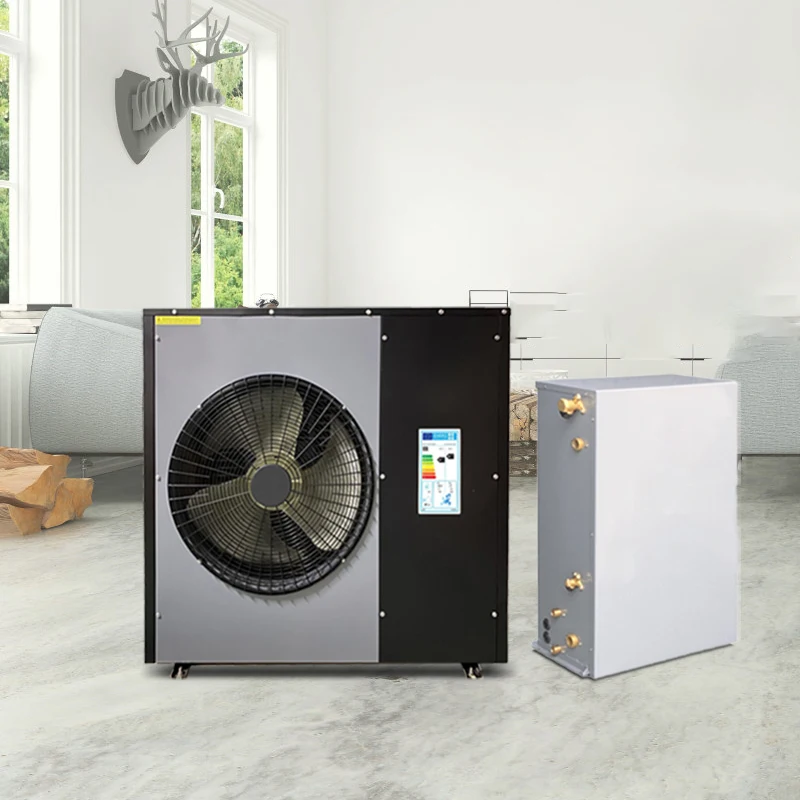

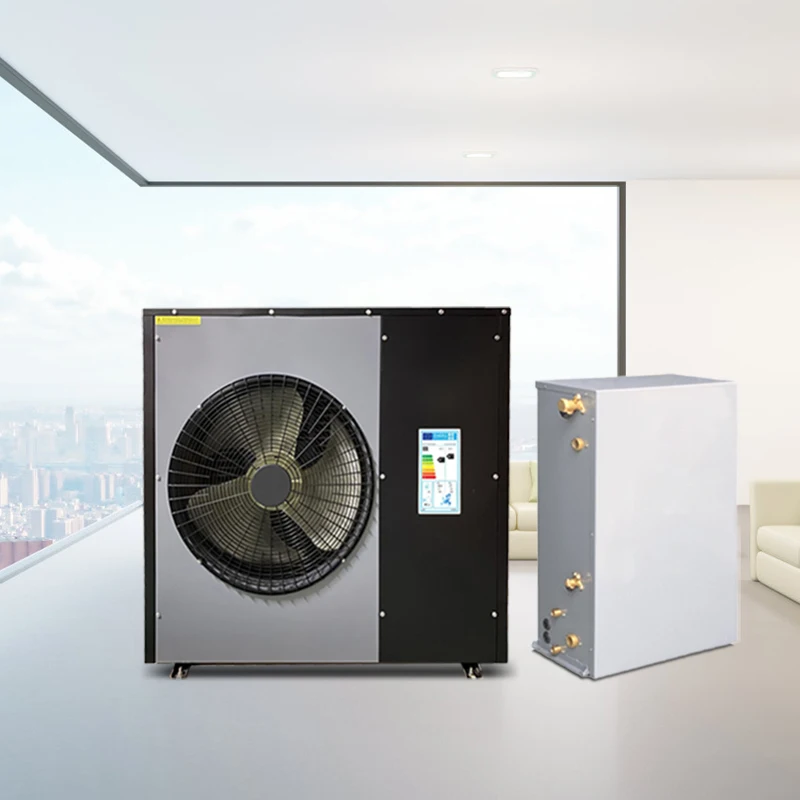

ERP A+++ DC Inverter Heat Pump NL-BKDX30-95I/150/R For Heating Cooling Hot Water.
1. ASHP Heating Capacity: DC Inverter 10KW 20KW Split Inverter Heat Pump
2. Best Selling Market: Gemany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria, Switzerland,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia, New Zealand, Chile, Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.3. Ambient Temp of Using: Minus 25C, max 60C Hot Water Output
4. Certificate: ISO9001, CE, CB, EMC, MSDS, Scop, erP Energy Label, ROHS
5. *Mitsubishl* dual-rotor Compressor for BKDX DC Inverter Heat Pump Series
6. All in One Heat Pump Design, 3HP, 5HP with built in water pump, expansion tank
and dc inverter brushless fan motor. Low Noise less than 55dB.
Specification
Model | NL-BKDX30-95I/150/R |
Rated heating capacity | 10KW |
Rated cooling capacity | 7.5KW |
Rated hot water capacity | 9.5KW |
Voltage | 220V/380V~50HZ/60HZ |
Rated outlte water temperature | Hot water: 55~60C / heating:40～45C / cooling:10～12C |
Max water temperature | 60°C |
Rated water flow | 1.7m3/h |
Refrigerant | R410A |
Control mode | Microcomputer central processor (linear control) |
Compressor | Mitsubish inverter compressor |
Ambient temperature | (-25℃ -- 43℃) |
Inlet and outlet pipe size | DN25 |
Packing size | 1060*500*1140MM |
Energy efficiency | ERP A+++(with certificates) |
* NL-BKDX30-95I/150/R split inverter series adapts Mitsubishi inverter compressor, inverter brushless fan, which make this series can work with 50HZ&60HZ power supply and more energy saving.
* Expansion tank, water pump, backup electric heater are integrated in this series, very cheaper and convenient for installation.
Application Of NL-BKDX30-95I/150/R
Heating Cooling Hot Water Three Function In One Heat Pump
Cooling Mode: The Rated Outlet Cold Water Temperature For Fan Coil Cooling is 12℃.
Hot Water Mode: The Rated Outlet Hot Water Temperature For Daily Hot Water Consumption is 55℃.
Hot Water Mode: The Rated Outlet Hot Water Temperature For Daily Hot Water Consumption is 55℃.
Installation & Operation
The NL-BKDX30-95I/150/R series heat pump has three functions, so there are three connection diagram for your option:
*Heating Cooling Hot water diagram, heating hot water in Winter, Cooling Hot water in Summer.
*Heating hot water all year around, no necessary for cooling.
*Heating Cooling only, no need daily hot water.
*Heating hot water all year around, no necessary for cooling.
*Heating Cooling only, no need daily hot water.
LED Touching Screen liner controller
The Split inverter heat pump will come with a liner control, temperature, mode, and time setting can be simply adjusted by
touching the related button
touching the related button
Support WIFI(APP) control
You can download the free English program APP from the APP store, connected the heat pump with WIFI to realize the APP control by
phone
phone
Time Setting
On and off time setting, memorizing your time setting and temperature setting for each mode.
Features Of NL-BKDX Series
Full DC Inverter Technology
More energy saving than the fix frequency compressor, can lower than 3KW/H in some area, the NL-BKDX30-95I/150/R inverter heat pump will output heat according to the indoor load, saving as much power as it can.
When the inverter brushless fan rotates, the friction is smaller, fan speed increased, the noise is reduced. the NL-BKDX30-95I/150/R Full inverter heat pump will automatically the speed of the fan, saving more energy.
When At heating and hot water mode, it can work normally at minus 25 degrees, when at cooling mode, it can work at 48 degree.
Water Pump, expansion tank, backup electric heater are built in the NL-BKDX30-95I/150/R full dc inverter series, saving more than 300USD, and easy for installation.
The energy efficiency of NL-BKDX30-95I/150/R series is A+++ at water temp 35 degree, A++ at water temp 55 degree, all are CE erP qualified.
Packing & Delivery
Packing: Wooden plywood box with built-in cushion foam for NL-BKDX30-95I/150/R inverter heat pump.
Delivery: Can be delivery within 5 days after full payment if in stock, EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Door to Door Service provided.
