Product Description

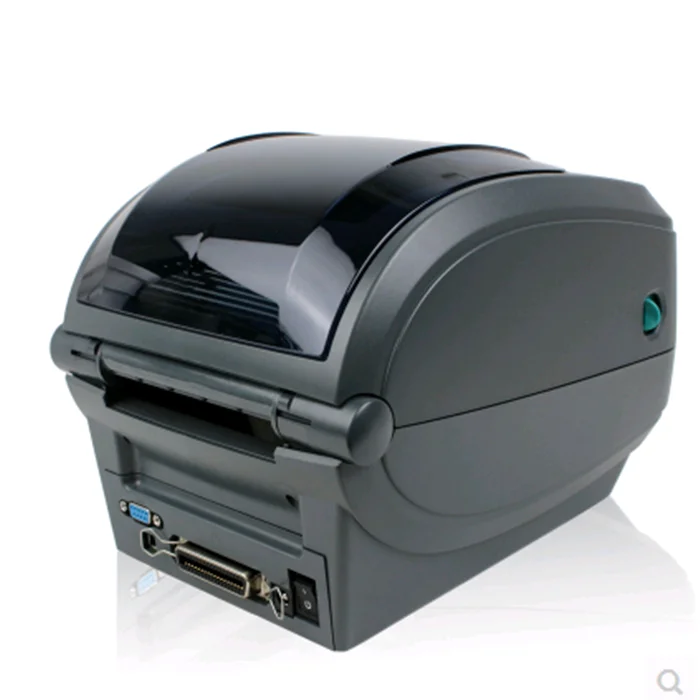

Thermal transfer printing barcode label thermal printer
Features :
China manufactured is of same characteristics.
203 dpi printer, with high printing speed of 127mm/ sec 5 inches speed, the max printing width 104mm, ribbon suits for 110mm*74m, 1/2 inch core.
This is a common option for quite large customers group.
How to use it:
1. first, put the ribbon on convey spindle, barcode labels on lable roll spindle, especially notice that the ribbon or label must be in the middle of the spindle, and aligned.
2. Be sure that the inking side of ribbon will be contact with labels.
3. Ribbon material must match with label used, otherwise it can't show perfect printing images.
4. Ribbon must be a little bit wider than care labels for the protection of print head.
thermal printer | ||
printing method | Thermal transfer/ thermal sensitive | |
resulotion | 203dpi ( 8 dots/mm) | |
max printing speed | 127mm(5)/s | |
max printing length | 991mm( 39 ") | |
max printing width | 104mm(4.09") | |
Communication interface | USB1.1, serial interface, parallel, Fiber ethernet interface | |
Storage | RAM 8MB, Flash RAM 4 MB | |
CPU | 32 Bytes RISC processor | |
barcode | 1-D, Codabar, Code 11, Code 128, Code 128 (include A/B/C subset), Code39, Code 93, EAN-13, EAN-14, EAN-8, EAN-8 and EAN-13 with 2 or 5 digit extensions, German Post Code, Industrial 2-of-5, Interleaved 2-of-5, Japanese Postnet, Logmars, MSI, MSI-3, Plessey, Postnet, RSS (reduced space symbology), Standard 2-of-5, UCC/ EAN-128, UPC and EAN ( with 2 bit or 5 bit expansion), UPC-A and UPC-E ( with EAN 2 bit or 5 bit expansion), UPC-E, Two dimensions, Aztec, Codablock, Code 49, Data Matrix, MacroPDF417, MaxiCode, MicroPDF417, PDF417, QR Code, RSS/ GS1 DataBar series(12 kinds barcodes) | |
Typefaces/ Character set | 16 kinds inset expanded ZPLII dot-Matrix typefaces 1 kind inset elastic ZPL typeface 5 kinds inset expanded EPL2 DOT-Matrix typefaces Support customized typefaces and graphs, include customize icon | |
Substrates sensor | Reflective , transmission | |
Substrates type | Black strip paper, black mark paper, continuous paper,continuous receipt paper, cutting paper, fold paper, barcode sticker, perforated paper, receipt, tag material | |
label length | 9.7-991mm | |
Label width | 19mm-108mm | |
Label thickness | 0.08-0.2mm | |
The most diameter | 127mm | |
Core diameters | 12.7mm | |
Ribbon length | 74m | |
Ribbon width | 33.8-110mm | |
Ribbon proportion | 1:1 | |
Ribbon diameters | 34mm | |
Ribbon core diameters | 12.7mm | |
Products size | 194*191*254mm | |
Weight | 4.1KG | |
Voltage Power | AC 100-240V, 50/60Hz | |
Enviromental condition | Operation enviroment: 5-40°C, 20-85% humidity (uncondesed) Storage: -40-60°C, 10-90% Humidity ( uncondensed) | |
Packing & Delivery
Thermal transfer printing barcode label GK420T thermal printer
Busniess term:
EXW, C&F, FOB CIF are acceptable.
EXW, C&F, FOB CIF are acceptable.
Delivery:
By express: FEDEX, DHL, TNT, UPS, EMS We will choose the preferabel, cost-efficient way for you.
By sea: Please provide the specific seaport near your address.
By air: Please offer me the international custom airport for me to confirm.
Lead time:
Generally 3-5 working days, mass production for 7-10 working days, color ribbon needs take longer.
Our Company
Dongguan Kebao Barcode Technology Co.,ltd
Our company with 7 years experienc in this field, strives to provide you a wide range of TTR, hang tag, labels, barcode printer, hot stamping foil, franking machine T1000, ID card printer ribbon, etc, which are hot and appeal to different taste for worldwide, definitely we are meant to show you our professional technican and great pre-services and after-sale-service.
We are committed to expand our type series, species introduction of material for processing to satisfy every of you request with up-date items. With professional knowledge, meticulous services, and competitive price, we believe we are very qualified to be your qualified partners in the future by supporting you to open up a new market.
Why Choose Us
> Completely and careful double check before shipment.
> Take great pains for every of you with highly patience to solve any questions and issues.
> Our products with high quality guranteed the quality for 2 years or above.
> Machine installing and worker training service; whole life free tecnical support; regular onsite routine inspection.
> We put service premiumly, your satisfaction is our perpetual persuit.
> We have proffesional and corporately team.
Contact
Contact: evonne Tel:+0086-18929208631/ 13528570315 skype: evonne-lee
whatsapp:+0086-18929208631 wechat: 18929208631
Contact :Aileen Tel: +0086-18944737167
skype:Aileen Yuan wechat: 18944737167
Похожие товары
Цветная доставка этикетка самоклеющаяся термонаклейка
0,65-0,70 $
Paxar9825 совместимая с 9855 для ухода за одеждой переводная печать смола термопринтер лента
Устойчивая к царапинам лента для перепечатки, 33 мм * 600 м
598,85-643,21 ₽
Совместимый нейлоновый цветной картридж для принтера EPSON LQ300 4C LX300 PRINT
6,37-7,89 $
Совместимая цветная лента YMCKT 535000-003 для принтера Datacard CP CD series
50,00-55,00 $

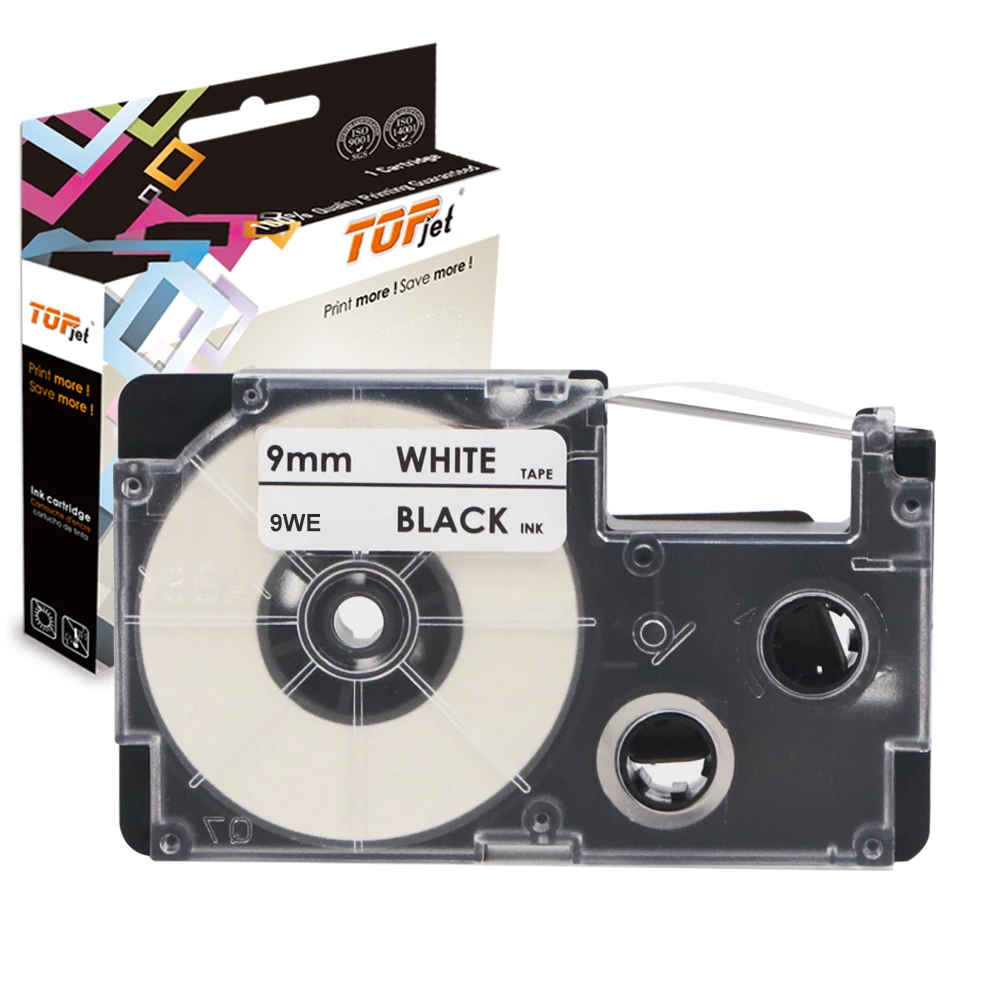

Лента XR-9WE этикеток Topjet черная на белом 9 мм
