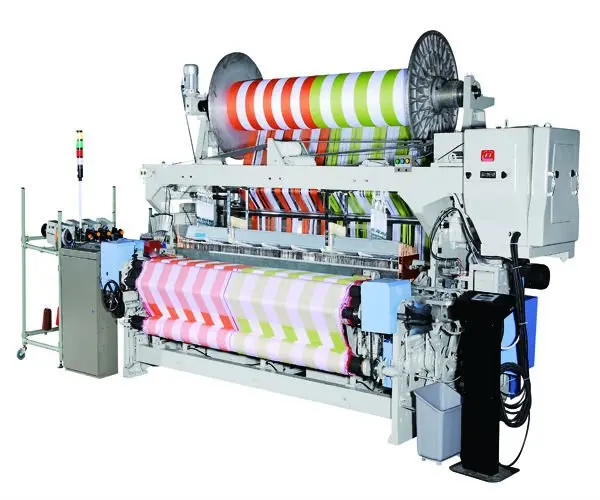

YJ737B высокоскоростной ткацкий станок для

Описание и отзывы

Характеристики

1.USE

THis towel loom is used to weave all kinds of spiral satin or small jacquard satin towels for face, tea, bath and floor etc. With the material of cotton, wool and blended yarns, it is especially suitable to weave heavy towel.

2.Main Data

Reed width(cm)                               200(78”),230(90”),260(102”),280(110”)

Rotation speed(R.P.M)                  240RPM(78”)

Weft selection                                  6,8colors

Yarn count                                        Cotton:7Ne-60Ne.Wool 12Nm-100Nm Chemical fabric:100D-650D

Dia of warp beam(mm)                 (terry) φ800 or Φ600mm,(ground) φ680 or Φ600mm

                                                            (According to customers demand)

Dia of rolling-up(mm)                     Φ600mm

Let-off type                                        Up: positive electric let-off, Down: electric let-off

Terry raising type                             Cam type movable read terry raising

Height of terry(mm)                         Step less adjustment from 2 to 12times

Shedding mechanism                     Upper-placed electronic dobby (mechanical dobby is optional)

Number of heddle frame              16pages

Weft stop                                           Piezoelectric control

Warp stop                                         2rows electric warp stop

Color select                                      mechanical color select (electronic color select is optional)

Electric control                                   P.L.C

Motor power(KW)                            2.2KW~2.6KW

Weight(kg)                                        2000kg-2500kg

Overall size(mm)LxWxH                4706x1936x2220(230/90”)

3.Feature:

1.Adopts the cam with eccentric shaft structure for making terry motion. It assures the machine having high reliability of making-terry and regulating facility.

2.Thicker weft beating shaft assures enough beating rigidity, it can weaving the wide fabric more than 2800mm

The suspension of narrow track design, reduce the orbit of the friction of the warp yarn, reduce the warp broken ratio. The use of high quality carbon fiber rapier head obviously decrease the weft broken and extend the service life of the rapier head.

4.The two electromagnets which controlled the terry raising, controlled by technical program which set by electric control system, it can weaving high and low terry.

5. With the automatic pick finding device, greatly improve the working efficiency of operators.

Adopted centralized oil lubrication device, greatly reduce operator’s work
